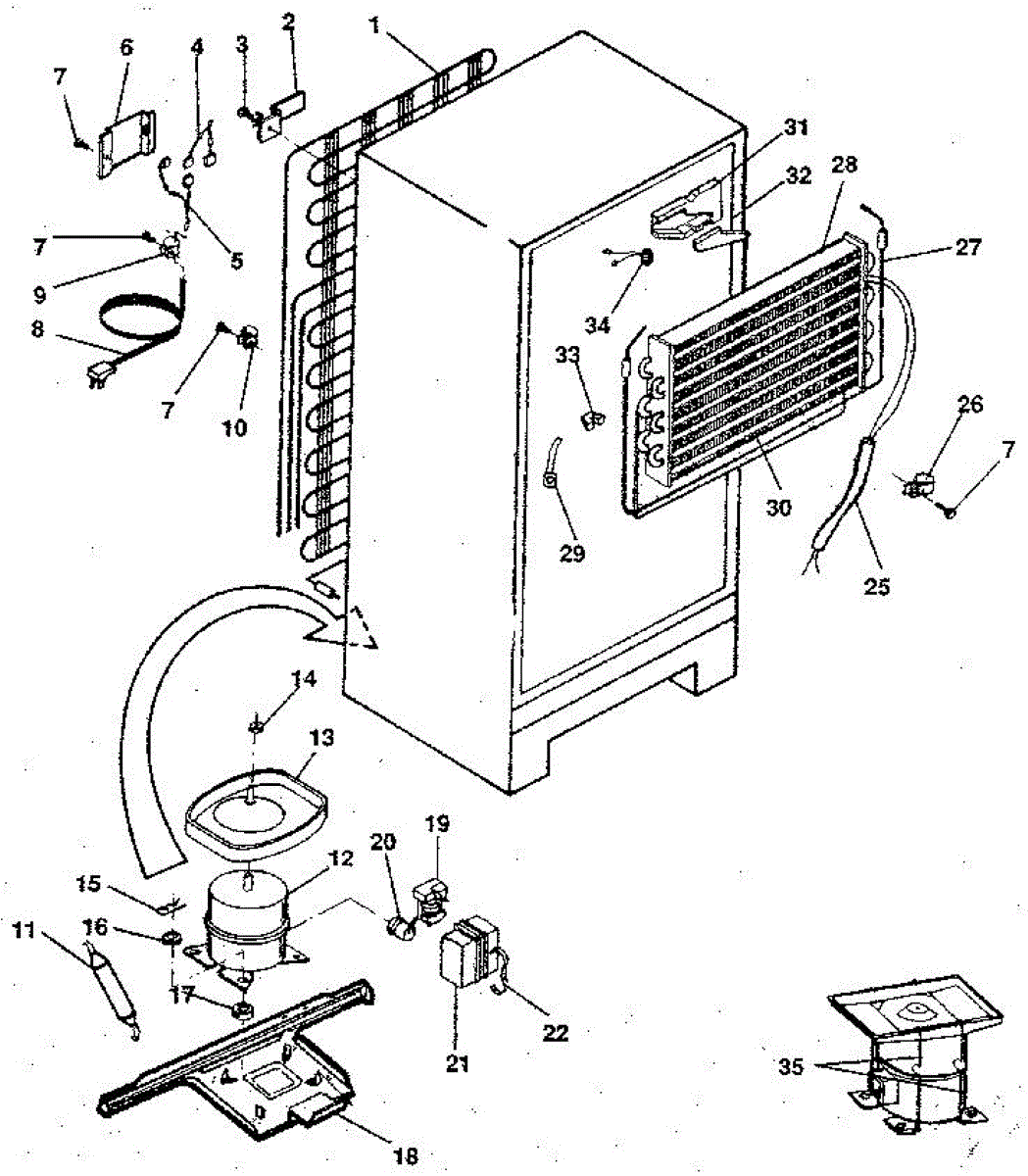

Parts for Kenmore 253.9605010 (2539605010, 253 9605010): Unit Parts

Includes service line.

This is a compressor used in several types of home appliances. The compressor is designed to take cold gas in the appliance and place it under pressure so the gas raises in temperature. It is then moved through the refrigerator system to ensure the unit stays cold throughout the appliance. This part can become damaged or malfunction, which may cause the motor to stop running, make the motor noisier, or cause the motor to never stop running.If this happens, the compressor will need to be replaced. A basic set of tools will be needed. A pair of work gloves can also be useful. First, locate the compressor as it may be in various locations depending on the appliance model. Unplug the appliance before removing the compressor. Install the new compressor using the original bolts and nuts before turning the power back on and resuming normal use.This part is sold on an individual basis. The compressor is made to be used with refrigerators, ranges, stoves, ovens, air conditioners, and freezers created by Gibson, Frigidaire, Kelvinator, Montgomery Wards, Westinghouse, Tappan, JCPenney, Universal, and Kenmore. It is an authentic OEM replacement part directly sourced from the manufacturer.

Replacement screw for securing panels, brackets, and covers on appliances. Replaces missing, stripped, or damaged screws to restore alignment.

The Starter is an OEM replacement part for Frigidaire refrigerators. This component is crucial for initiating the compressor, which is responsible for cooling the refrigerator. The starter works by providing the necessary electrical power to get the compressor running, ensuring that the refrigerator maintains the correct temperature.

Causes of a bad starter can include electrical malfunctions, wear and tear over time, or damage from power surges. A faulty starter can prevent the compressor from starting, leading to cooling issues.

Symptoms of a bad Starter include:

• The refrigerator not cooling properly
• The compressor not running or frequently cycling on and off
• Unusual clicking or buzzing noises from the compressor area
• The refrigerator being warmer than usual or food spoiling quickly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This compressor overload is a thermal/protective device that helps prevent compressor damage by cutting power when the motor overheats or draws excessive current. It restores normal operation once conditions return to safe levels. What it does:

• Protects the refrigerator compressor from overheating and electrical overloads
• Works with the compressor start relay to help the motor start and run properly
• Common symptom linkage: replaces a failed overload when the compressor hums but won't start
• Stops compressor cycling or prevents repeated trips that cause cooling loss

• One compressor overload (single piece as shown)

• Disconnect all power before replacing to avoid shock or injury
• Handle terminals carefully and reconnect matching terminal positions
• Replace only with the same part number or equivalent
• If compressor still won't start after replacing the overload, check the start relay and compressor condition.

Protective terminal cover that shields electrical connections from debris and moisture. Replace if cracked, broken, or missing to ensure safe operation.

Fix refrigerator cooling issues or compressor leaks with this tube repair kit. Essential sealed system component for restoring proper refrigeration.

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.
