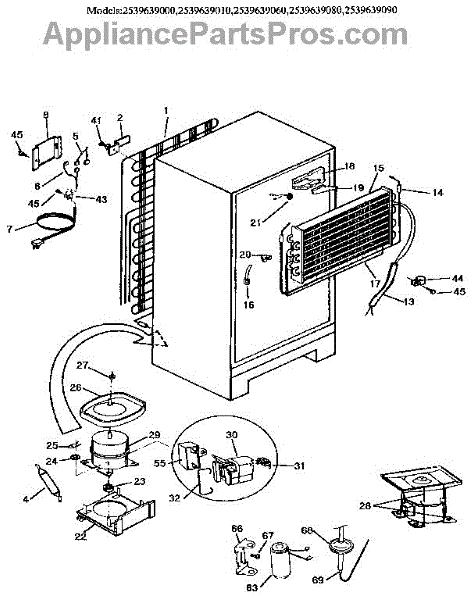

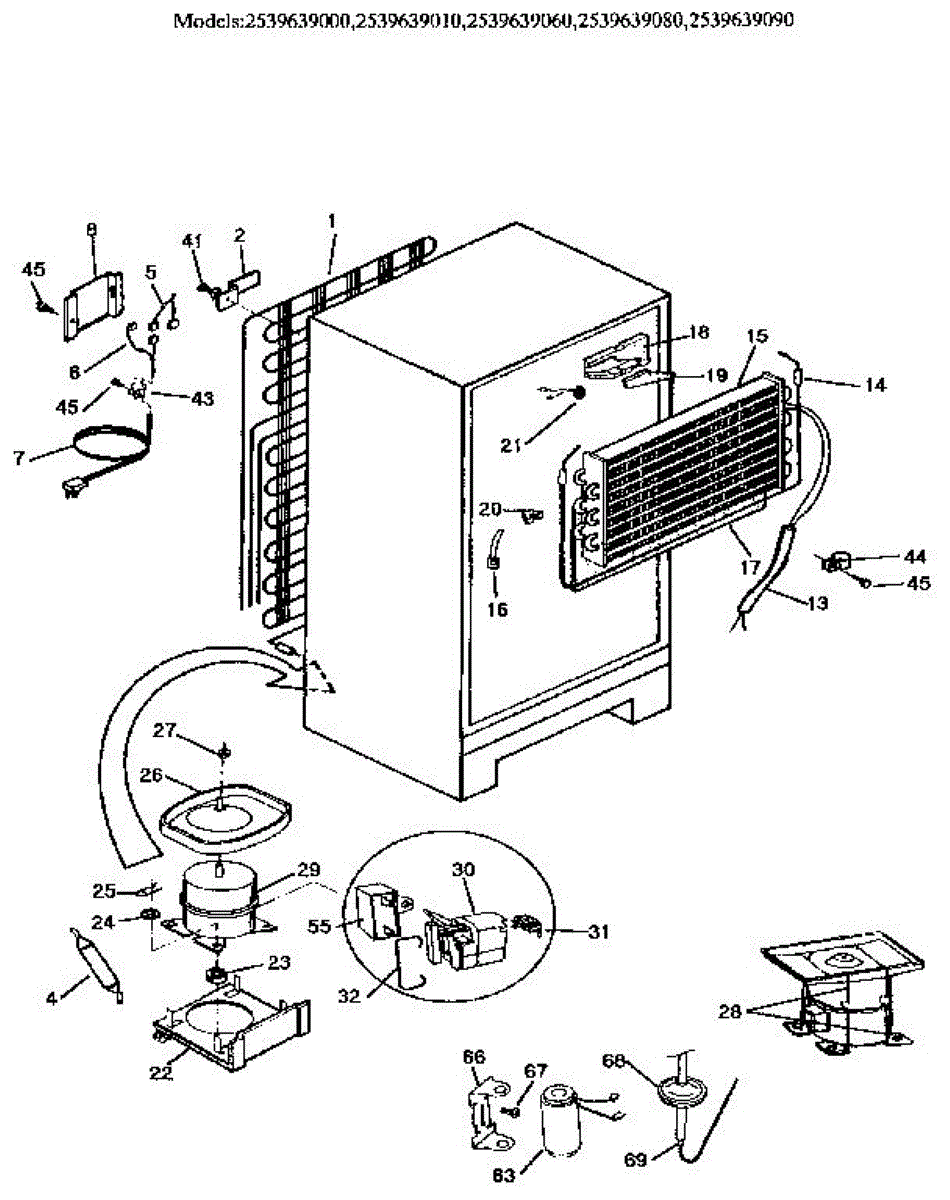

Parts for Kenmore 253.9639000 (2539639000, 253 9639000): Unit Parts

Replace a loose or missing extension lock washer causing rattling noises or unstable component mounting. Simple DIY fix in under 15 minutes.

Includes service line.

Fix ice buildup on evaporator coils with this defrost heater. Solves blocked vents and poor cooling. Mounts at evaporator, moderate DIY repair.

Fix ice buildup or frost in your refrigerator with this evaporator defrost kit. Includes components to restore proper defrost cycle operation.

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

This compressor mounting plate secures the compressor to the refrigerator chassis, helping maintain proper alignment and reduce vibration for quieter operation. Durable stamped metal designed to fit the factory mounting points. What it does:

• Secures the compressor assembly to the appliance frame to prevent movement
• Dampens and distributes compressor vibration to reduce noise
• Maintains compressor alignment for reliable operation
• Helps keep mounting hardware and rubber isolators in correct position

• Disconnect power to the appliance before service to avoid electrical shock
• Basic hand tools required; support the compressor when removing or installing mounting hardware
• Follow the OEM service manual for torque specs and detailed installation steps

Rubber grommet that mounts and cushions the compressor to reduce vibration transfer. Replace if cracked, worn, or missing to restore quiet operation.

Secures compressor to mounting bracket in your refrigerator. Replace if clip is broken, loose, or causing vibration noise. Verify fit with your model number.

Sound dampening foam pad for refrigerators and freezers. Installs on evaporator or compressor area to reduce vibration noise. Replace if worn or missing.

This is a compressor used in several types of home appliances. The compressor is designed to take cold gas in the appliance and place it under pressure so the gas raises in temperature. It is then moved through the refrigerator system to ensure the unit stays cold throughout the appliance. This part can become damaged or malfunction, which may cause the motor to stop running, make the motor noisier, or cause the motor to never stop running.If this happens, the compressor will need to be replaced. A basic set of tools will be needed. A pair of work gloves can also be useful. First, locate the compressor as it may be in various locations depending on the appliance model. Unplug the appliance before removing the compressor. Install the new compressor using the original bolts and nuts before turning the power back on and resuming normal use.This part is sold on an individual basis. The compressor is made to be used with refrigerators, ranges, stoves, ovens, air conditioners, and freezers created by Gibson, Frigidaire, Kelvinator, Montgomery Wards, Westinghouse, Tappan, JCPenney, Universal, and Kenmore. It is an authentic OEM replacement part directly sourced from the manufacturer.

This is a wire-style clamp that secures the overload relay cover on the compressor at the back of the refrigerator. It holds the protective cover tightly in place over the relay and overload components to prevent them from coming loose. Replace this clamp if it is bent, broken, or missing, which can allow the relay cover to detach and leave electrical components exposed.

Secures and protects wiring harness from strain damage. Replace if cracked, broken, or wires show wear. Verify fit with your model number listed.

Replacement screw for various appliances. Used to secure panels, components, or housing. Replace if stripped, corroded, missing, or damaged hardware.

Refrigerator not cooling or compressor won't start? A failed run capacitor prevents the compressor from running. DIY repair in 10-15 minutes with video guide.

Includes service line.

This repair parts list is a printable reference sheet that shows the appliance's parts diagram and official part numbers to help identify and order the correct replacement components. Handy for technicians and DIYers when planning a repair. What it does:

• Provides the exploded parts diagram and corresponding part numbers for accurate part identification
• Helps pinpoint likely failed components from common symptoms such as no power, no cooling, odd noises, leaks, or parts that won't move
• Speeds up ordering by listing exact OEM part numbers and descriptions
• Reduces diagnostic time by showing component locations and relationships

• This is a reference document only; no mechanical installation is required
• Use the listed part numbers to order replacement parts
• Follow appliance manufacturer safety guidance and disconnect power before servicing

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.
