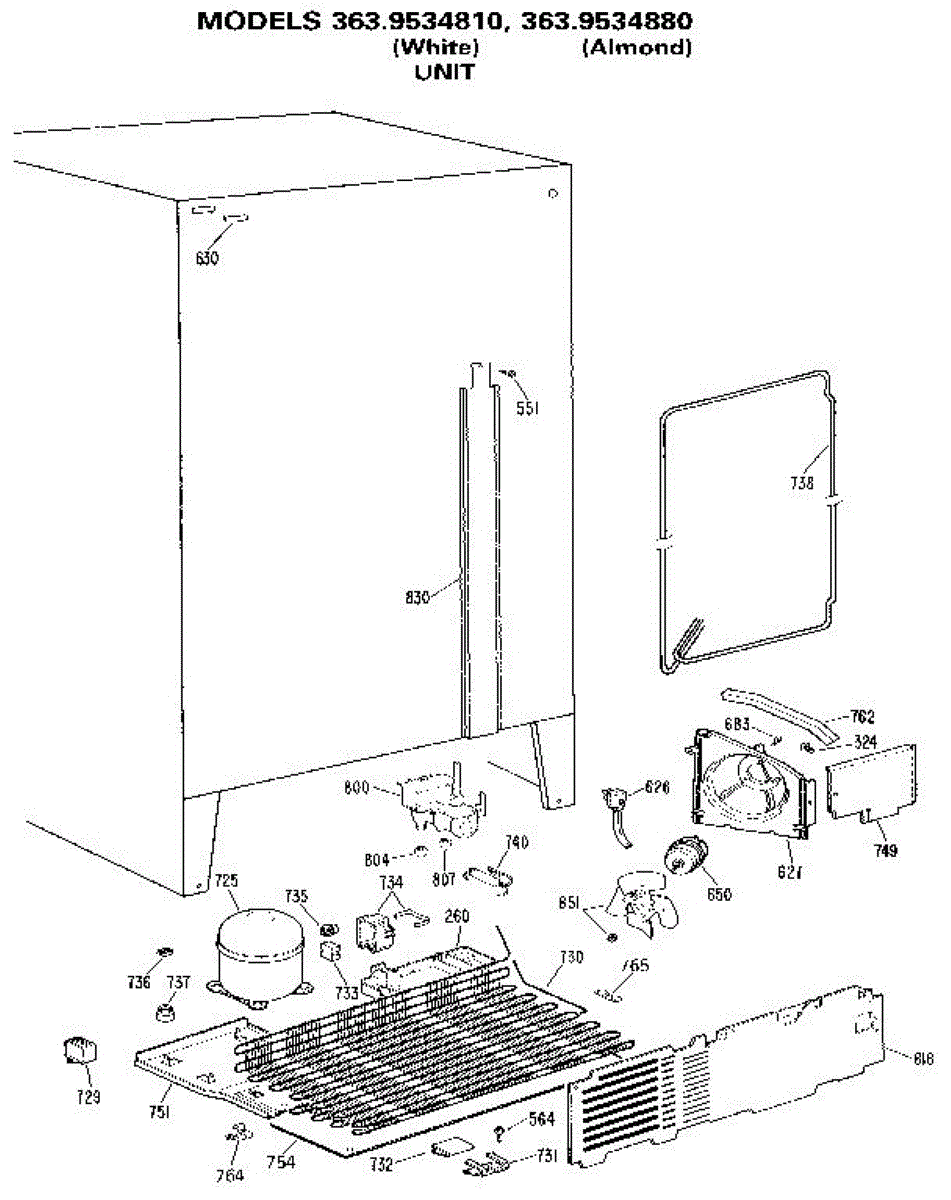

Parts for Kenmore 363.9534880 (3639534880, 363 9534880): Unit Parts

Package of 12

This evaporator fan blade mounts on the fan motor and circulates cold air across the evaporator coils and throughout the compartments. Replacing a cracked, warped, or loose blade restores proper airflow and stable temperatures.

• Moves air across the evaporator to distribute cooled air evenly
• Helps maintain consistent refrigerator and freezer temperatures
• Common symptoms include weak or no airflow, warm spots, frost buildup on the evaporator cover, and rattling/scraping noises
• Replace if the blade is damaged or spins loosely on the motor shaft

• Disconnect power before servicing
• Remove shelves/bins and the rear evaporator cover to access the fan
• Note blade orientation and seating depth; pull the old blade straight off the motor shaft
• Press the new blade on until fully seated; verify free spin and proper clearance before reassembly

This part has been discontinued by the manufacturer and is no longer available.

A stamped mounting plate that secures the compressor to the refrigerator cabinet, helping keep the compressor stable and reducing vibration during operation. Fits original-equipment compressor assemblies. What it does:

• Provides a secure mounting surface to fasten the compressor to the cabinet frame
• Dampens and reduces compressor vibration that can cause noise or movement
• Keeps the compressor properly aligned for reliable refrigerant line routing
• Helps prevent stress on compressor mounts and surrounding components

• One compressor mounting plate

• Disconnect power to the appliance before starting any repair
• Support the compressor while removing and installing the plate to avoid strain on refrigerant lines
• Use the original mounting hardware when possible; replacement fasteners if needed

This condenser clip secures the refrigerator condenser coil to the cabinet, helping keep the coil stable and properly spaced for efficient cooling. It's a small but important mount/retainer for condenser assemblies. What it does

• Holds condenser coil or condenser assembly in place to prevent vibration and movement
• Maintains correct coil spacing for proper airflow and heat transfer
• Helps reduce rattling or knocking noises caused by loose condenser components
• Prevents coil damage from contact with cabinet or other components

• Inspect surrounding sheet metal and wiring before installation; replace if damaged
• Install with the correct fastener or tab engagement; do not force or bend the clip beyond its design
• Disconnect power to the appliance before accessing condenser area to avoid electrical or sharp-edge hazards
• Replace all affected retainers for stable mounting

The Dual Water Inlet Valve Kit is an OEM part for GE refrigerators. It controls the flow of water to both the ice maker and the water dispenser. This dual-function valve ensures that your refrigerator can produce ice and dispense water efficiently. The valve operates by opening and closing in response to signals from the refrigerator, allowing water to flow into the ice maker or water dispenser when needed.

The dual water inlet valve may wear out over time, especially in hard water areas, leading to issues like no ice production, malfunctioning water dispenser, or leaks.

Symptoms of a bad Dual Water Inlet Valve Kit include:

• No water being dispensed
• The ice maker not producing any ice
• A slow or irregular flow of water from the dispenser
• Water leaking from the valve

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Nut for 1/4 inch tubing.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
