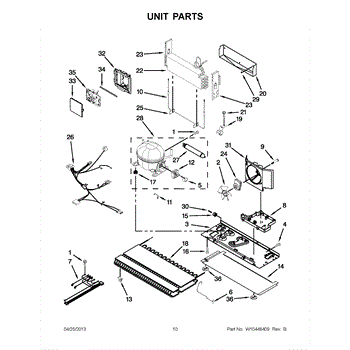

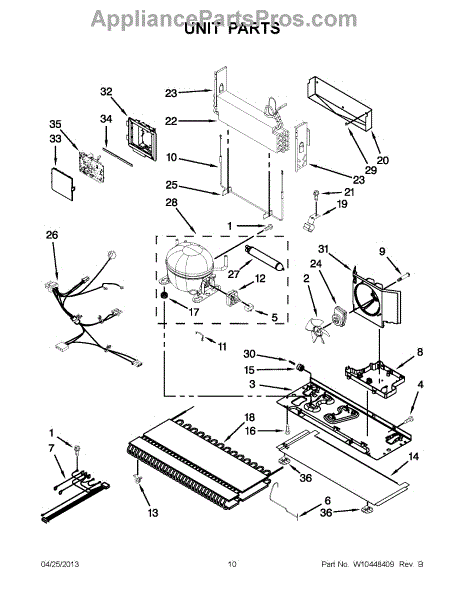

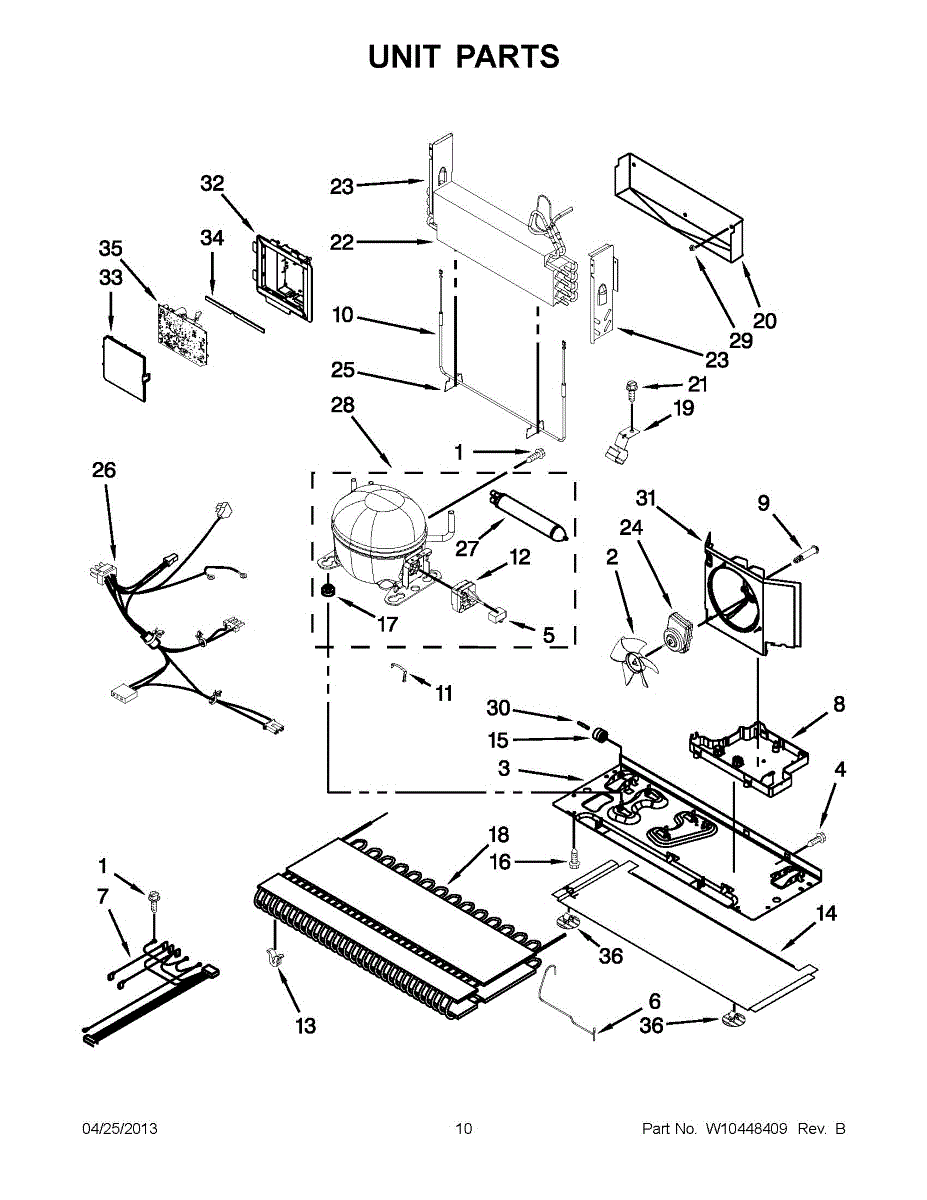

Parts for Kitchenaid KBFS22EWMS4: 05 - Unit Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This condenser fan blade restores the airflow that carries heat away from the condenser coils and compressor. Replacing a cracked, warped, or loose blade helps your refrigerator remove heat properly so it cools reliably and runs more quietly. What it does

• Draws room air through the condenser coil and over the compressor to dissipate heat
• Helps maintain stable cabinet temperatures and overall cooling performance
• Typical failure symptoms: fan not spinning or moving enough air, wobbling or rattling from the rear base, weak cooling, compressor running hot

• 1 condenser fan blade

• Unplug the refrigerator and remove the rear lower access panel before servicing
• Note the blade's orientation; pull the old blade straight off the motor shaft and press the new blade on until fully seated
• Ensure proper clearance in the shroud and spin by hand to confirm it turns freely
• Wear gloves and eye protection; keep hands clear of the blade during testing

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement discharge tube routes drained water from the washer pump to the household drain, helping the appliance remove wastewater reliably and avoid leaks at the pump connection. What it does:

• Directs pump discharge to the drain line for normal washer draining
• Replaces cracked, split, or clogged tubing that can cause water leakage
• Helps restore proper water removal when original tube is damaged or deteriorated
• Works with the washer's pump outlet and standpipe or drain hose connection

• Disconnect power and turn off the water supply before starting any repairs
• Access the pump area or lower front of the washer to remove the old tube from the pump and drain connection
• Replace and secure tubing with appropriate clamps; ensure a snug, leak-free fit
• Test with a short cycle and check for leaks after installation

This wire harness connects and organizes your appliance's internal wiring. It delivers power and control signals between the control system and components, restoring reliable connections when the original harness is damaged or heat-stressed. What it does:

• Distributes power and control signals between boards, sensors, motors, valves, and other components
• Replaces cut, brittle, corroded, or melted wiring and terminals
• Can help resolve intermittent operation, components not running, or visible burn/arc marks at connectors
• Maintains proper wire routing and strain relief to reduce future fatigue or shorts

• 1 wire harness assembly

• Disconnect power; shut off water or gas supplies before service
• Label or photograph each connector to ensure one-for-one transfer
• Route the harness along the original path; secure with existing clips/ties and keep clear of hot, sharp, or moving parts
• Push connectors straight and fully until they lock; avoid pulling on wires during removal/installation

This refrigerator drip pan, also called an evaporator drain pan, mounts on the base to catch defrost water and allow it to evaporate. Replacing a cracked or warped pan helps prevent puddles and moisture damage around the appliance. What it does:

• Collects water from the defrost cycle and holds it for evaporation using condenser/fan airflow
• Helps keep water off the floor and out of the cabinet base area
• Typical failure symptoms include water under or behind the refrigerator, recurring puddles after a defrost cycle, visible cracks/warping, or musty odors
• Restores proper fit when the original pan is damaged, heat-distorted, or missing

• 1 refrigerator drip pan

• Disconnect power and pull the unit forward to access the rear; wear gloves and use caution around sharp metal edges
• Remove the lower rear access panel; carefully lift and remove the old pan from its supports
• Clean the area; transfer any pads or clips from the old pan if present; seat the new pan fully on the supports/locators so it's level and secure
• Reinstall the rear panel, return the refrigerator to position, restore power, and check for correct placement after the next defrost cycle

This genuine replacement screw secures appliance components for reliable fit and function, helping restore proper assembly and reduce rattling or loose panels. Use it to replace a stripped or missing fastener during repairs. What it does:

• Fastens panels, brackets, or components to maintain structural stability
• Prevents movement that can cause noise, vibration, or misalignment
• Replaces stripped, corroded, or missing screws to restore secure assembly
• Compatible where the OEM mounting screw is required for safe operation

• Turn off and unplug the appliance before performing any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Do not overtighten; snug until secure to prevent damage to parts
• If other fasteners show wear, inspect and replace as needed for safe operation

The Defrost Heater is an OEM part for Whirlpool refrigerators. This part prevents the build-up of frost and ice on the evaporator coils. By periodically heating up to melt away frost, this component ensures that air can flow freely through the coils, maintaining the refrigerator's efficient cooling performance.

Causes of a bad defrost heater can include electrical issues, such as a blown fuse or faulty wiring, wear and tear over time, or a malfunction within the heating element itself.

Symptoms of a bad Defrost Heater include:

• Frost or ice buildup on the evaporator coils
• The refrigerator or freezer compartment warming up
• The refrigerator cycling on more frequently or for longer durations
• Poor cooling performance throughout the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This bale strap is a direct-replacement part that helps secure the dryer's latch/bale assembly so the door closes and stays closed during operation. Replacing a worn or broken strap restores reliable door engagement and safer drying cycles. What it does:

• Anchors the dryer door's latch/bale so the door remains properly closed during operation
• Prevents intermittent door opening that can stop cycles or cause heat loss
• Replaces a stretched, torn, or broken strap that no longer holds the latch securely
• Works with the door/latch mechanism to maintain safe operation during drying

• One bale strap

• Disconnect power before beginning any repair to avoid electrical shock
• Verify strap routing and attachment points match the original before reinstalling
• Basic hand tools are typically required; avoid forcing plastic clips to prevent breakage

The Start Device is an OEM part for Whirlpool refrigerators. It plays a critical role in activating the compressor, ensuring that the refrigerator maintains the correct temperature for food preservation.

Over time, the start device can fail due to electrical issues, general wear and tear, or overheating. A faulty start device can prevent the compressor from starting, which can lead to temperature fluctuations and spoilage of stored food.

Symptoms of a bad Start Device include:

• The refrigerator not cooling properly
• The compressor not running or clicking repeatedly without starting
• Unusual humming or buzzing noises

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This rubber condenser grommet cushions and secures the condenser assembly to reduce vibration and noise, helping the refrigerator run quieter and preventing wear where the condenser mounts to the cabinet. What it does:

• Cushions condenser mounting points to reduce rattling and vibration
• Helps prevent metal-on-metal wear between condenser and chassis
• Keeps the condenser properly seated for reliable airflow
• Reduces noise caused by loose or worn condenser mounts

• Disconnect power to the appliance before beginning any service
• Access the condenser area per your model's service instructions
• Remove the old grommet and press the replacement into the mounting hole until seated
• Do not use solvents or adhesives unless specified by the manufacturer; wear gloves to protect hands

This rear roller is a replacement for the rollers in a refrigerator. The rollers are not used often, but they have an important purpose. They make it easier to move the refrigerator from one area to another. If the roller had been damaged and is not working properly, it will be difficult to maneuver the refrigerator. Replacing the damaged roller with a new one before moving the refrigerator a long distance is a good idea.The rollers on the refrigerator are meant to handle a lot of pressure. However, they can still wear down and break eventually. They could also be damaged during a previous move. Before replacing the rear roller, unplug the refrigerator and remove the connection to the water supply. The replacement will require only a few tools, such as a screwdriver. It may require moving other parts of the refrigerator to get access to the rear rollers.The rear roller will work for certain models of refrigerators from Whirlpool, GE, KitchenAid, Inglis, Maytag, Admiral, International, Amana, Jenn-Air, Crosley, and Magic Chef. This is a genuine OEM replacement part that is sold individually.

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

This condenser coil assembly removes heat from the refrigerant so your refrigerator can maintain proper cooling. Replaces a damaged or corroded condenser to restore efficient heat transfer and stable internal temperatures. What it does:

• Circulates refrigerant through condenser coils to dissipate heat from the cooling circuit
• Helps the compressor operate within normal temperature range for reliable cooling
• Commonly needed when coils are bent, corroded, or leaking, or when the appliance runs warm
• Addresses symptoms such as reduced cooling performance, prolonged run times, or visible coil damage

• Disconnect power to the appliance before starting any repair.
• Handle the coil carefully to avoid bending fins or damaging connections.
• Some disassembly of the rear or bottom access panel may be required; keep fasteners organized.
• If refrigerant lines are opened or leaking, refrigerant handling requires certification.

This spring hose clamp secures flexible hoses to fittings to prevent leaks and keep connections tight. It's a simple, durable retaining clip used on water and vent lines to maintain a reliable seal during operation. What it does:

• Holds a hose or duct onto a spud or barb to prevent leaks and disconnection
• Keeps hoses secure against vibration and pressure changes
• Helps stop water leaks or airflow loss caused by loose connections
• Works on flexible rubber or corrugated hoses in laundry and appliance water/vent systems

• Disconnect power and water supply before servicing the appliance.
• Relieve any pressure and drain hoses before removing the old clamp.
• Use appropriate pliers or clamp tool to expand or compress the clamp for removal and installation.
• Test for leaks after reassembly.

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

The Motor-Condenser Fan is an OEM part for Whirlpool refrigerators. This motor drives the condenser fan, which is essential for cooling the compressor and expelling heat from the refrigerator. By maintaining optimal temperatures within the cooling system, it ensures the efficient operation of the refrigerator.

Over time, the motor-condenser fan can fail due to electrical issues, wear and tear, or exposure to dust and debris. A malfunctioning fan motor can lead to overheating and reduced cooling efficiency.

Symptoms of a bad motor-condenser fan include:

• The refrigerator running continuously or not cooling properly
• Unusual noises from the back of the refrigerator
• The compressor overheating
• Poor airflow around the condenser coils

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This evaporator clip secures the refrigerator evaporator assembly and related components so the cooling system stays aligned and vibration-free. It helps maintain proper airflow and prevents rubbing or loose parts. What it does:

• Holds the evaporator coil/assembly or associated covers in place
• Prevents vibration, noise, and contact between the coil and cabinet parts
• Helps maintain consistent airflow for reliable cooling performance
• Commonly linked to rattling, buzzing, or loose parts around the freezer evaporator

• Disconnect power before servicing the appliance
• Handle evaporator and surrounding fins carefully; they are sharp and fragile
• Verify clip orientation against the OEM diagram before fastening

This axle roller is the replacement support shaft that lets the appliance's rotating assembly turn smoothly and quietly. Installing a new axle roller corrects wobble and reduces grinding or squealing caused by a worn shaft. What it does:

• Supports the rotating drum or rack so it spins freely and stays aligned
• Helps prevent metal-to-metal contact that causes loud noise or scraping
• Stops uneven rotation and vibration that can lead to further wear
• Restores smooth operation when an original axle is bent, worn, or broken

• Disconnect power (and gas, if applicable) before starting any repair
• Access location and removal steps vary by model; follow the OEM service manual or diagram
• Inspect related parts (pulleys, idler, glides, bearings) and replace if they show wear
• Use basic hand tools; keep fingers and loose clothing clear of moving parts during testing

This electronic control board is the central module that runs your dishwasher's cycles. It controls power and timing so the unit fills, washes, drains, and dries correctly—restoring normal operation when the original board has failed.

• Manages cycle timing and options, routing power to the wash motor, drain pump, water inlet valve, and heating circuit
• Interfaces with sensors and the door latch to start and advance cycles
• Monitors faults to help protect components and ensure proper operation

• Disconnect power at the breaker and verify no voltage before service
• Access location varies by model
• Use ESD precautions; move connectors one at a time to the matching terminals
• After reassembly, run the unit's diagnostic/service cycle per the tech sheet to verify operation

This fastener is a small mounting clip used to secure panels and components in place, restoring proper fit and preventing rattles or loose parts. It's a simple replacement that helps maintain appliance stability and noise-free operation. What it does:

• Secures trim, panels, or small components to the appliance frame
• Prevents vibration and rattling caused by loose parts
• Restores proper alignment of the secured piece after damage or wear
• Commonly replaced when clips are broken, bent, or missing

• One replacement fastener

• High-level, do-it-yourself friendly replacement; basic hand tools may be required
• Disconnect power and water before servicing for safety
• Inspect mating hole or bracket for damage before installing new clip
• Tighten or seat clip fully to ensure secure fit; avoid forcing parts to prevent breakage

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/4 inch.
