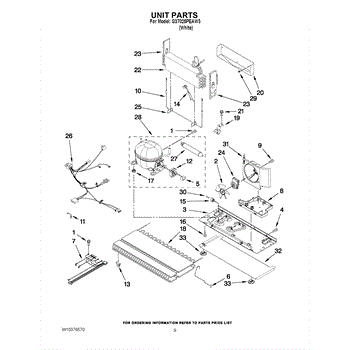

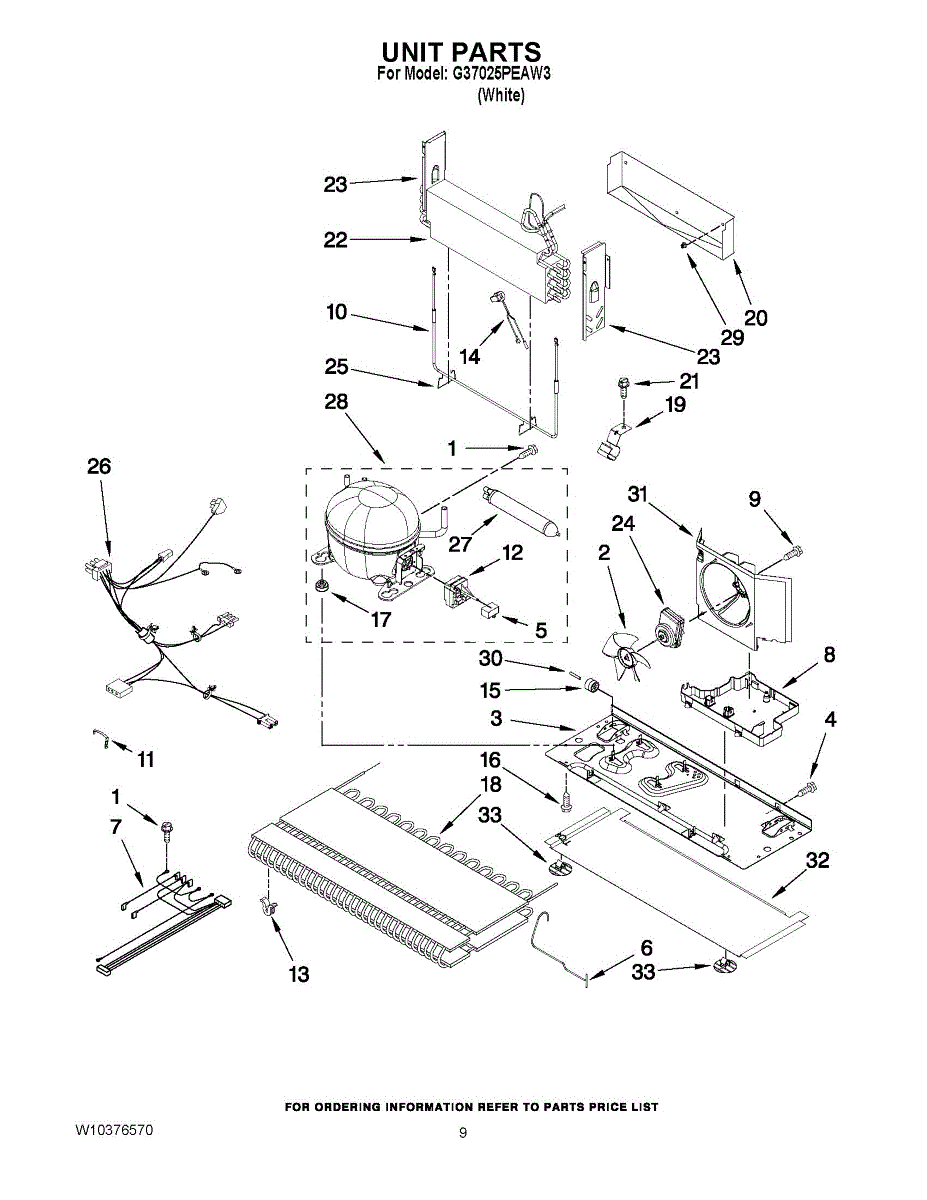

Parts for Maytag G37025PEAW3: 05 - Unit Parts

This condenser fan blade restores the airflow that carries heat away from the condenser coils and compressor. Replacing a cracked, warped, or loose blade helps your refrigerator remove heat properly so it cools reliably and runs more quietly. What it does

• Draws room air through the condenser coil and over the compressor to dissipate heat
• Helps maintain stable cabinet temperatures and overall cooling performance
• Typical failure symptoms: fan not spinning or moving enough air, wobbling or rattling from the rear base, weak cooling, compressor running hot

• 1 condenser fan blade

• Unplug the refrigerator and remove the rear lower access panel before servicing
• Note the blade's orientation; pull the old blade straight off the motor shaft and press the new blade on until fully seated
• Ensure proper clearance in the shroud and spin by hand to confirm it turns freely
• Wear gloves and eye protection; keep hands clear of the blade during testing

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This running capacitor restores proper motor operation by providing the phase shift needed for fan and compressor motors. It helps motors run smoothly and reduces overheating or hard-start symptoms when the original capacitor fails. What it does:

• Provides the steady electrical phase shift required for motor operation in refrigeration and HVAC systems
• Helps restore normal motor starting and running performance
• Can reduce motor overheating, humming, or intermittent operation caused by a bad capacitor
• Used when the motor runs poorly, won't reach full speed, or cycles unusually

• 1 running capacitor

• Disconnect power at the breaker and verify the appliance is de-energized before servicing
• Discharge the capacitor with an insulated tool and wear insulated gloves and eye protection
• Replace with the same type and mounting orientation; secure all wire connections firmly

The Drip Pan is an OEM part for Whirlpool refrigerators. Located beneath the refrigerator, it collects and holds water that drips from the defrost system, preventing it from leaking onto the floor.

Causes of a bad drip pan can include cracks or holes from physical damage, warping from exposure to temperature fluctuations, or excessive buildup of dirt and mold.

Symptoms of a bad drip pan include:

• Water pooling under the refrigerator
• Visible cracks, holes, or warping in the pan
• Mold or mildew growth in the pan
• Unpleasant odors emanating from the refrigerator base

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

This rear roller is a replacement for the rollers in a refrigerator. The rollers are not used often, but they have an important purpose. They make it easier to move the refrigerator from one area to another. If the roller had been damaged and is not working properly, it will be difficult to maneuver the refrigerator. Replacing the damaged roller with a new one before moving the refrigerator a long distance is a good idea.The rollers on the refrigerator are meant to handle a lot of pressure. However, they can still wear down and break eventually. They could also be damaged during a previous move. Before replacing the rear roller, unplug the refrigerator and remove the connection to the water supply. The replacement will require only a few tools, such as a screwdriver. It may require moving other parts of the refrigerator to get access to the rear rollers.The rear roller will work for certain models of refrigerators from Whirlpool, GE, KitchenAid, Inglis, Maytag, Admiral, International, Amana, Jenn-Air, Crosley, and Magic Chef. This is a genuine OEM replacement part that is sold individually.

This spring hose clamp secures flexible hoses to fittings to prevent leaks and keep connections tight. It's a simple, durable retaining clip used on water and vent lines to maintain a reliable seal during operation. What it does:

• Holds a hose or duct onto a spud or barb to prevent leaks and disconnection
• Keeps hoses secure against vibration and pressure changes
• Helps stop water leaks or airflow loss caused by loose connections
• Works on flexible rubber or corrugated hoses in laundry and appliance water/vent systems

• Disconnect power and water supply before servicing the appliance.
• Relieve any pressure and drain hoses before removing the old clamp.
• Use appropriate pliers or clamp tool to expand or compress the clamp for removal and installation.
• Test for leaks after reassembly.

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

This evaporator clip secures the refrigerator evaporator assembly and related components so the cooling system stays aligned and vibration-free. It helps maintain proper airflow and prevents rubbing or loose parts. What it does:

• Holds the evaporator coil/assembly or associated covers in place
• Prevents vibration, noise, and contact between the coil and cabinet parts
• Helps maintain consistent airflow for reliable cooling performance
• Commonly linked to rattling, buzzing, or loose parts around the freezer evaporator

• Disconnect power before servicing the appliance
• Handle evaporator and surrounding fins carefully; they are sharp and fragile
• Verify clip orientation against the OEM diagram before fastening

This axle roller is the replacement support shaft that lets the appliance's rotating assembly turn smoothly and quietly. Installing a new axle roller corrects wobble and reduces grinding or squealing caused by a worn shaft. What it does:

• Supports the rotating drum or rack so it spins freely and stays aligned
• Helps prevent metal-to-metal contact that causes loud noise or scraping
• Stops uneven rotation and vibration that can lead to further wear
• Restores smooth operation when an original axle is bent, worn, or broken

• Disconnect power (and gas, if applicable) before starting any repair
• Access location and removal steps vary by model; follow the OEM service manual or diagram
• Inspect related parts (pulleys, idler, glides, bearings) and replace if they show wear
• Use basic hand tools; keep fingers and loose clothing clear of moving parts during testing

This fastener is a small mounting clip used to secure panels and components in place, restoring proper fit and preventing rattles or loose parts. It's a simple replacement that helps maintain appliance stability and noise-free operation. What it does:

• Secures trim, panels, or small components to the appliance frame
• Prevents vibration and rattling caused by loose parts
• Restores proper alignment of the secured piece after damage or wear
• Commonly replaced when clips are broken, bent, or missing

• One replacement fastener

• High-level, do-it-yourself friendly replacement; basic hand tools may be required
• Disconnect power and water before servicing for safety
• Inspect mating hole or bracket for damage before installing new clip
• Tighten or seat clip fully to ensure secure fit; avoid forcing parts to prevent breakage

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
