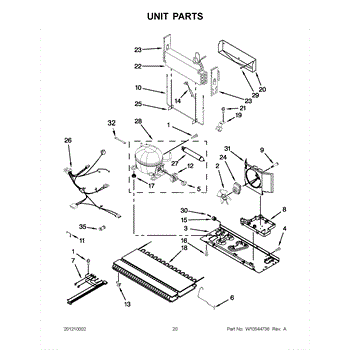

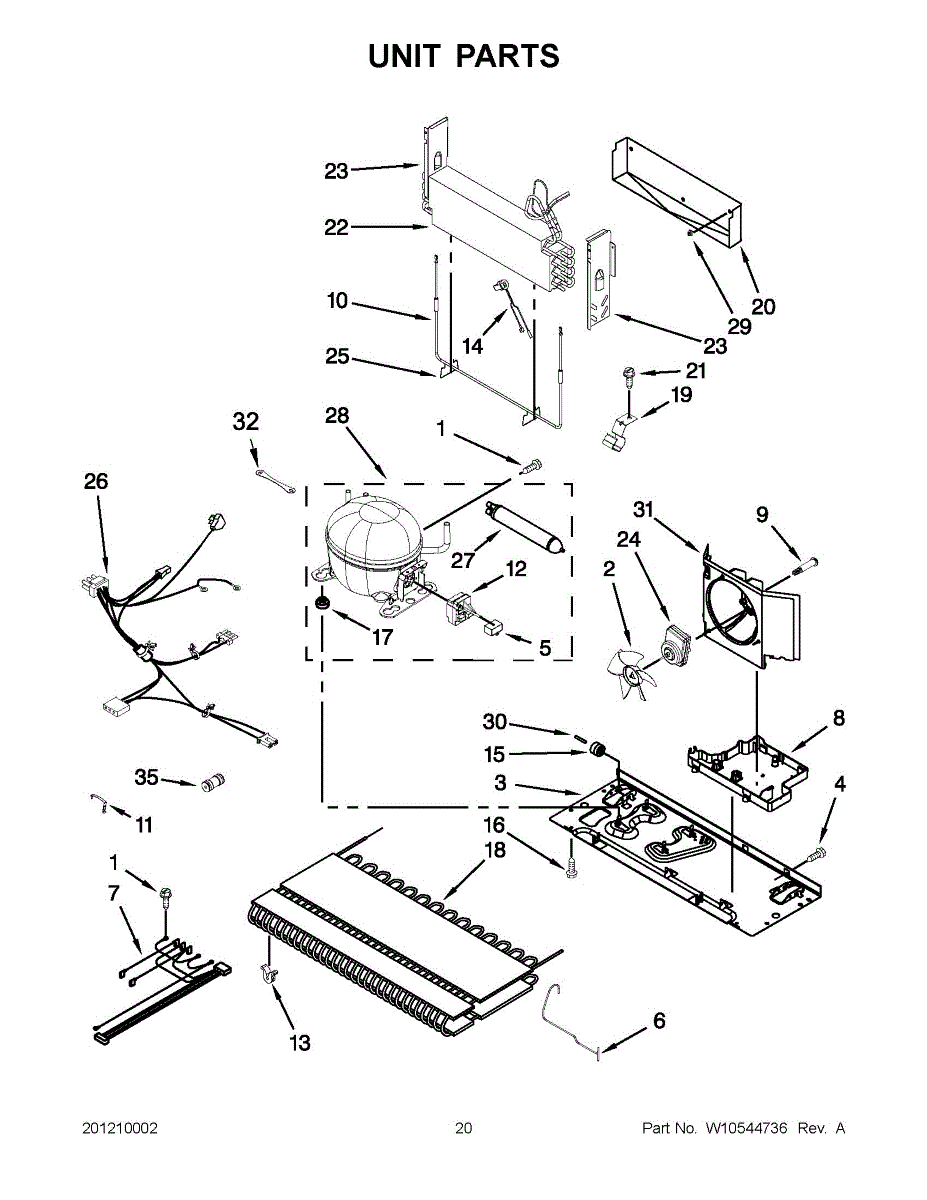

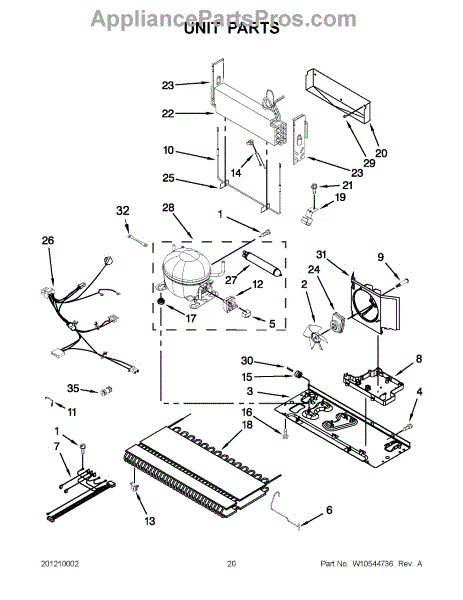

Parts for Maytag MFI2269VEB9: 10 - Unit Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This condenser fan blade restores the airflow that carries heat away from the condenser coils and compressor. Replacing a cracked, warped, or loose blade helps your refrigerator remove heat properly so it cools reliably and runs more quietly. What it does

• Draws room air through the condenser coil and over the compressor to dissipate heat
• Helps maintain stable cabinet temperatures and overall cooling performance
• Typical failure symptoms: fan not spinning or moving enough air, wobbling or rattling from the rear base, weak cooling, compressor running hot

• 1 condenser fan blade

• Unplug the refrigerator and remove the rear lower access panel before servicing
• Note the blade's orientation; pull the old blade straight off the motor shaft and press the new blade on until fully seated
• Ensure proper clearance in the shroud and spin by hand to confirm it turns freely
• Wear gloves and eye protection; keep hands clear of the blade during testing

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

The Run Capacitor is an OEM part for Whirlpool refrigerators. It is an electronic component that assists in powering the refrigerator's compressor motor. The capacitor functions to provide an electrical boost needed to start the compressor running smoothly during each cooling cycle.

Causes of a bad capacitor can include deterioration of dielectric material over many years of operation or accidental moisture penetration into the capacitor case.

Symptoms of a bad capacitor include:

• The refrigerator compressor failing to turn on/refrigeration cycles not operating
• Loud humming noises coming from behind the refrigerator
• Erratic cooling performance and fluctuating interior temperatures

This OEM part is also compatible with KitchenAid, Jenn-Air, Admiral, and Kenmore refrigerator models.

This replacement discharge tube routes drained water from the washer pump to the household drain, helping the appliance remove wastewater reliably and avoid leaks at the pump connection. What it does:

• Directs pump discharge to the drain line for normal washer draining
• Replaces cracked, split, or clogged tubing that can cause water leakage
• Helps restore proper water removal when original tube is damaged or deteriorated
• Works with the washer's pump outlet and standpipe or drain hose connection

• Disconnect power and turn off the water supply before starting any repairs
• Access the pump area or lower front of the washer to remove the old tube from the pump and drain connection
• Replace and secure tubing with appropriate clamps; ensure a snug, leak-free fit
• Test with a short cycle and check for leaks after installation

Replacement evaporator fan motor designed for the freezer evaporator assembly to restore airflow and help maintain consistent cold temperatures. Use this motor when the original stops running, hums without spinning, or makes unusual noise. What it does:

• Circulates cold air over the evaporator coil so the freezer and refrigerator sections cool evenly.
• Helps prevent frost buildup that can occur when airflow is reduced or stops.
• Common symptoms: freezer warming, reduced cooling, loud humming/clicking, or a motor that won't spin.
• Operates as the airflow source for the evaporator compartment in many Whirlpool refrigerators.

• Unplug the appliance before starting and discharge any stored energy if present.
• Keep fasteners and wiring orientation labeled for correct reassembly; verify connector fit and routing.
• Expect to remove interior panels or the evaporator cover to access the motor; watch for sharp edges.
• After installation, restore power and confirm the motor runs and airflow is restored.

This refrigerator drip pan, also called an evaporator drain pan, mounts on the base to catch defrost water and allow it to evaporate. Replacing a cracked or warped pan helps prevent puddles and moisture damage around the appliance. What it does:

• Collects water from the defrost cycle and holds it for evaporation using condenser/fan airflow
• Helps keep water off the floor and out of the cabinet base area
• Typical failure symptoms include water under or behind the refrigerator, recurring puddles after a defrost cycle, visible cracks/warping, or musty odors
• Restores proper fit when the original pan is damaged, heat-distorted, or missing

• 1 refrigerator drip pan

• Disconnect power and pull the unit forward to access the rear; wear gloves and use caution around sharp metal edges
• Remove the lower rear access panel; carefully lift and remove the old pan from its supports
• Clean the area; transfer any pads or clips from the old pan if present; seat the new pan fully on the supports/locators so it's level and secure
• Reinstall the rear panel, return the refrigerator to position, restore power, and check for correct placement after the next defrost cycle

This genuine replacement screw secures appliance components for reliable fit and function, helping restore proper assembly and reduce rattling or loose panels. Use it to replace a stripped or missing fastener during repairs. What it does:

• Fastens panels, brackets, or components to maintain structural stability
• Prevents movement that can cause noise, vibration, or misalignment
• Replaces stripped, corroded, or missing screws to restore secure assembly
• Compatible where the OEM mounting screw is required for safe operation

• Turn off and unplug the appliance before performing any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Do not overtighten; snug until secure to prevent damage to parts
• If other fasteners show wear, inspect and replace as needed for safe operation

This heater is the dishwasher heating element that raises wash and dry temperatures so dishes clean and dry more effectively. It replaces a failed or damaged heating element to restore normal water heating and drying performance. What it does

• Heats wash water and supports the dry cycle so detergent works properly and dishes dry.
• Fails open or shorted when damaged, causing little or no water heating or poor/no drying.
• Can cause error codes or interrupt normal cycle operation when the element or its connections fail.
• Works with the dishwasher's control system and thermostats to maintain proper operating temperature.

• Disconnect power and water supply before beginning any repair.
• Access typically requires removing the toe panel or lower access cover—follow your model's service manual.
• Inspect wiring and terminals for heat damage; replace any damaged connectors.

This bale strap is a direct-replacement part that helps secure the dryer's latch/bale assembly so the door closes and stays closed during operation. Replacing a worn or broken strap restores reliable door engagement and safer drying cycles. What it does:

• Anchors the dryer door's latch/bale so the door remains properly closed during operation
• Prevents intermittent door opening that can stop cycles or cause heat loss
• Replaces a stretched, torn, or broken strap that no longer holds the latch securely
• Works with the door/latch mechanism to maintain safe operation during drying

• One bale strap

• Disconnect power before beginning any repair to avoid electrical shock
• Verify strap routing and attachment points match the original before reinstalling
• Basic hand tools are typically required; avoid forcing plastic clips to prevent breakage

The Compressor Start Device is an OEM part for Whirlpool refrigerators. This device is essential for initiating the compressor, which is responsible for circulating refrigerant through the cooling system, thus maintaining the refrigerator's temperature. The start device works by providing the necessary power boost to get the compressor running.

Over time, the compressor start device can wear out or fail due to electrical issues, regular wear and tear, or overheating. A faulty start device will prevent the compressor from starting, resulting in cooling problems.

Symptoms of a bad compressor start device include:

• The refrigerator not cooling
• The compressor not running or starting intermittently
• Clicking sounds coming from the refrigerator
• Overheating of the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This rubber condenser grommet cushions and secures the condenser assembly to reduce vibration and noise, helping the refrigerator run quieter and preventing wear where the condenser mounts to the cabinet. What it does:

• Cushions condenser mounting points to reduce rattling and vibration
• Helps prevent metal-on-metal wear between condenser and chassis
• Keeps the condenser properly seated for reliable airflow
• Reduces noise caused by loose or worn condenser mounts

• Disconnect power to the appliance before beginning any service
• Access the condenser area per your model's service instructions
• Remove the old grommet and press the replacement into the mounting hole until seated
• Do not use solvents or adhesives unless specified by the manufacturer; wear gloves to protect hands

This defrost thermostat monitors the evaporator coil temperature and opens the circuit to end the defrost cycle once the coil warms. Replacing a failed thermostat restores automatic defrost to prevent heavy frost buildup and maintain consistent cooling performance. What it does and common signs it's needed:

• Senses evaporator temperature to control the defrost heater: closes when cold, opens when warm to terminate defrost
• Helps protect the freezer liner and components from overheating during defrost
• Heavy frost or ice behind the rear freezer panel/evaporator cover
• Poor cooling or temperature fluctuations due to airflow blocked by frost; defrost heater not energizing

• 1 defrost thermostat

• Disconnect power before servicing
• Remove the freezer's rear interior panel to access the evaporator; defrost any ice as needed
• Mount the new thermostat firmly against the same evaporator tube location/orientation as the original for accurate sensing
• Reconnect wiring, route away from the heater and moving parts, reassemble, and restore power

This rear roller is a replacement for the rollers in a refrigerator. The rollers are not used often, but they have an important purpose. They make it easier to move the refrigerator from one area to another. If the roller had been damaged and is not working properly, it will be difficult to maneuver the refrigerator. Replacing the damaged roller with a new one before moving the refrigerator a long distance is a good idea.The rollers on the refrigerator are meant to handle a lot of pressure. However, they can still wear down and break eventually. They could also be damaged during a previous move. Before replacing the rear roller, unplug the refrigerator and remove the connection to the water supply. The replacement will require only a few tools, such as a screwdriver. It may require moving other parts of the refrigerator to get access to the rear rollers.The rear roller will work for certain models of refrigerators from Whirlpool, GE, KitchenAid, Inglis, Maytag, Admiral, International, Amana, Jenn-Air, Crosley, and Magic Chef. This is a genuine OEM replacement part that is sold individually.

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

This condenser coil assembly removes heat from the refrigerant so your refrigerator can maintain proper cooling. Replaces a damaged or corroded condenser to restore efficient heat transfer and stable internal temperatures. What it does:

• Circulates refrigerant through condenser coils to dissipate heat from the cooling circuit
• Helps the compressor operate within normal temperature range for reliable cooling
• Commonly needed when coils are bent, corroded, or leaking, or when the appliance runs warm
• Addresses symptoms such as reduced cooling performance, prolonged run times, or visible coil damage

• Disconnect power to the appliance before starting any repair.
• Handle the coil carefully to avoid bending fins or damaging connections.
• Some disassembly of the rear or bottom access panel may be required; keep fasteners organized.
• If refrigerant lines are opened or leaking, refrigerant handling requires certification.

This spring hose clamp secures flexible hoses to fittings to prevent leaks and keep connections tight. It's a simple, durable retaining clip used on water and vent lines to maintain a reliable seal during operation. What it does:

• Holds a hose or duct onto a spud or barb to prevent leaks and disconnection
• Keeps hoses secure against vibration and pressure changes
• Helps stop water leaks or airflow loss caused by loose connections
• Works on flexible rubber or corrugated hoses in laundry and appliance water/vent systems

• Disconnect power and water supply before servicing the appliance.
• Relieve any pressure and drain hoses before removing the old clamp.
• Use appropriate pliers or clamp tool to expand or compress the clamp for removal and installation.
• Test for leaks after reassembly.

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

This evaporator coil circulates refrigerant and removes heat from the freezer compartment to help maintain proper cooling. Replaces a worn or damaged evaporator to restore cold airflow and efficient frost control. What it does:

• Circulates refrigerant through the freezer section as the primary heat-exchange element
• Supports proper frost management and even cold distribution in the freezer
• Commonly replaced when excessive frost buildup, poor cooling, or abnormal compressor run time are present
• Works with the evaporator fan and defrost system to maintain freezer performance

• Disconnect power to the appliance before starting any repair.
• Handle the coil carefully to avoid bending fins or damaging tubing.
• Inspect and replace any torn gaskets or insulation for proper reseal during reassembly.

The Motor-Condenser Fan is an OEM part for Whirlpool refrigerators. This motor drives the condenser fan, which is essential for cooling the compressor and expelling heat from the refrigerator. By maintaining optimal temperatures within the cooling system, it ensures the efficient operation of the refrigerator.

Over time, the motor-condenser fan can fail due to electrical issues, wear and tear, or exposure to dust and debris. A malfunctioning fan motor can lead to overheating and reduced cooling efficiency.

Symptoms of a bad motor-condenser fan include:

• The refrigerator running continuously or not cooling properly
• Unusual noises from the back of the refrigerator
• The compressor overheating
• Poor airflow around the condenser coils

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Wiring Harness is an OEM part for Whirlpool refrigerators. It ensures proper connectivity between various parts of the electrical system.

The wiring harness provides a secure and reliable connection for power supply and communication within the refrigerator. It allows for efficient operation of the refrigerator's functions, such as temperature control, ice making, and defrosting.

A bad wiring harness can occur due to factors like wear and tear, accidental damage, or electrical faults. If you notice symptoms such as intermittent power loss, malfunctioning controls, or erratic behavior of the refrigerator, it may be time to replace this part.

Symptoms of a bad wiring harness include:

• Intermittent power loss
• Malfunctioning controls
• Erratic behavior of the refrigerator

Restore your Whirlpool refrigerator by replacing the faulty or damaged wiring harness with this genuine OEM part.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This evaporator clip secures the refrigerator evaporator assembly and related components so the cooling system stays aligned and vibration-free. It helps maintain proper airflow and prevents rubbing or loose parts. What it does:

• Holds the evaporator coil/assembly or associated covers in place
• Prevents vibration, noise, and contact between the coil and cabinet parts
• Helps maintain consistent airflow for reliable cooling performance
• Commonly linked to rattling, buzzing, or loose parts around the freezer evaporator

• Disconnect power before servicing the appliance
• Handle evaporator and surrounding fins carefully; they are sharp and fragile
• Verify clip orientation against the OEM diagram before fastening

This axle roller is the replacement support shaft that lets the appliance's rotating assembly turn smoothly and quietly. Installing a new axle roller corrects wobble and reduces grinding or squealing caused by a worn shaft. What it does:

• Supports the rotating drum or rack so it spins freely and stays aligned
• Helps prevent metal-to-metal contact that causes loud noise or scraping
• Stops uneven rotation and vibration that can lead to further wear
• Restores smooth operation when an original axle is bent, worn, or broken

• Disconnect power (and gas, if applicable) before starting any repair
• Access location and removal steps vary by model; follow the OEM service manual or diagram
• Inspect related parts (pulleys, idler, glides, bearings) and replace if they show wear
• Use basic hand tools; keep fingers and loose clothing clear of moving parts during testing

Water tube connector that joins two sections of a refrigerator's water tubing for a secure, leak-resistant connection. Replacing a cracked or leaking connector can help restore consistent water flow to the dispenser and ice maker.

• Connects two lengths of refrigerator water tubing in the supply, filter, dispenser, or ice maker circuit
• Helps maintain a sealed connection to reduce leaks and air intrusion
• Common symptoms of failure: dripping at the fitting, water under the unit, weak/no dispensing, or ice maker not filling
• Replace if the connector is cracked or will not hold tubing securely

• Unplug the refrigerator and shut off the water supply
• Dispense water to relieve line pressure; place a towel under the connection
• Cut tube ends square; push each tube fully into the connector until seated, then tug gently to confirm engagement
• Restore water and check carefully for leaks before reconnecting power

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
