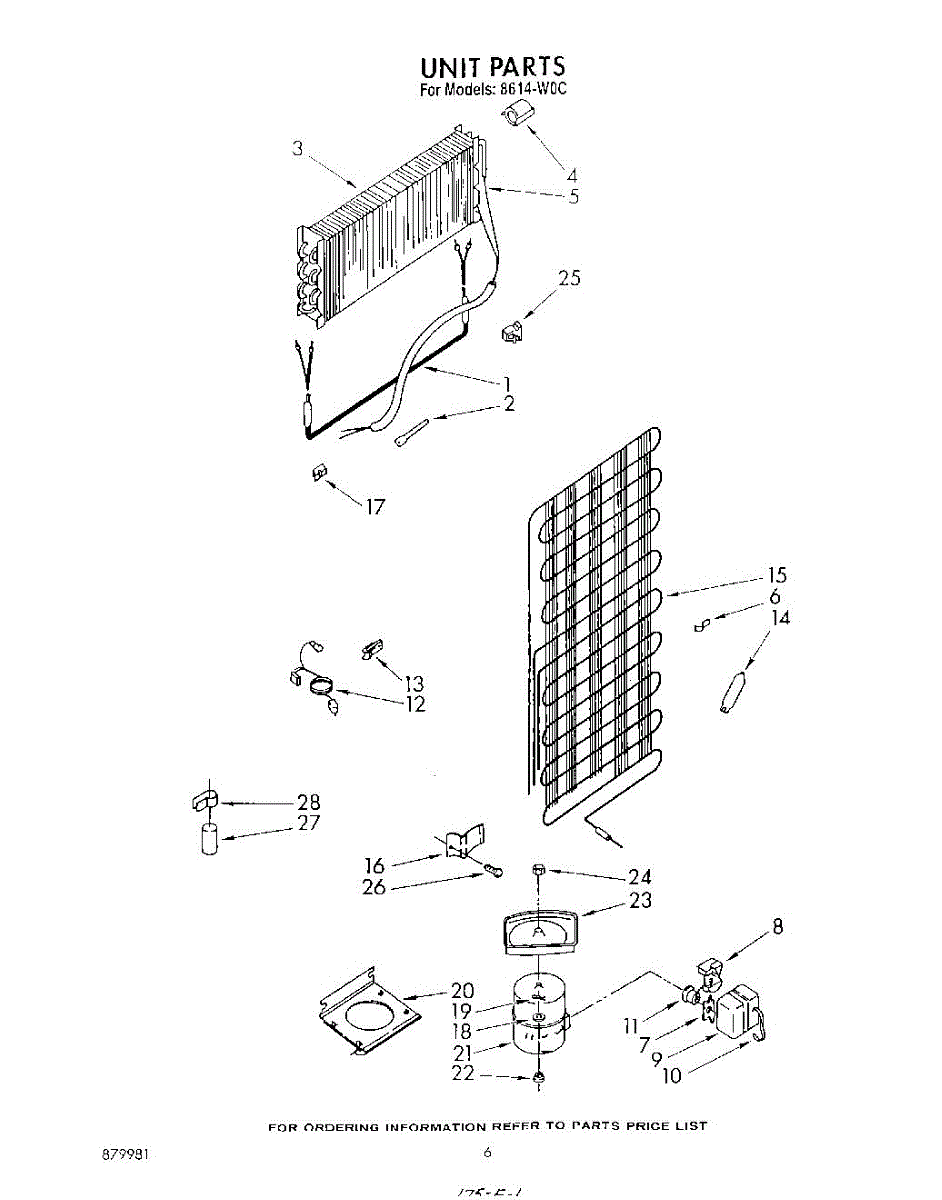

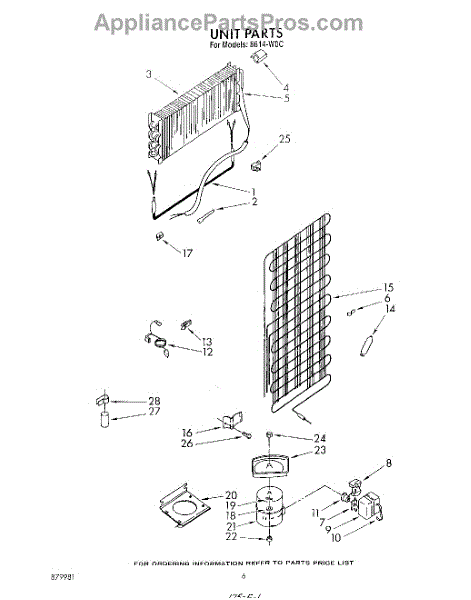

Parts for Roper 8614W0C: 04 - Unit Parts

This PTC start relay mounts on the compressor and momentarily powers the start winding to get the motor running, then disengages for normal operation. Replacing a weak relay can stop repeated clicking and help restore cooling.

• Provides initial boost to the compressor's start winding for reliable startup
• Automatically drops out after startup so the compressor runs on the run winding
• Helps address symptoms like warm temperatures, compressor clicking or humming without starting, or frequent overload trips
• Failure may show as rattling, burn marks, or a melted relay housing

• Disconnect power and remove the rear access panel to reach the compressor
• Allow components to cool; note wire locations and take a reference photo
• Pull the old relay straight off the compressor pins; align and firmly seat the new relay in the same orientation, then reconnect wires
• If your unit uses a run capacitor and/or separate overload protector, reconnect per the wiring diagram before restoring power

This motor overload protector helps prevent the dryer motor from overheating by cutting power when excessive current or heat is detected. It restores normal operation when the motor cools or the overload is replaced. What it does:

• Protects the dryer motor from damage by interrupting power during overheating or overcurrent conditions
• Commonly used when the dryer motor won't start, hums but doesn't run, or the motor trips repeatedly
• Works with the motor start system to reduce the risk of burned windings and costly motor failure
• Resets or is replaced to restore normal motor operation after an overload event

• Always unplug the appliance before checking or replacing this part
• Inspect wiring and motor for underlying issues that can cause repeated overloads

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it
