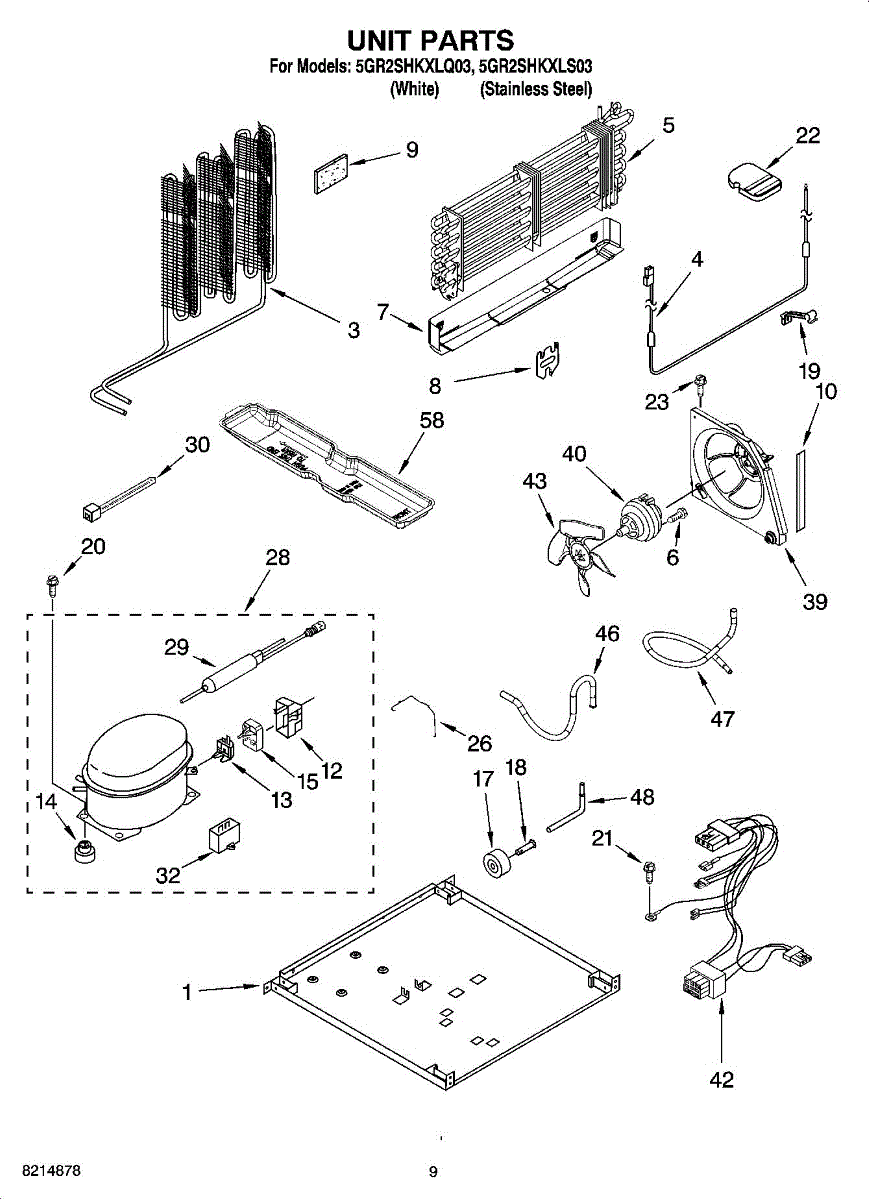

Parts for Whirlpool 5GR2SHKXLQ03: 05 - Unit Parts

Mounting screw for refrigerator assembly. Secures internal components and panels. Replace if stripped, rusted, missing, or damaged during repairs.

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

This terminal cover protects the appliance's power connection area, keeping wiring and terminals enclosed to reduce shock and short risks. It's a direct-replacement trim piece that restores the factory protective barrier around the terminal block. What it does:

• Covers and shields the terminal block where the power cord connects, helping prevent accidental contact.
• Helps reduce the risk of shorting or arcing at exposed power connections.
• Addresses symptoms like visible exposed terminals, loose or unprotected wiring at the power entry area, or a missing/broken cover.
• Restores the appliance's intended safety enclosure after repair or shipping damage.

• One terminal cover

• Always disconnect all power (unplug or shut off breaker) before accessing the terminal block.
• Remove the old cover and position the replacement over the terminal area so mounting holes align; secure with the original screw(s).
• Inspect terminal screws and wiring for tightness and damage while cover is off; do not attempt electrical repairs.
• If terminals or wiring are damaged, replace or repair those components before reinstalling the cover.

Compressor won't start or trips breaker? This overload protector prevents motor damage. Simple plug-in installation takes 15-30 minutes for most DIYers.

Fix excessive buzzing or rattling noise from your refrigerator's fan area. This rubber grommet cushions the fan motor mount to reduce vibration and noise.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

This refrigerator roller supports the unit's weight and enables smooth movement for positioning and cleaning. Replace when wheels crack or roll roughly.

Cabinet roller axle supports refrigerator wheels for smooth movement. Replace if rollers wobble or fridge is hard to move. Verify fit with your model.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Screw: 8-16 x 3/8 inch.

Replacement mounting screw for securing panels, brackets, and components in appliances. Needed when original fastener is missing, stripped, or damaged.

Refrigerator not cooling or running constantly? This compressor is the heart of your cooling system. Professional installation strongly recommended.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Fix a refrigerator that won't cool or has a humming compressor with this running capacitor. Restores smooth motor operation and prevents overheating.

Condenser fan motor mounting bracket assembly.

Fix a refrigerator that's not cooling properly or running too warm. This condenser fan motor keeps your fridge at the right temperature. DIY-friendly repair.

Process tube for refrigerator sealed system. Connects refrigerant lines in cooling system. Replace if damaged, cracked, or leaking during repairs.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

Collects defrost water beneath your refrigerator. Replace if cracked, warped, or leaking to prevent floor damage and protect surrounding cabinetry.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
