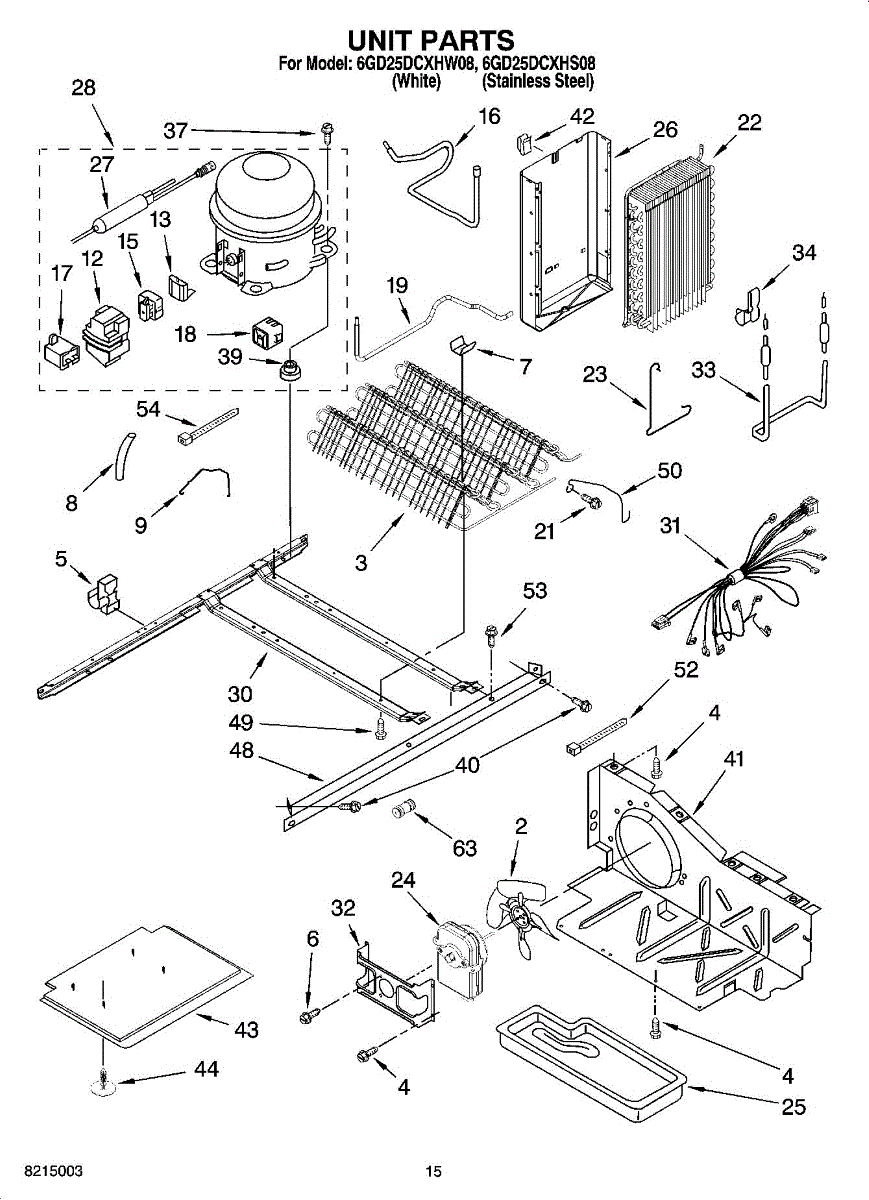

Parts for Whirlpool 6GD25DCXHS08: 09 - Unit Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This is a replacement mounting screw used to secure appliance panels and small components. It provides a correct-fit fastener to restore secure attachment and eliminate rattles or loose parts. What it does:

• Secures trim, panels, brackets, or small assemblies to prevent movement and vibration
• Restores proper alignment when a worn or missing screw causes loose parts or noise
• Works as a direct-replacement fastener where the OEM screw specification is required

• One replacement screw

• Use the correct driver bit to avoid stripping the head; do not overtighten
• Disconnect power and follow appliance safety guidelines when accessing internal components
• If the original mounting hole or threads are damaged, repair or replace the mounting hardware before reinstalling

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the power terminal/block where the power cord connects
• Helps prevent accidental contact with live terminals and reduces short risk
• Keeps out dust, lint and debris that can cause corrosion or arcing
• Useful when the original cover is cracked, missing or showing burn marks

• Always disconnect power (unplug or switch off breaker) before servicing electrical components
• Typically installs over the terminal block and secures with the existing fastener(s); inspect mounting hardware for wear
• Replace if cracked, melted or if terminals are exposed; ensure cover seats fully before restoring power

This running capacitor restores proper motor operation by providing the phase shift needed for fan and compressor motors. It helps motors run smoothly and reduces overheating or hard-start symptoms when the original capacitor fails. What it does:

• Provides the steady electrical phase shift required for motor operation in refrigeration and HVAC systems
• Helps restore normal motor starting and running performance
• Can reduce motor overheating, humming, or intermittent operation caused by a bad capacitor
• Used when the motor runs poorly, won't reach full speed, or cycles unusually

• 1 running capacitor

• Disconnect power at the breaker and verify the appliance is de-energized before servicing
• Discharge the capacitor with an insulated tool and wear insulated gloves and eye protection
• Replace with the same type and mounting orientation; secure all wire connections firmly

Size: 8 x 1/2 ab.

This evaporator assembly circulates refrigerant and removes heat inside the freezer section to enable proper cooling and frost control. Replaces a damaged or corroded evaporator to restore normal temperature performance. What it does:

• Holds refrigerant and transfers heat so the freezer evaporates moisture and cools the compartment.
• Commonly used when frost builds up, freezer runs warm, or cooling is intermittent.
• Works with the sealed refrigeration system and defrost components to maintain proper cold temperatures.
• Designed to match OEM fit and function for compatible refrigerators.

• System evacuation, recharge, and leak testing are required after installation.
• Disconnect power before servicing to avoid electrical shock and appliance damage.
• Inspect related defrost and sealing components during replacement.

This replacement clip secures the defrost heater to the evaporator so the heater stays in proper contact and defrosts frost buildup efficiently. Durable, OEM-style retention clip designed for refrigerators. What it does

• Secures the defrost heater to the evaporator assembly to ensure consistent defrost cycles
• Prevents the heater from shifting or coming loose, which can cause frost buildup or interrupted defrosting
• Helps maintain proper contact for efficient heat transfer during defrost
• Small, inexpensive part that can prevent larger ice/frost-related issues

• Disconnect power to the appliance before accessing the evaporator compartment.
• Handle the evaporator fins and heater element carefully to avoid damage.
• Typically installs with basic hand tools; replace any damaged or corroded clips.

The Evaporator Drip Tray is an OEM replacement part for Whirlpool refrigerators.

Causes of a bad drip tray can include cracks developing in the plastic over time. Mineral deposits may also accumulate, reducing the tray's drainage functionality.

Symptoms of a bad Evaporator Drip Tray include:

• Water leaks or overflow detected inside the freezer base
• Potential freezing or short circuits from excess pooled moisture
• Inability to effectively direct condensate away from coils
• Promotes conditions for mold or odor development

This OEM Whirlpool part is also compatible with Maytag, KitchenAid and some Kenmore models.

This condenser fan motor bracket secures the condenser fan motor to the appliance chassis, keeping the cooling fan stable so it can move air across the condenser for proper cooling performance and prevent wobble or contact. What it does:

• Holds the condenser fan motor in the correct position so the fan blades clear surrounding components.
• Stabilizes the motor to reduce vibration and noise caused by a loose or damaged mount.
• Helps maintain proper condenser airflow to avoid overheating or reduced cooling.
• Can be replaced when the original bracket is bent, cracked, or broken and no longer supports the motor.

• Disconnect power before starting any repair to avoid electric shock.
• Verify motor and fan assembly alignment when reinstalling the bracket; secure mounting hardware snugly but do not overtighten.
• Inspect related fasteners and fan components for wear and replace as needed.

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

This small rubber grommet cushions and supports a fan motor, helping reduce vibration and noise while the appliance is running. It fits into the motor bracket to provide a snug, insulated mounting point.

• Isolates fan motor vibration to cut rattling or buzzing
• Helps keep the motor aligned in its bracket
• Can wear, crack, or compress over time, causing vibration or noise
• Replacing a deteriorated grommet restores smooth, quieter operation

• Disconnect power before servicing
• Access the fan assembly and support the motor to relieve strain
• Note grommet orientation; transfer any sleeves or hardware as found
• Seat the new grommet fully in the bracket before remounting the motor

8 x 1/12

This air baffle directs and controls cold airflow inside the refrigerator compartment to help maintain even temperatures and proper circulation. Replaces a cracked, warped, or missing baffle to restore intended airflow paths. What it does

• Directs cold air from the evaporator into the refrigerator compartment for balanced cooling.
• Helps prevent uneven temperatures and localized warm or cold spots.
• Reduces excessive airflow directly onto stored items that can cause freezing or drying.
• Can rattle or obstruct airflow when cracked or loose, causing noise or reduced performance.

• One air baffle

• Disconnect power to the appliance before beginning work.
• Installation typically requires removing shelves or drawers for access; handle plastic parts gently to avoid damage.
• Align tabs or tracks and snap the baffle into place; do not force or bend beyond natural fit.

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

Size: 5/16 to 1/4. Universal John Guess Push On
