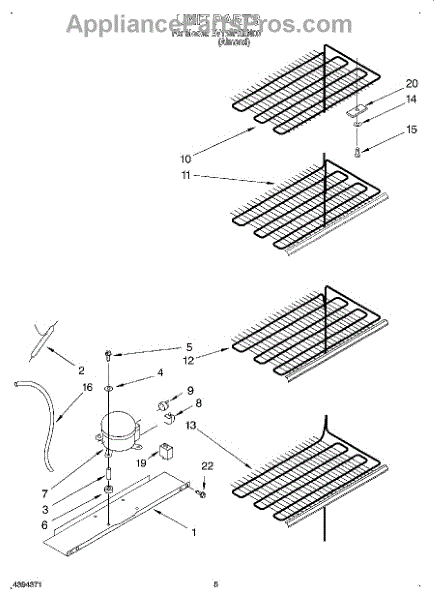

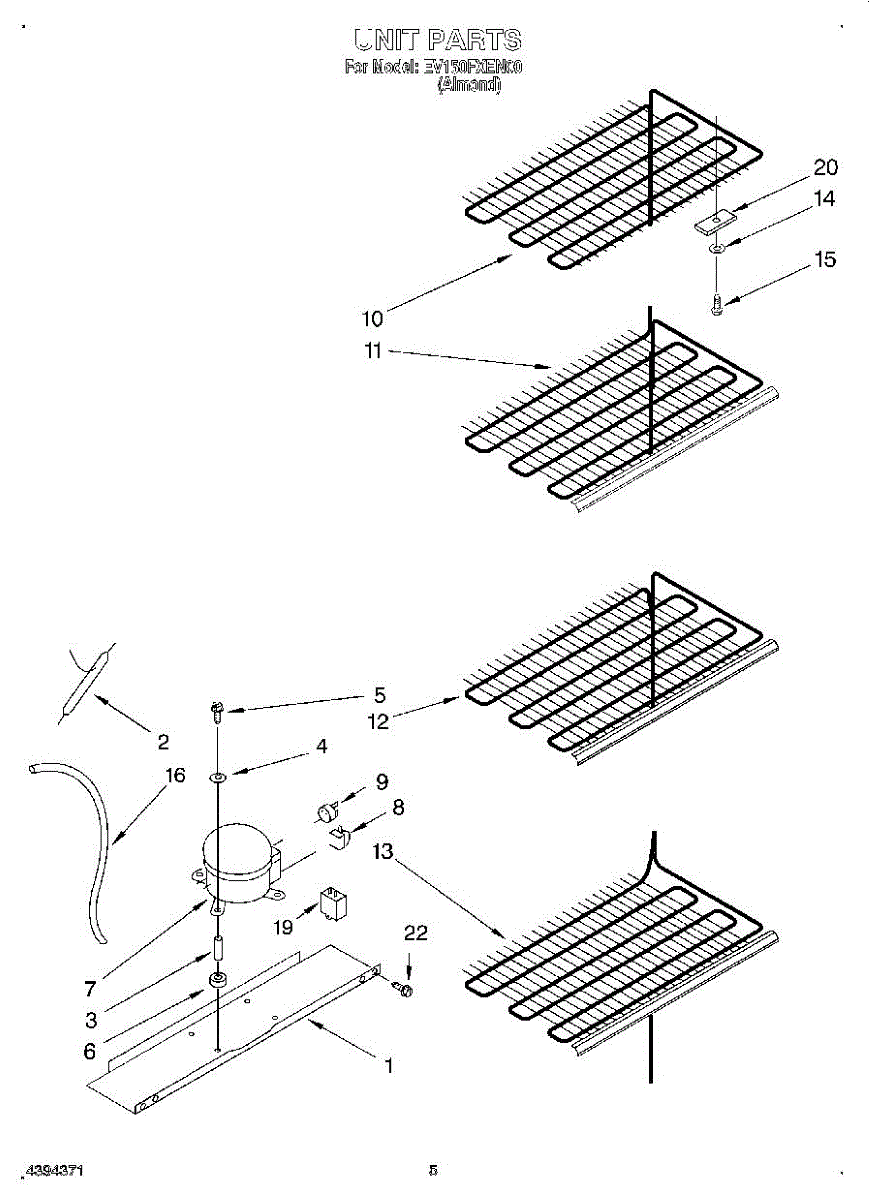

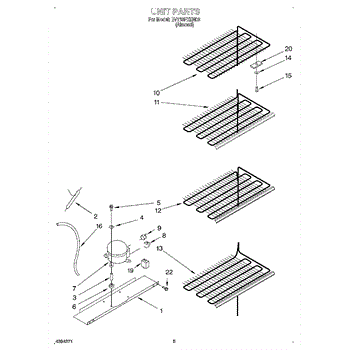

Parts for Whirlpool EV150FXEN00: 03 - Unit Parts

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

This sleeve grommet installs on your dehumidifier to protect wiring or tubing from sharp edges. Replace if cracked, worn, or missing to prevent damage.

Refrigerator won't cool or compressor rattles? This sealed system compressor restores cooling. Professional installation required for refrigerant work.

Refrigerator not cooling or compressor won't start? This start device assembly includes relay and overload. DIY-friendly 15-minute repair for most models.

This overload is a thermal protection device that mounts on the motor/compressor and opens the circuit when excessive heat or current is detected. Replacing a weak or failed overload helps restore safe startup and protects the windings from damage. What it does:

• Monitors motor/compressor temperature and current draw
• Interrupts power on overheat/overload to prevent damage
• Aids troubleshooting of start/run issues when paired with the start device
• Common symptoms: hums then clicks off, won't start, intermittent shutdown, frequent tripping

• 1 thermal overload protector

• Disconnect power before servicing; allow components to cool
• Access the terminal area on the motor/compressor; remove any cover
• Note/photograph wire positions; transfer wires and fully seat the new overload on the correct terminal
• Inspect the start relay, capacitor, and terminals for heat damage; replace any compromised parts

Pan head screw secures panels, brackets, and trim on refrigerators and freezers. Replace missing, stripped, or damaged screws to restore proper fastening.

Secures the light bulb in your freezer or refrigerator. Replace if the bulb is loose, falls out, or the clip is cracked. Confirm fit with your model number.

Replacement mounting screw for freezers and refrigerators. Secures internal components and panels. Order a new screw if original is stripped or missing.
