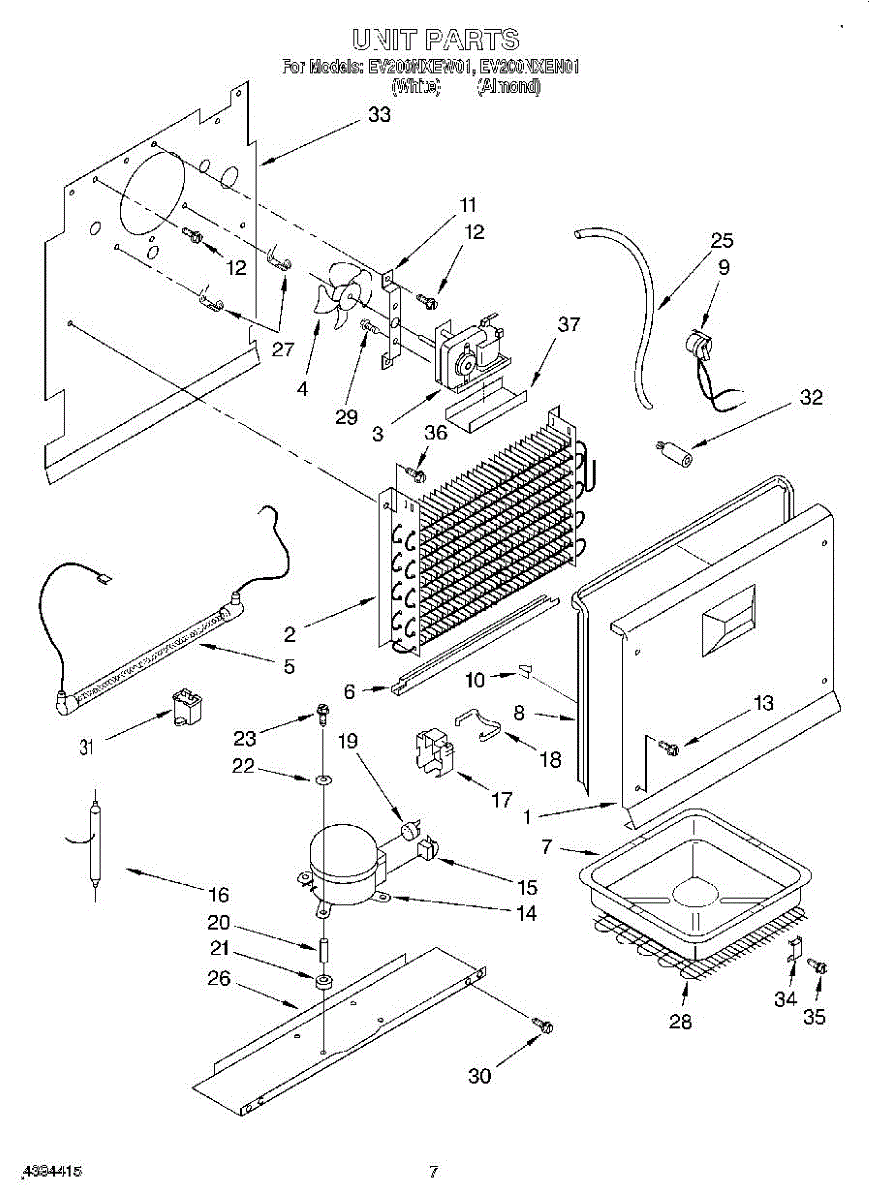

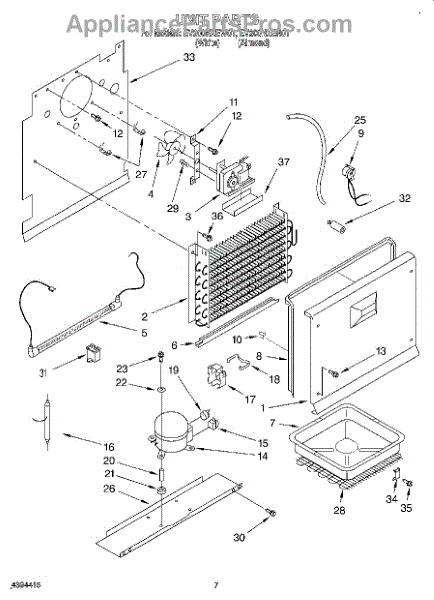

Parts for Whirlpool EV200NXEN01: 04 - Unit Parts

This fan blade mounts to the fan motor and circulates air through the appliance to maintain proper cooling and airflow. Replace a cracked, warped, or loose blade to quiet noise and restore consistent air movement. What it does:

• Presses onto the motor shaft to move air through the unit
• Helps maintain proper airflow across coils and through compartments
• Replaces a damaged or stripped-hub blade to prevent wobble and noise
• Common symptoms: weak or no airflow, rattling/scraping sounds, warm or inconsistent temperatures

• 1 fan blade

• Disconnect power to the appliance before servicing
• Access the fan assembly and note blade orientation/airflow direction
• Remove any retainer and pull the old blade straight off; press the new blade on fully without bending the vanes
• Spin by hand to verify clearance and free movement before restoring power

This heater is the factory heating element that supplies controlled heat for the appliance's designated cycle, helping restore consistent, reliable performance when the original element is damaged or has failed.

• Converts electrical energy into heat for the unit's specific heating function
• Common signs of failure: cycles that don't reach temperature, longer run times, or uneven results
• Visual clues can include breaks, burn marks, or hot spots on the element
• Restores designed heating performance when installed in a compatible unit

• Disconnect power at the breaker before servicing; allow components to cool
• Note wire positions and mounting hardware; transfer any brackets/insulators from the original if required
• Avoid kinking the element or over-tightening mounting screws; confirm clearances from wiring and panels
• After installation, check continuity and run a brief test cycle while monitoring operation

This defrost bi-metal thermostat monitors evaporator temperature and acts as a safety cutoff for the defrost heater. Replacing a failed thermostat helps prevent frost buildup and restores consistent cooling and defrost performance. What it does:

• Senses evaporator coil temperature and closes when cold to allow defrost heat
• Opens at a safe temperature to terminate the defrost cycle
• Protects the evaporator from overheating during defrost
• Common failure symptoms: heavy frost on the evaporator/back freezer panel, poor airflow, warm refrigerator section, long run times, or the defrost heater not energizing

• 1 defrost bi-metal thermostat

• Disconnect power before servicing; wear cut-resistant gloves
• Access the evaporator behind the freezer's rear panel; thaw ice as needed to reach the thermostat
• Note wire connections and clip location; attach the new thermostat in the same spot, firmly clipped to the evaporator tubing
• Route wiring away from sharp edges and the heater, then restore power and observe operation

Pan-head screw used to secure panels, brackets and trim on Whirlpool appliances. Replacing a damaged or missing screw restores proper fastening to reduce vibration and keep assemblies aligned during operation. What it does:

• Secures panels, brackets and trim pieces to the appliance chassis.
• Stops loose panels from rattling, vibrating or shifting during use.
• Used when the original screw is stripped, corroded or missing.
• OEM replacement that restores the original fastening point.

• Unplug the appliance or shut off power before working on it.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug—do not overtighten or force in plastic parts.
• If the original hole or threads are damaged, inspect the surrounding area before reuse.

This sealed-system compressor circulates refrigerant to cool your refrigerator, restoring normal cooling performance when the compressor fails. Designed to replace a failing compressor and help bring temperatures back to safe food-storage levels. What it does:

• Compresses and circulates refrigerant through the sealed refrigeration circuit
• Restores cooling when the compressor motor runs properly
• Commonly linked to symptoms like weak or no cooling, loud humming or clattering sounds, or a refrigerator that cycles continuously
• May be the cause if the appliance frequently trips a circuit breaker or shows hard-starting behavior

• Sealed-system work requires certified HVAC/refrigeration service and proper refrigerant handling per local regulations
• Disconnect power before beginning any repair; follow lockout/tagout practices
• Compressor replacement often requires system evacuation, brazing, and recharge — do not attempt unless qualified
• Use the identical replacement part number and follow OEM service instructions to avoid damage

Start relay for refrigerator compressors that helps the compressor begin running at power-up. Replacing a failed relay can restore normal starting behavior and resolve common startup symptoms. What it does

• Provides the initial start current path to the compressor during startup.
• Allows the compressor to reach running speed, then drops out once the motor is running.
• Common symptoms a bad relay may cause: compressor clicking, humming without starting, intermittent cooling or frequent cycling.
• Installed as the electrical component used only on compatible compressor assemblies.

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Access the relay at the compressor; remove and replace the relay only after confirming diagnostics.
• Dispose of the old electrical part per local regulations.

This 10-32 x 3/8 machine screw secures panels and components in many appliances where a small, threaded fastener is required. It replaces stripped, missing, or loose screws to restore stable assembly and reduce vibration. What it does:

• Fastens panels, brackets, and small components using 10-32 unified threads
• Restores secure mounting when screws are missing, stripped, or loose
• Helps stop rattling, misalignment, and intermittent part contact caused by loose fasteners
• Works wherever a 10-32 x 3/8 machine screw is specified by the manufacturer

• Disconnect power or unplug the appliance before servicing
• Use the correct size screwdriver or nut driver to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic
• Replace with the same size and thread spec to ensure proper fit and function

Size: 8 x 1/2 ab.
