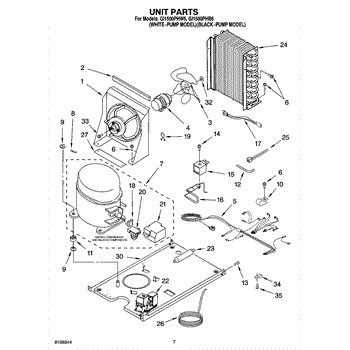

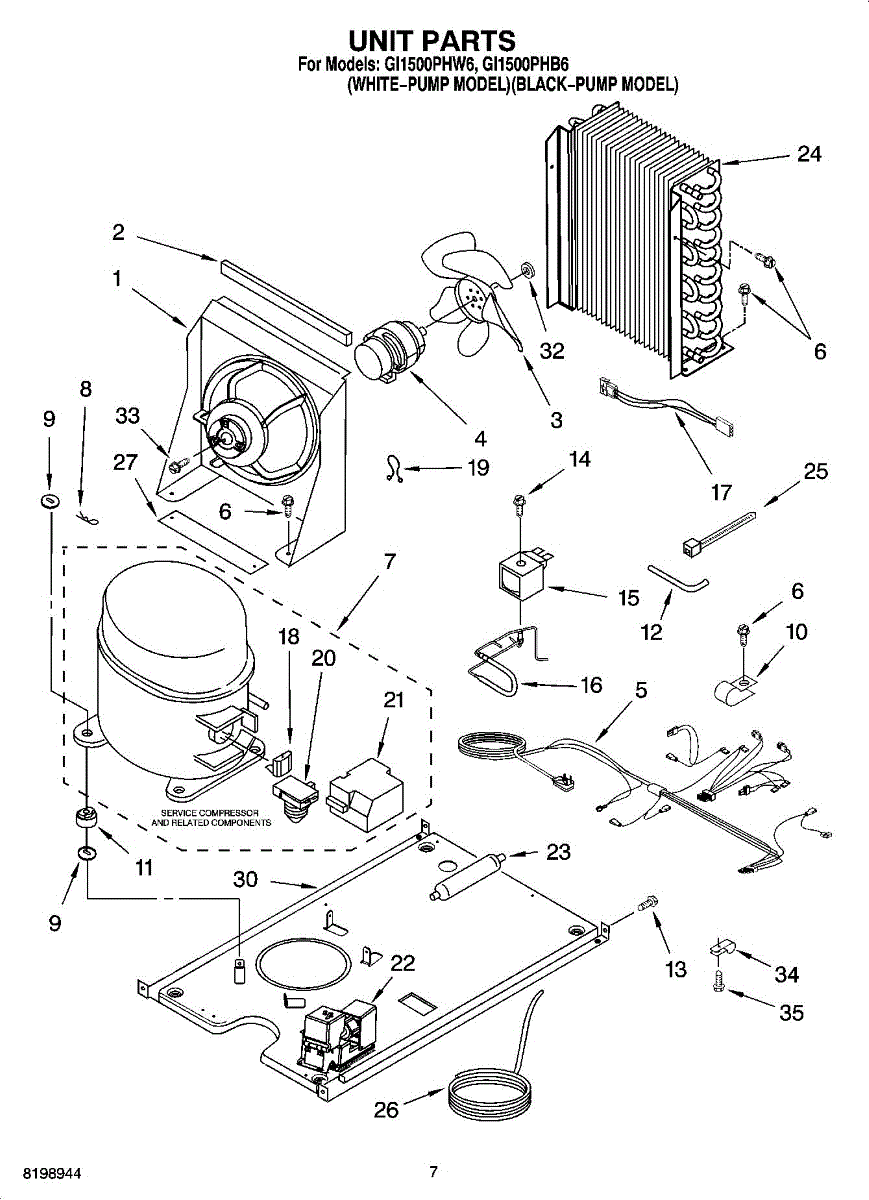

Parts for Whirlpool GI1500PHW6: 05 - Unit Parts

This fan mounting bracket secures the evaporator/condenser fan assembly so the fan stays aligned and runs quietly. It's a direct-fit replacement that restores proper airflow and reduces vibration from a loose or damaged bracket. What it does:

• Holds the refrigerator/freezer fan motor or blade in the correct position to maintain consistent airflow
• Prevents fan wobble and contact with surrounding components that cause noise or damage
• Helps restore cooling performance impacted by a detached or broken fan mount
• Works with the existing fan motor and blade when the bracket is the only damaged part

• One fan mounting bracket

• Basic hand tools required; access may require removing interior panels or the evaporator/condenser cover
• Power off and unplug the appliance before starting any repair to avoid shock or injury
• Keep screws and mounting hardware from the old bracket; replace only if damaged or missing
• If the fan motor or blade shows damage, inspect and replace those components as needed

The condenser fan motor is an OEM part for Whirlpool refrigerators. It plays a vital role in circulating refrigerant through the condenser coils, facilitating heat exchange and maintaining the refrigerator's cooling efficiency.

Over time, the motor-condenser can wear out or fail due to electrical issues, mechanical wear, or blockages in the condenser system. A malfunctioning motor can compromise the refrigerator's cooling performance, leading to temperature fluctuations and increased energy consumption.

Symptoms of a bad Motor-Condenser include:

• The refrigerator not cooling properly
• Unusual noises coming from the back of the refrigerator
• The compressor running continuously
• Increased energy bills due to inefficient operation
• Overheating of the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This replacement screw secures appliance panels, brackets, and internal components so your unit stays assembled, aligned, and quiet. Use it to replace missing, stripped, or corroded hardware and restore a reliable factory-fastened connection.

• Fastens panels, brackets, or trim to the cabinet/frame
• Helps maintain proper alignment of doors, controls, or covers
• Replaces hardware that's missing, rusted, or with a stripped head
• Can help reduce vibration or rattling from loose fasteners

• Disconnect power and shut off gas/water supplies before service
• Match thread and length to the original; transfer any washers if present
• Start threads by hand to avoid cross-threading, then tighten with the correct driver
• Do not overtighten; snug until secure to prevent damage to plastic or sheet metal

Reversing valve solenoid coil. For reversing valve use 2208467.

This gas valve controls gas flow to the oven or range burners so the appliance lights and maintains a steady flame. Replaces a faulty valve to restore reliable ignition and consistent heating. What it does:

• Regulates gas flow from the supply to the burner manifold for proper combustion
• Allows the oven/range to ignite and hold a steady flame during operation
• Commonly used when burners won't light, flame flickers or won't stay lit, or oven fails to heat
• Works with the appliance's safety controls and thermostat/electronic controls to modulate gas

• One gas valve

• Shut off gas supply and power to the appliance before starting any work
• Installation may require disconnection of gas lines; leak-test all connections after install
• Do not operate if you detect a gas odor—stop work, ventilate area.

The Overload is an OEM part for Whirlpool refrigerators. It is an important component of the refrigerator's compressor system, providing protection against electrical overload.

The overload helps safeguard the compressor from excessive electrical currents, preventing potential damage and ensuring the longevity of the refrigerator. It acts as a safety measure by interrupting the power supply to the compressor when necessary.

Causes of a faulty overload can include power surges, excessive heat, or electrical component failure. These factors can lead to the overload not properly regulating the electrical flow, resulting in compressor issues or the refrigerator not cooling effectively.

Symptoms of a bad overload may include:

• The refrigerator not cooling or maintaining the desired temperature
• Unusual noises coming from the compressor
• The compressor not running at all

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This start relay (EMB) energizes the compressor's start winding so the refrigerator can begin cooling reliably. Replacing a weak relay can resolve hard-start clicking and restore consistent operation when the compressor struggles to start.

• Delivers initial power to the compressor's start winding, then disengages once the motor is up to speed
• Supports reliable compressor starts and reduces repeated start attempts
• Common symptoms: clicking from the compressor area, rising refrigerator/freezer temperatures, compressor starts then stops after a few seconds, or heat damage on the old relay
• Works with EMB-style compressor connections used on select units

• Disconnect power to the appliance before servicing
• Remove the rear access cover; note wire positions; pull the old relay straight off the compressor terminals
• Seat the new relay fully on the compressor pins; reconnect the harness and any run capacitor lead exactly as removed
• Reinstall the cover and restore power; use caution—capacitors may retain a charge

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the power terminal/block where the power cord connects
• Helps prevent accidental contact with live terminals and reduces short risk
• Keeps out dust, lint and debris that can cause corrosion or arcing
• Useful when the original cover is cracked, missing or showing burn marks

• Always disconnect power (unplug or switch off breaker) before servicing electrical components
• Typically installs over the terminal block and secures with the existing fastener(s); inspect mounting hardware for wear
• Replace if cracked, melted or if terminals are exposed; ensure cover seats fully before restoring power

The Ice Machine Pump is an OEM replacement part for Whirlpool ice makers. This pump works to circulate water throughout the ice-making process. It pumps water from the supply line into the ice-making components and evaporator to form each batch of ice.

Causes of a bad pump can include mineral buildup inhibiting water flow, worn impeller or motor components reducing pumping efficiency, or damage from freezing temperatures.

Symptoms of a bad ice machine pump include:

• Inability to produce ice or complete ice-making cycles
• Erratic water flow or no water circulation
• Abnormal noises coming from the pump motor

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Nut is an OEM replacement part for Whirlpool refrigerators. This small yet essential component is used to secure various parts of the refrigerator, such as shelves, panels, or brackets, ensuring stability and proper alignment. Its durable design ensures reliable performance in the demanding environment of a refrigerator.

Causes of a bad or missing Nut can include wear over time, accidental stripping of threads, or loss during maintenance or repairs. A damaged or missing nut can lead to loose components and reduced functionality.

Symptoms of a bad or missing Nut include:

• Loose or wobbly shelves, brackets, or panels
• Difficulty keeping refrigerator components securely in place
• Rattling or unusual noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 8-18 x 5/8 inch.
