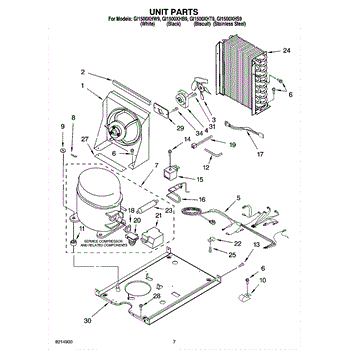

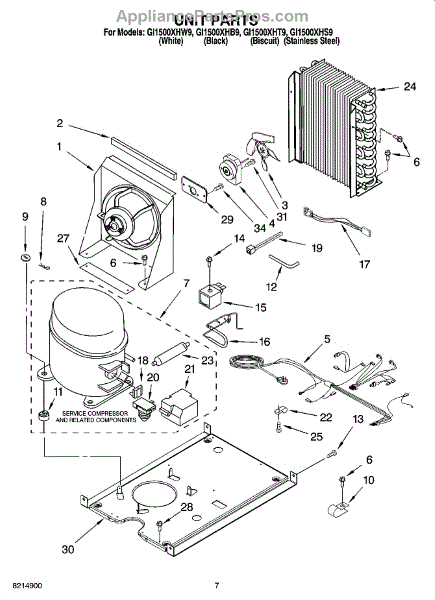

Parts for Whirlpool GI1500XHS9: 05 - Unit Parts, Optional Parts

This fan mounting bracket secures the evaporator/condenser fan assembly so the fan stays aligned and runs quietly. It's a direct-fit replacement that restores proper airflow and reduces vibration from a loose or damaged bracket. What it does:

• Holds the refrigerator/freezer fan motor or blade in the correct position to maintain consistent airflow
• Prevents fan wobble and contact with surrounding components that cause noise or damage
• Helps restore cooling performance impacted by a detached or broken fan mount
• Works with the existing fan motor and blade when the bracket is the only damaged part

• One fan mounting bracket

• Basic hand tools required; access may require removing interior panels or the evaporator/condenser cover
• Power off and unplug the appliance before starting any repair to avoid shock or injury
• Keep screws and mounting hardware from the old bracket; replace only if damaged or missing
• If the fan motor or blade shows damage, inspect and replace those components as needed

This condenser fan blade moves air across the refrigerator's condenser coil and compressor to remove heat, helping the unit cool efficiently. Replace a cracked, warped, or loose blade to restore proper airflow and reduce noise.

• Circulates air through the condenser section to dissipate heat from the refrigerant
• Supports stable fridge and freezer temperatures and efficient compressor operation
• Common symptoms: rattling/scraping noises, weak or no airflow at the rear/bottom, longer run times, or warming compartments
• Replace if the blade is cracked, warped, wobbling, or loose on the motor shaft

• Disconnect power and pull the refrigerator away from the wall; remove the rear access panel to reach the condenser fan
• Note the original blade orientation/rotation; remove the old blade from the motor shaft (release any retainer if present)
• Press the new blade onto the shaft until fully seated; ensure it spins freely with proper clearance and airflow direction
• Reinstall the panel, restore power, and verify normal airflow and sound

The Condenser Motor Kit is an OEM part for Whirlpool refrigerators. It includes a motor, fan blade, wire harness, and hardware, designed to replace the existing condenser motor in your refrigerator. This kit is crucial for maintaining the appliance's cooling efficiency by circulating air through the condenser coils and over the compressor, helping to dissipate heat and prevent overheating.

Over time, the condenser motor can fail due to mechanical wear, electrical issues, or blockages that restrict airflow and cause the motor to overheat.

Symptoms of a bad Condenser Motor Kit include:

• The refrigerator does not cool adequately
• Unusual noises from the back of the refrigerator where the motor is located
• The refrigerator compressor runs hotter than normal
• Increased electrical consumption as the refrigerator tries to maintain cooling efficiency

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This small rubber grommet cushions and supports a fan motor, helping reduce vibration and noise while the appliance is running. It fits into the motor bracket to provide a snug, insulated mounting point.

• Isolates fan motor vibration to cut rattling or buzzing
• Helps keep the motor aligned in its bracket
• Can wear, crack, or compress over time, causing vibration or noise
• Replacing a deteriorated grommet restores smooth, quieter operation

• Disconnect power before servicing
• Access the fan assembly and support the motor to relieve strain
• Note grommet orientation; transfer any sleeves or hardware as found
• Seat the new grommet fully in the bracket before remounting the motor

This replacement screw secures appliance panels, brackets, and internal components so your unit stays assembled, aligned, and quiet. Use it to replace missing, stripped, or corroded hardware and restore a reliable factory-fastened connection.

• Fastens panels, brackets, or trim to the cabinet/frame
• Helps maintain proper alignment of doors, controls, or covers
• Replaces hardware that's missing, rusted, or with a stripped head
• Can help reduce vibration or rattling from loose fasteners

• Disconnect power and shut off gas/water supplies before service
• Match thread and length to the original; transfer any washers if present
• Start threads by hand to avoid cross-threading, then tighten with the correct driver
• Do not overtighten; snug until secure to prevent damage to plastic or sheet metal

Reversing valve solenoid coil. For reversing valve use 2208467.

This condenser fan jumper wire assembly connects the condenser fan motor to the fridge wiring harness, restoring electrical continuity so the condenser fan can run properly. Use when a damaged wire prevents normal cooling-system operation. What it does:

• Provides the electrical connection between the condenser fan motor and the appliance wiring harness
• Restores power to the condenser fan when original jumper or wiring is broken, burned, or corroded
• Helps resolve symptoms such as a non-spinning condenser fan, loud arcing/sparking noises at the fan area, or cooling performance issues related to a stopped fan
• Matches OEM routing and terminals to ensure reliable connection where specified

• One pre-assembled condenser fan jumper wire assembly

• Disconnect power to the appliance before inspecting or replacing wiring to avoid shock or damage
• Replace only damaged jumpers and inspect surrounding wiring/terminals for heat damage or corrosion

The Overload is an OEM part for Whirlpool refrigerators. It is an important component of the refrigerator's compressor system, providing protection against electrical overload.

The overload helps safeguard the compressor from excessive electrical currents, preventing potential damage and ensuring the longevity of the refrigerator. It acts as a safety measure by interrupting the power supply to the compressor when necessary.

Causes of a faulty overload can include power surges, excessive heat, or electrical component failure. These factors can lead to the overload not properly regulating the electrical flow, resulting in compressor issues or the refrigerator not cooling effectively.

Symptoms of a bad overload may include:

• The refrigerator not cooling or maintaining the desired temperature
• Unusual noises coming from the compressor
• The compressor not running at all

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This compressor overload is a thermal protector that opens the circuit if the compressor overheats or draws excessive current. Replacing a failed overload restores reliable starts and helps prevent compressor damage when your refrigerator won't cool.

• Protects the compressor by interrupting power during overheat/overcurrent conditions
• Common symptoms: refrigerator not cooling, compressor won't start, repeated clicking or brief hum then shutoff
• Mounts on the compressor terminal and works alongside the start relay on applicable models
• Built for proper fit and dependable operation in the start circuit

• Unplug the refrigerator and remove the rear access panel to reach the compressor
• Note wire positions; pull the old overload straight off the compressor pin
• Push the new overload fully onto the correct terminal and reconnect wiring/terminal cover
• Restore power and verify the compressor starts without repeated clicking

This compressor overload is a thermal protector that opens the circuit if the compressor overheats or draws excessive current. Replacing a failed overload restores reliable starts and helps prevent compressor damage when your refrigerator won't cool.

• Protects the compressor by interrupting power during overheat/overcurrent conditions
• Common symptoms: refrigerator not cooling, compressor won't start, repeated clicking or brief hum then shutoff
• Mounts on the compressor terminal and works alongside the start relay on applicable models
• Built for proper fit and dependable operation in the start circuit

• Unplug the refrigerator and remove the rear access panel to reach the compressor
• Note wire positions; pull the old overload straight off the compressor pin
• Push the new overload fully onto the correct terminal and reconnect wiring/terminal cover
• Restore power and verify the compressor starts without repeated clicking

This start relay (EMB) energizes the compressor's start winding so the refrigerator can begin cooling reliably. Replacing a weak relay can resolve hard-start clicking and restore consistent operation when the compressor struggles to start.

• Delivers initial power to the compressor's start winding, then disengages once the motor is up to speed
• Supports reliable compressor starts and reduces repeated start attempts
• Common symptoms: clicking from the compressor area, rising refrigerator/freezer temperatures, compressor starts then stops after a few seconds, or heat damage on the old relay
• Works with EMB-style compressor connections used on select units

• Disconnect power to the appliance before servicing
• Remove the rear access cover; note wire positions; pull the old relay straight off the compressor terminals
• Seat the new relay fully on the compressor pins; reconnect the harness and any run capacitor lead exactly as removed
• Reinstall the cover and restore power; use caution—capacitors may retain a charge

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the power terminal/block where the power cord connects
• Helps prevent accidental contact with live terminals and reduces short risk
• Keeps out dust, lint and debris that can cause corrosion or arcing
• Useful when the original cover is cracked, missing or showing burn marks

• Always disconnect power (unplug or switch off breaker) before servicing electrical components
• Typically installs over the terminal block and secures with the existing fastener(s); inspect mounting hardware for wear
• Replace if cracked, melted or if terminals are exposed; ensure cover seats fully before restoring power

Size: 8-18 x 5/8 inch.

Screw: 8-16 x 3/8 inch.

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 1/4 lb.

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.

Sealer for refrigerant line insulation.

The Adhesive is an OEM part for Whirlpool appliances, designed for securing and sealing various components within the appliances. This adhesive is ideal for use in situations where a durable and heat-resistant bond is necessary.Size: 2 oz. tube. This silicone rubber adhesive can be used on door gaskets, felt seals, and much more.

Over time, seals and insulation can become loose or detached due to wear, heat, or mechanical action, potentially compromising the appliance's functionality, efficiency, or safety.

The need for this adhesive may become apparent through symptoms such as:

• Loose seals or gaskets that result in heat loss, inefficiency, or the escape of moisture.
• Detached insulation leading to increased noise, heat transfer, or loss of energy efficiency.
• Components that have become unattached, affecting the appliance's performance or structural integrity.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
