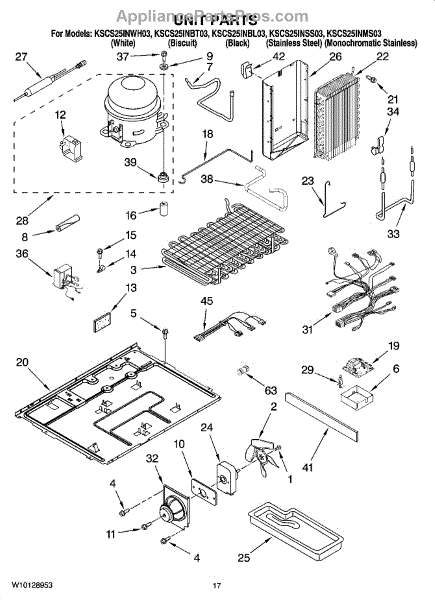

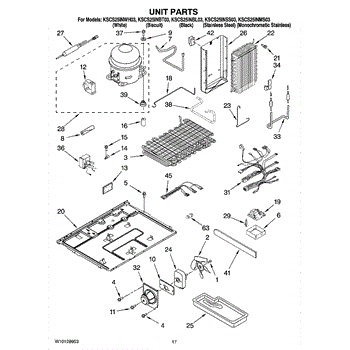

Parts for Kitchenaid KSCS25INMS03: 11 - Unit Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

Size: 8-32 x 1/4 inch.

This genuine replacement screw secures appliance panels and components for reliable operation. Use it to replace stripped, missing, or corroded fasteners and restore proper fit and alignment for safe appliance use. What it does

• Secures panels, brackets, and small components to restore proper alignment and reduce vibration
• Replaces stripped or missing fasteners that can cause loose parts or rattling
• Helps maintain safe electrical and mechanical connections by holding components in place
• Works wherever the original matching screw was used on the appliance

• Disconnect power and water before beginning any repair
• Use the correct driver bit to avoid cam-out and head damage
• Tighten securely but avoid overtightening to prevent stripping threads or cracking plastic
• If threads are damaged, replace mating hardware or use appropriate repair inserts rather than forcing the screw

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This terminal cover protects the appliance's power terminal block by shielding live connections and reducing the risk of accidental contact. It restores a missing or damaged cover so the terminal area is safer and neater. What it does:

• Shields the terminal block to help prevent accidental contact with live electrical connections.
• Helps contain and hide the power cord connection for a cleaner appearance.
• Used when the original cover is cracked, broken, missing, or shows signs of arcing or heat damage.
• Supports safe service access by covering exposed terminals during normal operation.

• Disconnect power at the breaker or unplug the appliance before servicing to avoid shock or injury.
• Access the terminal area; ensure terminals are cool and dry before handling.
• Align cover over the terminal block and secure according to the OEM design; replace any damaged fasteners with correct OEM parts.
• If you see burn marks, melted insulation, or loose terminals, replace or repair the affected wiring/terminal block before installing the cover.

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

This rubber grommet provides a tidy, protective seal where hoses, wires, or shafts pass through the appliance cabinet—helping prevent chafing, reduce vibration noise, and maintain proper sealing around openings. What it does:

• Cushions and protects wiring or hoses from rubbing against metal edges
• Helps maintain a seal to reduce water or air bypass where fitted
• Dampens vibration and reduces related noise at the penetration point
• Keeps openings finished and helps prevent further component wear

• Disconnect power (and water for washers) before starting any repair
• Inspect the mounting area for sharp edges or damage; replace if surrounding parts are compromised
• Push the grommet into the opening and seat evenly; do not stretch excessively

Size: 8 x 1/2 ab.

This evaporator assembly circulates refrigerant and removes heat inside the freezer section to enable proper cooling and frost control. Replaces a damaged or corroded evaporator to restore normal temperature performance. What it does:

• Holds refrigerant and transfers heat so the freezer evaporates moisture and cools the compartment.
• Commonly used when frost builds up, freezer runs warm, or cooling is intermittent.
• Works with the sealed refrigeration system and defrost components to maintain proper cold temperatures.
• Designed to match OEM fit and function for compatible refrigerators.

• System evacuation, recharge, and leak testing are required after installation.
• Disconnect power before servicing to avoid electrical shock and appliance damage.
• Inspect related defrost and sealing components during replacement.

This replacement clip secures the defrost heater to the evaporator so the heater stays in proper contact and defrosts frost buildup efficiently. Durable, OEM-style retention clip designed for refrigerators. What it does

• Secures the defrost heater to the evaporator assembly to ensure consistent defrost cycles
• Prevents the heater from shifting or coming loose, which can cause frost buildup or interrupted defrosting
• Helps maintain proper contact for efficient heat transfer during defrost
• Small, inexpensive part that can prevent larger ice/frost-related issues

• Disconnect power to the appliance before accessing the evaporator compartment.
• Handle the evaporator fins and heater element carefully to avoid damage.
• Typically installs with basic hand tools; replace any damaged or corroded clips.

The Condenser Motor Kit is an OEM part for Whirlpool refrigerators. It includes a motor, fan blade, wire harness, and hardware, designed to replace the existing condenser motor in your refrigerator. This kit is crucial for maintaining the appliance's cooling efficiency by circulating air through the condenser coils and over the compressor, helping to dissipate heat and prevent overheating.

Over time, the condenser motor can fail due to mechanical wear, electrical issues, or blockages that restrict airflow and cause the motor to overheat.

Symptoms of a bad Condenser Motor Kit include:

• The refrigerator does not cool adequately
• Unusual noises from the back of the refrigerator where the motor is located
• The refrigerator compressor runs hotter than normal
• Increased electrical consumption as the refrigerator tries to maintain cooling efficiency

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Compressor is an OEM component specifically designed for Whirlpool refrigerators. Located inside the refrigerator cabinet, the compressor circulates refrigerant throughout the cooling system, regulating temperatures inside food compartments. Its efficient operation is crucial to food freshness and refrigerator function.

Symptoms of a bad compressor include:

• Elevated interior temperatures unable to be maintained
• Louder than normal buzzing or humming sounds coming from inside
• Frost or ice building up in areas where it typically would not
• Refrigerator lights repeatedly cycling on and off

Causes of compressor failure involve normal wear of internal parts over time, loss of refrigerant allowing components to overwork, or disruption in the flow and pressure of circulating coolant.

This OEM Whirlpool part is compatible with Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This defrost heater melts frost and ice from the refrigerator evaporator so the cooling system runs efficiently and food stays properly chilled. Replaces a failed or burned heater element to restore automatic defrost function. What it does:

• Warms the evaporator coil during defrost cycles to remove frost buildup
• Helps prevent ice-related cooling problems, long run times, or clogged drain issues
• Commonly replaced when the defrost system fails or the freezer develops heavy frost
• Works with the refrigerator's defrost control and thermostat to clear ice automatically

• Disconnect power to the appliance before starting any repair
• Access the evaporator by removing the freezer evaporator cover or back panel
• Handle the heater carefully to avoid damaging the coil fins or heating element; replace mounting clips or insulation as needed
• Test defrost continuity and the defrost system components if the oven still fails to defrost after installation

The Inverter Board is an OEM replacement part for Whirlpool refrigerators. It is a circuit board that controls the speed and operation of the compressor.

Causes of a faulty board can include liquid damage compromising circuitry over time. Heat fluctuations from cycling compressors may diminish operating lifespan as well.

Symptoms of a problematic inverter board include:

• Fluctuating interior temperatures
• Inoperative fan or cooling module
• Error codes without the ability to reset

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

This small rubber grommet cushions and supports a fan motor, helping reduce vibration and noise while the appliance is running. It fits into the motor bracket to provide a snug, insulated mounting point.

• Isolates fan motor vibration to cut rattling or buzzing
• Helps keep the motor aligned in its bracket
• Can wear, crack, or compress over time, causing vibration or noise
• Replacing a deteriorated grommet restores smooth, quieter operation

• Disconnect power before servicing
• Access the fan assembly and support the motor to relieve strain
• Note grommet orientation; transfer any sleeves or hardware as found
• Seat the new grommet fully in the bracket before remounting the motor

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 5/16 to 1/4. Universal John Guess Push On
