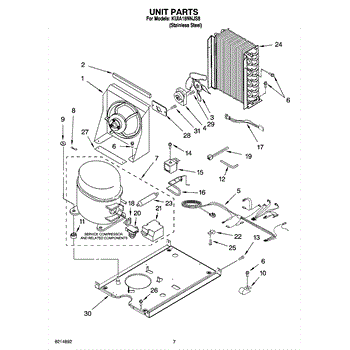

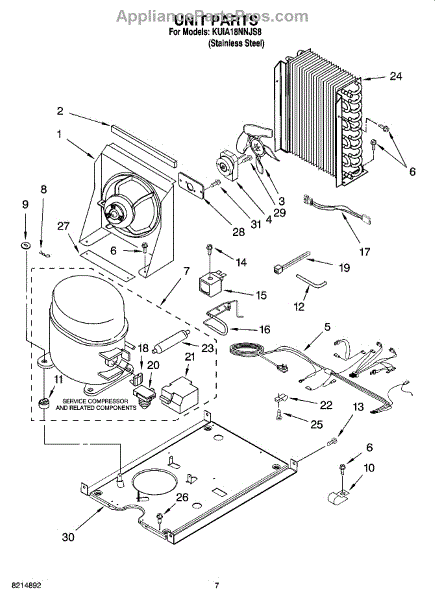

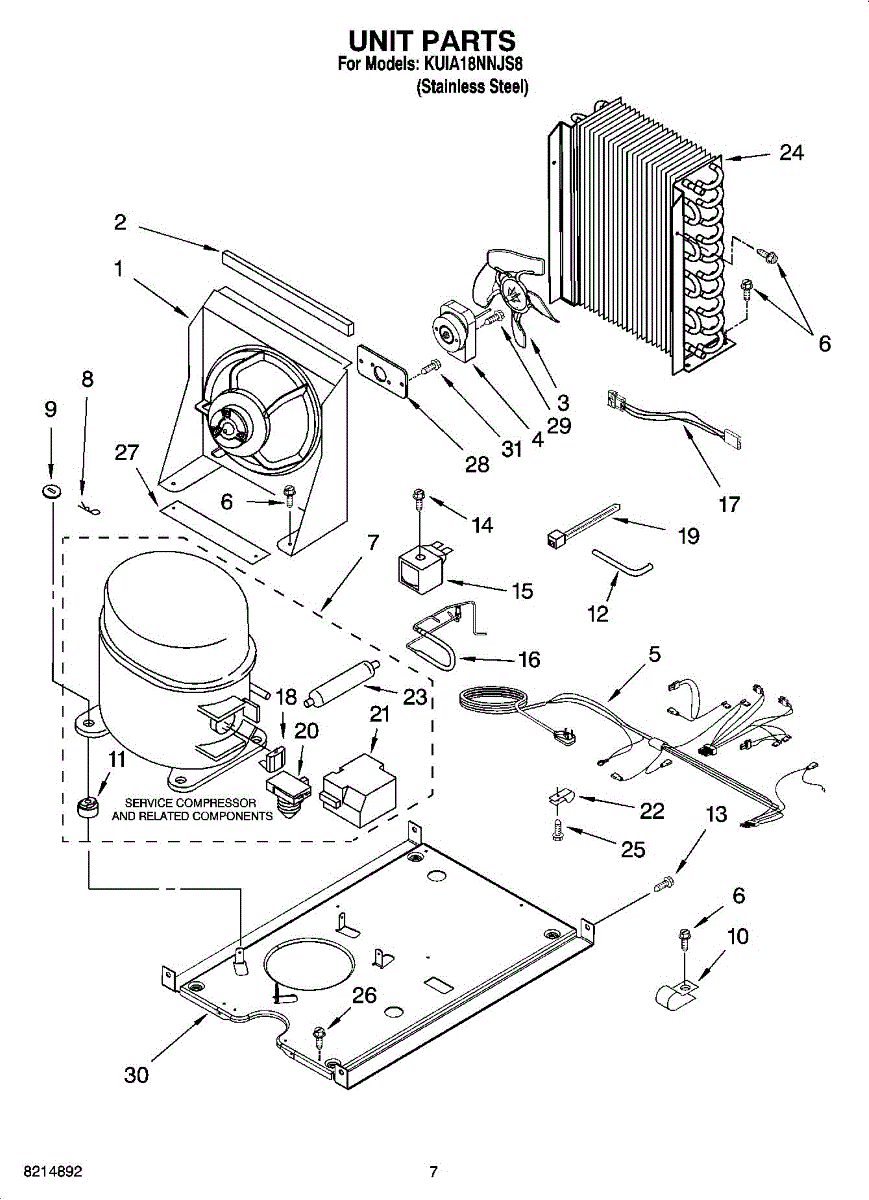

Parts for Kitchenaid KUIA18NNJS8: 05 - Unit Parts, Optional Parts

This fan mounting bracket secures the evaporator/condenser fan assembly so the fan stays aligned and runs quietly. It's a direct-fit replacement that restores proper airflow and reduces vibration from a loose or damaged bracket. What it does:

• Holds the refrigerator/freezer fan motor or blade in the correct position to maintain consistent airflow
• Prevents fan wobble and contact with surrounding components that cause noise or damage
• Helps restore cooling performance impacted by a detached or broken fan mount
• Works with the existing fan motor and blade when the bracket is the only damaged part

• One fan mounting bracket

• Basic hand tools required; access may require removing interior panels or the evaporator/condenser cover
• Power off and unplug the appliance before starting any repair to avoid shock or injury
• Keep screws and mounting hardware from the old bracket; replace only if damaged or missing
• If the fan motor or blade shows damage, inspect and replace those components as needed

Foam pad cushions and insulates ice maker components. Replace if compressed, torn, or causing excessive noise. Verify fit with your model number.

Refrigerator running loud or not cooling well? A worn condenser fan blade reduces airflow across the coil. This DIY fix takes 15-30 minutes.

Refrigerator not cooling or making noise? This condenser fan motor kit fixes cooling issues and noisy operation. DIY-friendly with video guide.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Secures power cord to your ice maker or refrigerator. Replace if cracked, broken, or missing to prevent cord damage and ensure safe operation. Verify fit.

Fix excessive buzzing or rattling noise from your refrigerator's fan area. This rubber grommet cushions the fan motor mount to reduce vibration and noise.

Secures panels, brackets, and internal components in appliances. Replace missing, stripped, or corroded screws to restore secure assembly and alignment.

Reversing valve solenoid coil. For reversing valve use 2208467.

Ice maker not filling or overflowing? A faulty valve body disrupts water flow control. This part regulates water entry into your ice maker system.

Refrigerator not cooling properly? A faulty condenser fan jumper wire disrupts fan operation. This wire assembly restores electrical continuity.

If your ice maker stops cooling or the compressor won't run, the overload protector may have failed. This component shields the compressor from damage.

Refrigerator won't cool or makes clicking noise? Replace the compressor overload protector. This thermal switch prevents overheating. 1-hour DIY repair.

Refrigerator won't cool or makes clicking noise? Replace the compressor overload protector. This thermal switch prevents overheating. 1-hour DIY repair.

This start relay (EMB) energizes the compressor's start winding so the refrigerator can begin cooling reliably. Replacing a weak relay can resolve hard-start clicking and restore consistent operation when the compressor struggles to start.

• Delivers initial power to the compressor's start winding, then disengages once the motor is up to speed
• Supports reliable compressor starts and reduces repeated start attempts
• Common symptoms: clicking from the compressor area, rising refrigerator/freezer temperatures, compressor starts then stops after a few seconds, or heat damage on the old relay
• Works with EMB-style compressor connections used on select units

• Disconnect power to the appliance before servicing
• Remove the rear access cover; note wire positions; pull the old relay straight off the compressor terminals
• Seat the new relay fully on the compressor pins; reconnect the harness and any run capacitor lead exactly as removed
• Reinstall the cover and restore power; use caution—capacitors may retain a charge

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the power terminal/block where the power cord connects
• Helps prevent accidental contact with live terminals and reduces short risk
• Keeps out dust, lint and debris that can cause corrosion or arcing
• Useful when the original cover is cracked, missing or showing burn marks

• Always disconnect power (unplug or switch off breaker) before servicing electrical components
• Typically installs over the terminal block and secures with the existing fastener(s); inspect mounting hardware for wear
• Replace if cracked, melted or if terminals are exposed; ensure cover seats fully before restoring power

Secure water line connections with this refrigerator hose clamp. Replace if leaking, loose, or corroded. Verify fit with your model number before ordering.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Ice maker not producing ice or making thin patchy ice? A faulty condenser affects cooling efficiency. This condenser part restores proper freezing.

Size: 8-18 x 5/8 inch.

Screw: 8-16 x 3/8 inch.

Mounting screw for refrigerator and freezer assembly. Replaces lost, stripped, or damaged screws that secure interior or exterior components.

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 1/4 lb.

Foam insulation panel that fits inside refrigerator doors to maintain temperature efficiency. Replace if cracked, compressed, or missing.

Putty sealer adhesive for refrigerators and freezers. Seals joints, gaps, and connections. Replace when old sealant is cracked, dried out, or missing.

Sealer for refrigerant line insulation.

The Adhesive is an OEM part for Whirlpool appliances, designed for securing and sealing various components within the appliances. This adhesive is ideal for use in situations where a durable and heat-resistant bond is necessary.Size: 2 oz. tube. This silicone rubber adhesive can be used on door gaskets, felt seals, and much more.

Over time, seals and insulation can become loose or detached due to wear, heat, or mechanical action, potentially compromising the appliance's functionality, efficiency, or safety.

The need for this adhesive may become apparent through symptoms such as:

• Loose seals or gaskets that result in heat loss, inefficiency, or the escape of moisture.
• Detached insulation leading to increased noise, heat transfer, or loss of energy efficiency.
• Components that have become unattached, affecting the appliance's performance or structural integrity.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
