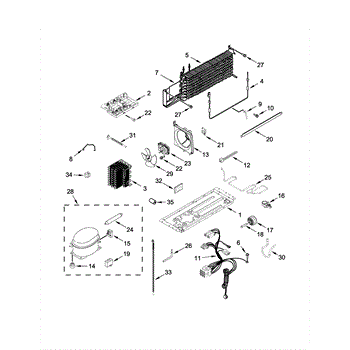

Parts for Ikea IK8FXNGFDM00: Unit Parts

The Evaporator is an OEM part for Whirlpool refrigerators. As the main heat exchange component, it plays a vital role in removing heat from the refrigerator compartments to maintain proper cooling performance.

Causes of a bad evaporator can include bent fin coils inhibiting airflow, cracked or damaged tubing preventing proper refrigerant circulation, or debris buildup obstructing heat transfer.

Symptoms of a bad evaporator are:

• Inability to maintain set temperatures inside compartments
• Frost or condensation accumulating quicker than normal
• Unusual noises or vibrations from the refrigeration system
• Refrigerant leaks requiring high pressure service

This genuine Whirlpool evaporator coil is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators.

This wire harness connects the touch matrix/user interface to the appliance's control system, carrying power and keypad signals. Replacing a damaged harness can restore reliable button response and consistent control-panel operation.

• Links the touch matrix/user interface to the main control board
• Transmits low-voltage power and signal inputs from the keypad
• Improper routing or damaged conductors can cause intermittent inputs
• Can lead to symptoms like unresponsive buttons, erratic UI behavior, or flickering/blank panel

• Disconnect power to the appliance before servicing; shut off gas supply if applicable
• Photograph original wire routing and connector locations for reference
• Depress connector locking tabs—do not pull on wires; seat connectors fully
• Route and secure the harness away from sharp edges and heat; reuse retainers/clips

This air baffle directs and controls airflow between compartments to help maintain even temperatures and proper air circulation inside the refrigerator. Replaces a damaged or missing baffle to restore normal airflow and cooling balance. What it does:

• Channels cold air from the freezer or evaporator to the fresh-food section to help equalize temperatures
• Helps prevent warm spots and reduces temperature swings caused by blocked or broken ducts
• Restores correct airflow when the original baffle is cracked, warped, or missing
• Works with the damper/air flow system to support efficient cooling performance

• One air baffle

• Disconnect power to the appliance before beginning any work
• Remove any shelves or drawer components necessary for access; handle plastic parts gently to avoid cracking
• Verify proper orientation and fit before snapping into place; do not force the part
• If airflow problems persist after replacement, check the damper assembly and evaporator area for ice or other obstructions

A small retainer clip that secures panels, hoses or wiring to keep components in place and reduce noise from loose parts. Replacing a worn or broken clip restores proper fit and helps prevent intermittent contact or rattling. What it does

• Secures trim, panels, hoses or wire harnesses to mounting points to prevent movement.
• Keeps components aligned so switches and seals engage correctly.
• Stops rattling or vibrating noises caused by loose parts.
• Helps prevent abrasion or chafing of wires and hoses by holding them away from edges.

• Install by snapping or sliding the clip into the factory mounting slot; use needle-nose pliers if needed.
• Power off and unplug the appliance before accessing internal parts.
• Inspect surrounding mounts and mating tabs for damage; replace if worn for a secure fit.
• If removal is difficult, apply a small amount of penetrating lubricant and work carefully to avoid breaking adjacent plastic.

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This genuine replacement screw secures appliance components for reliable fit and function, helping restore proper assembly and reduce rattling or loose panels. Use it to replace a stripped or missing fastener during repairs. What it does:

• Fastens panels, brackets, or components to maintain structural stability
• Prevents movement that can cause noise, vibration, or misalignment
• Replaces stripped, corroded, or missing screws to restore secure assembly
• Compatible where the OEM mounting screw is required for safe operation

• Turn off and unplug the appliance before performing any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Do not overtighten; snug until secure to prevent damage to parts
• If other fasteners show wear, inspect and replace as needed for safe operation

The Condenser Fan Motor is an OEM replacement part for Whirlpool refrigerators. Located inside the machine compartment, it powers the condenser fan needed for heat exchange.

Causes involve standard motor degradation from prolonged usage. Excess dirt buildup over time may also hinder adequate blade movement.

Symptoms of a faulty condenser fan motor include:

• Inability to adequately cool interior compartments
• The refrigerator runs continuously with the exterior surface staying hot
• Grinding or buzzing noises emanating from the refrigerator's rear
• Visible condenser fan blades stalled or rotating slowly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

Size: 8-18 x 1/2 inch.

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

This rubber grommet provides a tidy, protective seal where hoses, wires, or shafts pass through the appliance cabinet—helping prevent chafing, reduce vibration noise, and maintain proper sealing around openings. What it does:

• Cushions and protects wiring or hoses from rubbing against metal edges
• Helps maintain a seal to reduce water or air bypass where fitted
• Dampens vibration and reduces related noise at the penetration point
• Keeps openings finished and helps prevent further component wear

• Disconnect power (and water for washers) before starting any repair
• Inspect the mounting area for sharp edges or damage; replace if surrounding parts are compromised
• Push the grommet into the opening and seat evenly; do not stretch excessively
