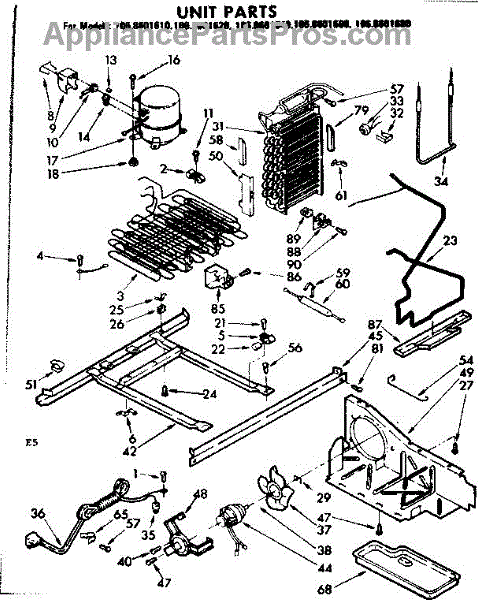

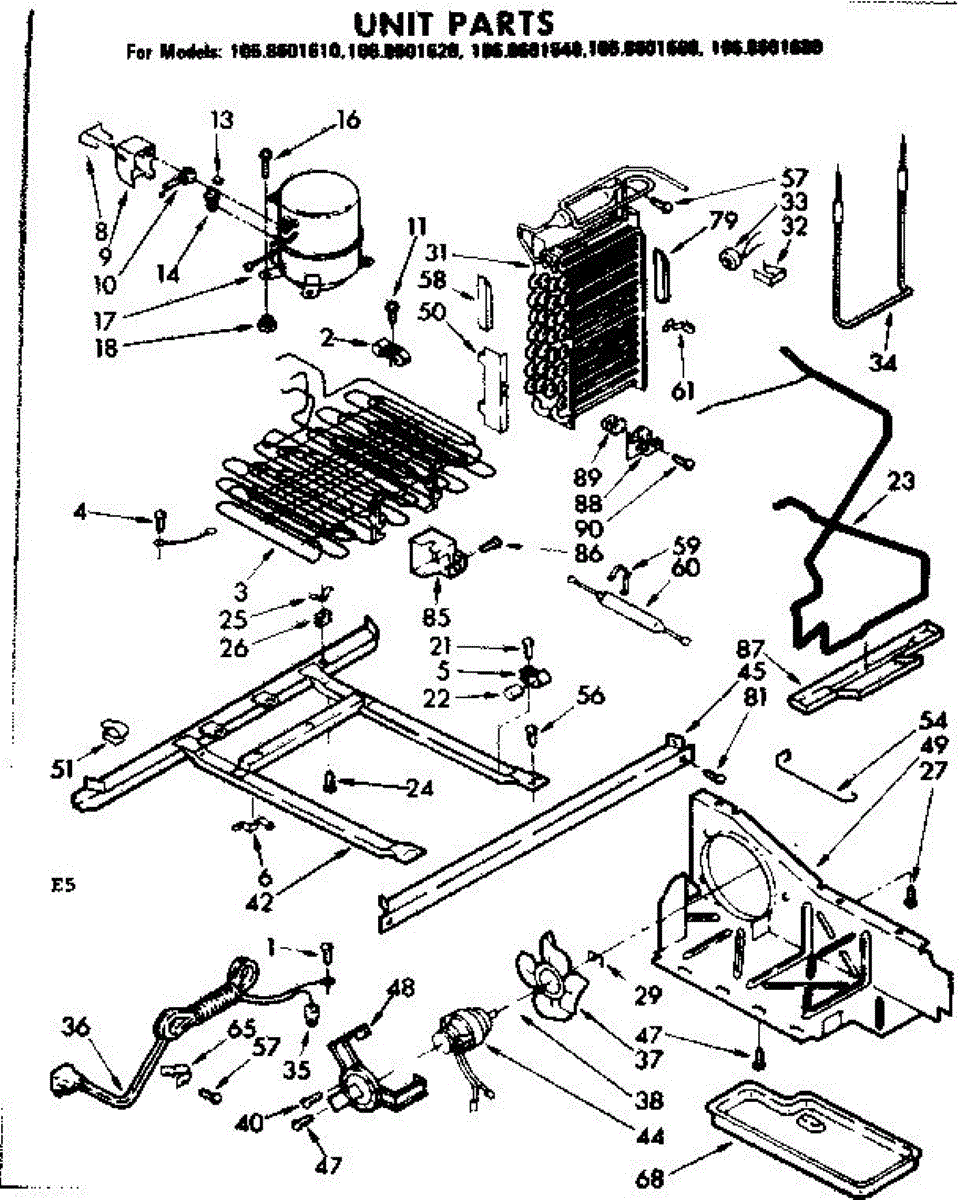

Parts for Kenmore 106.8601680 (1068601680, 106 8601680): Unit Parts

Relay and overload kit for a compressor.

Start relay for refrigerator compressors that helps the compressor begin running at power-up. Replacing a failed relay can restore normal starting behavior and resolve common startup symptoms. What it does

• Provides the initial start current path to the compressor during startup.
• Allows the compressor to reach running speed, then drops out once the motor is running.
• Common symptoms a bad relay may cause: compressor clicking, humming without starting, intermittent cooling or frequent cycling.
• Installed as the electrical component used only on compatible compressor assemblies.

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Access the relay at the compressor; remove and replace the relay only after confirming diagnostics.
• Dispose of the old electrical part per local regulations.

Ref Defrost Thermostat L70 Comes With Bracket

This Incoloy defrost heater melts frost buildup on the evaporator to help restore normal airflow and cooling. Replaces a failed heater to reduce excessive frost and recurring defrost cycles. What it does

• Heats the evaporator coil during the defrost cycle to remove ice and frost buildup.
• Helps restore proper airflow and consistent cooling when frost is preventing normal operation.
• Common symptom: heavy frost or ice on the evaporator and reduced cooling performance.
• Designed for use in the refrigerator/freezer defrost system; replaces a burned-out or open heater.

• High-level installation: power off and unplug appliance before servicing; access the evaporator compartment per your model's service manual.
• Verify heater continuity with a multimeter before replacement; handle the element carefully to avoid bending or damage.
• Reassemble panels and restore power, then confirm normal defrost cycles and cooling.

This OEM Replacement Part is a high-quality, 2-watt condenser fan motor for Whirlpool refrigerators.The motor is designed to optimize your refrigerator's cooling performance. This 115-volt motor operates with a clockwise rotation.

Symptoms of a bad condenser fan motor kit include:

• Gradual rise in interior freezer temperatures
• Inability to maintain consistent cooling performance
• Loud buzzing or grinding noises coming from inside
• Tripped breakers or failure to restart after service

Causes stem from normal wear of ball bearings as the high-efficiency motor operates continuously. Exposure to dust or debris introduced through openings accelerates wear over many years of use.

This OEM part is also compatible with brands including Kenmore, KitchenAid, and Danby.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Epoxy repair kit - aluminum tubing.

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.
