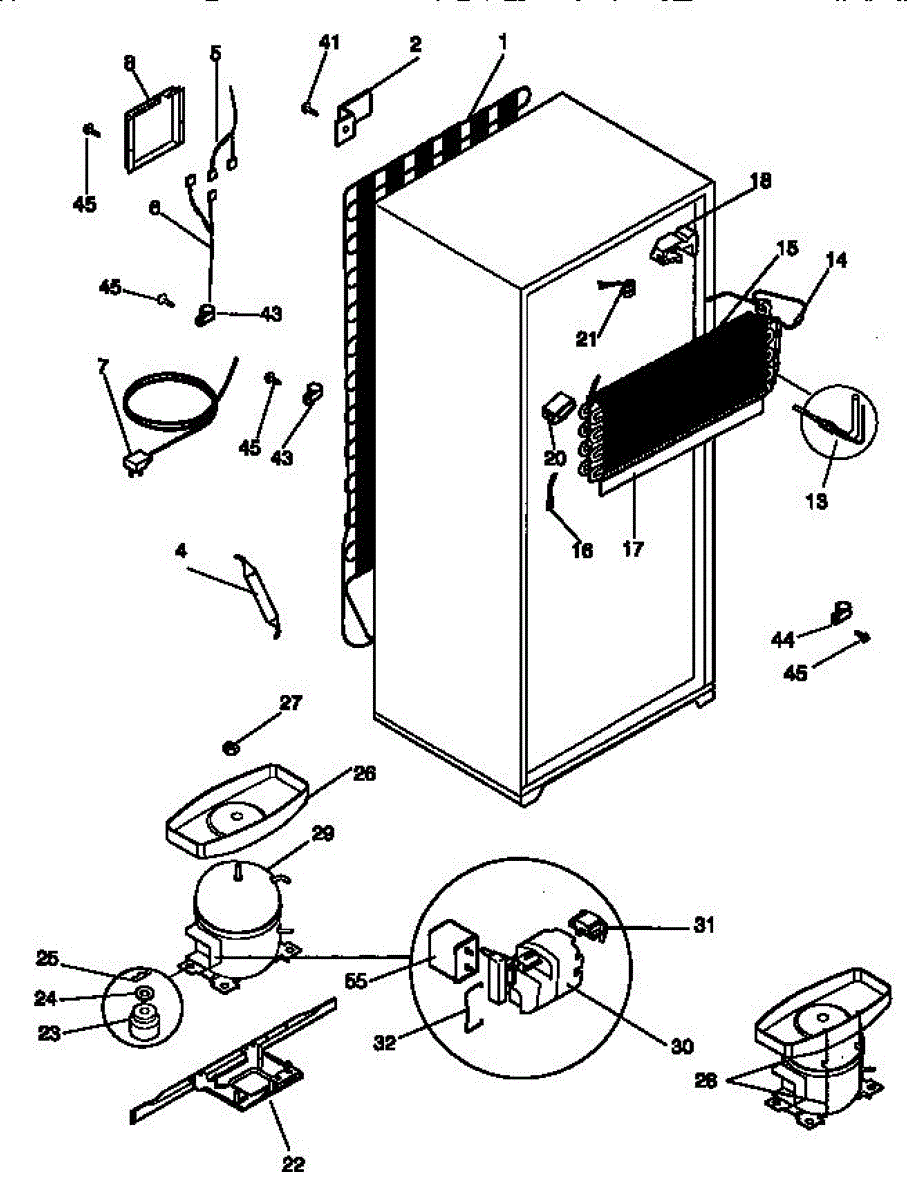

Parts for Kenmore 253.9363003 (2539363003, 253 9363003): Unit Parts

Replace a loose or missing extension lock washer causing rattling noises or unstable component mounting. Simple DIY fix in under 15 minutes.

Includes service line.

Refrigerator not cooling or freezing properly? The evaporator coil absorbs heat to keep your fridge cold. This repair requires moderate skills.

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

This molded styrofoam insulation block fits alongside the evaporator coil to help seal and insulate the coil chamber, supporting proper airflow and reducing unwanted frost and condensation. Replaces damaged or missing insulation to restore efficient cooling. What it does:

• Provides a thermal barrier around the evaporator to help control moisture and frost buildup
• Helps direct airflow through the coil for more even cooling performance
• Reduces condensation and potential drip issues caused by air leaks
• Prevents contact between the coil and cabinet components that can cause vibration or noise

• Disconnect power to the appliance before beginning any repairs
• Handle the styrofoam gently; it can crack or break if forced
• Remove evaporator cover/panels to access the coil area; retain all fasteners
• Verify proper orientation and fit before final reassembly to ensure a tight seal

Freezer runs constantly or has frost buildup? The defrost thermostat regulates temperature to prevent ice on coils. DIY-friendly repair in 1-2 hours.

Replacement screw for securing panels, brackets, and covers on appliances. Replaces missing, stripped, or damaged screws to restore alignment.

Rubber grommet that mounts and cushions the compressor to reduce vibration transfer. Replace if cracked, worn, or missing to restore quiet operation.

Secures compressor to mounting bracket in your refrigerator. Replace if clip is broken, loose, or causing vibration noise. Verify fit with your model number.

Sound dampening foam pad for refrigerators and freezers. Installs on evaporator or compressor area to reduce vibration noise. Replace if worn or missing.

A replacement compressor kit designed to restore the refrigeration system's ability to cool by replacing failed compressor components. Use this kit when the compressor assembly needs service or replacement. What it does:

• Replaces failed compressor components to help restore normal cooling performance
• Stops intermittent or complete loss of cooling often caused by compressor failure
• Helps address loud humming, grinding, or continuous running tied to compressor problems
• Supports proper refrigerant flow when installed and serviced

• Disconnect power and unplug the appliance before beginning any repairs
• Compressor and sealed-system service (evacuation, vacuum, refrigerant charging) must be performed
• Use proper handling and tools for refrigerant-containing components to avoid leaks and injury

This overload protector safeguards your refrigerator's compressor motor from electrical damage due to overheating or excessive current draw. It automatically shuts off power to the compressor when dangerous conditions are detected. Replace this overload if your refrigerator stops cooling, the compressor won't start, or it cycles on and off frequently.

Secures and protects wiring harness from strain damage. Replace if cracked, broken, or wires show wear. Verify fit with your model number listed.

Replacement screw for various appliances. Used to secure panels, components, or housing. Replace if stripped, corroded, missing, or damaged hardware.

Replacement screw for various appliances. Used to secure panels, components, or housing. Replace if stripped, corroded, missing, or damaged hardware.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

Refrigerator not cooling or compressor won't start? A failed run capacitor prevents the compressor from running. DIY repair in 10-15 minutes with video guide.

Fix refrigerator cooling issues or compressor leaks with this tube repair kit. Essential sealed system component for restoring proper refrigeration.

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

Protects wiring harness edges in your refrigerator from wear and abrasion. Replace if cracked, broken, or missing to prevent wire damage and insulation.
