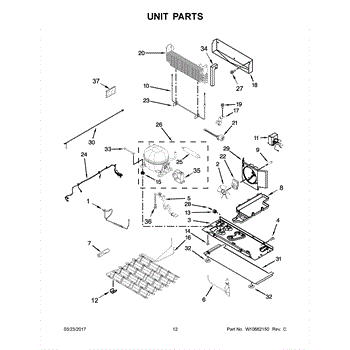

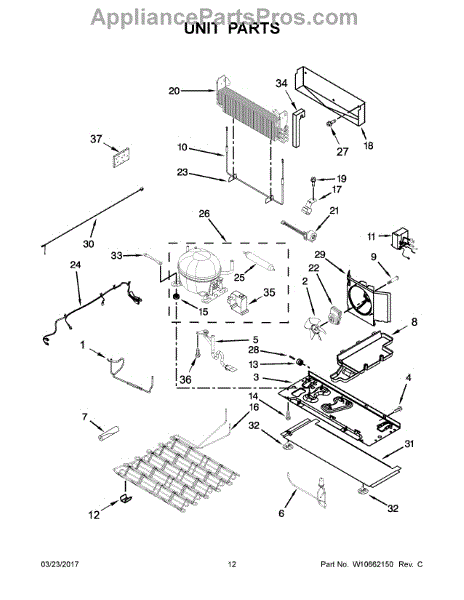

Parts for Kitchenaid KFIS29PBMS03: 07 - Unit Parts

The Refrigerator Water Filter is an OEM part for Whirlpool refrigerators. It delivers clean, filtered drinking water and ice by effectively reducing contaminants, including chlorine taste and odor, particulates, and various other harmful substances that may be present in the water supply.

Causes of a bad Refrigerator Water Filter can include regular wear and tear over time leading to reduced efficacy in filtering out contaminants, as well as accumulation of contaminants and sediment.

Symptoms of a bad Refrigerator Water Filter include:

• Noticeable decrease in water flow rate.
• Unpleasant taste or odor in the water or ice.
• Discoloration of water or ice.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This condenser fan blade moves air across the refrigerator's condenser coil and compressor to remove heat, helping the unit cool efficiently. Replace a cracked, warped, or loose blade to restore proper airflow and reduce noise.

• Circulates air through the condenser section to dissipate heat from the refrigerant
• Supports stable fridge and freezer temperatures and efficient compressor operation
• Common symptoms: rattling/scraping noises, weak or no airflow at the rear/bottom, longer run times, or warming compartments
• Replace if the blade is cracked, warped, wobbling, or loose on the motor shaft

• Disconnect power and pull the refrigerator away from the wall; remove the rear access panel to reach the condenser fan
• Note the original blade orientation/rotation; remove the old blade from the motor shaft (release any retainer if present)
• Press the new blade onto the shaft until fully seated; ensure it spins freely with proper clearance and airflow direction
• Reinstall the panel, restore power, and verify normal airflow and sound

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This extension is a replacement support bracket designed to restore proper spacing and alignment for the associated assembly, helping reduce rattles and maintain correct part fit for reliable appliance operation. What it does

• Restores proper spacing or reach where an original extension or support is worn, bent, or missing
• Helps keep linked components aligned to prevent rubbing, noise, or premature wear
• Supports secure mounting of the adjoining part so assemblies stay stable during use
• Common symptom: unusual vibration, misalignment, or intermittent contact where the original extension is damaged

• Extension bracket

• Disconnect power (and gas, if applicable) before beginning any repair
• Remove only the panels and fasteners necessary to access the damaged extension
• Compare the new extension to the old part for correct orientation before fastening
• Tighten hardware to secure fit but avoid over-torquing; test operation after reassembly

The Valve is an OEM component specifically designed for Whirlpool refrigerators. It regulates the flow of refrigerant through the cooling system.

Causes of a faulty valve can include mineral buildup or debris obstructing flow over many years of use. Internal seals may deteriorate with exposure to refrigerants.

Symptoms of a bad valve include:

• Increased buzzing or vibrating noises from the refrigeration unit
• Fluctuating temperatures with foods not staying consistently fresh
• Advanced warming inside refrigerator without cause

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Tray is an OEM part for Whirlpool refrigerators. Located inside the refrigerator, below the evaporator coil and fan, the tray collects condensation from the evaporation process. It works to capture water and properly channel it to the drain.

Symptoms of a bad evaporator tray include:

• Water leaks inside the refrigerator
• Excess moisture buildup near the evaporator area
• Drain issues caused by clogged or damaged tray
• Ice or frost accumulation below the evaporator

Causes for replacement are cracks, warping, or clogs in the tray over time. It's important for moisture to drain effectively.

This OEM tray ensures proper evaporation and prevents mold issues. Compatible with Kenmore, KitchenAid, Maytag, and other brands.

This genuine replacement screw secures appliance components for reliable fit and function, helping restore proper assembly and reduce rattling or loose panels. Use it to replace a stripped or missing fastener during repairs. What it does:

• Fastens panels, brackets, or components to maintain structural stability
• Prevents movement that can cause noise, vibration, or misalignment
• Replaces stripped, corroded, or missing screws to restore secure assembly
• Compatible where the OEM mounting screw is required for safe operation

• Turn off and unplug the appliance before performing any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Do not overtighten; snug until secure to prevent damage to parts
• If other fasteners show wear, inspect and replace as needed for safe operation

The Defrost Heater is an OEM part for Whirlpool refrigerators. This part prevents the build-up of frost and ice on the evaporator coils. By periodically heating up to melt away frost, this component ensures that air can flow freely through the coils, maintaining the refrigerator's efficient cooling performance.

Causes of a bad defrost heater can include electrical issues, such as a blown fuse or faulty wiring, wear and tear over time, or a malfunction within the heating element itself.

Symptoms of a bad Defrost Heater include:

• Frost or ice buildup on the evaporator coils
• The refrigerator or freezer compartment warming up
• The refrigerator cycling on more frequently or for longer durations
• Poor cooling performance throughout the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This inverter box assembly is the electronic control module that manages motor/inverter functions to restore proper drive operation. It replaces a failed inverter module so the appliance can resume normal spin and drive performance. What it does:

• Regulates motor/inverter control to manage drive and spin speeds.
• Helps address symptoms such as no spin, intermittent stopping, humming or motor-related error codes.
• Replaces damaged inverter electronics that prevent the motor from running or responding.
• Interfaces with the appliance's wiring harness and main controls to coordinate drive functions.

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Handle the module and connectors carefully; protect against ESD and avoid bending pins.
• Verify the part number and connector orientation before installation; use existing mounting hardware unless replacement hardware is supplied.

This rear roller is a replacement for the rollers in a refrigerator. The rollers are not used often, but they have an important purpose. They make it easier to move the refrigerator from one area to another. If the roller had been damaged and is not working properly, it will be difficult to maneuver the refrigerator. Replacing the damaged roller with a new one before moving the refrigerator a long distance is a good idea.The rollers on the refrigerator are meant to handle a lot of pressure. However, they can still wear down and break eventually. They could also be damaged during a previous move. Before replacing the rear roller, unplug the refrigerator and remove the connection to the water supply. The replacement will require only a few tools, such as a screwdriver. It may require moving other parts of the refrigerator to get access to the rear rollers.The rear roller will work for certain models of refrigerators from Whirlpool, GE, KitchenAid, Inglis, Maytag, Admiral, International, Amana, Jenn-Air, Crosley, and Magic Chef. This is a genuine OEM replacement part that is sold individually.

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

This drip tray collects and channels defrost and condensation water away from the refrigerator cabinet to prevent leaks and puddles. It helps keep the interior base area dry and directs meltwater to the drain system. What it does:

• Catches meltwater from the evaporator during defrost cycles to prevent pooling under the cabinet
• Channels water toward the refrigerator's drain system to reduce leaks and floor damage
• Helps limit ice buildup and moisture-related odors around the freezer base
• Common symptom: visible water or puddling under or beside the fridge, or excessive moisture in the base pan area

• One drip tray as shown

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove food and, if needed, the lower access panel or kickplate to access the tray
• Inspect adjacent drain tubing and grommets while replacing the tray to ensure proper drainage
• Reinstall panels and restore power; run a short defrost or water cycle to ensure proper drainage

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

This solenoid is the electromechanical actuator that opens and closes a valve or latch to control flow or movement inside compatible appliances. Replacing a worn solenoid restores reliable on/off operation and responsive dispensing or cycling. What it does:

• Converts electrical signals into mechanical motion to open or close a valve or latch
• Controls water or ice fill cycles, dispenser flow, or other timed movements in the appliance
• Commonly linked to symptoms like no water/ice dispensing, intermittent operation, or a clicking/no-response during a cycle
• Works with the appliance control to ensure precise on/off control where used

• Disconnect power to the appliance before starting any repair
• If the solenoid controls water, turn off the water supply and relieve pressure before disconnecting lines
• Handle electrical connectors carefully; avoid pulling on wires—disconnect at the plug
• Verify correct part fit and function after installation; manufacturer instructions for detailed service procedures

The Condenser Fan Motor is an OEM replacement part for Whirlpool refrigerators. Located inside the machine compartment, it powers the condenser fan needed for heat exchange.

Causes involve standard motor degradation from prolonged usage. Excess dirt buildup over time may also hinder adequate blade movement.

Symptoms of a faulty condenser fan motor include:

• Inability to adequately cool interior compartments
• The refrigerator runs continuously with the exterior surface staying hot
• Grinding or buzzing noises emanating from the refrigerator's rear
• Visible condenser fan blades stalled or rotating slowly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

The Wire Harness is an OEM component for Whirlpool refrigerators. As the framework that powers all electronic systems, it plays a vital connecting role.

The harness incorporates precisely engineered cabling to route electrical signals and low-voltage DC power throughout the appliance in a protected bundle. Strategically placed terminals link to each component board and relay.

Causes for wire harness issues include pinched insulation from improper installation, short circuits due to nicks/cuts in the sheathing over time, or broken connectors that disrupt circuit pathways.

Symptoms of a bad wire harness can include:

• Lights, fans, or temperature control malfunctions
• Failure to power on or intermittent cut-outs
• Tripped circuit breakers/blown fuses for the fridge
• Wire cracking, looseness at bundle ties

Compatible with models from Maytag, KitchenAid, Jenn-Air, Amana, and select Kenmore as well for continued reliability.

This axle roller is the replacement support shaft that lets the appliance's rotating assembly turn smoothly and quietly. Installing a new axle roller corrects wobble and reduces grinding or squealing caused by a worn shaft. What it does:

• Supports the rotating drum or rack so it spins freely and stays aligned
• Helps prevent metal-to-metal contact that causes loud noise or scraping
• Stops uneven rotation and vibration that can lead to further wear
• Restores smooth operation when an original axle is bent, worn, or broken

• Disconnect power (and gas, if applicable) before starting any repair
• Access location and removal steps vary by model; follow the OEM service manual or diagram
• Inspect related parts (pulleys, idler, glides, bearings) and replace if they show wear
• Use basic hand tools; keep fingers and loose clothing clear of moving parts during testing

This condenser fan shroud secures and directs airflow around the condenser fan to help efficient heat dissipation. Replaces a damaged or missing shroud to restore proper fan positioning and airflow around the condenser coil. What it does:

• Holds the condenser fan motor and blade in the correct position relative to the condenser coil
• Channels airflow for more effective heat transfer from the condenser
• Prevents the fan blade from contacting nearby components
• Can reduce noisy operation caused by a loose or damaged shroud

• Intended to be installed by someone comfortable with basic appliance repair
• Disconnect power to the appliance before accessing the condenser area
• Inspect surrounding components (fan blade, motor mounts, fasteners) and replace any damaged parts
• Use the OEM mounting hardware and torque to manufacturer recommendations when reassembling

This power cord service assembly replaces a damaged or worn external cord to restore a safe electrical connection to the appliance. Designed as a direct-replacement assembly for service repairs, it helps return reliable power delivery. What it does:

• Provides the external electrical connection between the appliance and wall outlet
• Replaces frayed, cut, or damaged cords that can cause intermittent power or unsafe conditions
• Helps resolve issues where the appliance does not power on due to cord damage
• Restores proper strain relief and secure wiring at the appliance entry point

• Always disconnect power at the breaker or unplug the appliance before servicing
• Route the cord and secure strain relief per the appliance's service instructions

This cover-unit is the outer housing cover that protects internal appliance components and helps keep the cabinet sealed from dust and debris. It restores proper enclosure and helps maintain safe operation. What it does:

• Protects internal components from dust, lint and accidental contact
• Helps maintain cabinet alignment and reduces minor rattles or vibration
• Preserves airflow paths and seals that affect performance
• Restores proper mounting for adjacent panels and controls

• Use basic hand tools; follow the appliance service manual for disassembly and reassembly
• Disconnect power (and water, if applicable) before starting any repair
• Inspect adjacent seals, fasteners and mounting hardware; replace any damaged pieces for best fit

This terminal cover protects the appliance's power terminal block by shielding live connections and reducing the risk of accidental contact. It restores a missing or damaged cover so the terminal area is safer and neater. What it does:

• Shields the terminal block to help prevent accidental contact with live electrical connections.
• Helps contain and hide the power cord connection for a cleaner appearance.
• Used when the original cover is cracked, broken, missing, or shows signs of arcing or heat damage.
• Supports safe service access by covering exposed terminals during normal operation.

• Disconnect power at the breaker or unplug the appliance before servicing to avoid shock or injury.
• Access the terminal area; ensure terminals are cool and dry before handling.
• Align cover over the terminal block and secure according to the OEM design; replace any damaged fasteners with correct OEM parts.
• If you see burn marks, melted insulation, or loose terminals, replace or repair the affected wiring/terminal block before installing the cover.

A genuine replacement screw used to secure appliance panels, brackets, and components so assemblies stay aligned and stable. Installs quickly with a screwdriver or driver bit to restore proper fit and reduce rattling. What it does:

• Secures panels, trim, brackets or internal components to keep parts properly aligned
• Prevents loose or vibrating panels that can cause noise or wear
• Holds mounting points that keep doors, seals, and assemblies operating correctly
• Replaces stripped, missing, or corroded fasteners that compromise fit

• Turn off and unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or deform parts
• Keep removed hardware organized and replace like-for-like for best fit

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 1/4 inch.
