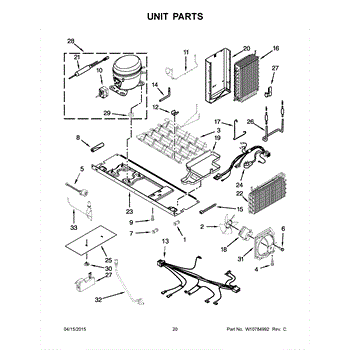

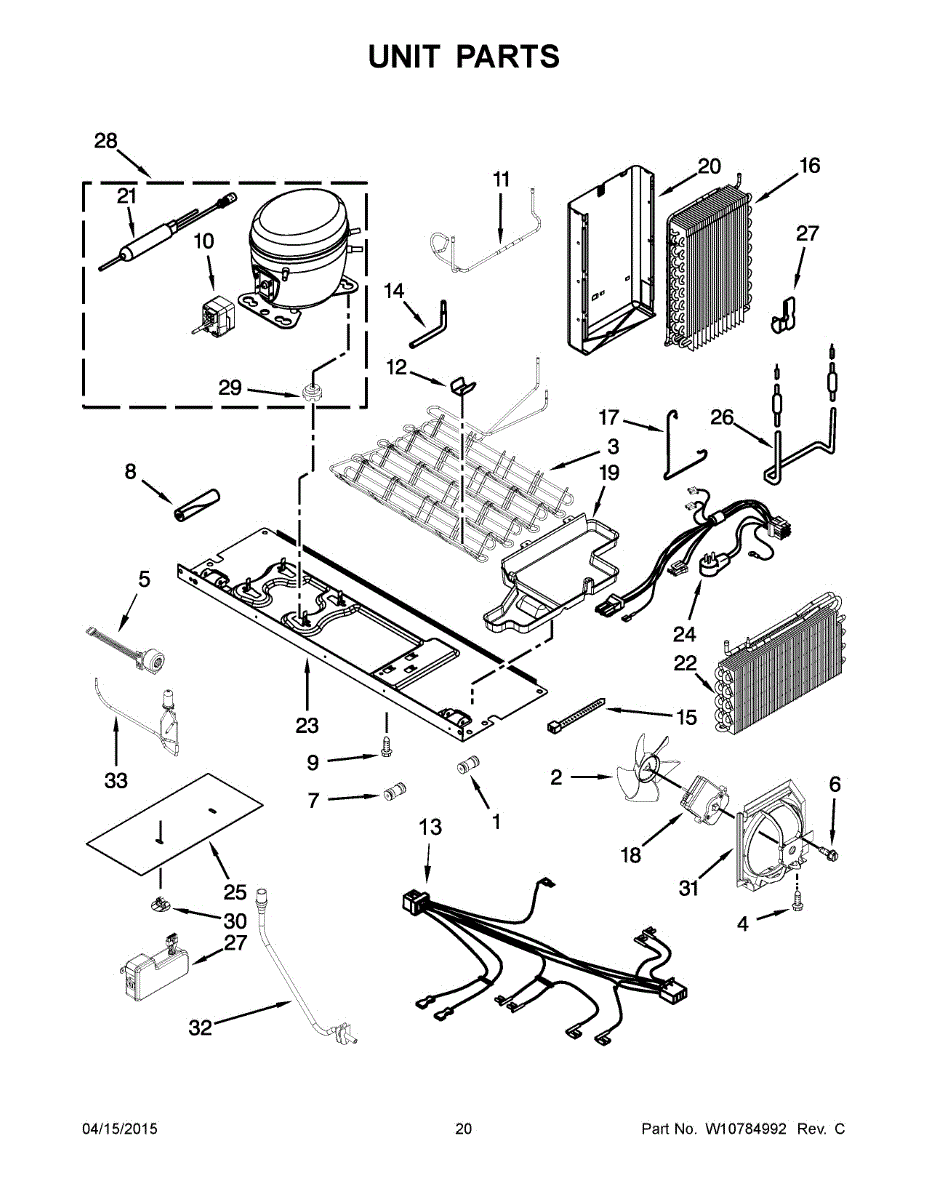

Parts for Kitchenaid KSC24C8EYY04: 11 - Unit Parts

This water connector is an inlet fitting that connects the household water line to the appliance, providing a secure path for water to reach the valve, dispenser or ice system. It helps maintain proper water flow and prevents leaks when installed correctly. What it does:

• Connects the incoming water supply to the appliance's inlet valve or ice/dispenser plumbing
• Provides a sealed transition between supply tubing and appliance fittings
• Restores normal water flow for ice makers and dispensers when damaged or corroded
• Can prevent dripping or pooling from a failing or broken connector

• Turn off the appliance power and shut off the house water supply before replacing
• Inspect and replace any worn tubing, O-rings, or clamps for a proper seal
• Hand-start threads to avoid cross-threading, then snug with a wrench—do not overtighten
• After installation, restore water and power and check all connections carefully for leaks

This solenoid valve coil energizes the refrigerant service valve to help control refrigerant flow in compatible refrigeration systems. Replaces a worn or failed coil to restore valve actuation and reliable cooling system operation. What it does

• Energizes the refrigerant service valve so the valve can open or close when the system calls for it
• Common replacement when the valve won't actuate or the compressor cycle is abnormal
• Helps stop intermittent cooling caused by a stuck or non-responsive valve coil
• Fits into the valve assembly and provides the magnetic force needed for proper valve movement

• Disconnect power to the appliance before servicing to prevent shock or unintended compressor operation
• Inspect the valve and connector for corrosion or damage; replace the valve if body damage is found

This water tube connector joins sections of your refrigerator's water line for the dispenser and ice maker. It restores a secure, leak-resistant connection when the original coupling is damaged or leaking.

• Connects two segments of refrigerator water tubing
• Helps maintain proper water flow to dispenser and ice maker
• Resolves leaks caused by a cracked, worn, or loose connector
• Useful when replacing or rerouting water lines during service

• Disconnect power and shut off the water supply before servicing
• Dispense water to relieve line pressure
• Cut tubing square and insert fully until seated; tug gently to confirm a secure fit
• Restore water and check all connections for leaks; replace any damaged tubing as needed

This genuine replacement screw secures appliance panels and components for reliable operation. Use it to replace stripped, missing, or corroded fasteners and restore proper fit and alignment for safe appliance use. What it does

• Secures panels, brackets, and small components to restore proper alignment and reduce vibration
• Replaces stripped or missing fasteners that can cause loose parts or rattling
• Helps maintain safe electrical and mechanical connections by holding components in place
• Works wherever the original matching screw was used on the appliance

• Disconnect power and water before beginning any repair
• Use the correct driver bit to avoid cam-out and head damage
• Tighten securely but avoid overtightening to prevent stripping threads or cracking plastic
• If threads are damaged, replace mating hardware or use appropriate repair inserts rather than forcing the screw

The Inverter Box is an OEM component specifically designed for Whirlpool French door refrigerators. Located inside the refrigerator compartment top behind removable panels, the inverter box houses electronic components that control the compressor motor and refrigeration systems.

Causes of a bad inverter box include failure of internal circuit boards over several years of regulating refrigeration cycles or damage from liquid spills inside the unit.

Symptoms of a bad inverter box include:

• Failure of the refrigerator section to adequately cool and maintain temperatures
• Erratic fluctuations in cold air dispensing from vents
• Repeated triggering of defrosting modes unnecessarily
• Inability to regulate between freezer and refrigerator settings

This Whirlpool replacement part is compatible with Maytag, Jenn-Air, Amana, Magic Chef, and Kenmore side-by-side refrigerators.


This wire harness links the appliance's electrical components, providing reliable power and signal paths. Replaces damaged or overheated wiring to help restore consistent operation and prevent intermittent failures caused by loose terminals, open circuits, or shorts.

• Routes power and control signals between the main control and key components
• Helps address intermittent operation or components that won't run due to broken/shorted wires
• Resolves issues associated with burned, brittle, or chafed wiring and damaged connectors
• Clears fault codes traced to open/short circuits once properly diagnosed

• Disconnect power to the appliance before servicing
• Document original routing; move one connector at a time and ensure locking tabs engage
• Route through all original clips and channels; keep clear of sharp, hot, or moving parts
• Handle connectors by the housings; use ESD precautions when attaching to a control board

This replacement clip secures the defrost heater to the evaporator so the heater stays in proper contact and defrosts frost buildup efficiently. Durable, OEM-style retention clip designed for refrigerators. What it does

• Secures the defrost heater to the evaporator assembly to ensure consistent defrost cycles
• Prevents the heater from shifting or coming loose, which can cause frost buildup or interrupted defrosting
• Helps maintain proper contact for efficient heat transfer during defrost
• Small, inexpensive part that can prevent larger ice/frost-related issues

• Disconnect power to the appliance before accessing the evaporator compartment.
• Handle the evaporator fins and heater element carefully to avoid damage.
• Typically installs with basic hand tools; replace any damaged or corroded clips.

The Condenser Fan Motor is an OEM replacement part for Whirlpool refrigerators. Located inside the machine compartment, it powers the condenser fan needed for heat exchange.

Causes involve standard motor degradation from prolonged usage. Excess dirt buildup over time may also hinder adequate blade movement.

Symptoms of a faulty condenser fan motor include:

• Inability to adequately cool interior compartments
• The refrigerator runs continuously with the exterior surface staying hot
• Grinding or buzzing noises emanating from the refrigerator's rear
• Visible condenser fan blades stalled or rotating slowly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

This evaporator drain tray collects and channels defrost water away from the freezer compartment to prevent pooling and potential leaks. It restores proper drainage and helps the cooling system run cleanly. What it does:

• Catches defrost and condensation water from the evaporator assembly
• Directs water to the refrigerator drain system to prevent interior pooling
• Helps avoid ice buildup and water leaks under the evaporator area
• Supports proper airflow by keeping the evaporator area clear of standing water

• Disconnect power to the appliance before starting any repair to avoid electrical shock.
• Remove freezer panels or shelves as needed for access; keep track of fasteners and clips.
• Seat the tray fully in its mounting position and ensure the drain channel aligns with the drain tube.
• Inspect surrounding seals and the drain for clogs or damage during installation; replace or clean as needed.

This cover-unit is the outer cabinet cover that protects internal components and gives the appliance a finished appearance. It restores a secure, neat exterior and prevents exposure to wiring or moving parts. What it does:

• Replaces a cracked, dented, or missing outer cabinet cover to restore appearance and protection
• Shields internal components from dust and accidental contact
• Helps maintain proper alignment of adjacent panels and trim
• Reduces risk of snagging or injury from exposed edges

• Disconnect power to the appliance before starting any repair
• Installation typically requires basic hand tools (screwdriver, nut driver) and care to align mounting tabs
• Inspect mounting clips and screws; replace any damaged fasteners for a secure fit

This factory heater restores proper, controlled heat in the location your appliance was designed to warm. Replacing a failed heater helps eliminate freeze-ups or moisture-related issues so the system can operate as intended. What it does:

• Supplies localized heat for the appliance's intended function (defrosting, anti-sweat, or freeze prevention)
• Helps clear ice/frost that can restrict airflow or block passages
• Can resolve performance issues tied to insufficient heat or a failed heater circuit
• Typical signs include persistent frost/ice, moisture/condensation problems, or error codes related to the heater

• 1 heater

• Disconnect power before servicing; turn off water supply if working near ice maker or dispenser components
• Access and routing vary by model—photograph wiring and harness path before removal
• Handle the element and wiring carefully; avoid contact with sharp fins and plastic liners
• Ensure secure electrical connections and proper routing; do not allow the heater to rest against plastic surfaces

This inverter box is the control module that converts and regulates power for the compressor motor in compatible refrigerators, enabling proper compressor operation and efficient cooling performance. What it does:

• Supplies and regulates the variable power signal to the refrigerator compressor motor
• Helps the compressor start and run at the correct speed for temperature control
• Can cause no cooling, intermittent compressor operation, or frequent start/stop if faulty
• Works with the main control and compressor to maintain stable refrigeration performance

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the module carefully and avoid contact with circuitry; observe ESD precautions if available
• Verify connectors and mounting position match the original before finalizing installation

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

This fan mounting bracket secures the evaporator/condenser fan assembly and helps direct airflow for consistent cooling performance. It restores proper fan alignment and airflow when the original bracket is damaged or loose. What it does:

• Holds the fan motor/blade assembly in the correct position to prevent wobble and contact with housing
• Channels airflow for efficient heat exchange and temperature control
• Reduces vibration and noise caused by a broken or bent bracket
• Helps prevent fan-related contact damage to nearby components

• Inspect surrounding components for damage before installing; replace any worn fasteners
• Use appropriate hand tools; avoid overtightening to prevent cracking the bracket
• Disconnect power to the appliance before beginning work to avoid injury

The DRAIN TUBE is an OEM part specifically engineered for Whirlpool refrigerators. This essential component plays a crucial role in efficiently removing excess water or condensation from the refrigerator. Its precise design and compatibility ensure proper fitting and functionality within the appliance, preventing moisture buildup and potential water damage.

A damaged or clogged drain tube can result in issues related to excess moisture within the refrigerator. Causes of a malfunctioning drain tube might include blockages due to debris accumulation, physical damage, or wear and tear over time, leading to inadequate drainage or water pooling.

Symptoms of a faulty DRAIN TUBE may include:

• Water pooling or leakage inside the refrigerator
• Excessive condensation or moisture buildup
• Inadequate drainage resulting in water accumulation in the refrigerator

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

Size: 1/4 inch.
