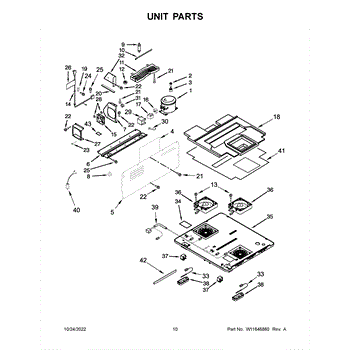

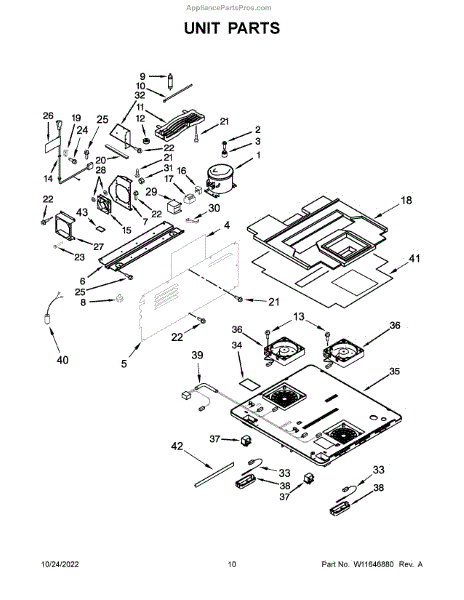

Parts for Kitchenaid KUDR204EPA01: Unit Parts

This sealer is a flexible sealing strip used to restore a tight fit where panels or doors meet, helping reduce leaks, drafts and moisture transfer. It replaces worn or damaged seals to help appliances run as intended. What it does:

• Creates a compression seal along a door or panel to prevent air and moisture leakage
• Helps maintain proper temperature control and reduces unwanted drafts
• Stops visible gaps caused by cracked, torn or flattened seal material
• Can reduce short-cycling related to poor sealing by improving the enclosure fit

• Disconnect power and water before starting any repair
• Remove the old seal carefully to avoid damaging surrounding trim or clips
• Clean mating surfaces thoroughly before installing the new sealer for best adhesion and fit
• Some installations require adhesive, retainer clips, or light trimming for a correct fit

This Leveler is the adjustable foot that supports and levels your appliance. Replacing a worn, cracked, or missing leg helps stop rocking and vibration, improving stability and ensuring smooth, quiet operation.

• Screws into the base to set height and keep the appliance level and secure
• Helps reduce rocking, vibration, and rattling that can cause excess noise
• Supports proper alignment and smooth door/closure operation when level
• Common symptoms: appliance wobbles, leg is stripped or broken, difficult to keep unit level

• Disconnect power and shut off gas/water if applicable before servicing
• With help, tip or lift the appliance slightly and protect the floor
• Thread the new leveler into the mounting boss and adjust height with a level
• Verify the unit is stable by gently rocking and recheck level after initial use

This replacement dryer tube channels heated air from the dryer cabinet to the lint filter/blower and exhaust path, restoring proper airflow and helping the cycle dry clothes efficiently. Use it when the original tube is cracked, crushed, or blocked. What it does

• Directs dryer airflow from the drum/blower chamber to the lint trap and exhaust.
• Helps maintain proper venting to prevent overheating and inefficient drying.
• Reduces air leaks that can cause longer dry times or hot spots.
• Minimizes lint buildup in the cabinet by providing a smooth, routed path for debris to the lint filter.

• One dryer tube

• Disconnect power (and gas supply if applicable) before servicing; ensure the dryer is completely powered off.
• Remove front or rear access panel as required to reach and replace the tube; keep fasteners for reassembly.
• Inspect adjacent seals and clamps; replace any damaged gaskets or worn clamps for a secure fit.
• Use gloves to avoid sharp sheet-metal edges and run a short test cycle to ensure proper airflow and quiet operation.

This drip pan is the replacement drain tray that catches defrost and condensation water to help prevent leaks and puddling under the appliance. It restores the unit's normal water collection and drainage path. What it does:

• Collects defrost and condensation water from the evaporator area.
• Directs water toward the drain channel to prevent pooling under the appliance.
• Helps reduce risk of water damage to flooring from leaks or overflow.
• Addresses symptoms like water puddling beneath the unit or visible drips.

• Designed for straightforward replacement; use appliance-specific service manual for exact procedure.
• Disconnect power (and water if applicable) before starting any service.
• Handle carefully to avoid bending tabs or damaging mounting locations.

A single replacement mounting screw used to secure appliance panels and components for a stable fit and quiet operation. Use this screw to replace missing or damaged fasteners and restore proper panel alignment and function. What it does:

• Secures panels, trim, and internal brackets to prevent movement and rattling
• Restores proper alignment where a lost or stripped screw allowed gaps
• Helps maintain electrical and mechanical component positioning for safe operation
• Suitable as a direct replacement when the original screw is damaged or missing

• One replacement mounting screw

• Turn off and unplug the appliance before beginning any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug—do not overtighten to prevent thread or part damage
• If threads are damaged, replace the mating captive nut or insert as needed

This genuine replacement power cord restores safe, reliable electrical connection for compatible ranges and ovens. It replaces a damaged or frayed cord so the appliance can receive mains power without safety hazards. What it does

• Delivers AC mains power to the appliance via the factory connector and terminal block
• Replaces cords with exposed wires, scorch marks, melting, or broken insulation
• Stops intermittent power loss caused by damaged or loose cord connections
• Prevents arcing and reduces fire risk from compromised power leads

• One replacement power cord

• Always disconnect household power at the breaker before servicing the appliance
• Verify the cord matches your appliance's terminal block and local electrical code; a licensed electrician may be required
• Inspect and reuse or replace the strain relief and terminal block screws as needed for a safe connection
• Do not attempt repairs if wiring or terminals are corroded—replace damaged components

This motor condenser is the replacement capacitor that helps a dryer or washer motor start and run smoothly. Replacing a failing condenser restores reliable motor operation and can stop humming, sluggish starts, or intermittent motor run. What it does:

• Provides the motor with the brief boost needed to start reliably
• Helps maintain steady motor rotation during operation
• Commonly used when motors hum, fail to start, or run weakly
• Stabilizes motor performance under normal load conditions

• One motor condenser (replacement capacitor) as shown

• Disconnect power before servicing to avoid shock hazard
• Carefully discharge the capacitor before touching terminals
• Use appropriate tools and note wire locations or take a photo before removal

This PTC relay is the start device that helps the refrigerator/freezer compressor get up to speed so the cooling system runs properly. Replacing a failed relay can restore normal compressor startup and improve cooling reliability. What it does:

• Provides the initial start boost to the compressor motor so it can begin running
• Stops the compressor from repeatedly failing to start, which can prevent cooling
• Commonly linked to symptoms like the compressor clicking, running intermittently, or the appliance not cooling
• Works as the replaceable electrical start component — not a capacitor or overload protector

• Disconnect power before accessing the compressor area to avoid shock
• Verify wiring and match the relay visually and by part number before installing
• Handle gently; do not attempt to modify or repair the relay

The Screw is an OEM part for Whirlpool microwaves. It is responsible for securing various parts of the microwave together. This screw ensures a tight and secure fit for parts and helps maintain the structural integrity of the microwave, preventing any loose or rattling parts.

A bad microwave screw can occur due to wear and tear, accidental damage, or misplacement during maintenance or repairs. If you notice symptoms such as loose or wobbly components, difficulty in opening or closing the microwave door, or abnormal noises while the microwave is in use, it may be time to replace this part.

Symptoms of a bad microwave screw include:

• Loose or wobbly components
• Difficulty in opening or closing the microwave door
• Abnormal noises during operation

Restore your Whirlpool microwave by replacing the faulty or missing microwave screw with this genuine OEM part.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This thermistor is the refrigerator/freezer temperature sensor that reads internal air temperature and sends that signal to the control board so the appliance maintains correct cooling. Replaces a failed sensor to restore accurate temperature control. What it does:

• Senses cabinet or evaporator temperature and relays the reading to the control board
• Helps the control system cycle the compressor, fans, and defrost as needed
• Commonly fails when the fridge runs too long, runs constantly, or shows incorrect temperatures
• Can cause improper cooling or defrost control when damaged or disconnected

• One thermistor temperature sensor

• Disconnect power to the appliance before accessing components
• Handle the sensor and wiring gently; avoid pulling on wires or kinking the probe
• Reinstall in the same location and routing as the original to ensure accurate readings

This wire harness cover protects and organizes appliance wiring, helping prevent abrasion and accidental contact for safer, more reliable operation. It keeps wiring routed and out of the way of moving parts. What it does:

• Shields wiring from rubbing, chafing and heat exposure that can cause shorts
• Helps keep harnesses routed neatly to reduce strain and interference
• Can stop intermittent electrical issues when worn covers expose wiring
• Commonly replaced when cover is cracked, melted, or missing

• Disconnect power (unplug or shut off breaker) before starting work
• Remove access panels as required; secure the harness under the cover and fasten per factory locations
• Use basic hand tools (screwdriver/socket) and avoid forcing clips to prevent breakage
• Repair or replace the harness before reassembling

This evaporator fan motor drives the freezer fan that circulates cold air across the evaporator coils and through the ducts. Replacing a weak or noisy motor restores proper airflow for consistent cooling and defrost performance.

• Circulates cold air from the evaporator through the freezer and fresh food compartments
• Helps maintain even temperatures and quicker recovery after door openings
• Common failure symptoms: warm refrigerator section, little/no airflow from vents, loud humming/squealing or intermittent fan operation, and frost/ice buildup on the freezer's rear panel
• Also known as the freezer fan motor or "Motor-Evap"

• Disconnect power; remove shelves/drawers and the rear interior freezer panel to access the fan
• Note wiring and mounting orientation; unplug connectors and remove the old motor
• Transfer the fan blade and any rubber isolators/mounting hardware from the original motor if needed
• Ensure blade orientation and wire routing clear the blades; test operation before reassembly

This door-position switch detects whether the appliance door is closed and tells the control when it's safe to run, restoring normal safety interlock function. It replaces a worn or failed switch to help appliances start only with the door securely closed. What it does

• Senses door open/closed position so the appliance will operate only when the door is shut
• Restores safety interlock that prevents motor/startup with the door open
• Common symptom fix: appliance won't start or stops immediately when the door is closed/open
• Resolves intermittent start issues or machines that only run with the door held shut

• Disconnect power (unplug or shut off breaker) before beginning any repair
• Basic hand tools typically required; access panels or door trim may need removal
• Handle the switch and terminals gently to avoid damage; wiring matches original
• After installation, restore power and test door operation and normal cycle start

This is the appliance control box — the electrical assembly that manages cycle selection, timing and power distribution so your appliance responds correctly to user commands. Replacing a faulty control box restores normal control and cycle operation. What it does:

• Receives inputs from the user interface and controls cycle timing and sequences
• Switches power to motors, valves, heaters or other components as directed
• Sends/receives signals to control indicators and status displays
• Can cause no-start, unresponsive controls, error codes, or incorrect cycles when faulty

• Disconnect all power before attempting replacement to avoid electrical shock
• Handle the board carefully and avoid static discharge; use ESD protection if available
• Reinstall all covers and wire connectors securely; test appliance functions after power is restored

This capacitor helps the appliance's motor start and run smoothly by providing a brief electrical boost when the motor needs it. Replacing a failing capacitor restores normal motor performance and reduces start-up strain. What it does:

• Provides the initial electrical charge to help the motor start and maintain stable operation
• Commonly replaced when the motor hums, struggles to start, or fails to reach normal speed
• Helps reduce stress on the motor and other start components
• Works as the electrical component between the appliance control and motor during start cycles

• Disconnect power to the appliance before starting any repair
• Discharge the capacitor before handling to avoid shock
• Verify terminal orientation and secure connections; replace with identical part number
