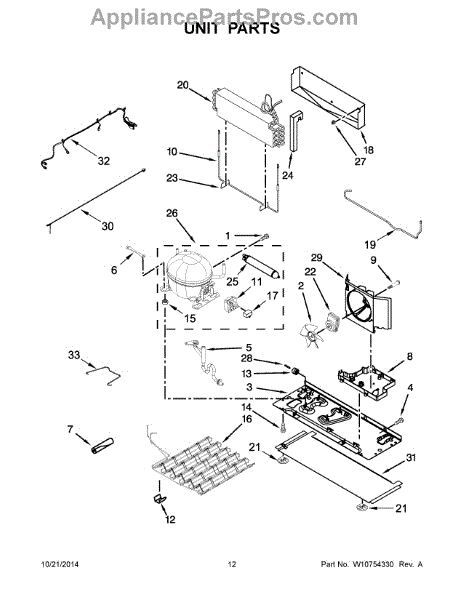

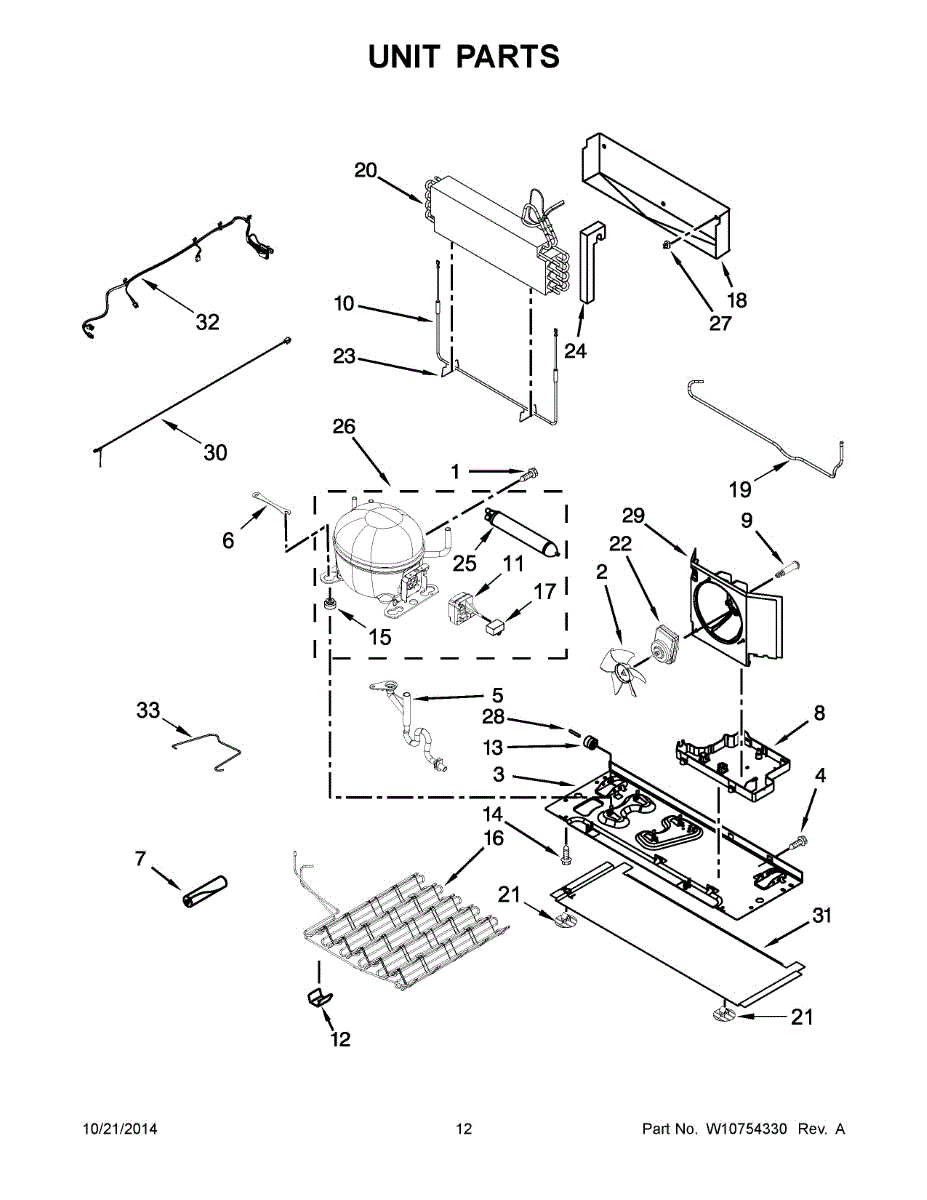

Parts for Whirlpool WRF736SDAM13: 07 - Unit Parts

This condenser fan blade moves air across the refrigerator's condenser coil and compressor to remove heat, helping the unit cool efficiently. Replace a cracked, warped, or loose blade to restore proper airflow and reduce noise.

• Circulates air through the condenser section to dissipate heat from the refrigerant
• Supports stable fridge and freezer temperatures and efficient compressor operation
• Common symptoms: rattling/scraping noises, weak or no airflow at the rear/bottom, longer run times, or warming compartments
• Replace if the blade is cracked, warped, wobbling, or loose on the motor shaft

• Disconnect power and pull the refrigerator away from the wall; remove the rear access panel to reach the condenser fan
• Note the original blade orientation/rotation; remove the old blade from the motor shaft (release any retainer if present)
• Press the new blade onto the shaft until fully seated; ensure it spins freely with proper clearance and airflow direction
• Reinstall the panel, restore power, and verify normal airflow and sound

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

The Extension is an OEM part for Whirlpool refrigerators. It helps remove excess water from the defrost process and directs it to the drain pan, preventing water buildup and potential leaks.

A bad extension can be caused by blockages, clogs, or damage to the pipe itself. If you notice water pooling inside the refrigerator orleaking onto the floor, it may indicate a problem with the extension.

Symptoms of a bad extension include:

• Water pooling inside the refrigerator or leaking onto the floor
• Excessive frost or ice buildup in the freezer compartment
• Unpleasant odors from the refrigerator

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Evaporator Tray is an OEM part for Whirlpool refrigerators. Located inside the refrigerator, below the evaporator coil and fan, the tray collects condensation from the evaporation process. It works to capture water and properly channel it to the drain.

Symptoms of a bad evaporator tray include:

• Water leaks inside the refrigerator
• Excess moisture buildup near the evaporator area
• Drain issues caused by clogged or damaged tray
• Ice or frost accumulation below the evaporator

Causes for replacement are cracks, warping, or clogs in the tray over time. It's important for moisture to drain effectively.

This OEM tray ensures proper evaporation and prevents mold issues. Compatible with Kenmore, KitchenAid, Maytag, and other brands.

This genuine replacement screw secures appliance components for reliable fit and function, helping restore proper assembly and reduce rattling or loose panels. Use it to replace a stripped or missing fastener during repairs. What it does:

• Fastens panels, brackets, or components to maintain structural stability
• Prevents movement that can cause noise, vibration, or misalignment
• Replaces stripped, corroded, or missing screws to restore secure assembly
• Compatible where the OEM mounting screw is required for safe operation

• Turn off and unplug the appliance before performing any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Do not overtighten; snug until secure to prevent damage to parts
• If other fasteners show wear, inspect and replace as needed for safe operation

The Defrost Heater is an OEM part for Whirlpool refrigerators. This part prevents the build-up of frost and ice on the evaporator coils. By periodically heating up to melt away frost, this component ensures that air can flow freely through the coils, maintaining the refrigerator's efficient cooling performance.

Causes of a bad defrost heater can include electrical issues, such as a blown fuse or faulty wiring, wear and tear over time, or a malfunction within the heating element itself.

Symptoms of a bad Defrost Heater include:

• Frost or ice buildup on the evaporator coils
• The refrigerator or freezer compartment warming up
• The refrigerator cycling on more frequently or for longer durations
• Poor cooling performance throughout the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This rear roller is a replacement for the rollers in a refrigerator. The rollers are not used often, but they have an important purpose. They make it easier to move the refrigerator from one area to another. If the roller had been damaged and is not working properly, it will be difficult to maneuver the refrigerator. Replacing the damaged roller with a new one before moving the refrigerator a long distance is a good idea.The rollers on the refrigerator are meant to handle a lot of pressure. However, they can still wear down and break eventually. They could also be damaged during a previous move. Before replacing the rear roller, unplug the refrigerator and remove the connection to the water supply. The replacement will require only a few tools, such as a screwdriver. It may require moving other parts of the refrigerator to get access to the rear rollers.The rear roller will work for certain models of refrigerators from Whirlpool, GE, KitchenAid, Inglis, Maytag, Admiral, International, Amana, Jenn-Air, Crosley, and Magic Chef. This is a genuine OEM replacement part that is sold individually.

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

The Run Capacitor is an OEM part for Whirlpool refrigerators. It is an electronic component that assists in powering the refrigerator's compressor motor. The capacitor functions to provide an electrical boost needed to start the compressor running smoothly during each cooling cycle.

Causes of a bad capacitor can include deterioration of dielectric material over many years of operation or accidental moisture penetration into the capacitor case.

Symptoms of a bad capacitor include:

• The refrigerator compressor failing to turn on/refrigeration cycles not operating
• Loud humming noises coming from behind the refrigerator
• Erratic cooling performance and fluctuating interior temperatures

This OEM part is also compatible with KitchenAid, Jenn-Air, Admiral, and Kenmore refrigerator models.

The Condenser Fan Motor is an OEM part for Whirlpool brand bottom-mount refrigerators. This motor powers the condenser fan which dissipates heat from the refrigeration system coils, maintaining cool interior temperatures.

Causes of failure include normal bearing wear from continuous rotations, or buildup obstructing free blade movement.

Symptoms of a faulty motor include:

• Elevated interior temperatures and frost propagation issues
• Extended run times and higher energy consumption
• Grinding or buzzing noises emanating from the refrigeration system area

This Whirlpool replacement restores efficient heat removal and preserves food freshness. Compatible with KitchenAid, Maytag, and some Kenmore models too, it prevents future repair bills.


This axle roller is the replacement support shaft that lets the appliance's rotating assembly turn smoothly and quietly. Installing a new axle roller corrects wobble and reduces grinding or squealing caused by a worn shaft. What it does:

• Supports the rotating drum or rack so it spins freely and stays aligned
• Helps prevent metal-to-metal contact that causes loud noise or scraping
• Stops uneven rotation and vibration that can lead to further wear
• Restores smooth operation when an original axle is bent, worn, or broken

• Disconnect power (and gas, if applicable) before starting any repair
• Access location and removal steps vary by model; follow the OEM service manual or diagram
• Inspect related parts (pulleys, idler, glides, bearings) and replace if they show wear
• Use basic hand tools; keep fingers and loose clothing clear of moving parts during testing

This condenser fan shroud secures and directs airflow around the condenser fan to help efficient heat dissipation. Replaces a damaged or missing shroud to restore proper fan positioning and airflow around the condenser coil. What it does:

• Holds the condenser fan motor and blade in the correct position relative to the condenser coil
• Channels airflow for more effective heat transfer from the condenser
• Prevents the fan blade from contacting nearby components
• Can reduce noisy operation caused by a loose or damaged shroud

• Intended to be installed by someone comfortable with basic appliance repair
• Disconnect power to the appliance before accessing the condenser area
• Inspect surrounding components (fan blade, motor mounts, fasteners) and replace any damaged parts
• Use the OEM mounting hardware and torque to manufacturer recommendations when reassembling

This power cord service assembly replaces a damaged or worn external cord to restore a safe electrical connection to the appliance. Designed as a direct-replacement assembly for service repairs, it helps return reliable power delivery. What it does:

• Provides the external electrical connection between the appliance and wall outlet
• Replaces frayed, cut, or damaged cords that can cause intermittent power or unsafe conditions
• Helps resolve issues where the appliance does not power on due to cord damage
• Restores proper strain relief and secure wiring at the appliance entry point

• Always disconnect power at the breaker or unplug the appliance before servicing
• Route the cord and secure strain relief per the appliance's service instructions

This cover-unit is the outer housing cover that protects internal appliance components and helps keep the cabinet sealed from dust and debris. It restores proper enclosure and helps maintain safe operation. What it does:

• Protects internal components from dust, lint and accidental contact
• Helps maintain cabinet alignment and reduces minor rattles or vibration
• Preserves airflow paths and seals that affect performance
• Restores proper mounting for adjacent panels and controls

• Use basic hand tools; follow the appliance service manual for disassembly and reassembly
• Disconnect power (and water, if applicable) before starting any repair
• Inspect adjacent seals, fasteners and mounting hardware; replace any damaged pieces for best fit
