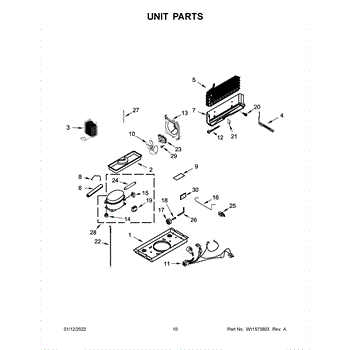

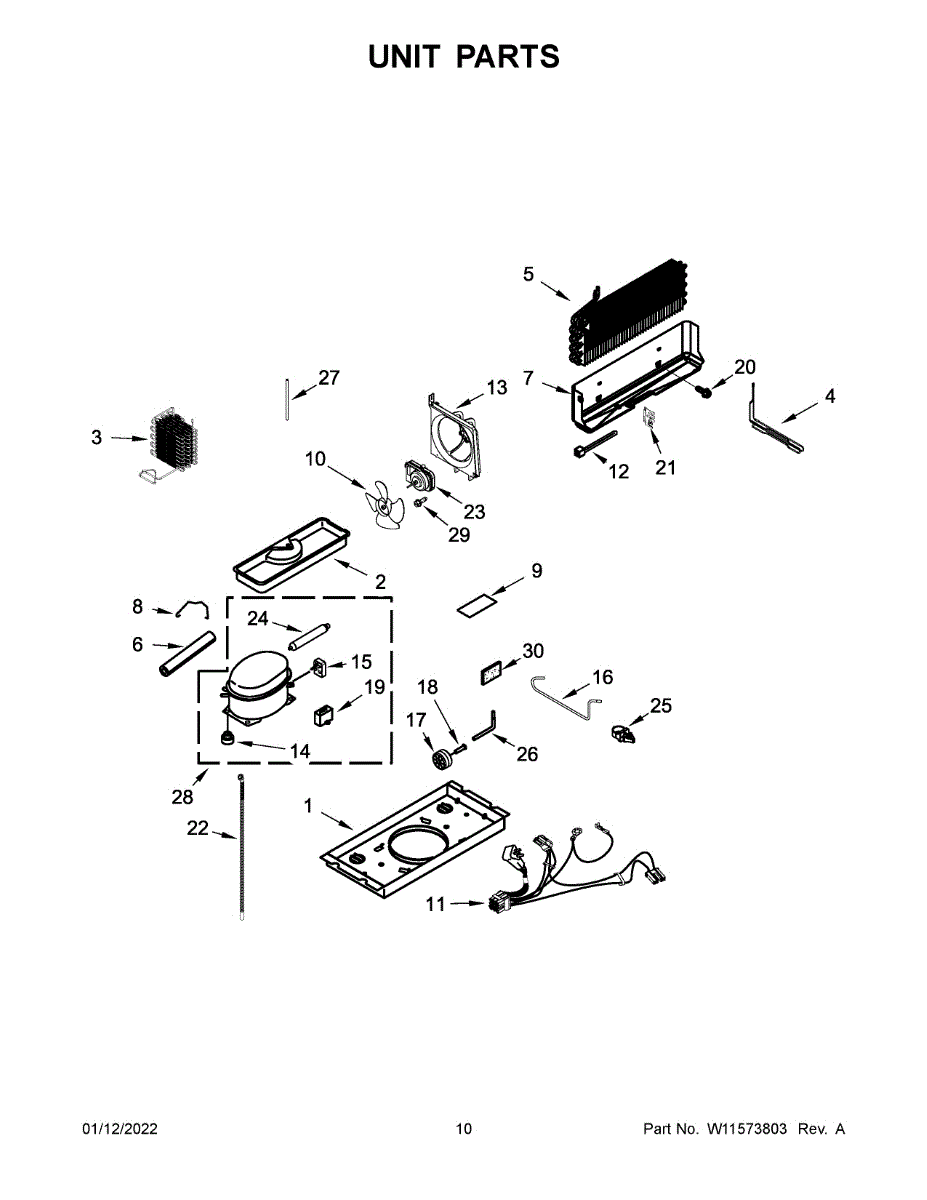

Parts for Whirlpool WRT106TFDB02: Unit Parts

This replacement fan blade mounts on the refrigerator evaporator fan motor to move cold air through the freezer and fresh-food compartments, helping maintain consistent cooling and airflow. Designed to restore proper circulation when the original blade is damaged or broken. What it does:

• Replaces a cracked, warped, or missing evaporator fan blade to restore airflow across the evaporator coil
• Helps reduce uneven cooling, frost build-up, and noisy or inefficient fan operation when blade damage is the root cause
• Works with the existing evaporator fan motor to push cold air through the compartment ducts
• Compatible with applications that use a small plastic multi-vane evaporator fan blade

• One fan blade

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove interior panels and fan shroud to access the evaporator fan; note the blade orientation for correct reinstallation
• Handle the blade gently to avoid cracking; secure it onto the motor shaft per OEM alignment
• If the fan motor shows excessive noise or does not turn freely, replace the motor as well

This air baffle directs airflow inside the appliance to help maintain proper venting and consistent drying performance. It replaces a damaged or missing baffle to restore normal airflow and reduce rumbling or excess lint buildup. What it does

• Guides internal air flow for efficient venting and consistent cycle performance
• Helps prevent hotspots and reduces risk of overheating caused by restricted airflow
• Minimizes rattling or knocking from a loose or broken baffle
• Reduces excess lint accumulation by keeping air pathways clear

• Disconnect power before servicing; verify the appliance is completely powered off
• Remove the drum or access panel as required; installation may require basic hand tools
• Inspect surrounding seals and mounting tabs; replace if damaged to ensure secure fit

This compressor grommet is the rubber isolator that cushions the refrigerator's compressor at its mounting points. Replacing a worn grommet helps quiet vibration and rattling and reduces stress on refrigerant tubing for smoother, safer operation.

• Isolates the compressor from the base to damp vibration and humming
• Helps prevent metal-to-metal contact and rattling at the mounts
• Supports proper compressor alignment to reduce stress on tubing
• Helps with symptoms like loud buzzing/rattling or cracked/flattened rubber at the compressor feet

• Unplug the appliance and remove the rear access cover to reach the compressor area
• Support the compressor while removing hardware; replace the grommet in the same orientation
• Avoid kinking or stressing refrigerant lines; no sealed-system opening is required
• Tighten mount fasteners evenly and ensure the compressor sits level and isolated

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement drain tube routes condensation or defrost water away from the appliance to the designated drain point, helping prevent pooling and water damage. Designed to match the original part's fit and function for a straightforward repair. What it does:

• Channels water from the evaporator/defrost area to the appliance drain or collection pan
• Prevents water from pooling inside the cabinet or on the floor
• Helps resolve symptoms like visible leaks or water under the appliance when the existing tube is cracked, clogged, or disconnected
• Restores proper drainage after damage, deterioration, or deformation of the original tube

• Inspect hose routing and connection fittings for damage before installation; replace clamps if corroded or loose.
• Disconnect power to the appliance and turn off water before beginning repairs.
• Ensure secure, leak-free connections and proper routing to avoid kinks or compression that could impede flow.

The Condenser Fan Motor is an OEM replacement part for Whirlpool refrigerators. Located inside the machine compartment, it powers the condenser fan needed for heat exchange.

Causes involve standard motor degradation from prolonged usage. Excess dirt buildup over time may also hinder adequate blade movement.

Symptoms of a faulty condenser fan motor include:

• Inability to adequately cool interior compartments
• The refrigerator runs continuously with the exterior surface staying hot
• Grinding or buzzing noises emanating from the refrigerator's rear
• Visible condenser fan blades stalled or rotating slowly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

A small retainer clip that secures panels, hoses or wiring to keep components in place and reduce noise from loose parts. Replacing a worn or broken clip restores proper fit and helps prevent intermittent contact or rattling. What it does

• Secures trim, panels, hoses or wire harnesses to mounting points to prevent movement.
• Keeps components aligned so switches and seals engage correctly.
• Stops rattling or vibrating noises caused by loose parts.
• Helps prevent abrasion or chafing of wires and hoses by holding them away from edges.

• Install by snapping or sliding the clip into the factory mounting slot; use needle-nose pliers if needed.
• Power off and unplug the appliance before accessing internal parts.
• Inspect surrounding mounts and mating tabs for damage; replace if worn for a secure fit.
• If removal is difficult, apply a small amount of penetrating lubricant and work carefully to avoid breaking adjacent plastic.

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.
