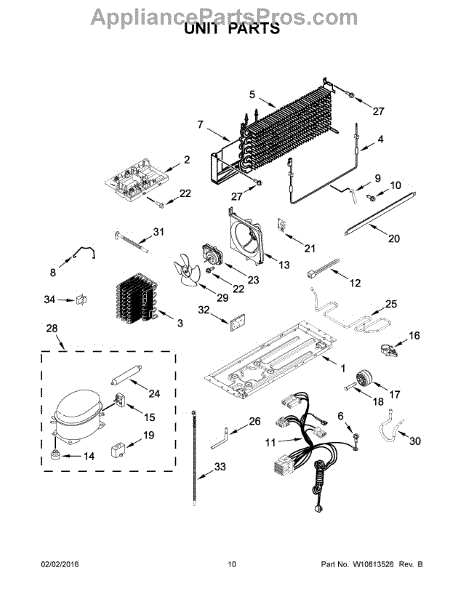

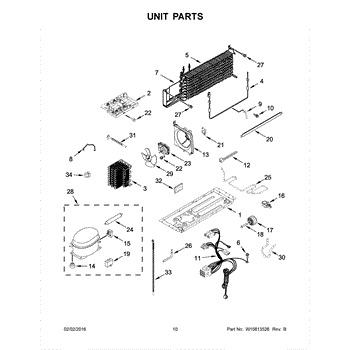

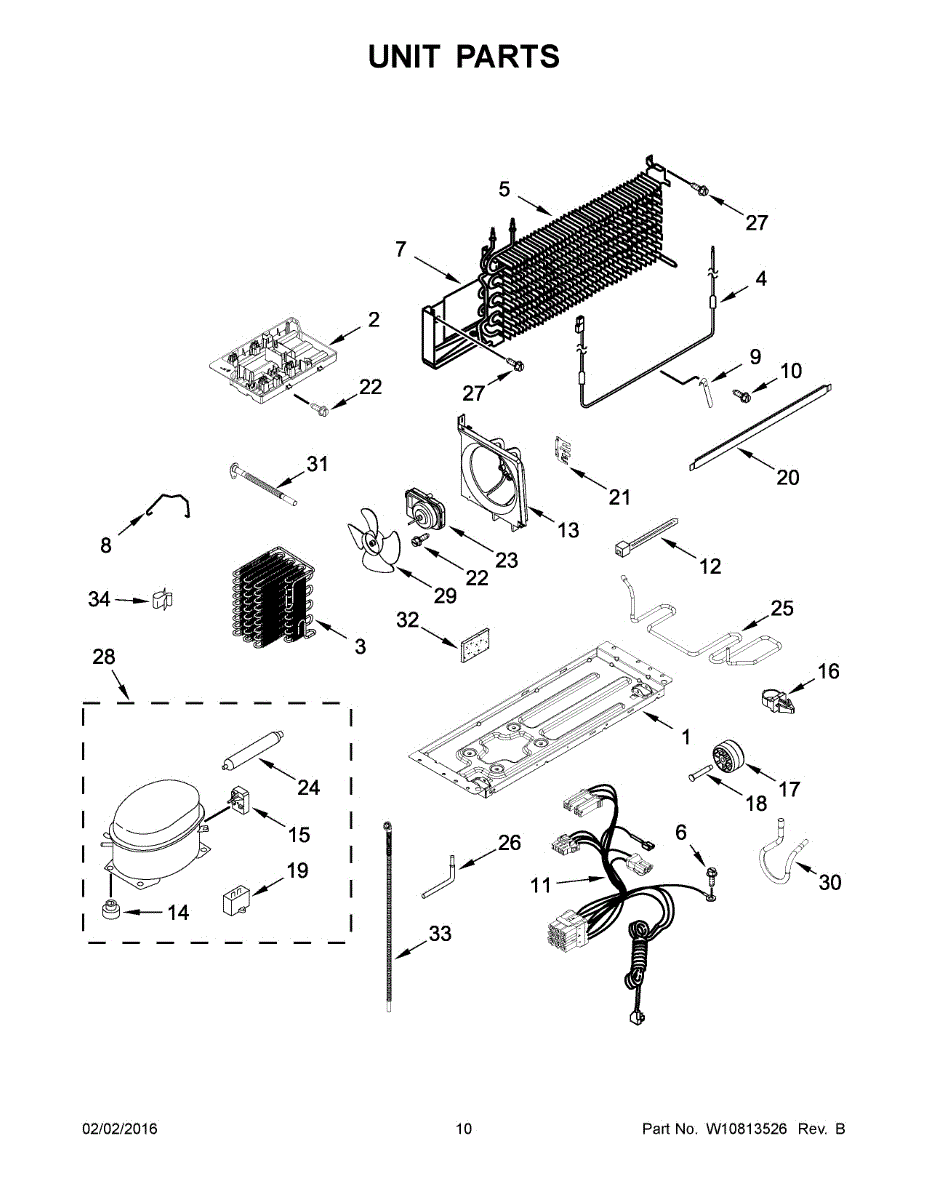

Parts for Whirlpool WRT108FZDB01: 06 - Unit Parts

The Heater is an OEM part for Whirlpool refrigerators. This component is responsible for preventing frost build-up on the evaporator coils by periodically heating them to melt any accumulated ice. This defrost process is essential for maintaining efficient cooling and proper airflow within the refrigerator.

Over time, the heater can fail due to electrical issues, wear and tear, or burnout from frequent cycling. When the heater is defective, it can lead to excessive frost build-up, which impairs the refrigerator's cooling performance.

Symptoms of a bad heater include:

• Frost or ice build-up on the evaporator coils
• Refrigerator or freezer not cooling properly
• Water leakage inside the refrigerator
• Long defrost cycles or constant running of the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator is an OEM part for Whirlpool refrigerators. As the main heat exchange component, it plays a vital role in removing heat from the refrigerator compartments to maintain proper cooling performance.

Causes of a bad evaporator can include bent fin coils inhibiting airflow, cracked or damaged tubing preventing proper refrigerant circulation, or debris buildup obstructing heat transfer.

Symptoms of a bad evaporator are:

• Inability to maintain set temperatures inside compartments
• Frost or condensation accumulating quicker than normal
• Unusual noises or vibrations from the refrigeration system
• Refrigerant leaks requiring high pressure service

This genuine Whirlpool evaporator coil is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators.

Screw: 8-16 x 3/8 inch.

This heat shield protects nearby components from high oven temperatures, helping prevent heat damage and maintain safe operation. It's a direct-fit replacement designed to restore proper thermal protection. What it does

• Deflects and shields adjacent parts from radiant heat generated by the oven cavity.
• Helps prevent discoloration, warping, or premature failure of nearby panels and wiring.
• Can stop heat-related smells or scorching around the oven interior or cabinet.
• Restores intended oven airflow and thermal clearance when the original shield is damaged or missing.

• One replacement heat shield

• Disconnect electrical power (and shut off gas for gas ranges) before starting any repair.
• Handle carefully — edges may be sharp; wear gloves and eye protection.
• Verify correct mounting orientation and fasteners; reuse original screws if in good condition or replace with OEM-specified hardware.

This bale strap is a direct-replacement part that helps secure the dryer's latch/bale assembly so the door closes and stays closed during operation. Replacing a worn or broken strap restores reliable door engagement and safer drying cycles. What it does:

• Anchors the dryer door's latch/bale so the door remains properly closed during operation
• Prevents intermittent door opening that can stop cycles or cause heat loss
• Replaces a stretched, torn, or broken strap that no longer holds the latch securely
• Works with the door/latch mechanism to maintain safe operation during drying

• One bale strap

• Disconnect power before beginning any repair to avoid electrical shock
• Verify strap routing and attachment points match the original before reinstalling
• Basic hand tools are typically required; avoid forcing plastic clips to prevent breakage

Size: 8 x 1/2 ab.

This wire harness connects the touch matrix/user interface to the appliance's control system, carrying power and keypad signals. Replacing a damaged harness can restore reliable button response and consistent control-panel operation.

• Links the touch matrix/user interface to the main control board
• Transmits low-voltage power and signal inputs from the keypad
• Improper routing or damaged conductors can cause intermittent inputs
• Can lead to symptoms like unresponsive buttons, erratic UI behavior, or flickering/blank panel

• Disconnect power to the appliance before servicing; shut off gas supply if applicable
• Photograph original wire routing and connector locations for reference
• Depress connector locking tabs—do not pull on wires; seat connectors fully
• Route and secure the harness away from sharp edges and heat; reuse retainers/clips

This air baffle directs and controls airflow between compartments to help maintain even temperatures and proper air circulation inside the refrigerator. Replaces a damaged or missing baffle to restore normal airflow and cooling balance. What it does:

• Channels cold air from the freezer or evaporator to the fresh-food section to help equalize temperatures
• Helps prevent warm spots and reduces temperature swings caused by blocked or broken ducts
• Restores correct airflow when the original baffle is cracked, warped, or missing
• Works with the damper/air flow system to support efficient cooling performance

• One air baffle

• Disconnect power to the appliance before beginning any work
• Remove any shelves or drawer components necessary for access; handle plastic parts gently to avoid cracking
• Verify proper orientation and fit before snapping into place; do not force the part
• If airflow problems persist after replacement, check the damper assembly and evaporator area for ice or other obstructions

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

The Compressor Start Device is an OEM part for Whirlpool refrigerators. This device is essential for initiating the compressor, which is responsible for circulating refrigerant through the cooling system, thus maintaining the refrigerator's temperature. The start device works by providing the necessary power boost to get the compressor running.

Over time, the compressor start device can wear out or fail due to electrical issues, regular wear and tear, or overheating. A faulty start device will prevent the compressor from starting, resulting in cooling problems.

Symptoms of a bad compressor start device include:

• The refrigerator not cooling
• The compressor not running or starting intermittently
• Clicking sounds coming from the refrigerator
• Overheating of the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A small retainer clip that secures panels, hoses or wiring to keep components in place and reduce noise from loose parts. Replacing a worn or broken clip restores proper fit and helps prevent intermittent contact or rattling. What it does

• Secures trim, panels, hoses or wire harnesses to mounting points to prevent movement.
• Keeps components aligned so switches and seals engage correctly.
• Stops rattling or vibrating noises caused by loose parts.
• Helps prevent abrasion or chafing of wires and hoses by holding them away from edges.

• Install by snapping or sliding the clip into the factory mounting slot; use needle-nose pliers if needed.
• Power off and unplug the appliance before accessing internal parts.
• Inspect surrounding mounts and mating tabs for damage; replace if worn for a secure fit.
• If removal is difficult, apply a small amount of penetrating lubricant and work carefully to avoid breaking adjacent plastic.

The Roller is an OEM part for Whirlpool refrigerators. It is designed to facilitate the smooth movement of your refrigerator, making it easier to position and clean underneath the appliance. The roller supports the weight of the refrigerator and allows for easy adjustments in placement.

Causes of a bad fridge roller can include wear and tear from frequent movement, exposure to heavy loads that can damage the roller, or accumulation of dirt and debris that can impede its function. When a roller is damaged, it can affect the stability and mobility of the refrigerator.

Symptoms of a bad Roller include:

• Difficulty moving the refrigerator
• Unusual noises when the refrigerator is moved
• Uneven leveling of the refrigerator
• The refrigerator not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Axle is an OEM part for Whirlpool refrigerators. This axle allows it to be easily repositioned or moved for cleaning and maintenance. It supports the rollers that enable the refrigerator to glide across the floor.

Common causes of a bad axle include prolonged use, excessive weight, or impact damage, which can lead to the axle bending or breaking.

Symptoms of a bad refrigerator roller axle include:

• Difficulty moving the refrigerator
• Uneven or wobbling movement
• Scratches or damage to the floor
• The refrigerator not staying level

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This genuine replacement screw secures appliance components for reliable fit and function, helping restore proper assembly and reduce rattling or loose panels. Use it to replace a stripped or missing fastener during repairs. What it does:

• Fastens panels, brackets, or components to maintain structural stability
• Prevents movement that can cause noise, vibration, or misalignment
• Replaces stripped, corroded, or missing screws to restore secure assembly
• Compatible where the OEM mounting screw is required for safe operation

• Turn off and unplug the appliance before performing any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Do not overtighten; snug until secure to prevent damage to parts
• If other fasteners show wear, inspect and replace as needed for safe operation

The Condenser Fan Motor is an OEM replacement part for Whirlpool refrigerators. Located inside the machine compartment, it powers the condenser fan needed for heat exchange.

Causes involve standard motor degradation from prolonged usage. Excess dirt buildup over time may also hinder adequate blade movement.

Symptoms of a faulty condenser fan motor include:

• Inability to adequately cool interior compartments
• The refrigerator runs continuously with the exterior surface staying hot
• Grinding or buzzing noises emanating from the refrigerator's rear
• Visible condenser fan blades stalled or rotating slowly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

Size: 8-18 x 1/2 inch.

This condenser fan blade mounts to the fan motor and pulls air across the condenser coil and compressor. Replacing a cracked or warped blade restores airflow so your refrigerator cools efficiently and the compressor runs at a safe temperature.

• Circulates air through the condenser coil and over the compressor to remove heat
• Helps maintain cooling performance and stable system pressures
• Common symptoms: weak or no airflow at the rear/base, rattling or scraping noises, wobble/vibration, visible cracks or missing fins, warmer-than-normal compartments or hot cabinet sides
• Works with the condenser fan motor and shroud; typically replaced when the hub is stripped or the blade is damaged

• Disconnect power and pull the refrigerator out; remove the rear access cover near the compressor
• Note blade orientation and depth on the motor shaft before removal
• Pull the old blade straight off; press the new blade onto the shaft until fully seated and ensure it spins freely with proper shroud clearance
• Reinstall the cover, restore power, and verify strong, quiet airflow

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 1/4 inch.
