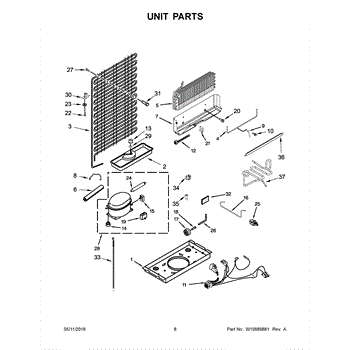

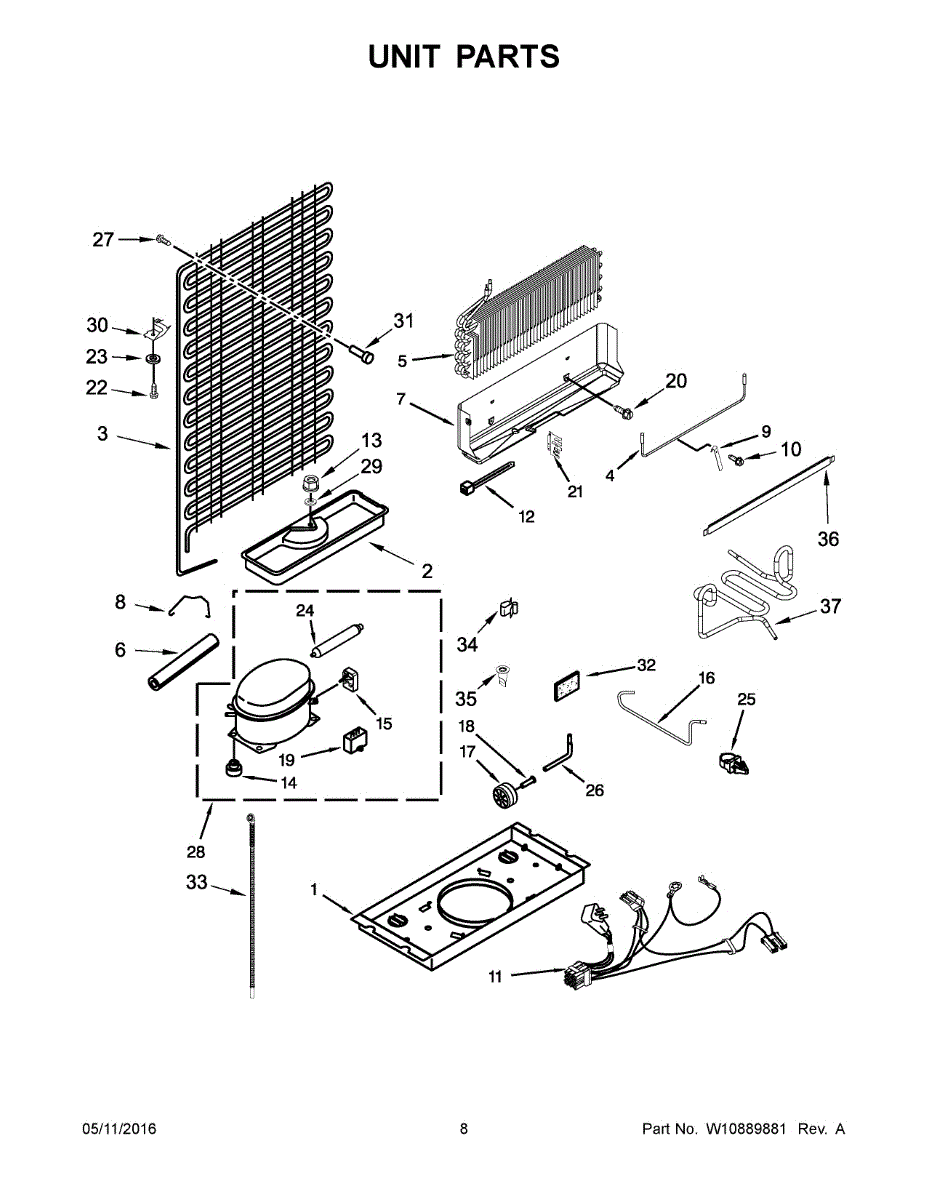

Parts for Whirlpool WRT314TFDB01: 05 - Unit Parts

This refrigerator support bracket provides structural stability for internal components. Replace if cracked, broken, or missing to restore proper support.

Collects defrost and condensation water from the evaporator coil. Replace if cracked, warped, or leaking to prevent water damage and ice buildup issues.

Fix a refrigerator that won't defrost or has frost buildup with this defrost heater. Prevents freezing and maintains proper temperature in your fridge.

Refrigerator not cooling or freezing over? The evaporator coil removes heat from compartments. Fixes cooling loss and frost buildup issues in your fridge.

This bale strap is a direct-replacement part that helps secure the dryer's latch/bale assembly so the door closes and stays closed during operation. Replacing a worn or broken strap restores reliable door engagement and safer drying cycles. What it does:

• Anchors the dryer door's latch/bale so the door remains properly closed during operation
• Prevents intermittent door opening that can stop cycles or cause heat loss
• Replaces a stretched, torn, or broken strap that no longer holds the latch securely
• Works with the door/latch mechanism to maintain safe operation during drying

• One bale strap

• Disconnect power before beginning any repair to avoid electrical shock
• Verify strap routing and attachment points match the original before reinstalling
• Basic hand tools are typically required; avoid forcing plastic clips to prevent breakage

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

This wire assembly (Piranha) restores factory electrical connections for affected appliance circuits, helping re-establish reliable power and signal routing. It replaces damaged or worn harnesses to reduce intermittent or failed component operation. What it does:

• Replaces a damaged or frayed wire harness that supplies power and signals to appliance components
• Restores proper connector-to-connector electrical paths to fix intermittent power or control issues
• Ensures correct routing and secure connections used by the original design
• Helps address symptoms such as components not powering on, intermittent operation, or visible wiring damage

• Disconnect appliance power (unplug or shut off breaker) before starting any work
• Handle connectors gently and confirm secure, fully seated connections during reassembly
• Route the harness following original clips and channels; avoid contact with moving or hot parts

Protective seal grommet for hoses, tubes, or wires passing through refrigerator cabinet. Replaces cracked, worn, or missing grommets to prevent leaks.

Refrigerator not cooling or clicking but not starting? The compressor start device initiates cooling. DIY repair in minutes with no tools required.

This refrigerator roller supports the unit's weight and enables smooth movement for positioning and cleaning. Replace when wheels crack or roll roughly.

Rivet for refrigerators. Secures components and panels inside the cabinet. Replace if rivet is loose, missing, or broken during repair work.

Mounting bracket for refrigerators. Installs internally to secure components in place. Replace if bent, cracked, or missing to restore proper support.

Size: 8-18 x 1/2 inch.

Mounting washer for securing components in washers and appliances. Replace if worn, missing, or damaged to ensure proper fastening and stability.

Secures panels, hoses, and wiring in place to prevent rattling and loose components. Replace when worn or broken to restore proper fit. Confirm compatibility with your model number.

Flat washer used on refrigerator door hinge assembly. Reduces friction and distributes load for smooth door operation.

Secures trim, panels, and assemblies to prevent rattling and keep parts aligned. Replace when original clip breaks or goes missing. Verify fit with your model.

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

Channels defrost water from the drain outlet to the pan. Replace if cracked, disconnected, or clogged to prevent water pooling inside or leaking onto floor.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

Size: 1/4 inch.
