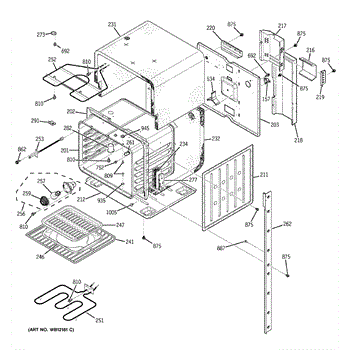

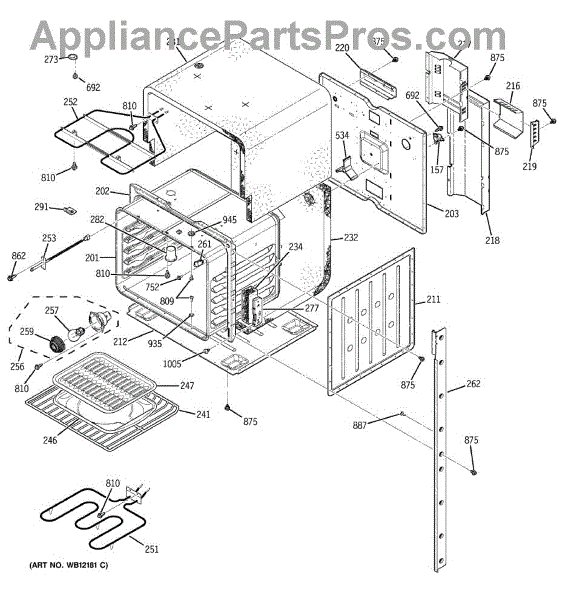

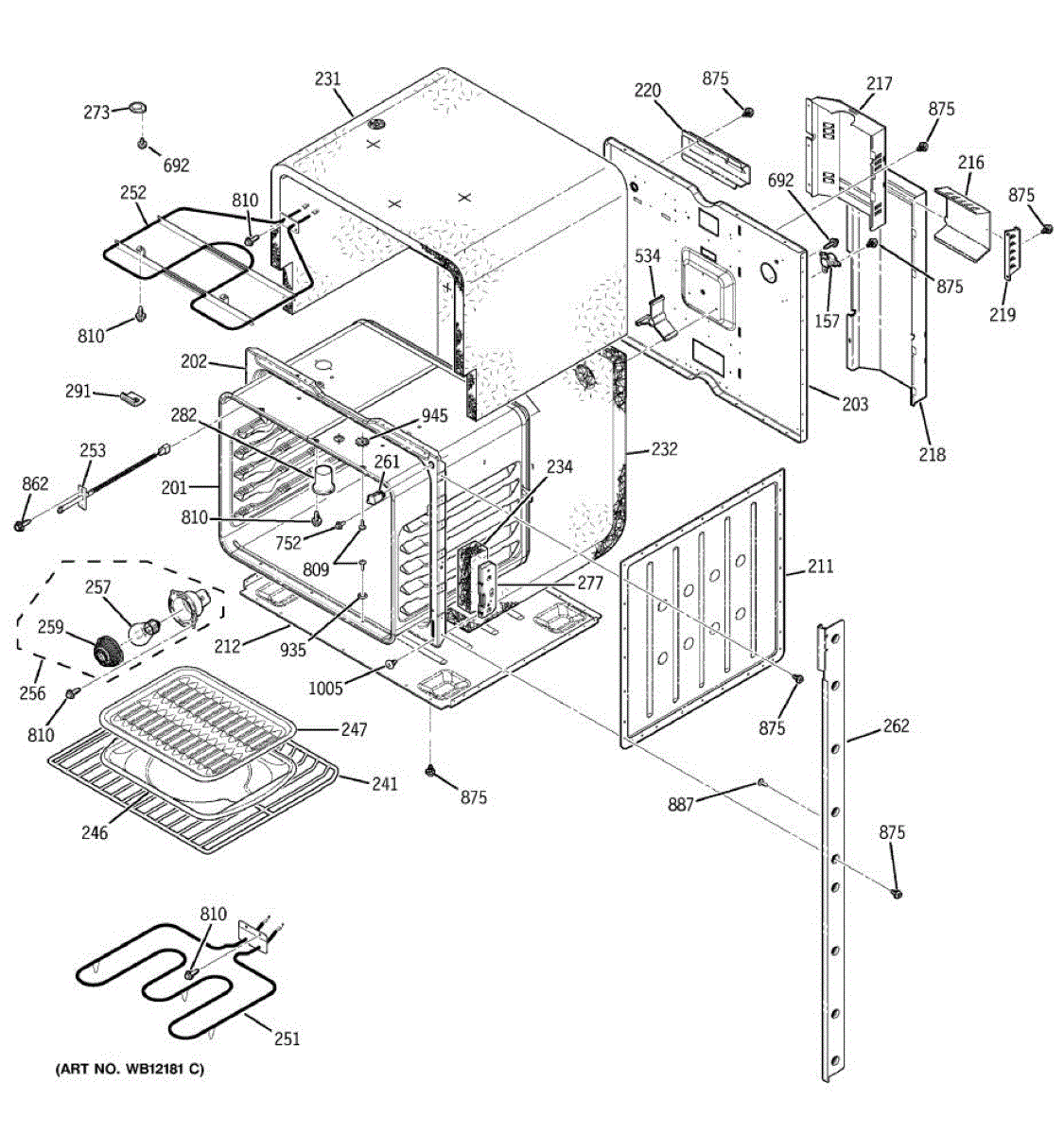

Parts for Ge JKP45BD1BB: 02 - Upper Body Parts

Lower back

Fix F2 or F3 error codes and oven not heating issues. This thermal limit switch prevents overheating. Moderate DIY repair, accessible from back panel.

Wire shelf that slides into the oven cavity to support cookware. Replace your bent, rusty, or missing rack to restore smooth sliding and safe support.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven not heating or baking unevenly? A faulty bake element is often the cause. This bottom heating element is straightforward to replace yourself.

Oven not broiling or browning food? The broil element provides high heat at the top of the oven. Simple 5-10 minute DIY fix with basic tools.

Holds and powers the interior oven light bulb for visibility while cooking. Replace if light flickers, won't turn on, or bulbs burn out frequently. Verify fit by your model number before ordering.

Replace your cracked or missing oven light lens to restore safe illumination. This cover protects the bulb and diffuses light for clear visibility while cooking. Confirm fit by model number.

Lower housing cover for ovens and ranges. Replaces cracked, broken, or missing covers that expose internal components. Protects and encloses the lower section.

Hinge receiver that mounts to the oven frame and accepts the door hinge arm. Replace if cracked, worn, or damaged to restore proper door support.

Replacement vent tube for wall ovens. Directs hot air and moisture from the oven cavity. Order a new tube if yours is damaged, cracked, or missing.

Control panel overlay for electric and gas ranges. Replaces worn, faded, or damaged overlay labels. Adheres over existing control panel surface.

Replace your oven's cavity support plate if the original is cracked, broken, or missing. This structural component installs inside the oven to support the cavity.

Replacement mounting screw for securing panels, trim, and internal brackets. Needed when original fasteners are missing, stripped, or damaged.

Replacement mounting screw for electric ranges, ovens, and wall ovens. Secures panels, brackets, and components. Replace if stripped, missing, or broken.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.

Black trim screw secures exterior trim and panels on ovens and ranges. Replace missing, stripped, or corroded screws to restore proper fit and finish.

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

Lock washer secures burner components on electric ranges and cooktops. Replace if washer is damaged, missing, or no longer holds parts firmly in place.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
