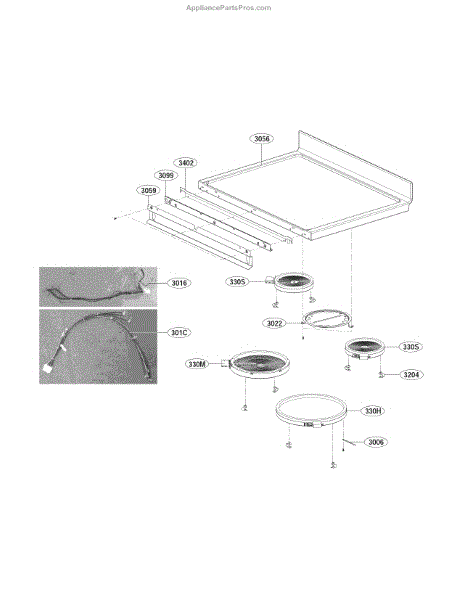

Parts for Lg LDE4415ST: Upper Cavity Parts

This single wiring harness connects appliance components to ensure reliable electrical signals and restores proper circuit continuity. Use it to replace a damaged or worn harness and help remove intermittent power or function failures. What it does:

• Carries electrical signals between controls, motors, and sensors to enable normal operation
• Restores proper connections when original wiring is frayed, burnt, or damaged
• Helps eliminate intermittent faults, loss of power to a component, or erratic operation caused by bad wiring
• Matches original connector types and routing for a direct replacement

• One pre-assembled single wiring harness as pictured

• Disconnect power (unplug or switch off breaker) before starting any repair
• Inspect mating connectors and terminals; replace any corroded or damaged parts

The Surface Element is an OEM part for LG electric ranges. It is a glass-ceramic smooth-top cooking surface with embedded heating coils below. Used for easy cleaning and quick heating of pots and pans, the smooth top element must withstand years of daily use.

Causes of failure include cracks developing in the glass-ceramic material from thermal stress over time. Fatigue of internal heating coils is also possible with heavy usage.

Symptoms of a bad smooth-top surface element include:

• Uneven or slow-heating surface areas
• Thermal checks, chips, or full cracks appearing in the glass
• Potential electrical hazards if internal coils short dangerously

Replacing this new OEM LG smooth-top element restores a durable, scratch-resistant cooking area that complements modern kitchen designs. It is also compatible with Sears/Kenmore electric range models.

This radiation heater is the element that delivers direct radiant heat for the microwave's grill/browning feature. Replacing a failed heater restores proper grilling performance and helps foods brown and crisp during grill or combination-cook settings. What it does:

• Supplies radiant heat for grill/browning and combo-cook modes
• Typically mounted at the top of the cavity to radiate heat downward
• Common failure symptoms: no heat in grill mode, element does not glow, poor or uneven browning
• Visual clues can include cracks, blistering, or burnt spots on the heater

• 1 radiation heater element

• Disconnect power before servicing; microwaves contain high-voltage components that can retain a charge even when unplugged
• Access may require removing the outer case and interior shroud; beware of sharp metal edges
• Note wire positions before removal; route leads away from hot or moving parts during reassembly
• Verify secure mounts and connections before testing the grill function

This Radiant Surface Element is an OEM replacement part for LG electric ranges and cooktops. It is a high-power coil heating unit located below the cooktop surface that provides efficient, customizable heat for various cooking needs.

Causes of failure can be wear and damage to coiled filaments from prolonged heating cycles, cracking of ceramic insulators, or loose wiring connections suffering arcing or resistance over time.

Symptoms of a faulty element include:

• Slow or inadequate heating of cookware even on high settings
• Temperature fluctuations within the heating zone
• Burning or charring of spills and foods on the element itself
• Tripped circuit breakers obstructing range operation

This replacement is also compatible with some Kenmore models

A circular lug designed to join a stripped wire to a threaded terminal for a secure electrical connection. Helps restore reliable contact at terminals and reduces the chance of intermittent power or arcing at connection points. What it does:

• Provides a strong mechanical and electrical connection between a wire and a screw or bolt terminal.
• Helps prevent loose connections that can cause intermittent operation, sparking, or overheating.
• Commonly used where a ring-style termination is required for safe, stable wiring.
• Works with properly sized wire and fasteners to maintain consistent conductivity.

• Always disconnect power to the appliance before inspecting or replacing electrical parts.
• Use the correct lug size and gauge for the wire and terminal; crimp or solder per manufacturer recommendations.
• Tighten terminal hardware to the appliance manufacturer's specified torque; avoid over-tightening which can damage the lug or terminal.
• If wiring insulation or the terminal is damaged or corroded, replace the affected components rather than reusing them.

This plate assembly is the glass turntable used in compatible countertop microwaves to support and rotate dishes for even cooking and reheating. It replaces a cracked, scratched, or missing turntable surface to restore stable dish placement. What it does:

• Provides the glass cooking surface that holds plates, bowls and containers during microwave operation
• Sits on the roller guide so the motor can rotate food for more even heating
• Replaces damaged or broken turntables that can cause wobbling or unstable dishes
• Helps prevent direct contact between cookware and the microwave cavity floor

• Unplug the microwave before replacing the turntable to avoid electrical hazard
• Carefully lift out the old glass plate and set the new plate onto the roller guide so it seats securely
• Do not operate the microwave without the roller guide and proper seating of the plate
• Handle glass with care; inspect for chips or cracks before use

This heater bracket is a metal mounting support that holds the appliance's heater or heating element securely in place, helping maintain proper alignment and reduce movement. Replacing a bent or broken bracket restores stable support for the heater assembly. What it does:

• Secures the heater or heating element to the appliance frame so the element stays aligned and does not contact other components.
• Prevents rattling, shifting, or sagging of the heater assembly that can cause noise or uneven heating.
• Helps maintain safe clearances between the heater and surrounding parts.
• Used when the original bracket is cracked, bent, or missing hardware.

• Disconnect power (and gas, if applicable) before beginning work to avoid electrical shock or gas hazards.
• Handle metal parts carefully — edges may be sharp. Wear gloves and eye protection.
• Match the part number and orientation, secure all fasteners, and ensure the heater is properly aligned before restoring power.
