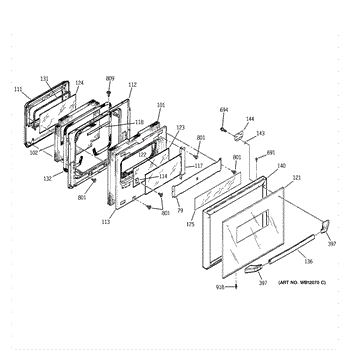

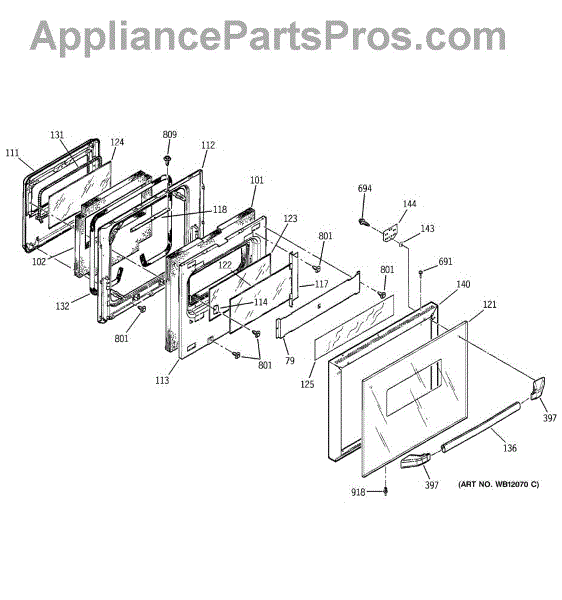

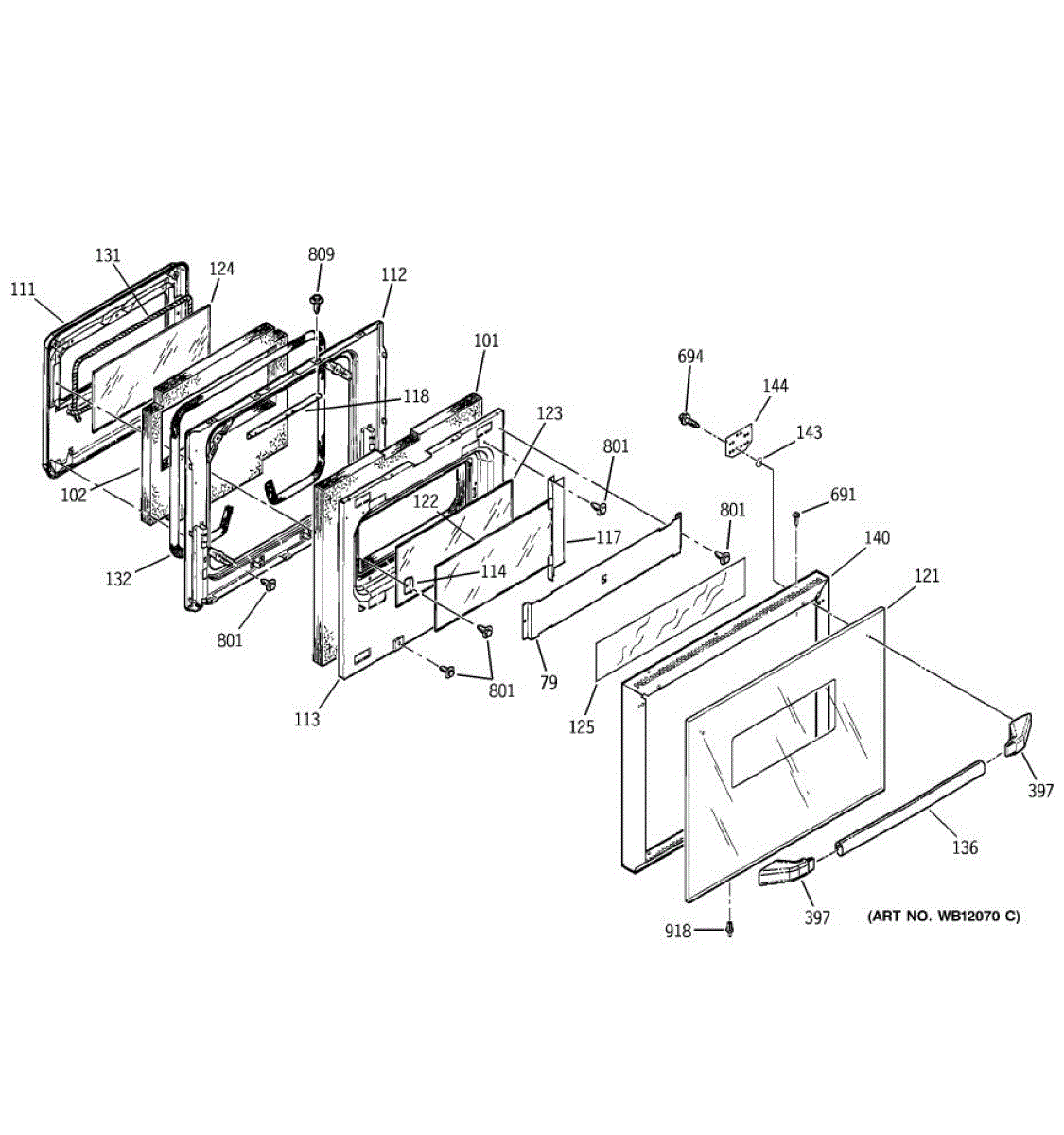

Parts for Ge JRP24BD1BB: 03 - Upper Door Parts

This plug insulation is a small molded cover that protects an appliance's terminal plug or electrical connector from moisture, dirt and accidental contact, helping maintain a safe, reliable connection. What it does:

• Covers and insulates terminal plugs or wire connectors to reduce risk of shorting and arcing
• Helps keep moisture, dust and debris away from electrical connections
• Stabilizes the plug to reduce wear from vibration or movement
• Supports proper electrical seating for consistent operation

• Disconnect power to the appliance before accessing electrical connectors
• Install over the mating plug/terminal until it seats fully; do not force
• If panels or components must be removed, keep fasteners organized for reassembly

This is the outer glass panel for the oven door. Replacing a cracked or shattered exterior pane restores a safe, clean-looking door surface and helps protect the inner window and insulation from damage. What it does:

• Forms the front layer of the oven door and shields the inner window/insulation
• Provides a smooth, easy-to-clean exterior surface and finished appearance
• Helps maintain proper door integrity when the original glass is broken or missing
• Common symptoms include cracked or shattered glass, loose/rattling trim, or sharp edges on the door exterior

• 1 outer oven door glass panel

• Disconnect power; for gas ranges, also shut off the gas supply
• Allow the appliance to cool completely before service
• Wear cut-resistant gloves and eye protection; handle tempered glass carefully
• Support or remove the door; transfer handle/trim and reuse original hardware; do not overtighten fasteners

This inner oven door glass seal cushions and seals the inner glass pane inside the door, helping contain heat and keep the glass stable and quiet. Replace a cracked or flattened seal to maintain safe, consistent oven performance.

• Seats and cushions the inner door glass panel
• Seals the perimeter of the pane to limit heat and air leaks
• Helps prevent debris and moisture between glass layers
• Can reduce rattling or shifting of the inner glass
• When worn, contribute to longer preheat times or temperature inconsistency

• Disconnect power; for gas ranges, also shut off the gas supply. Allow the oven to cool completely.
• Remove the door and separate the inner panel per your service instructions.
• Note the seal's routing and orientation; install the new seal without stretching or twisting.
• Wear cut-resistant gloves and handle glass carefully during reassembly.

This spacer is a small mounting shim used to position and support components inside the appliance for correct alignment and stable operation. It helps maintain part clearance and keeps assemblies seated where intended. What it does:

• Provides spacing between panels or components to ensure proper alignment
• Helps prevent rubbing, binding, or misalignment of moving parts
• Can reduce vibration or noise caused by improperly seated parts
• Useful when replacing or reinstalling components that require precise clearance

• Disconnect power before accessing internal components
• Use basic hand tools; keep track of fasteners and original part locations
• Replace only with the same spacer size and orientation for correct fit

This reinforcement plate restores structural support where the oven/range door or trim attaches, helping stop sagging and keeping panels aligned for proper sealing and appearance. What it does:

• Reinforces the mounting area so door or trim stays securely attached
• Restores alignment to reduce gaps, drafts, or uneven door closing
• Prevents further wear at stressed screw holes and mounting points
• Stops rattling or vibration caused by loose or damaged support

• Disconnect power before servicing and allow appliance to cool completely
• Remove appropriate access panels or door per the manufacturer instructions
• Handle edges carefully; fasten with original hardware and torque to OEM specs
• If mounting holes or surrounding parts are damaged, inspect and replace any worn hardware

This is a replacement trim screw used to secure exterior trim pieces and panels on compatible appliances. It restores proper fit and prevents loose or rattling trim for a finished appearance. What it does:

• Secures appliance trim, bezels, and small panels to the cabinet or frame
• Stops trim from shifting, vibrating, or falling loose during operation
• Matches the original size and finish for a discreet, finished look
• Used where a 10-16 thread size and 3/4" length are specified

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until trim is secure to prevent thread damage
• For appliances with electrical or gas connections, disconnect power or gas supply before servicing
• If screws are corroded or stripped, replace matching mating hardware as needed

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

This hex washer head screw secures appliance panels and brackets. The 10-16 x 0.812 size replaces missing or stripped hardware so components stay properly fastened, helping prevent looseness, rattling, and misalignment.

• Fastens metal panels, brackets, and components in compatible appliances
• Replaces a lost, damaged, or corroded screw to restore proper attachment
• Helps reduce vibration, noise, or loose-fitting parts caused by missing hardware
• Correct 10-16 thread and 0.812-inch length for specified mounting points

• Disconnect power; for gas models, also shut off the gas supply.
• Note the original screw's location and orientation before removal.
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing.
• Use a nut driver or socket that fits the hex head.

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This plastic rivet is a push-in fastener used to secure trim and panels on compatible appliances, helping keep exterior pieces firmly in place for proper fit and finish. It's a small, inexpensive part that prevents rattling and loose trim. What it does:

• Acts as a push-in fastener to hold trim pieces, panels or liners together
• Keeps exterior parts aligned and reduces vibration or rattling noises
• Replaces worn or missing rivets that allow panels to sit loose
• Works where a simple snap-in plastic retainer is required

• One plastic rivet

• Disconnect power to the appliance before starting any repair that exposes wiring or components
• Typically installs by pushing into the mounting hole until the head seats; may require pliers for removal
• Inspect mating hole and surrounding trim for damage before installing replacement
