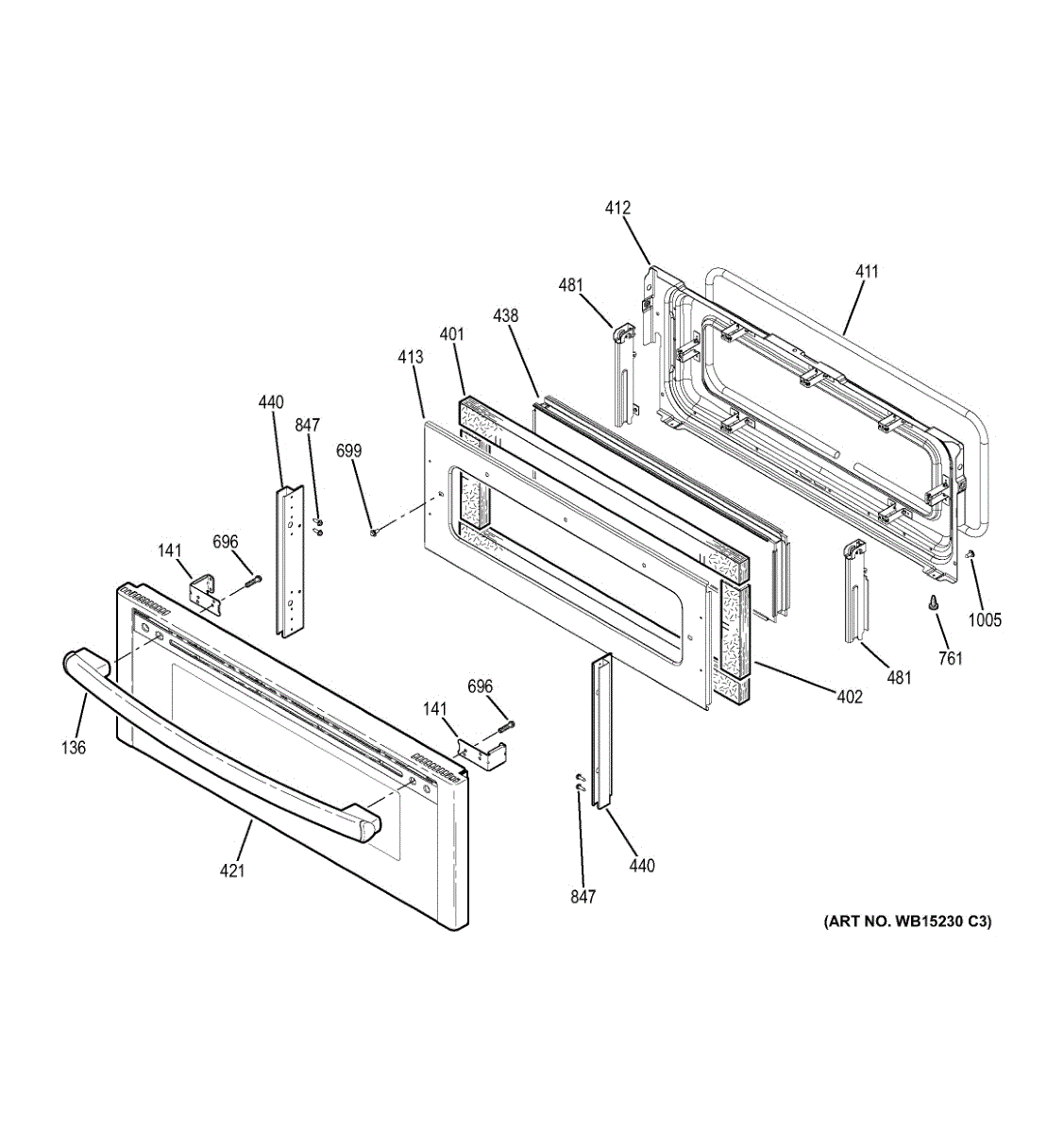

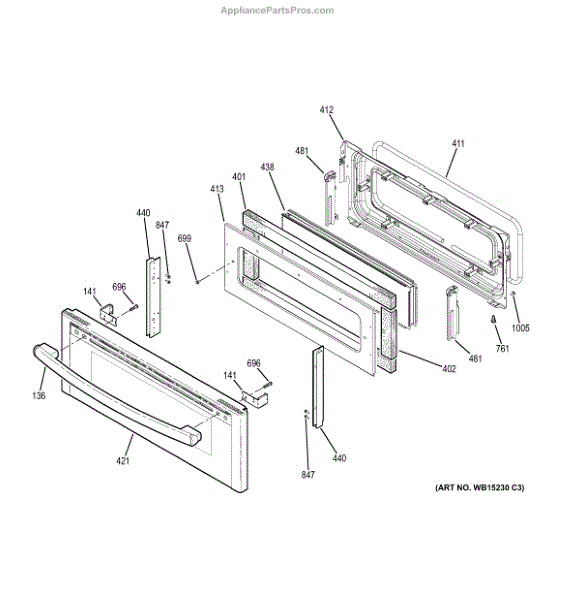

Parts for Ge PB950SF2SS: Upper Door Parts

The Handle and End Cap Assembly is an OEM part for GE ovens. This assembly comprises the handle used to open and close the oven door, along with the end caps that secure the handle firmly in place. The handle measures 27.5 inches long

Over time, the handle and end caps can become worn or damaged due to frequent use, exposure to high temperatures, or accidental impact. Such issues can make it challenging to operate the oven door properly and safely.

Symptoms of a bad Handle and End Cap Assembly include:

• Difficulty in opening or closing the oven door
• A loose or wobbly handle
• Visible cracks or damage to the handle or end caps
• The handle detaching from the oven door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Oven Door Gasket forms a heat-resistant seal between the oven door and the front frame. Replacing a worn seal helps your oven preheat efficiently, hold temperature more consistently, and keep heat and spills contained.

• Creates a perimeter seal to retain heat and support even baking
• Helps reduce long preheat times and noticeable temperature swings
• Replace if the gasket is torn, frayed, hardened, flattened, or leaking heat around the door
• Restores proper door closure feel and uniform contact

• Disconnect power and allow the oven to cool completely before servicing.
• Open the door and remove the old gasket by releasing it from its existing mounting points.
• Install the new gasket into the same points without stretching; ensure an even seal around the full perimeter before use.

Upper window pack assembly that replaces a cracked or damaged refrigerator door window panel, restoring appearance and helping protect the components behind the outer window. What it does:

• Replaces the upper door window pack to restore a clear, finished exterior on the appliance door.
• Addresses visible damage symptoms such as cracked, scratched, cloudy or broken window panels.
• Protects internal door components from exposure to moisture and debris.
• Matches the OEM-style mounting points for a like-for-like replacement when used with the correct model parts.

• Disconnect power and remove food from the door area before starting any repair.
• Handle the window pack carefully; wear cut-resistant gloves and eye protection when removing broken or cracked pieces.
• Remove any trim or fasteners per the appliance's service instructions; retain mounting screws and gaskets as needed.
• Refer to the OEM service manual or diagram for model-specific removal and reassembly steps.

This hex-head machine screw has a 10-32 thread and measures 1-3/4 inches long. Use it to replace a missing, stripped, or rusted fastener and restore a secure fit where this exact size is specified.

• Secures brackets, panels, and internal components requiring a 10-32 x 1-3/4 in hex-head screw
• Restores proper alignment and mounting integrity
• Replaces damaged, corroded, or lost hardware
• Can help resolve symptoms like loose/rattling parts or shifting components

• Disconnect power (and shut off gas, if applicable) before servicing; allow appliance to cool
• Remove the old screw, align parts, and start the new screw by hand to avoid cross-threading
• Tighten snugly but do not overtighten
• Reuse any original washers or spacers if present

ST10-16 X 7/16"

This is a truss-head screw used to fasten appliance panels and trim securely. It provides a low-profile, wide bearing surface to hold components in place and resist pull-through. What it does:

• Fastens trim, access panels, brackets, and lightweight components
• Wide truss head spreads load to prevent damage to thin sheet metal
• Replaces missing or stripped screws that cause loose panels or rattling
• Maintains proper alignment of cosmetic and service panels

• One truss-head screw (8-32 x 0.343 in)

• Use the correct #2 Phillips driver; a magnetic bit helps hold the screw
• Tighten snugly but avoid overtightening to prevent thread or panel damage
• Disconnect power before removing or working near electrical components
• If threads are damaged, replace with the exact part rather than reusing with thread repair

Package of 12
