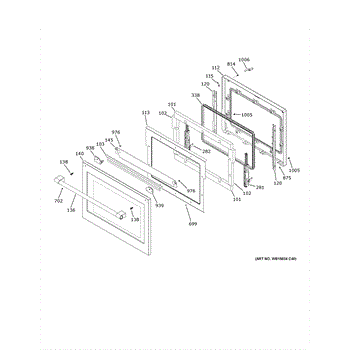

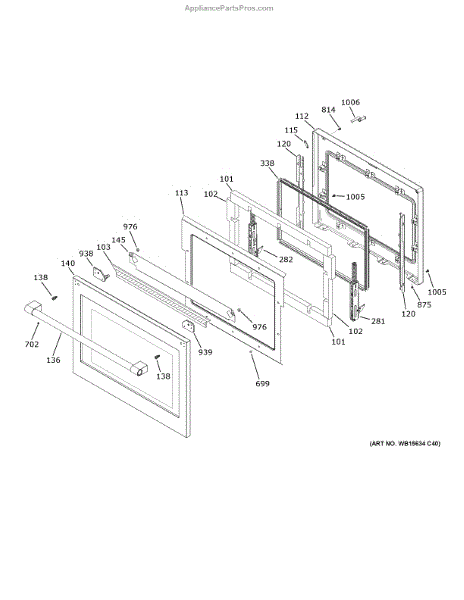

Parts for Ge ZTDX1DPSN3SS: Upper Door Parts

This door insulation retainer is a small plastic clip that secures insulation inside a refrigerator/freezer door to help maintain proper temperature and reduce noise. It replaces worn or missing retainers to keep the door liner insulation in place. What it does:

• Secures the door insulation to the inner door liner so insulation stays positioned
• Helps prevent insulation from shifting or sagging that can affect door seal performance
• Commonly used when insulation falls out or the liner shows gaps around the insulation
• Works as a direct-fit replacement for the original retainer designed for the door assembly

• One door insulation retainer clip

• Installation generally requires removing the door panel or liner; keep track of fasteners and trim
• Handle the door liner and insulation carefully to avoid damage or tearing the insulation
• Use proper tools and disconnect power if working near electrical components or lights
• Replace all affected clips for an even, secure fit

This door liner plug snaps into the inner door liner to cover fastener or access holes. It restores a clean, finished look and helps keep grease and debris from entering the door assembly.

• Covers exposed holes in the inner door liner
• Replaces a missing, loose, or damaged plug/cap
• Helps protect the door cavity from splashes and debris
• Restores a neat, factory-finished appearance

• Disconnect power before servicing; for gas ranges, also shut off gas. Allow the appliance to cool completely.
• Open the door and gently pry out the old plug with a plastic trim tool or flat-blade screwdriver.
• Align and press the new plug into the liner until it seats flush.
• Support glass and follow the manufacturer's instructions.

This mounting stud secures appliance panels and components in place, restoring proper alignment and stability. It's a simple replacement that helps stop rattling and keeps parts seated correctly for safe operation. What it does:

• Secures panels, brackets, or assemblies to the appliance frame
• Restores proper alignment when a stud is bent, stripped, or missing
• Reduces rattling or vibration caused by loose or damaged fasteners
• Helps maintain safe, stable mounting for controls and internal parts

• Disconnect power to the appliance before servicing.
• Use appropriate hand tools; avoid cross-threading the stud.
• Do not overtighten—tighten until snug to prevent damage.
• If threads are damaged, replace the mating nut or insert as needed.

ST10-16 X 7/16"

This set screw secures refrigerator components—most commonly door handles—to their mounting studs. Replacing a missing or stripped screw restores a solid, secure feel and helps prevent loose or wobbly handles.

• Locks the handle to its mounting stud to keep it tight and secure
• Helps resolve a loose, wobbly, sliding, or rattling handle
• Replaces a missing, rounded, or damaged set screw
• Helps maintain proper handle alignment and consistent door operation

• Unplug the appliance or switch off power before servicing
• Ensure the handle is fully seated on the studs before tightening
• Start the screw by hand to avoid cross-threading; then tighten until snug
• Do not overtighten to prevent stripping the screw or handle threads

This is a 10-18 x 3/4 inch Torx T20 screw used to secure appliance panels and components. It replaces missing, stripped, or damaged fasteners to restore a tight, rattle-free fit. What it does:

• Secures control panels, trim pieces, and internal components where a 10-18 x 3/4 in fastener is specified
• Restores proper alignment and reduces vibration or rattling caused by loose or missing screws
• Replaces stripped or damaged screws to allow proper fastening and safe operation
• Matches Torx T20 drive for secure bit engagement and reduced cam-out

• One 10-18 x 3/4 in Torx T20 screw

• Use the correct Torx T20 driver; avoid over-tightening which can strip threads or damage components
• Disconnect power to the appliance and follow manufacturer service instructions when working near electrical components
• If screws repeatedly loosen, inspect mating threads or clip/mounting hardware for wear

This left-hand handle support secures the refrigerator door handle to the cabinet, restoring a solid grip and proper door alignment. It replaces a worn or broken support so the handle stays mounted and functional. What it does:

• Anchors the left side of the refrigerator door handle to the cabinet or door.
• Restores handle stability when original support is cracked, loose, or missing.
• Helps maintain proper door alignment and user grip.
• Fits where the OEM support left handle is specified.

• One left-hand handle support.

• Designed for direct replacement; match part number before ordering.
• Use basic hand tools; keep screws and clips removed during disassembly.
• Disconnect power or follow appliance-specific safety steps if required by your model.
• Order replacements separately.

This right-side support handle secures and stabilizes the appliance door or panel, restoring proper alignment and making opening and closing easier and safer. It replaces a cracked, loose, or missing right support handle. What it does:

• Provides structural support for the right side of the door/panel to maintain alignment
• Restores a solid grip for opening and closing when the original handle is damaged
• Prevents further wear or stress on adjacent door parts caused by a loose handle
• Commonly used when customers observe a cracked, bent, or loose handle on the right side

• One right support handle

• Disconnect power or unplug the appliance before starting any repair
• Remove trim or access panels as required; hardware may be reused if undamaged
• Hand-tighten fasteners, then snug—avoid over-tightening which can crack plastic parts

This 1/4-20 hex nut secures threaded studs and bolts on appliances, providing a simple, reliable fastening point to keep panels, brackets, and components in place. Ideal for repairs where a worn or missing nut causes looseness or rattling. What it does:

• Fastens to 1/4-20 threads to lock panels, brackets, or assemblies together
• Restores secure mounting where a stripped, corroded, or missing nut causes movement
• Helps stop vibration-related noise by holding parts tightly
• Small hardware solution used in many appliance fastening applications

• One 1/4-20 hex nut

• Use the matching 1/4-20 bolt or stud; thread fit before tightening
• Hand-start the nut to avoid cross-threading, then tighten with the appropriate wrench
• Do not overtighten to prevent stripping threads or damaging components
• Disconnect power and follow appliance-specific safety instructions before working
