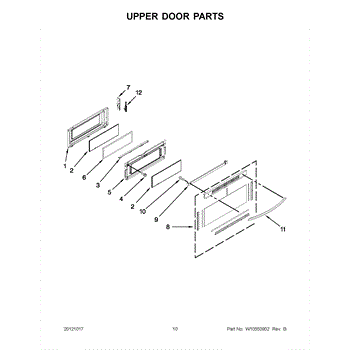

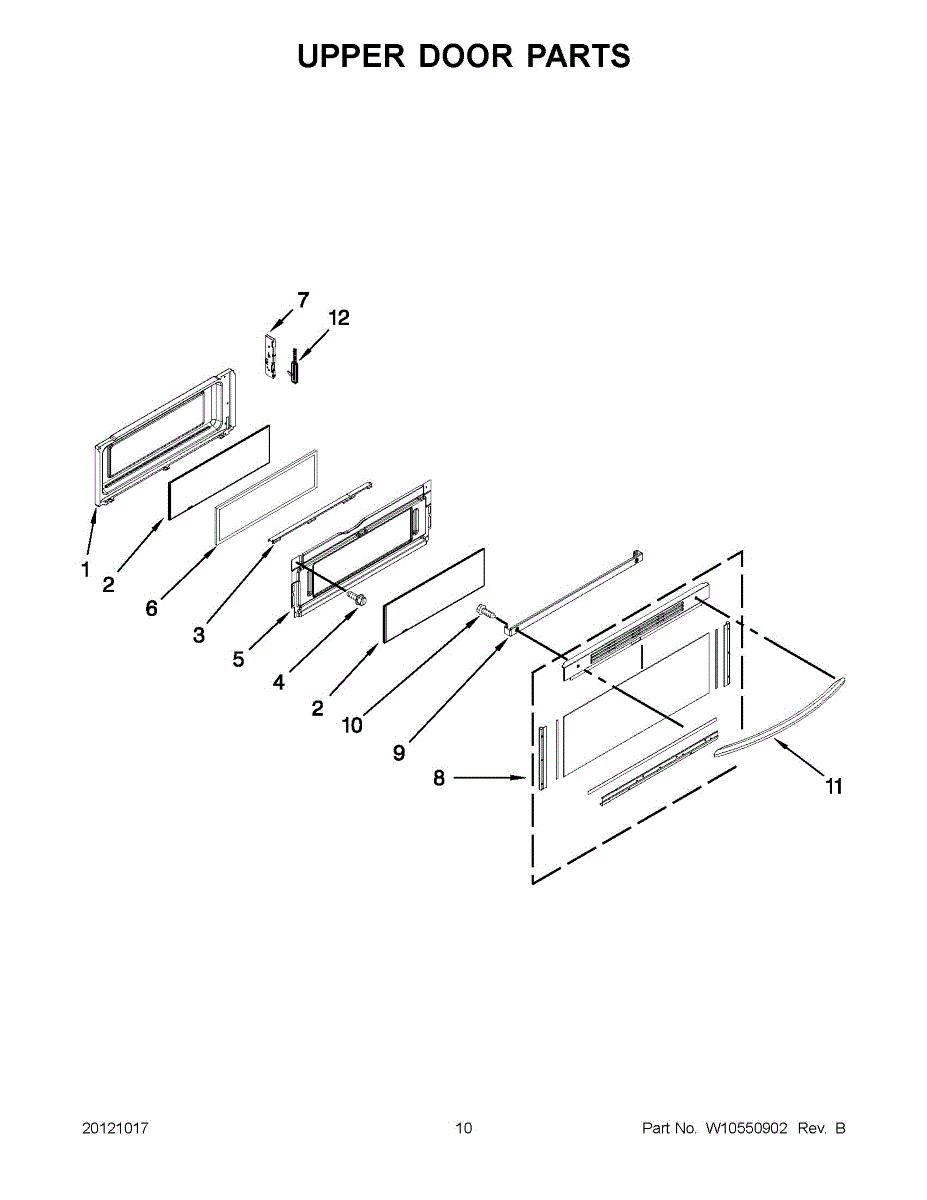

Parts for Kitchenaid KERS505XBL03: 05 - Upper Door Parts

This replacement door glass restores a clear viewing window and the structural integrity of your appliance door if the original glass is cracked, shattered, or damaged. It helps keep operation safe while returning the door to a like-new appearance. What it does:

• Forms the transparent viewing window in the appliance door
• Helps maintain proper door integrity and safe operation
• Restores visibility into the cavity during use
• Replaces cracked, chipped, loose, or shattered glass

• 1 door glass panel

• Disconnect power and allow the appliance to cool completely before servicing
• Wear cut-resistant gloves and eye protection when handling glass
• Support the door; some models require removing the door to access the glass
• Transfer any brackets/trim from the old glass and avoid overtightening fasteners

This is the upper door frame glass for the appliance door window. It restores a clear, secure viewing window in the upper section of the door so you can monitor cooking without opening the door. What it does:

• Replaces damaged, cracked, or fogged upper door window glass
• Restores a secure seal and clear visibility through the door window
• Helps prevent heat loss from the oven cavity when the door is intact
• Matches OEM form for proper fit and alignment

• Disconnect power to the appliance before beginning any repair.
• Handle glass with care and wear cut-resistant gloves and eye protection.
• You may need to remove the oven door and inner door panel to access and replace the glass; follow the manufacturer's door-disassembly instructions.
• If fasteners or retainers are corroded or damaged, replace them with OEM parts for safe reassembly.

This 8-32 x 3/8 screw secures panels, brackets, and internal components in your appliance so everything stays aligned and tight. Replace worn or missing hardware to restore a solid, rattle-free fit and safe operation.

• Fastens components to frames, brackets, or panels
• Helps reduce vibration, rattling, and misalignment
• Replaces missing, stripped, or corroded screws
• Correct 8-32 machine thread for tapped holes in compatible assemblies

• Disconnect power before servicing; shut off gas or water if applicable
• Start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping

This retainer is a small mounting clip that secures internal components in your appliance, helping keep parts aligned and preventing rattles or movement. It restores proper fit and reduces noise from loose components. What it does:

• Secures panels, assemblies or hardware to prevent shifting during operation
• Keeps components aligned to reduce rattling or intermittent contact
• Helps maintain reliable operation when a worn or broken clip causes loose parts
• Common symptom: loose trim, rattling, or misaligned internal parts

• One retainer/mounting clip as shown

• Disconnect power (and water if applicable) before attempting service
• Inspect the mounting area and replace only the broken or missing clips
• Typical installation requires basic hand tools; handle plastic clips carefully to avoid breakage

This upper door insulation restores the door's thermal barrier to help the refrigerator/freezer hold temperature and reduce condensation. It replaces deteriorated or missing insulation to improve cold-air retention and reduce frost build-up. What it does:

• Replaces worn or damaged insulation inside the upper door cavity
• Helps limit heat transfer to maintain interior temperature
• Reduces condensation and frost forming on the door liner
• Can address symptoms like uneven cooling, warm spots near the door, or excessive frost

• Disconnect power to the appliance before starting any service
• Access requires removing the inner door liner or trim—keep screws and clips organized for reassembly
• Position insulation without compressing; use the original retainer clips or adhesive as OEM specified
• Dispose of old insulation per local regulations and check door seal condition after reinstall

This hinge receiver mounts to the appliance frame and accepts the door hinge arm/pin. It keeps the door aligned and secure so it opens and closes smoothly. Replacing a worn or cracked receiver restores proper door action.

• Anchors the hinge arm/pin at the cabinet/frame for smooth door movement
• Maintains door alignment and consistent closing action
• Wear or damage can cause a loose or sagging door, misalignment, or binding
• Common signs include clicking/grinding noises and visible cracks or deformation

• Disconnect power; allow the appliance to cool and shut off gas/water if applicable
• Support or remove the door to access the receiver
• Remove mounting fasteners, swap in the new receiver, and align per service instructions
• Reinstall the door and verify smooth movement and full closure

Color: Black

Color: White

Color: Stainless

This replacement screw with a 10-16 thread secures panels, brackets, and other components in your appliance. Restoring the correct hardware keeps parts tight and aligned, reducing vibration and preventing loosening over time.

• Secures sheet-metal panels, brackets, and assemblies
• Replaces missing, stripped, or corroded fasteners
• Helps eliminate rattling or vibration from loose hardware
• Maintains proper alignment for reliable performance

• Disconnect power; turn off the water supply before servicing
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten into sheet metal or plastic
• Reinstall in the original location and orientation

Color: White

Color: Black

Color: Stainless
