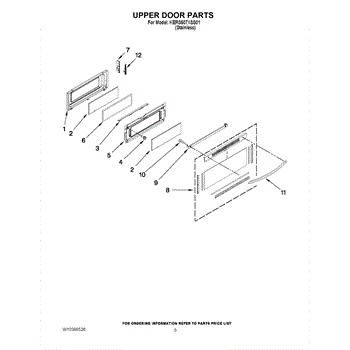

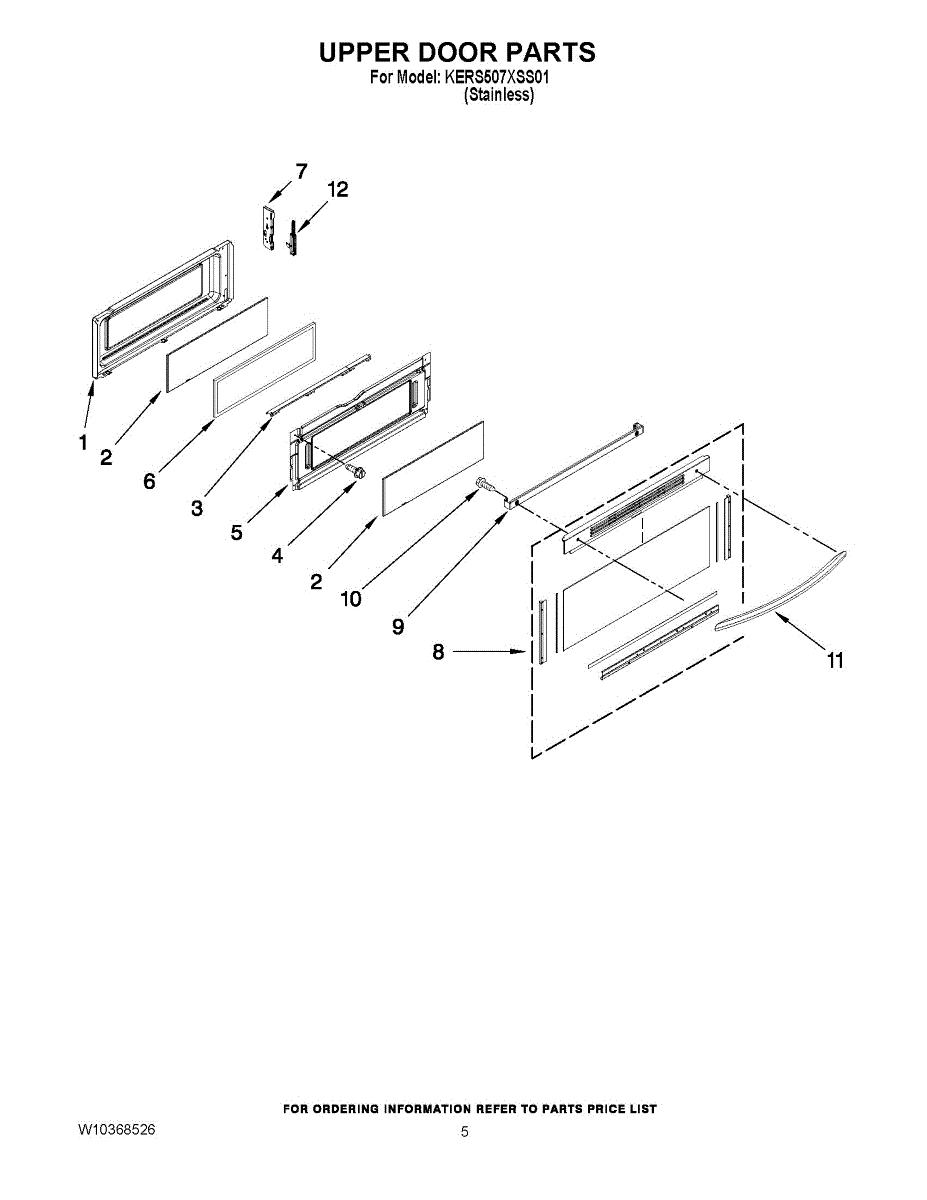

Parts for Kitchenaid KERS507XSS01: 04 - Upper Door Parts

This replacement door glass restores a clear viewing window and the structural integrity of your appliance door if the original glass is cracked, shattered, or damaged. It helps keep operation safe while returning the door to a like-new appearance. What it does:

• Forms the transparent viewing window in the appliance door
• Helps maintain proper door integrity and safe operation
• Restores visibility into the cavity during use
• Replaces cracked, chipped, loose, or shattered glass

• 1 door glass panel

• Disconnect power and allow the appliance to cool completely before servicing
• Wear cut-resistant gloves and eye protection when handling glass
• Support the door; some models require removing the door to access the glass
• Transfer any brackets/trim from the old glass and avoid overtightening fasteners

This is the upper door frame glass for the appliance door window. It restores a clear, secure viewing window in the upper section of the door so you can monitor cooking without opening the door. What it does:

• Replaces damaged, cracked, or fogged upper door window glass
• Restores a secure seal and clear visibility through the door window
• Helps prevent heat loss from the oven cavity when the door is intact
• Matches OEM form for proper fit and alignment

• Disconnect power to the appliance before beginning any repair.
• Handle glass with care and wear cut-resistant gloves and eye protection.
• You may need to remove the oven door and inner door panel to access and replace the glass; follow the manufacturer's door-disassembly instructions.
• If fasteners or retainers are corroded or damaged, replace them with OEM parts for safe reassembly.

This 8-32 x 3/8 screw secures panels, brackets, and internal components in your appliance so everything stays aligned and tight. Replace worn or missing hardware to restore a solid, rattle-free fit and safe operation.

• Fastens components to frames, brackets, or panels
• Helps reduce vibration, rattling, and misalignment
• Replaces missing, stripped, or corroded screws
• Correct 8-32 machine thread for tapped holes in compatible assemblies

• Disconnect power before servicing; shut off gas or water if applicable
• Start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping

This upper door insulation restores the door's thermal barrier to help the refrigerator/freezer hold temperature and reduce condensation. It replaces deteriorated or missing insulation to improve cold-air retention and reduce frost build-up. What it does:

• Replaces worn or damaged insulation inside the upper door cavity
• Helps limit heat transfer to maintain interior temperature
• Reduces condensation and frost forming on the door liner
• Can address symptoms like uneven cooling, warm spots near the door, or excessive frost

• Disconnect power to the appliance before starting any service
• Access requires removing the inner door liner or trim—keep screws and clips organized for reassembly
• Position insulation without compressing; use the original retainer clips or adhesive as OEM specified
• Dispose of old insulation per local regulations and check door seal condition after reinstall

This hinge receiver mounts to the appliance frame and accepts the door hinge arm/pin. It keeps the door aligned and secure so it opens and closes smoothly. Replacing a worn or cracked receiver restores proper door action.

• Anchors the hinge arm/pin at the cabinet/frame for smooth door movement
• Maintains door alignment and consistent closing action
• Wear or damage can cause a loose or sagging door, misalignment, or binding
• Common signs include clicking/grinding noises and visible cracks or deformation

• Disconnect power; allow the appliance to cool and shut off gas/water if applicable
• Support or remove the door to access the receiver
• Remove mounting fasteners, swap in the new receiver, and align per service instructions
• Reinstall the door and verify smooth movement and full closure

Color: Stainless

A factory screw with 8-32 machine threads used to secure brackets, panels, and internal components where specified. Restores a solid, factory fit when the original fastener is missing, stripped, or corroded. What it does:

• Provides the specified 8-32 machine-thread fastening for OEM components
• Helps prevent looseness, vibration, or rattling from a missing/damaged screw
• Replaces screws with worn heads or stripped threads to enable proper tightening
• Supports correct reassembly during part replacement or service

• 1 screw

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original for thread and length before installing
• Start threads by hand to avoid cross-threading; tighten until snug
• Do not overtighten into plastic or thin metal; replace damaged inserts/clips if found

• Thread size: 8-32 (machine)

Color: Stainless
