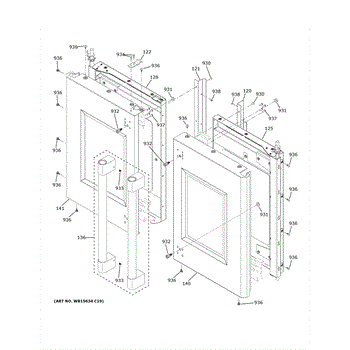

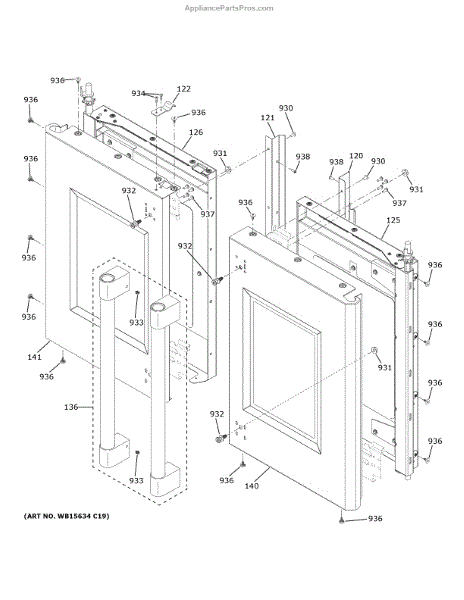

Parts for Ge ZTDX1FPSN1SS: Upper Doors Parts

This 1/4-20 hex nut secures threaded studs and bolts on appliances, providing a simple, reliable fastening point to keep panels, brackets, and components in place. Ideal for repairs where a worn or missing nut causes looseness or rattling. What it does:

• Fastens to 1/4-20 threads to lock panels, brackets, or assemblies together
• Restores secure mounting where a stripped, corroded, or missing nut causes movement
• Helps stop vibration-related noise by holding parts tightly
• Small hardware solution used in many appliance fastening applications

• One 1/4-20 hex nut

• Use the matching 1/4-20 bolt or stud; thread fit before tightening
• Hand-start the nut to avoid cross-threading, then tighten with the appropriate wrench
• Do not overtighten to prevent stripping threads or damaging components
• Disconnect power and follow appliance-specific safety instructions before working

This mounting stud secures appliance panels and components in place, restoring proper alignment and stability. It's a simple replacement that helps stop rattling and keeps parts seated correctly for safe operation. What it does:

• Secures panels, brackets, or assemblies to the appliance frame
• Restores proper alignment when a stud is bent, stripped, or missing
• Reduces rattling or vibration caused by loose or damaged fasteners
• Helps maintain safe, stable mounting for controls and internal parts

• Disconnect power to the appliance before servicing.
• Use appropriate hand tools; avoid cross-threading the stud.
• Do not overtighten—tighten until snug to prevent damage.
• If threads are damaged, replace the mating nut or insert as needed.

The Set Screw is an OEM part for GE refrigerators. The set screw fits into the handle assembly, ensuring a tight and stable connection to the refrigerator door. This set screw is essential for preventing the door handle from becoming loose or coming off, which can affect the ease of opening and closing the refrigerator door.

Causes of a malfunctioning Set Screw can vary. Normal wear and tear is a common issue, causing the screw to strip or loosen over time. Incorrect installation is another factor.

Symptoms of a bad Set Screw include:

• A loose refrigerator door handle, which may wobble or detach partially from the door.
• Difficulty in opening or closing the refrigerator door due to a lack of secure grip.
• The need to frequently retighten the door handle.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 8-32 machine screw (7/16") is a painted fastener used to secure panels, brackets, and components on compatible appliances. It replaces missing or worn screws to restore proper fit and reduce vibration. What it does:

• Secures panels, control assemblies, brackets, and small hardware
• Restores proper alignment and prevents rattling or loose parts
• Used where an 8-32 thread and 7/16" length are required
• Painted finish matches appliance surfaces and resists corrosion

• One painted 8-32 machine screw, 7/16" length

• Unplug the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or nut driver to avoid stripping the head
• Install by hand to start threads, then tighten snugly—do not overtighten
• Keep track of small parts during disassembly; magnetic trays help prevent loss

This SCR (silicon controlled rectifier) is a replacement power-regulation semiconductor used in select GE appliances to control voltage to heating elements or motors, restoring reliable variable power control and stable operation. What it does

• Regulates and switches power to heating elements or drive motors as part of the appliance's control circuitry.
• Helps maintain consistent heat or motor speed when the control board calls for variable output.
• Can resolve symptoms such as intermittent heating, fluctuating motor speed, or appliances that run only on certain settings.
• Functions as a direct electrical switching component—not a user-serviceable interface.

• One SCR (silicon controlled rectifier) matching OEM part WB01X24096.

• Always disconnect power at the breaker or unplug the appliance before starting any repair.
• Handle the part carefully; observe anti-static precautions and avoid touching leads or terminals.
• Verify the part number on the old component matches WB01X24096 before installation.

This is a genuine replacement mounting screw designed to secure components and panels on compatible GE appliances, restoring proper fit and reducing rattles or loose parts. Use when original screws are missing, stripped, or damaged. What it does:

• Fastens and secures appliance panels, brackets, or small components
• Restores proper alignment and reduces vibration or rattling noises
• Replaces missing, worn, or damaged screws that prevent secure assembly
• Simple, low-cost solution to loose or shifting parts

• Turn off and unplug the appliance before servicing to avoid electrical shock
• Use the correct driver to avoid stripping the screw head; match thread engagement carefully
• Do not overtighten — snug until secure to prevent damage to parts or threads

A single #8-18, 1/2-inch screw used to secure interior and exterior appliance panels and components. Replaces a worn or missing fastener to restore secure mounting and reduce rattles or loose parts. What it does:

• Fastens panels, trim, brackets, and small components where a #8-18, 1/2" screw is required
• Replaces missing or stripped screws that cause loose panels or vibration noise
• Provides a proper threaded connection for reliable mechanical support
• Matches common OEM panel and trim fastening points

• Unplug the appliance or shut off power before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid over-tightening, which can strip threads or crack panels
• If thread engagement is damaged, replace the mating fastener or insert as needed
