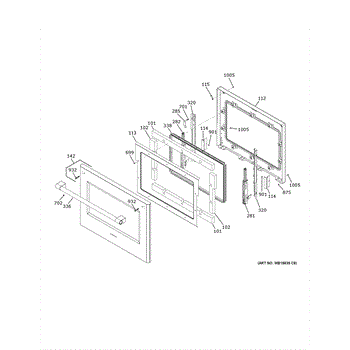

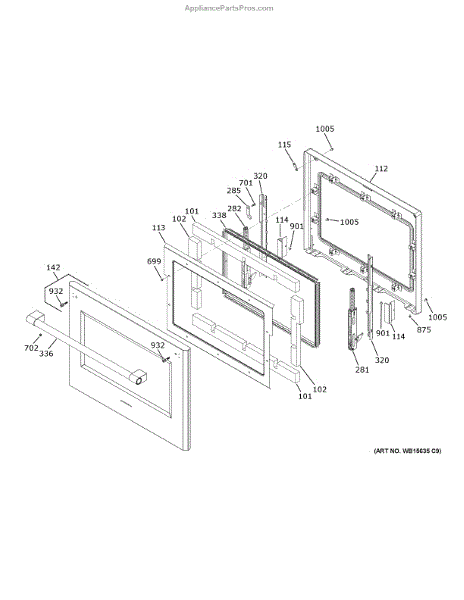

Parts for Ge ZTDX1FPSN1SS: Lower Door Parts

This door insulation retainer is a small plastic clip that secures insulation inside a refrigerator/freezer door to help maintain proper temperature and reduce noise. It replaces worn or missing retainers to keep the door liner insulation in place. What it does:

• Secures the door insulation to the inner door liner so insulation stays positioned
• Helps prevent insulation from shifting or sagging that can affect door seal performance
• Commonly used when insulation falls out or the liner shows gaps around the insulation
• Works as a direct-fit replacement for the original retainer designed for the door assembly

• One door insulation retainer clip

• Installation generally requires removing the door panel or liner; keep track of fasteners and trim
• Handle the door liner and insulation carefully to avoid damage or tearing the insulation
• Use proper tools and disconnect power if working near electrical components or lights
• Replace all affected clips for an even, secure fit

This door liner plug snaps into the inner door liner to cover fastener or access holes. It restores a clean, finished look and helps keep grease and debris from entering the door assembly.

• Covers exposed holes in the inner door liner
• Replaces a missing, loose, or damaged plug/cap
• Helps protect the door cavity from splashes and debris
• Restores a neat, factory-finished appearance

• Disconnect power before servicing; for gas ranges, also shut off gas. Allow the appliance to cool completely.
• Open the door and gently pry out the old plug with a plastic trim tool or flat-blade screwdriver.
• Align and press the new plug into the liner until it seats flush.
• Support glass and follow the manufacturer's instructions.

A replacement liner support that secures the refrigerator cabinet liner and keeps interior trim and panels aligned for a proper seal and appearance. Restores stability to cracked or broken support points. What it does:

• Holds the cabinet liner and interior trim in position to prevent gaps and movement
• Helps maintain door seal alignment by keeping liner edges stable
• Reduces rattling or shifting caused by a damaged support
• Commonly replaced when liner pieces are cracked, broken, or loose

• One liner support

• Disconnect power to the appliance before beginning any repair
• Remove food, shelves, and trim pieces as needed to access the damaged support
• This part typically secures with clips or fasteners; inspect existing hardware and replace if necessary

The Window Pack Assembly is an OEM part for GE ovens. This component includes the oven door window and its associated parts, providing visibility into the oven cavity during cooking. It helps retain heat within the oven while allowing users to monitor the cooking process without opening the door.

Causes of a bad window pack assembly can include thermal stress from repeated heating and cooling, accidental impact, or general wear and tear. A damaged window can compromise the oven's efficiency and safety by allowing heat to escape.

Symptoms of a bad window pack assembly include:

• Cracks or damage to the window glass
• Heat escaping from the oven door
• Condensation or discoloration between the window panes
• Difficulty seeing through the window during cooking

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

ST10-16 X 7/16"

This is a replacement screw used to secure panels and components on compatible appliances. It provides a direct-fit fastening solution to restore proper part alignment and prevent rattling or loose panels. What it does

• Fastens appliance panels, brackets or assemblies where an 8-18 x 5/8 screw is specified
• Replaces missing or stripped fasteners that allow parts to shift or vibrate
• Restores secure mounting for components to reduce noise and movement
• Useful when a factory screw is damaged, corroded, or lost during service

• One screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct driver size and type to avoid stripping the head
• Install by hand first, then snug with a driver—do not over-torque
• Keep removed hardware organized to ensure correct reassembly

This set screw secures refrigerator components—most commonly door handles—to their mounting studs. Replacing a missing or stripped screw restores a solid, secure feel and helps prevent loose or wobbly handles.

• Locks the handle to its mounting stud to keep it tight and secure
• Helps resolve a loose, wobbly, sliding, or rattling handle
• Replaces a missing, rounded, or damaged set screw
• Helps maintain proper handle alignment and consistent door operation

• Unplug the appliance or switch off power before servicing
• Ensure the handle is fully seated on the studs before tightening
• Start the screw by hand to avoid cross-threading; then tighten until snug
• Do not overtighten to prevent stripping the screw or handle threads

This 10-32 x 1/4 machine-thread screw secures small appliance components and replacement parts, restoring proper fit and preventing rattles or loose panels. It's a direct-fit fastener used where the appliance needs a short 10-32 machine screw. What it does:

• Fastens panels, brackets, and small assemblies that accept a 10-32 machine screw
• Restores secure mounting when a screw is missing, stripped, or damaged
• Helps stop vibration-related noise from loose parts
• Fits into pre-tapped 10-32 threaded holes

• Unplug or disconnect power before servicing the appliance
• Start threads by hand to avoid cross-threading, then tighten with the proper screwdriver or driver bit
• Do not overtighten; snug until secure to avoid stripping threads or damaging parts
• Keep screws and small parts away from children and pets during installation

This mounting stud secures appliance panels and components in place, restoring proper alignment and stability. It's a simple replacement that helps stop rattling and keeps parts seated correctly for safe operation. What it does:

• Secures panels, brackets, or assemblies to the appliance frame
• Restores proper alignment when a stud is bent, stripped, or missing
• Reduces rattling or vibration caused by loose or damaged fasteners
• Helps maintain safe, stable mounting for controls and internal parts

• Disconnect power to the appliance before servicing.
• Use appropriate hand tools; avoid cross-threading the stud.
• Do not overtighten—tighten until snug to prevent damage.
• If threads are damaged, replace the mating nut or insert as needed.
