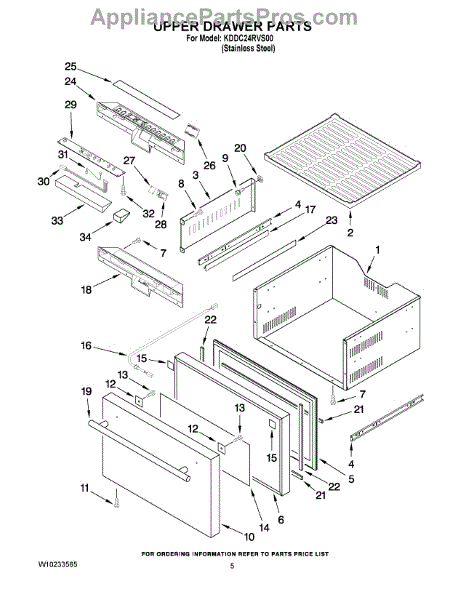

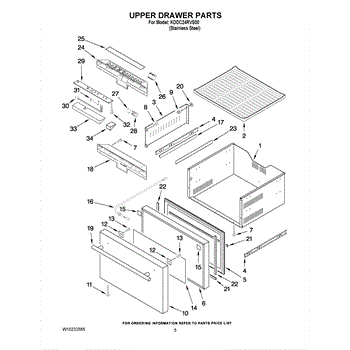

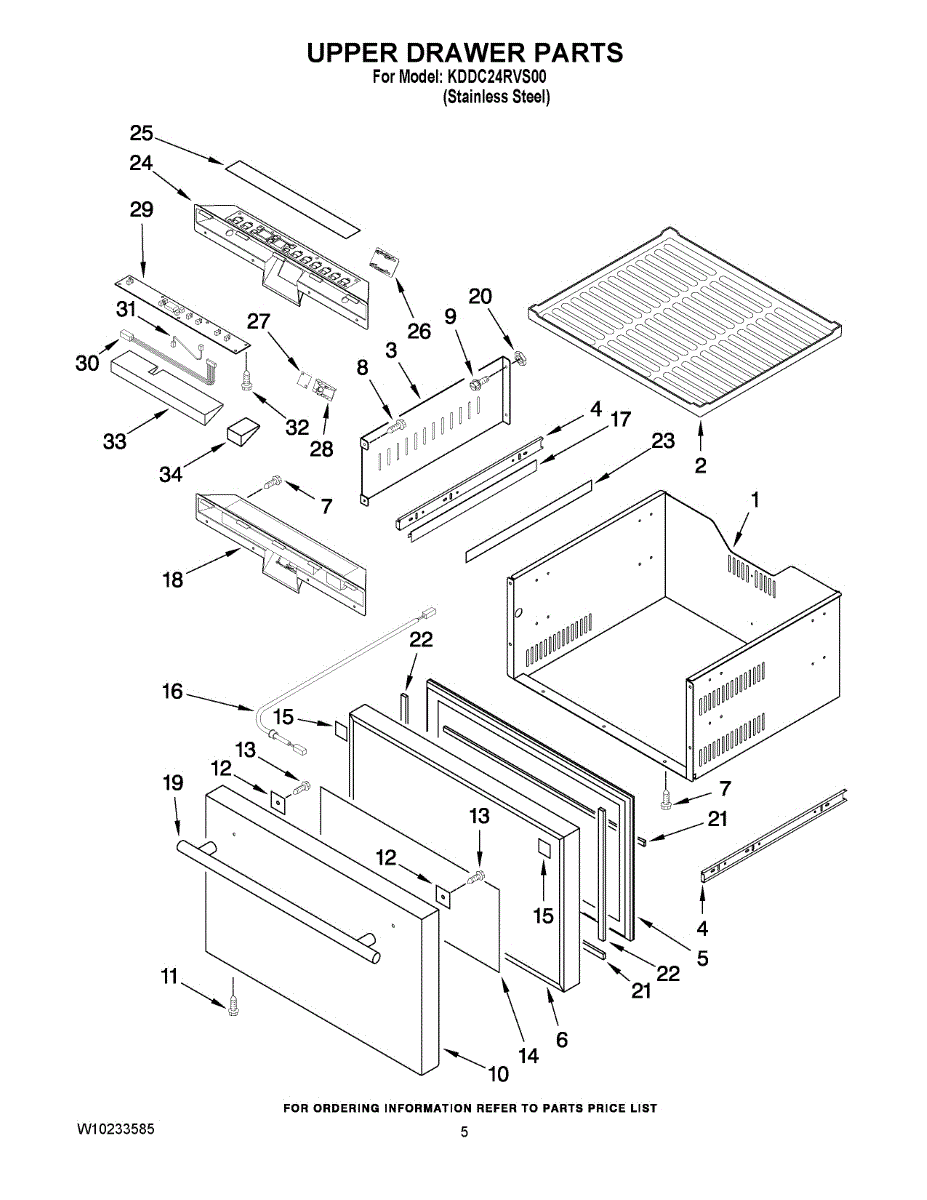

Parts for Kitchenaid KDDC24RVS00: 03 - Upper Drawer Parts

This rail assembly is the sliding track that lets a refrigerator drawer open and close smoothly, restoring proper drawer movement and alignment. It replaces damaged or worn drawer rails to reduce sticking and uneven operation. What it does:

• Provides a guided track for a refrigerator drawer to slide in and out
• Restores smooth, even movement when drawers are sticking or wobbling
• Keeps the drawer aligned to prevent dragging or uneven gaps
• Helps maintain proper drawer sealing and fit by correcting alignment issues

• Disconnect power or unplug the appliance and remove stored items before service
• Remove the drawer per the manufacturer's instructions to access the rail
• Use basic hand tools; align the rail carefully and secure all fasteners tight but do not overtighten

This replacement gasket restores a tight seal between mating surfaces in your appliance to prevent unwanted air or moisture leaks. A proper seal helps maintain performance, protect components, and reduce energy loss.

• Creates an air- and/or water-tight seal where specified by the manufacturer
• Helps maintain correct temperatures and system efficiency
• Prevents leaks, drafts, and contamination entering the assembly
• Common signs of failure: visible cracks/flattening, leaks or condensation, poor sealing, or persistent odors

• Disconnect electrical power and shut off water or gas supply (if applicable) before servicing
• Clean and dry all mating surfaces; remove old adhesive or residue
• Install in the correct orientation; avoid stretching or twisting the gasket
• After installation, check for proper fit and sealing during operation

This screw is a factory replacement fastener used to secure panels, trim, and internal components so parts stay aligned and appliances operate safely. It restores original fit where a missing or damaged screw causes loose panels or rattling. What it does:

• Secures cabinet panels, brackets, or trim pieces to restore solid fits
• Prevents vibration-related noise and movement caused by missing fasteners
• Replaces stripped or corroded screws that won't hold parts safely
• Matches OEM fastening points for correct installation when replacement is needed

• Use the correct screwdriver and size to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Disconnect power and follow appliance-specific safety steps before working on electric components
• Replace them as needed for full panel stability

This replacement mounting screw secures appliance panels and components so parts stay aligned and stable during use. A simple, direct fastener that restores proper fit and prevents rattling or loose trim. What it does

• Secures panels, brackets, or trim to the appliance frame
• Restores proper alignment and prevents vibration or rattling noises
• Keeps parts from shifting, reducing wear on connected components
• Works wherever the original screw was used to hold assemblies in place

• Disconnect power and/or water before accessing internal components
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or crack plastic
• Keep track of removed fasteners and replace like-for-like for best fit

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This wire harness is a factory-style replacement assembly that restores electrical connections between appliance components for reliable operation and diagnostics. It helps reestablish power and signal paths to controls, motors, lights, and sensors. What it does:

• Replaces damaged or frayed wiring to restore electrical continuity and reduce intermittent faults
• Connects control board, motors, lights, and sensors so components can receive power and signals
• Helps stop symptoms such as loss of lights, unresponsive controls, or intermittent motor operation
• Provides the correct connector fit and wire routing to match factory configuration

• Always disconnect power to the appliance before inspecting or replacing wiring
• Compare the new harness to the original and route connectors the same way to avoid pin mis-matches
• Secure harness with existing clips or fasteners; do not pinch or excessively bend wires

The Display is an OEM component specifically designed for Whirlpool refrigerators. Mounted inside the cabinet, the digital display relays critical settings and status indicators to ensure proper food freshness. Through an easy-to-read interface, the display assists with operation and maintenance.

Symptoms of a bad display include:

• Blank or unresponsive screen unable to convey settings
• Flickering, distorted, or freezing icons and readouts
• Inability to adjust the temperature or activate functions

Causes could involve extended exposure to interior climate fluctuations degrading electronic connections. Physical impact may rupture integrated components.

This OEM Whirlpool part is also compatible with KitchenAid, Maytag, Amana, Roper, and some Kenmore refrigerator models. Replace to restore a guiding interface for optimal cooling performance.

This electronic control board manages the appliance's user interface and cycle functions so your unit runs the settings you select reliably. It restores responsive controls and correct cycle operation when the original control fails. What it does:

• Receives input from the control panel and starts/stops cycles accordingly
• Regulates timed and programmed functions for accurate operation
• Communicates with sensors and other modules to coordinate cycles
• Common symptoms: unresponsive buttons, incorrect cycles, erratic behavior, or no display/controls

• Disconnect power (unplug or shut off breaker) before attempting service
• Handle the board by edges and avoid static; ESD precautions recommended
• Verify your model number and part number match before installation
