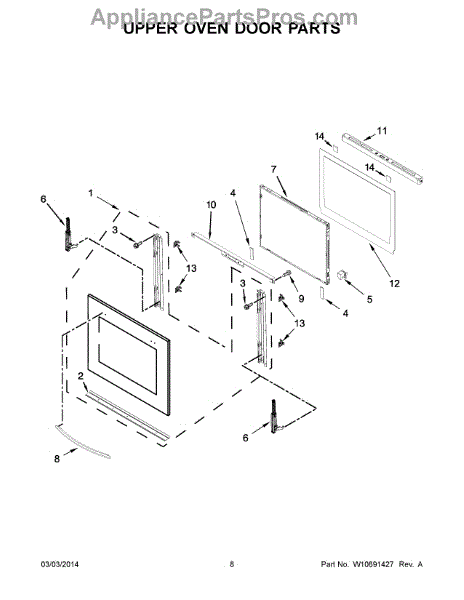

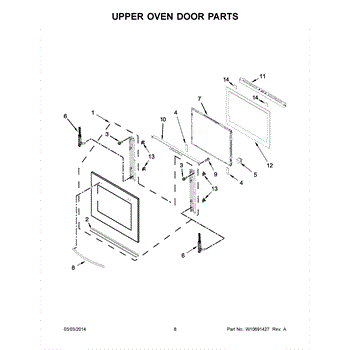

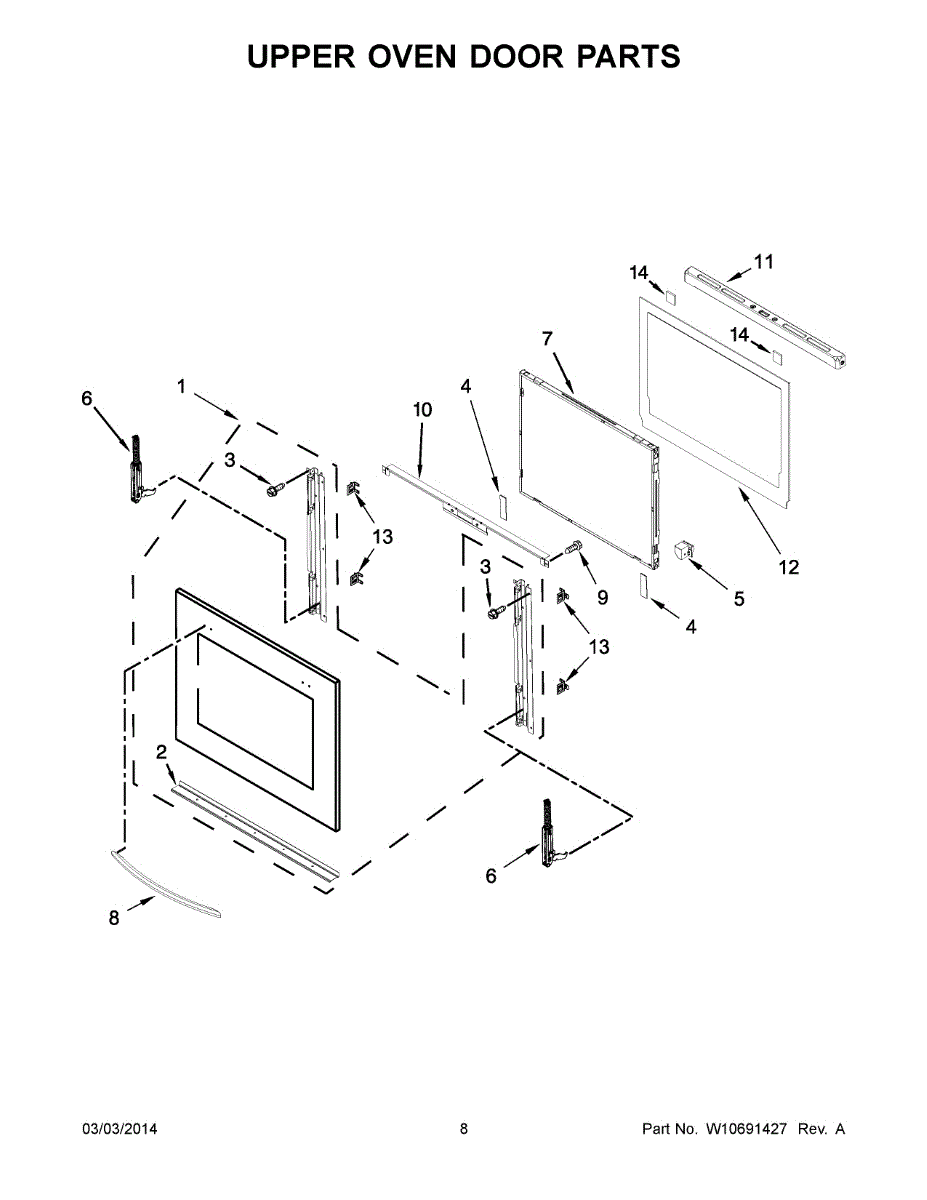

Parts for Kitchenaid KEBS209BBL01: 05 - Upper Oven Door Parts

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Door Glass Spacer is an OEM part for Whirlpool ovens. This part helps maintain the structural integrity of the oven door, preventing heat escape, and ensuring the door glass remains securely in place during the oven's operation.

Causes of a bad Oven Door Glass Spacer can range from wear and tear over time, leading to degradation or loss of the spacer, to improper installation that may cause the spacer to dislodge or fail to provide adequate support.

Symptoms of a malfunctioning Oven Door Glass Spacer include:

• Loose or rattling oven door glass
• Uneven gaps around the door glass, indicating misalignment
• Heat leaking from around the oven door, potentially affecting cooking performance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This door plastic bracket secures the appliance door to the cabinet, keeping the door aligned and stable so it closes properly and seals. A simple replacement for worn, cracked, or broken door support hardware. What it does

• Holds the door in the correct position and connects the door assembly to the cabinet.
• Restores proper door alignment to reduce gaps, scraping, or uneven closing.
• Stops rattling or rocking caused by a cracked or broken bracket.
• Helps the door latch and seal correctly so the appliance can operate safely.

• One door plastic bracket (LW) as shown.

• Disconnect power (and water if applicable) before starting any repair.
• Access may require removing the door or inner door panel; keep track of fasteners.
• Inspect surrounding screws, clips, and the mating surface; replace any damaged fasteners.

This replacement door plastic bracket secures the appliance door to the cabinet hinge so the door opens and closes smoothly and stays aligned. It restores proper door support and reduces sagging or uneven gaps. What it does:

• Provides a secure mounting point between the door and hinge assembly
• Supports door weight to prevent sagging and misalignment
• Helps the door close flush to maintain an effective seal
• Reduces rattling or excessive movement during operation
• Common symptom: door feels loose, hangs unevenly, or doesn't latch properly

• One door plastic bracket

• Disconnect power (and water if applicable) before starting any repair
• Remove the door per manufacturer instructions to access the bracket; keep track of screws and any spacers
• Inspect hinge and surrounding parts for wear; replace any damaged hardware for best results
• If the part fits tightly, avoid forcing it; use appropriate tools and follow OEM torque guidelines

This Door Hinge supports and pivots the appliance door for smooth operation and a square, reliable close. Replacing a worn hinge restores alignment so the door seals properly and opens and closes without binding or noise. What it does

• Supports door weight and provides the pivot point for opening and closing
• Maintains proper door alignment to help ensure an even gasket seal
• Restores smooth, consistent door movement
• Common symptoms: door droops or rubs, squeaks/grinds, or won't close flush

• Includes 1 door hinge

• Disconnect power before servicing
• Support the door and use a helper; remove contents as needed to reduce weight
• Mark hinge position and transfer any spacers/bushings in the same order
• Tighten mounting fasteners, then check alignment and gasket contact; adjust as needed

Restore a clear view and proper insulation with this Oven Door Window Pack Assembly. It replaces the sealed glass unit in the door to help maintain temperature and visibility when the original window is damaged or clouded. What it does:

• Sealed multi-pane door window that insulates the oven and provides a viewing window
• Helps keep heat inside the cavity for stable cooking performance
• Restores clear visibility into the oven
• Common symptoms: cracked or shattered door glass, moisture/fogging between panes, or heat escaping from the door

• One window pack assembly

• Disconnect power and let the appliance cool completely before servicing
• Remove the door and place it face-down on a padded surface
• Transfer any brackets, retainers, or insulation strips from the old unit as required
• Handle glass with cut-resistant gloves; avoid overtightening fasteners and keep fingerprints off glass surfaces

Color: Stainless

Color: Black. For biscuit order 98008169. For white order WP98008544.

The Whirlpool oven inner door glass is an OEM replacement part responsible for providing a transparent barrier and insulation for the oven door. The glass is designed to fit within the frame of the oven door, allowing users to observe the cooking process without opening the door and letting heat escape. It also helps to maintain a stable temperature inside the oven cavity.

A cracked, damaged, or improperly fitting door glass can lead to issues such as heat loss, energy inefficiency, and potential safety hazards. Causes of a bad door glass include impact damage, excessive heat exposure, or warping due to improper cleaning or maintenance.

This part fixes the following symptoms:

• Cracks or shattered glass on the oven door
• Cloudiness or fogging between the glass layers
• Inability to see through the glass due to stains or discoloration
• Heat escaping from the oven door during cooking
• Difficulty in cleaning or removing stains from the glass pane

The Whirlpool glass frame can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This small bumper cushions contact points inside your appliance to prevent metal-to-metal contact. It helps reduce noise, protect finishes, and keep moving parts stopping smoothly and aligning as designed.

• Absorbs impact so doors, drawers, or racks stop quietly instead of slamming
• Protects painted/enamel surfaces from chips, scratches, and premature wear
• Helps maintain proper spacing and alignment where specified by the manufacturer
• Replace if missing, cracked, flattened, or if new rattling/clunking noises appear

• Disconnect power; turn off water supply if applicable
• Allow any hot surfaces to cool before starting
• Gently remove the old bumper; clean the mounting area
• Press-fit or seat the new bumper fully; installation method can vary by model—follow your service documentation

This top vent spacer positions and supports the exhaust components at the top outlet so the duct aligns and seals correctly. Proper spacing helps maintain airflow and reduces vibration or rattling during operation. A damaged or missing spacer can cause misalignment and air leaks.

• Spaces and stabilizes the top vent/adapter in the factory location
• Helps create a consistent seal at the top duct connection to prevent leaks
• Reduces vibration and noise from a loose or misaligned top vent
• Replace if cracked, missing, deformed, or if the top vent is loose, misaligned, or leaking air

• Disconnect power and disconnect any ducting before servicing
• Support the unit as needed to safely access the top vent area
• Install the spacer in the original orientation; reuse original fasteners when applicable
• After reassembly, verify the vent path is aligned and all joints are sealed before restoring power
