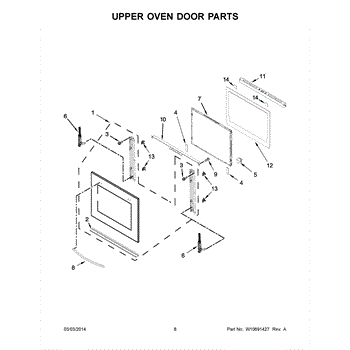

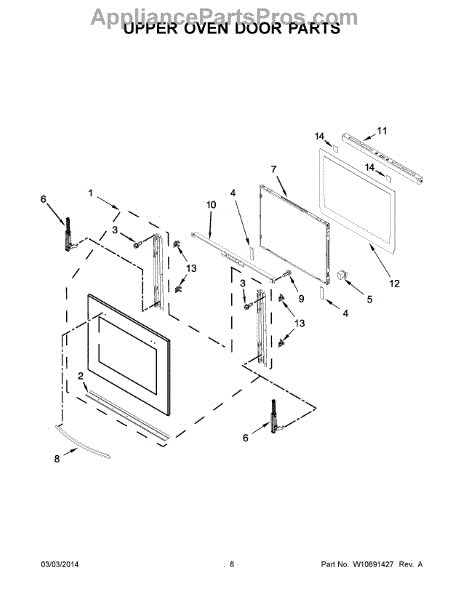

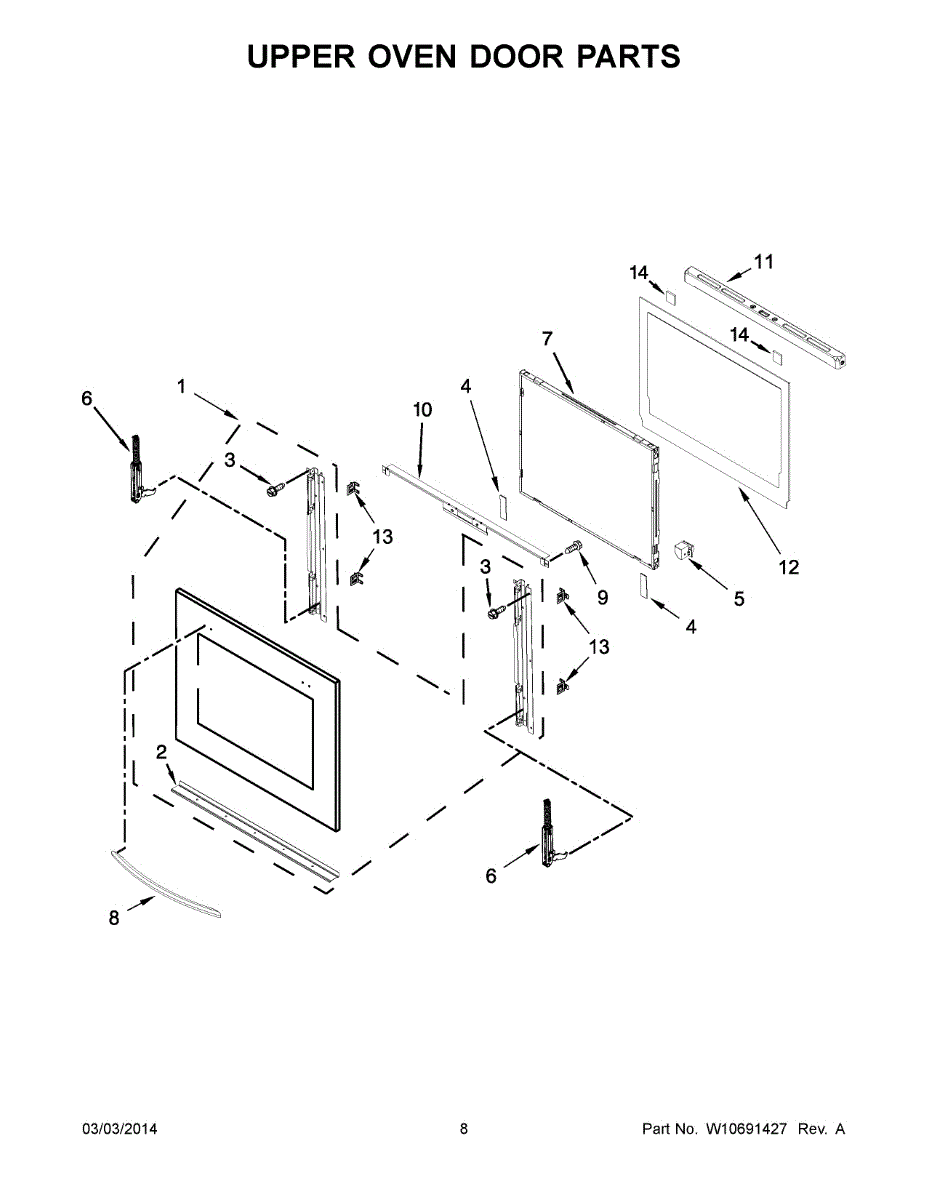

Parts for Kitchenaid KEBS209BWH01: 05 - Upper Oven Door Parts

This metal support bracket mounts to the bottom of the oven door, helping to keep the door properly aligned and structurally supported. It reinforces the lower edge of the door assembly and prevents sagging or uneven closure. Replace this bracket if your oven door feels loose at the bottom, hangs unevenly, or no longer closes flush against the oven frame.

Self-tapping screw used in range assembly. Features 8-18 thread size and 0.375 inch length. Also used in some washer models as cross-appliance hardware.

Maintains oven door structure and secures the glass panels in place. Replace if cracked, broken, or missing to restore proper door assembly and fit.

Secures your oven door to the cabinet hinge for smooth opening and closing. Replace if cracked, broken, or missing to restore proper door alignment.

This door plastic bracket secures the appliance door to the cabinet, keeping the door aligned and stable so it closes properly and seals. A simple replacement for worn, cracked, or broken door support hardware. What it does

• Holds the door in the correct position and connects the door assembly to the cabinet.
• Restores proper door alignment to reduce gaps, scraping, or uneven closing.
• Stops rattling or rocking caused by a cracked or broken bracket.
• Helps the door latch and seal correctly so the appliance can operate safely.

• One door plastic bracket (LW) as shown.

• Disconnect power (and water if applicable) before starting any repair.
• Access may require removing the door or inner door panel; keep track of fasteners.
• Inspect surrounding screws, clips, and the mating surface; replace any damaged fasteners.

This Door Hinge supports and pivots the appliance door for smooth operation and a square, reliable close. Replacing a worn hinge restores alignment so the door seals properly and opens and closes without binding or noise. What it does

• Supports door weight and provides the pivot point for opening and closing
• Maintains proper door alignment to help ensure an even gasket seal
• Restores smooth, consistent door movement
• Common symptoms: door droops or rubs, squeaks/grinds, or won't close flush

• Includes 1 door hinge

• Disconnect power before servicing
• Support the door and use a helper; remove contents as needed to reduce weight
• Mark hinge position and transfer any spacers/bushings in the same order
• Tighten mounting fasteners, then check alignment and gasket contact; adjust as needed

Replaces cracked, broken, or clouded sealed glass unit in your oven door. Restores clear visibility and proper insulation. Essential for damaged windows.

Replace your broken or cracked range door handle. This exterior handle installs on the oven door for easy opening and closing. Order today.

Replace your oven's front-mounted door handle when the original is cracked, broken, or damaged. This handle installs on the outer door panel for opening.

This is a stainless steel door handle for a wall oven or microwave. It mounts to the exterior of the door and provides a grip for opening and closing. Replace this handle if it is cracked, loose, or broken, making it difficult to safely open or close the appliance door.

Color: Black. For biscuit order 98008169. For white order WP98008544.

This is a metal bracket used to secure the oven door glass panel in place. It holds the inner or outer glass firmly within the door assembly to maintain proper insulation and visibility. Replace this bracket if the oven door glass is loose, rattling, or if the bracket is bent or broken.

This is a trim piece that covers the vent opening on the oven door, providing a finished appearance while allowing hot air to escape during cooking. It snaps or screws into place along the door's vent area. Replace this trim if it is cracked, warped, discolored, or missing, which can affect both the look and proper ventilation of your oven.

Replacement inner door glass for your oven. Installs inside the door frame for viewing food while cooking. Order if cracked, shattered, or broken.

Cushions contact points inside your oven to prevent metal-to-metal impact. Replace if cracked, worn, or missing to reduce noise and protect finishes.

Positions and supports exhaust components at the top outlet for proper duct alignment and seal. Replace if damaged or missing to prevent air leaks and vibration.
