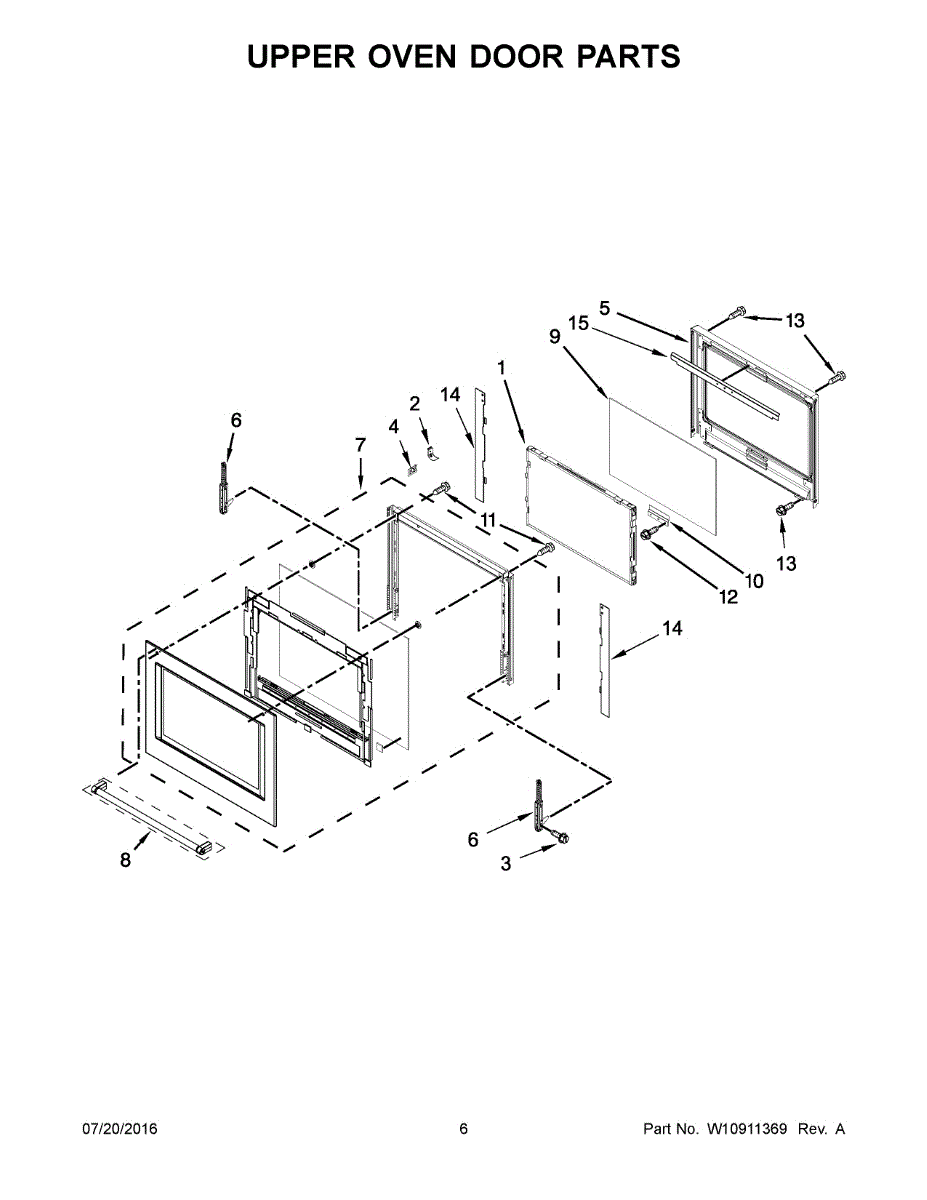

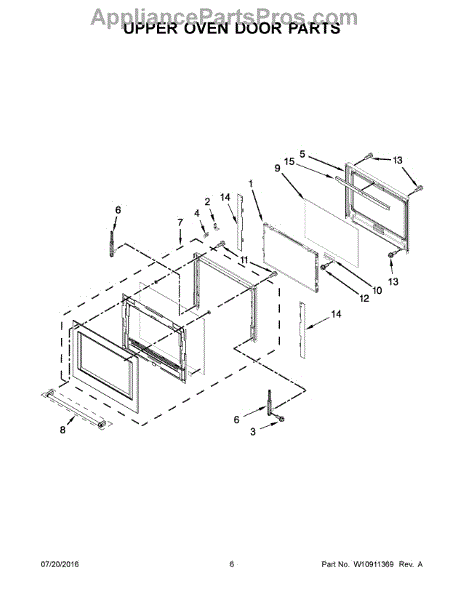

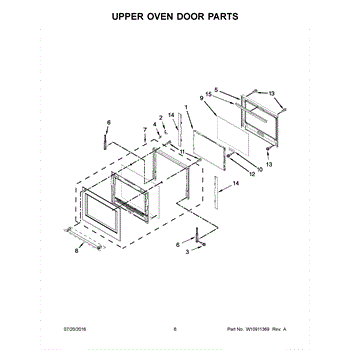

Parts for Kitchenaid KODE307ESS02: 04 - Upper Oven Door Parts

This factory window pack assembly creates the sealed, insulated glass window in your oven door. It restores a clear view into the cavity and helps the appliance hold temperature when the original window is broken, cloudy, or damaged.

• Forms the sealed, multi-pane window within the oven door
• Helps contain heat and maintain consistent baking temperatures
• Restores visibility into the oven cavity
• Common symptoms: cracked/shattered glass, fogging or streaks between panes, rattling glass, heat escaping near the window area

• Disconnect power and allow the oven to cool completely before servicing
• Wear cut-resistant gloves and eye protection; handle glass vertically and support the edges
• Door removal and partial disassembly are typically required; keep screws and trim organized
• Transfer any reusable brackets/insulation per your model's service information

This glass support bracket secures a stove/oven or appliance glass panel in place to prevent movement and ensure proper alignment. It replaces worn or broken brackets to help stabilize the glass and reduce noise or rattling. What it does:

• Holds a glass panel or trim securely to the appliance frame
• Restores proper glass alignment and prevents uneven gaps
• Stops rattling or vibration caused by a loose or broken bracket
• Helps maintain safe, stable placement of the glass during use

• One glass support bracket

• Disconnect power and let surfaces cool before beginning work
• Handle glass carefully; support the panel to avoid dropping or cracking
• Use correct fasteners and avoid over-tightening to prevent glass stress
• Replace the glass along with damaged hardware if the glass is cracked or chips are present.

This 10-32 x 3/8 machine screw secures appliance components. It keeps panels, brackets, and trim firmly attached so everything stays aligned and quiet during operation.

• Fastens metal parts using a 10-32 thread in pre-tapped holes or with a matching 10-32 nut
• Maintains proper alignment of panels, brackets, and trim to reduce vibration and rattling
• Replace if the original screw is missing, stripped, rusted, or damaged
• Using the correct hardware helps restore a secure, factory-tight fit

• Disconnect power; shut off gas supply if applicable. Allow the appliance to cool completely before servicing
• Note screw locations/lengths and replace like-for-like
• Start threads by hand to avoid cross-threading; snug with the appropriate driver—do not overtighten
• If the receiving threads are damaged, repair or replace the mating component before installing

This glass bracket secures the oven door glass to the door assembly, keeping the glass stable during normal use and helping maintain a proper seal. Replaces a worn or broken bracket to restore door stability and alignment. What it does:

• Holds the oven door glass in place so the door opens, closes, and seals correctly
• Prevents rattling, movement, or misalignment of the inner/outer door glass
• Helps maintain even heat containment by keeping the glass properly positioned
• Commonly replaced when the bracket is cracked, bent, or missing hardware

• Basic hand tools required; avoid over-tightening fasteners which can crack the glass
• Disconnect power to the appliance before removing or servicing the door
• Support the door and glass during removal to prevent dropping or breakage

This welded liner assembly replaces a damaged or corroded oven cavity liner to restore the oven's interior structure and heat containment. It provides a factory-fit replacement for ovens that require a single-piece welded liner. What it does:

• Replaces a warped, cracked, or rusted oven cavity liner to improve structural integrity
• Helps maintain even heat distribution by restoring the oven's original interior surface
• Reduces heat loss from the cavity and helps protect insulation and exterior panels
• Matches OEM fit and mounting points for straightforward refit

• 1 welded oven liner assembly

• Installation requires removing the oven from its enclosure; disconnect power before service
• Handle carefully to avoid scratching the finished surfaces; wear gloves to protect from sharp edges
• Verify all mounting hardware and seals are present and in good condition before final reassembly

This door hinge secures and pivots the refrigerator door so it opens and closes smoothly, restoring proper door alignment and seal for reliable cooling performance. What it does:

• Supports the refrigerator door and provides a smooth pivot point for opening and closing
• Helps maintain proper door alignment to ensure a tight seal and consistent internal temperature
• Can prevent or correct door sag, rubbing, or uneven gaps
• Reduces noise or sticking that occurs when the hinge is worn or damaged

• Disconnect power to the appliance before attempting repairs and work with the door supported to prevent dropping
• Use appropriate tools to remove and reinstall hinge fasteners; keep track of any washers or shims
• Verify door alignment and gasket seat after installation; adjust hinge position as needed before fully tightening
• If other hinge hardware is worn or damaged, replace those components to ensure proper function

This genuine replacement door handle restores a secure grip and smooth opening on compatible refrigerators. It replaces a cracked, loose, or missing handle so the door can be used safely and comfortably. What it does:

• Provides a solid gripping surface to open and close the fridge door
• Replaces handles that are cracked, broken, or detached
• Helps prevent injury from sharp or damaged edges on the original handle
• Restores proper door operation when the handle no longer functions

• Unplug the appliance or disconnect power before starting any repair
• Remove any food and open the door to access mounting screws or clips
• Align the handle with mounting points and secure with original screws; do not overtighten
• Wear gloves to protect hands from sharp edges and use proper tools for a safe installation

This genuine replacement screw restores secure mounting of panels and components on Whirlpool appliances, helping stop loose or rattling parts and maintain proper fit. Small but essential fastener for routine repairs. What it does:

• Secures panels, trim, brackets or small components to appliance frames
• Replaces missing, damaged, or stripped screws that cause loose or misaligned parts
• Helps stop vibration noise and restore proper panel alignment
• Provides the correct thread and length for the original mounting location

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or part damage
• Turn off and unplug the appliance before accessing internal components
• Keep removed fasteners organized so you return them to the original locations

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: Black. For biscuit order 98008169. For white order WP98008544.

This glass bracket supports and secures a range/oven door glass panel, keeping the glass aligned and stable for safe operation. Replacing a worn or broken bracket restores proper door fit and reduces movement or rattling. What it does

• Secures the oven/range door glass to the door assembly to maintain alignment and stability
• Prevents glass movement, vibration noise, and uneven gaps around the door
• Helps protect the glass from chipping or cracking caused by improper support
• A damaged or missing bracket can cause door misalignment, rattling, or difficulty closing the door

• Disconnect power to the appliance before starting and follow manufacturer safety instructions
• Handle door glass carefully; wear safety gloves and eye protection to avoid cuts
• Reinstall carefully and verify door alignment and gasket seating before returning appliance to service
