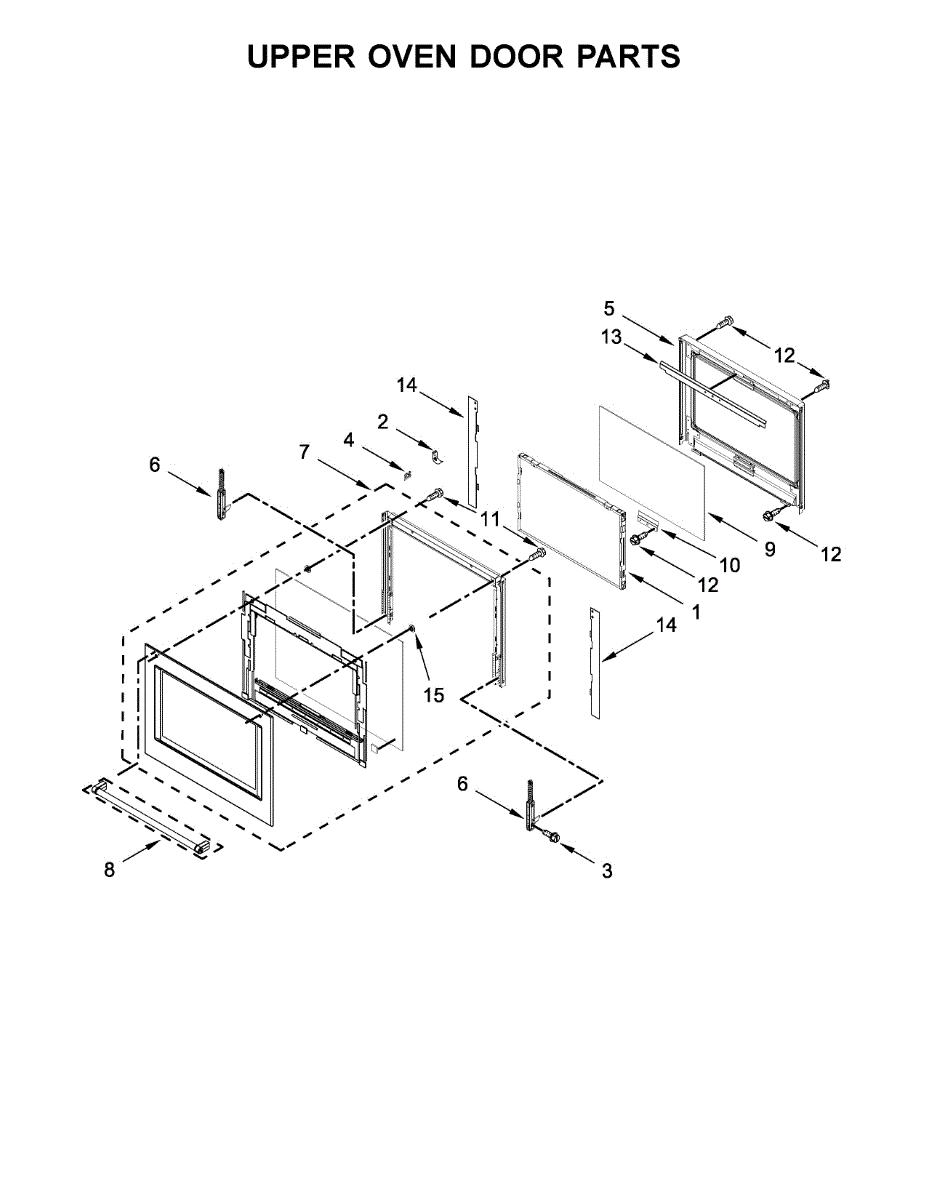

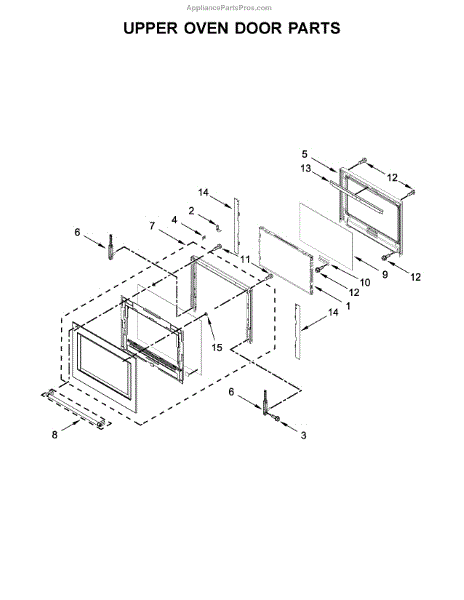

Parts for Kitchenaid KODE500EBS04: Upper Oven Door Parts

Restore a clear, safe view into your oven with this door glass. It replaces a damaged or discolored window so you can monitor cooking and helps the door seal and look like new again.

• Forms the viewing window in the oven door
• Helps contain heat and support normal oven performance
• Restores clear visibility into the oven cavity
• Typical failure signs: cracked/shattered glass, loose or rattling window, severe staining or haze

• Disconnect power and allow the appliance to cool completely before starting
• Remove the door per your model's instructions and work on a padded, stable surface
• Handle glass with cut-resistant gloves; avoid flexing or striking edges
• Transfer and reuse original screws, brackets, and trim as required; tighten fasteners evenly without overtightening

This glass support bracket secures a stove/oven or appliance glass panel in place to prevent movement and ensure proper alignment. It replaces worn or broken brackets to help stabilize the glass and reduce noise or rattling. What it does:

• Holds a glass panel or trim securely to the appliance frame
• Restores proper glass alignment and prevents uneven gaps
• Stops rattling or vibration caused by a loose or broken bracket
• Helps maintain safe, stable placement of the glass during use

• One glass support bracket

• Disconnect power and let surfaces cool before beginning work
• Handle glass carefully; support the panel to avoid dropping or cracking
• Use correct fasteners and avoid over-tightening to prevent glass stress
• Replace the glass along with damaged hardware if the glass is cracked or chips are present.

This 10-32 x 3/8 machine screw secures appliance components. It keeps panels, brackets, and trim firmly attached so everything stays aligned and quiet during operation.

• Fastens metal parts using a 10-32 thread in pre-tapped holes or with a matching 10-32 nut
• Maintains proper alignment of panels, brackets, and trim to reduce vibration and rattling
• Replace if the original screw is missing, stripped, rusted, or damaged
• Using the correct hardware helps restore a secure, factory-tight fit

• Disconnect power; shut off gas supply if applicable. Allow the appliance to cool completely before servicing
• Note screw locations/lengths and replace like-for-like
• Start threads by hand to avoid cross-threading; snug with the appropriate driver—do not overtighten
• If the receiving threads are damaged, repair or replace the mating component before installing

This glass bracket secures the oven door glass to the door assembly, keeping the glass stable during normal use and helping maintain a proper seal. Replaces a worn or broken bracket to restore door stability and alignment. What it does:

• Holds the oven door glass in place so the door opens, closes, and seals correctly
• Prevents rattling, movement, or misalignment of the inner/outer door glass
• Helps maintain even heat containment by keeping the glass properly positioned
• Commonly replaced when the bracket is cracked, bent, or missing hardware

• Basic hand tools required; avoid over-tightening fasteners which can crack the glass
• Disconnect power to the appliance before removing or servicing the door
• Support the door and glass during removal to prevent dropping or breakage

This Frame-Glass is the outer glass panel for the oven door, restoring a clean appearance and helping retain heat while keeping the oven cavity visible. It replaces damaged, cracked, or chipped outer door glass. What it does:

• Provides the outer glass surface of the oven door for safe viewing of food while cooking
• Helps maintain oven heat and improve energy containment when the door is intact
• Replaces cracked, chipped, or shattered outer door glass that can affect appearance and safety
• Restores a sealed, clean-facing surface for the door assembly

• Disconnect power to the appliance and allow the oven to fully cool before beginning
• Handle glass carefully; wear cut-resistant gloves and eye protection
• Installation typically requires removing the oven door and detaching trim/fasteners; keep track of screws and clips

This Door Hinge supports and pivots the appliance door for smooth operation and a square, reliable close. Replacing a worn hinge restores alignment so the door seals properly and opens and closes without binding or noise. What it does

• Supports door weight and provides the pivot point for opening and closing
• Maintains proper door alignment to help ensure an even gasket seal
• Restores smooth, consistent door movement
• Common symptoms: door droops or rubs, squeaks/grinds, or won't close flush

• Includes 1 door hinge

• Disconnect power before servicing
• Support the door and use a helper; remove contents as needed to reduce weight
• Mark hinge position and transfer any spacers/bushings in the same order
• Tighten mounting fasteners, then check alignment and gasket contact; adjust as needed

Color: White

Color: Black

The Glass-Door is an OEM replacement part for Whirlpool built-in microwaves. It allows for viewing of food as it cooks and is the primary access point for loading and unloading. Color: Black or Dark Stainless

Symptoms of a faulty microwave glass door include:

• Moisture or mineral deposits adhering inside the glass surface
• Difficulty closing securely or sealing properly
• Chips, cracks or breaks reduce visibility
• Discoloration or warping appearance issues

Causes can involve impacts over time compromising integrity. Regular opening and closing also subject the pane to stresses from pressure changes. Improper ventilation may result in deposits obstructing visibility.

This genuine OEM Whirlpool door is also compatible with built-in microwaves from Maytag, KitchenAid, Jenn-Air, and Kenmore.

The Microwave Glass Door is an OEM part for Whirlpool brand microwaves. This stainless door acts as a protective barrier that covers the cooking cavity while allowing for the transmission of microwave energy through its glass pane.

Causes of a bad glass door include impact damage, excessive heat exposure over time, or failure of door hinges and mechanisms due to regular use wear, and tear.

Symptoms of a bad glass door include:

• Cracks or chips in the glass pane
• Difficulty closing or latching the door securely
• Warping or discoloration of the door frame or seal

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore models.

Color: Stainless

The Door Handle is an OEM part for Whirlpool microwaves. It is an external component consumers interact with frequently for opening and closing access to the microwave interior.

Causes of a bad door handle can include normal wear and tear affecting functionality over thousands of uses. Thin plastics or loose hardware holding the handle can deteriorate more quickly.

Symptoms of a bad door handle include:

• The handle no longer latches the door securely
• Difficulty opening or closing the microwave door
• The handle coming loose or detaching completely
• Issues using locking/unlocking mechanisms

This OEM replacement Whirlpool door handle ensures smooth, dependable performance for the lifespan of the microwave. Its sturdy construction and precise fit maintain usability. This OEM part is also compatible with Maytag, Roper, Jenn-Air, Admiral, KitchenAid, and Frigidaire microwaves.


The Inner Door Glass is an OEM part for Whirlpool microwaves. It forms the see-through window that allows for monitoring food as it cooks. The strengthened glass panel is designed to withstand prolonged exposure to steam and heat without issues.

Causes of bad inner door glass can include cracks or chips from accidental drops or impacts, or damage from cleaning chemicals or harsh scrubbing that compromise the glass integrity.

Symptoms of a bad inner door glass include:

• Cracks or chips in the viewing surface
• Complete breakage leaving a hole in the door
• Loose or improperly sealed glass panel
• Increased potential for leaks near door seals

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwaves.

This factory fastener secures appliance components so panels, brackets, and handles stay tight and aligned. Replace a missing or stripped screw to stop rattles and keep assemblies firmly in place.

• Fastens appliance parts such as panels, brackets, trim, or hardware
• Replaces a missing, loose, or stripped fastener
• Helps eliminate vibration noise and wobbly components
• Restores proper alignment and secure mounting

• Disconnect power; for water- or gas-connected appliances, shut off supply lines before service
• Match length/thread to the original location; start threads by hand to avoid cross-threading
• Use the correct driver bit to prevent stripping the head
• Tighten snugly; do not overtighten into plastic or thin sheet metal

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This glass bracket supports and secures a range/oven door glass panel, keeping the glass aligned and stable for safe operation. Replacing a worn or broken bracket restores proper door fit and reduces movement or rattling. What it does

• Secures the oven/range door glass to the door assembly to maintain alignment and stability
• Prevents glass movement, vibration noise, and uneven gaps around the door
• Helps protect the glass from chipping or cracking caused by improper support
• A damaged or missing bracket can cause door misalignment, rattling, or difficulty closing the door

• Disconnect power to the appliance before starting and follow manufacturer safety instructions
• Handle door glass carefully; wear safety gloves and eye protection to avoid cuts
• Reinstall carefully and verify door alignment and gasket seating before returning appliance to service

This flat washer is a direct-replacement fastening washer that restores proper spacing and fastening for appliance panels and components. It helps re-secure loose hardware so assemblies sit and operate as intended. What it does:

• Provides a smooth bearing surface for bolts and screws to distribute load
• Helps keep fasteners tight to prevent wobble or loose panels
• Restores correct spacing and alignment between mating parts
• Can reduce vibration-related noise when worn or missing

• One replacement flat washer

• Disconnect power and water before starting repairs
• Use the correct size socket or driver to remove and reinstall fasteners
• Inspect mating fastener and surrounding parts for wear; replace if damaged
• Tighten hardware securely but avoid overtightening which can deform the washer
