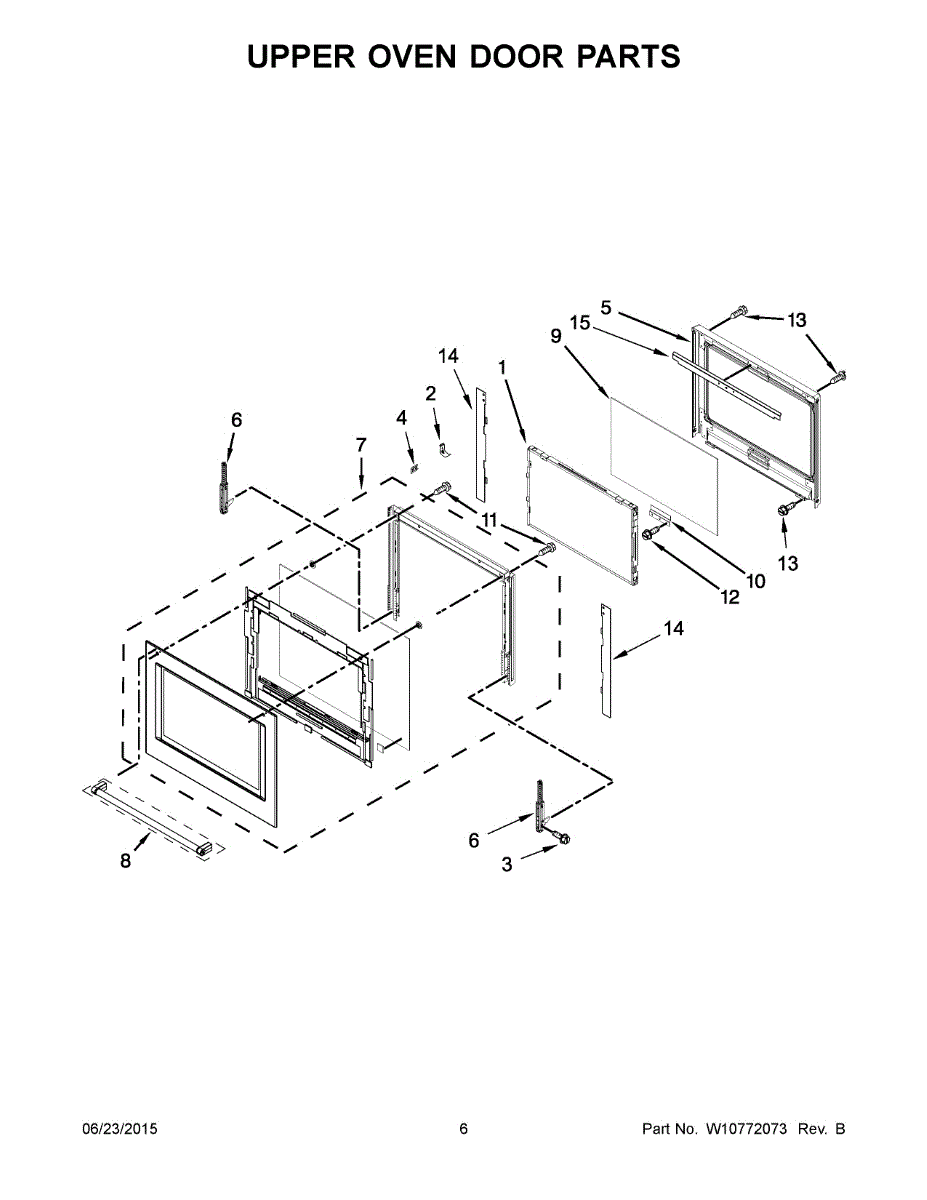

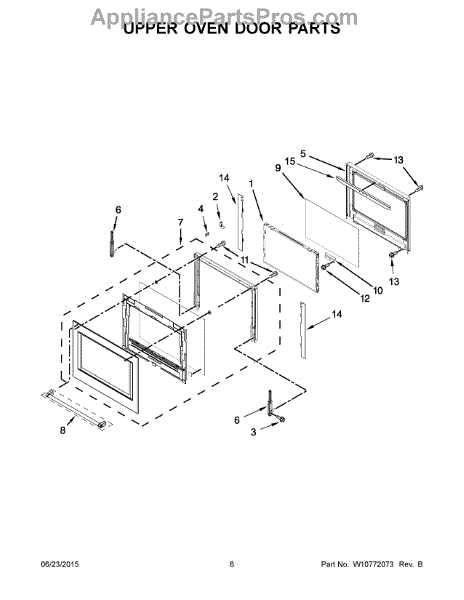

Parts for Kitchenaid KODE500ESS00: 04 - Upper Oven Door Parts

Replaces cracked, shattered, or discolored oven door glass. Restores clear viewing window and proper door seal. Includes frame assembly for easy install.

Secures oven glass panel in place and prevents movement or rattling. Replace this bracket if cracked, broken, or missing to stabilize glass and restore fit.

This 10-32 x 3/8 machine screw secures appliance components. It keeps panels, brackets, and trim firmly attached so everything stays aligned and quiet during operation.

• Fastens metal parts using a 10-32 thread in pre-tapped holes or with a matching 10-32 nut
• Maintains proper alignment of panels, brackets, and trim to reduce vibration and rattling
• Replace if the original screw is missing, stripped, rusted, or damaged
• Using the correct hardware helps restore a secure, factory-tight fit

• Disconnect power; shut off gas supply if applicable. Allow the appliance to cool completely before servicing
• Note screw locations/lengths and replace like-for-like
• Start threads by hand to avoid cross-threading; snug with the appropriate driver—do not overtighten
• If the receiving threads are damaged, repair or replace the mating component before installing

Secures oven door glass to the door assembly, maintaining stability and proper seal. Replace if worn or broken to restore door alignment. Verify fit with your model.

Outer glass frame panel for wall oven doors. Replaces cracked, chipped, or broken door glass to restore appearance and visibility while maintaining heat.

This Door Hinge supports and pivots the appliance door for smooth operation and a square, reliable close. Replacing a worn hinge restores alignment so the door seals properly and opens and closes without binding or noise. What it does

• Supports door weight and provides the pivot point for opening and closing
• Maintains proper door alignment to help ensure an even gasket seal
• Restores smooth, consistent door movement
• Common symptoms: door droops or rubs, squeaks/grinds, or won't close flush

• Includes 1 door hinge

• Disconnect power before servicing
• Support the door and use a helper; remove contents as needed to reduce weight
• Mark hinge position and transfer any spacers/bushings in the same order
• Tighten mounting fasteners, then check alignment and gasket contact; adjust as needed

Replace your wall oven's cracked or broken door glass panel. This outer glass installs on the oven door frame, restoring appearance and safety.

Color: Stainless

The Door Handle is an OEM part for Whirlpool microwaves. It is an external component consumers interact with frequently for opening and closing access to the microwave interior.

Causes of a bad door handle can include normal wear and tear affecting functionality over thousands of uses. Thin plastics or loose hardware holding the handle can deteriorate more quickly.

Symptoms of a bad door handle include:

• The handle no longer latches the door securely
• Difficulty opening or closing the microwave door
• The handle coming loose or detaching completely
• Issues using locking/unlocking mechanisms

This OEM replacement Whirlpool door handle ensures smooth, dependable performance for the lifespan of the microwave. Its sturdy construction and precise fit maintain usability. This OEM part is also compatible with Maytag, Roper, Jenn-Air, Admiral, KitchenAid, and Frigidaire microwaves.


Replace cracked, shattered, or broken outer door glass on your wall oven. Heat-resistant glass panel installs on oven door exterior for visibility.

Mounting bracket that secures the glass panel in your wall oven door. Replace if the bracket is cracked, bent, or missing to properly hold the glass in place.

Secures panels, trim, and brackets in refrigerators, ranges, ovens, and microwaves. Replace if missing, stripped, or damaged during repairs or maintenance.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: Black. For biscuit order 98008169. For white order WP98008544.

Secures the glass panel to your wall oven door frame. Replace this bracket if it's cracked, broken, or missing to properly support the door glass.

Replacement glass door bracket for wall ovens. Secures the glass panel to the door frame. Replace if bracket is cracked, broken, or missing parts.

Secures and aligns the glass panel in your oven door assembly. Replace this bracket if it's cracked, broken, or missing to restore proper door fit.
