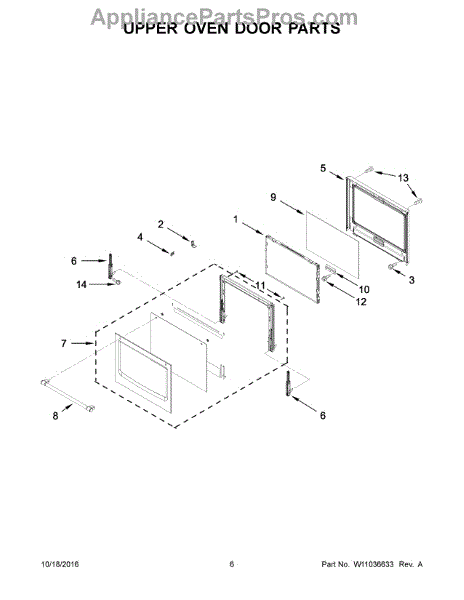

Parts for Maytag MEW9627FB01: 04 - Upper Oven Door Parts

This factory window pack assembly creates the sealed, insulated glass window in your oven door. It restores a clear view into the cavity and helps the appliance hold temperature when the original window is broken, cloudy, or damaged.

• Forms the sealed, multi-pane window within the oven door
• Helps contain heat and maintain consistent baking temperatures
• Restores visibility into the oven cavity
• Common symptoms: cracked/shattered glass, fogging or streaks between panes, rattling glass, heat escaping near the window area

• Disconnect power and allow the oven to cool completely before servicing
• Wear cut-resistant gloves and eye protection; handle glass vertically and support the edges
• Door removal and partial disassembly are typically required; keep screws and trim organized
• Transfer any reusable brackets/insulation per your model's service information

This glass support bracket secures a stove/oven or appliance glass panel in place to prevent movement and ensure proper alignment. It replaces worn or broken brackets to help stabilize the glass and reduce noise or rattling. What it does:

• Holds a glass panel or trim securely to the appliance frame
• Restores proper glass alignment and prevents uneven gaps
• Stops rattling or vibration caused by a loose or broken bracket
• Helps maintain safe, stable placement of the glass during use

• One glass support bracket

• Disconnect power and let surfaces cool before beginning work
• Handle glass carefully; support the panel to avoid dropping or cracking
• Use correct fasteners and avoid over-tightening to prevent glass stress
• Replace the glass along with damaged hardware if the glass is cracked or chips are present.

This glass bracket secures the oven door glass to the door assembly, keeping the glass stable during normal use and helping maintain a proper seal. Replaces a worn or broken bracket to restore door stability and alignment. What it does:

• Holds the oven door glass in place so the door opens, closes, and seals correctly
• Prevents rattling, movement, or misalignment of the inner/outer door glass
• Helps maintain even heat containment by keeping the glass properly positioned
• Commonly replaced when the bracket is cracked, bent, or missing hardware

• Basic hand tools required; avoid over-tightening fasteners which can crack the glass
• Disconnect power to the appliance before removing or servicing the door
• Support the door and glass during removal to prevent dropping or breakage

This welded liner assembly replaces a damaged or corroded oven cavity liner to restore the oven's interior structure and heat containment. It provides a factory-fit replacement for ovens that require a single-piece welded liner. What it does:

• Replaces a warped, cracked, or rusted oven cavity liner to improve structural integrity
• Helps maintain even heat distribution by restoring the oven's original interior surface
• Reduces heat loss from the cavity and helps protect insulation and exterior panels
• Matches OEM fit and mounting points for straightforward refit

• 1 welded oven liner assembly

• Installation requires removing the oven from its enclosure; disconnect power before service
• Handle carefully to avoid scratching the finished surfaces; wear gloves to protect from sharp edges
• Verify all mounting hardware and seals are present and in good condition before final reassembly

This door hinge secures and pivots the refrigerator door so it opens and closes smoothly, restoring proper door alignment and seal for reliable cooling performance. What it does:

• Supports the refrigerator door and provides a smooth pivot point for opening and closing
• Helps maintain proper door alignment to ensure a tight seal and consistent internal temperature
• Can prevent or correct door sag, rubbing, or uneven gaps
• Reduces noise or sticking that occurs when the hinge is worn or damaged

• Disconnect power to the appliance before attempting repairs and work with the door supported to prevent dropping
• Use appropriate tools to remove and reinstall hinge fasteners; keep track of any washers or shims
• Verify door alignment and gasket seat after installation; adjust hinge position as needed before fully tightening
• If other hinge hardware is worn or damaged, replace those components to ensure proper function

This factory fastener secures appliance components so panels, brackets, and handles stay tight and aligned. Replace a missing or stripped screw to stop rattles and keep assemblies firmly in place.

• Fastens appliance parts such as panels, brackets, trim, or hardware
• Replaces a missing, loose, or stripped fastener
• Helps eliminate vibration noise and wobbly components
• Restores proper alignment and secure mounting

• Disconnect power; for water- or gas-connected appliances, shut off supply lines before service
• Match length/thread to the original location; start threads by hand to avoid cross-threading
• Use the correct driver bit to prevent stripping the head
• Tighten snugly; do not overtighten into plastic or thin sheet metal

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This 10-32 x 3/8 machine screw secures appliance components. It keeps panels, brackets, and trim firmly attached so everything stays aligned and quiet during operation.

• Fastens metal parts using a 10-32 thread in pre-tapped holes or with a matching 10-32 nut
• Maintains proper alignment of panels, brackets, and trim to reduce vibration and rattling
• Replace if the original screw is missing, stripped, rusted, or damaged
• Using the correct hardware helps restore a secure, factory-tight fit

• Disconnect power; shut off gas supply if applicable. Allow the appliance to cool completely before servicing
• Note screw locations/lengths and replace like-for-like
• Start threads by hand to avoid cross-threading; snug with the appropriate driver—do not overtighten
• If the receiving threads are damaged, repair or replace the mating component before installing
