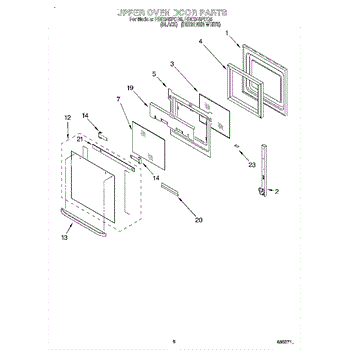

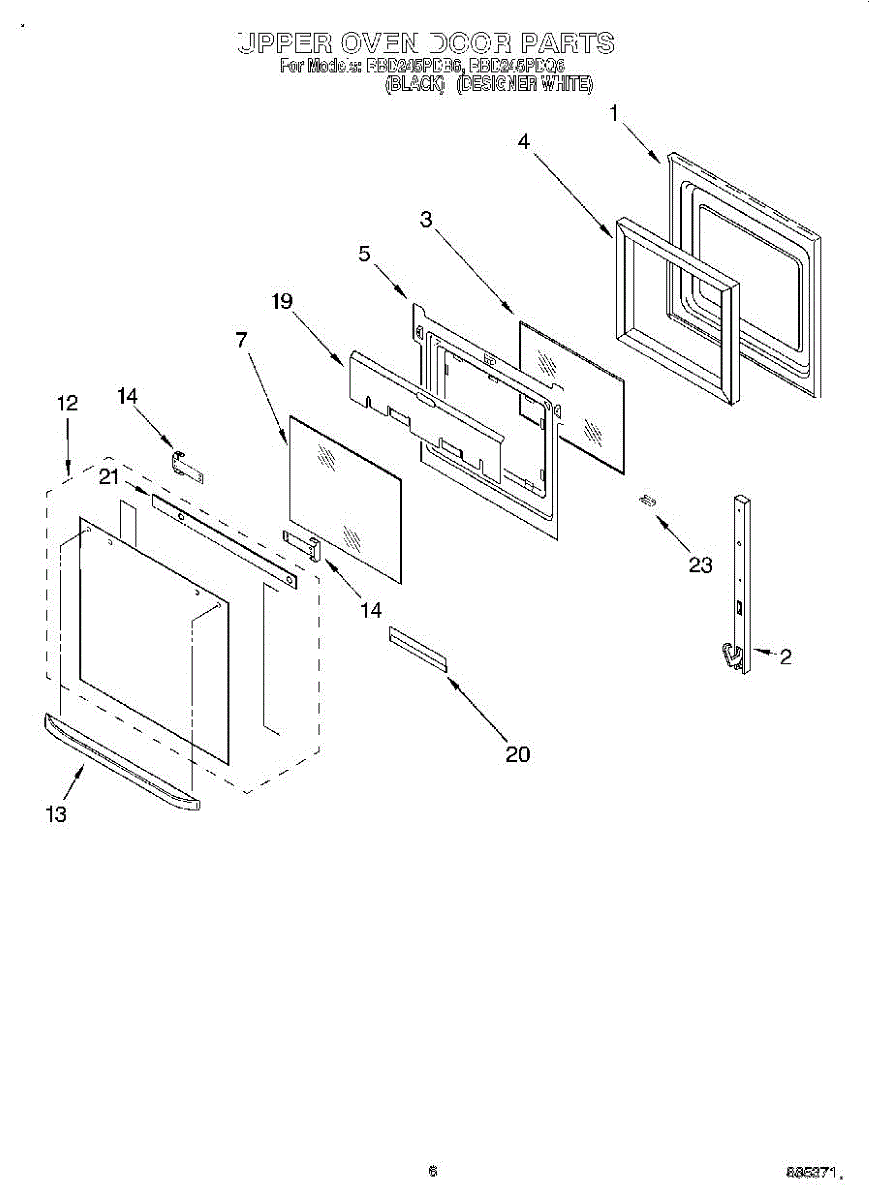

Parts for Whirlpool RBD245PDB6: 04 - Upper Oven Door Parts

This 24-inch door liner panel restores the interior surface of a single oven door, protecting internal insulation and providing a finished look. It replaces a cracked, dented or heat-damaged liner so the door seals and operates correctly. What it does

• Replaces the oven's interior door surface to protect insulation and inner components.
• Restores a smooth, secure surface that helps the door close evenly and maintain heat containment.
• Helps eliminate rattles, light leaks, or visible damage from a compromised liner.
• Matches factory fit and attachment points for a straightforward replacement.

• One 24-inch oven door liner panel

• Turn off power to the appliance before beginning any repair and allow the oven to cool fully.
• Remove the oven door per the manufacturer's instructions to access and replace the liner; retain all screws and mounting hardware.
• Handle edges carefully and support the liner to avoid bending or damage during installation.

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

This oven door hinge is used on the black and designer white models. Two are used per oven.

The Inner Glass is an OEM replacement part for Whirlpool built-in and slide-in electric ranges. As an interior part, this tempered glass serves as the viewing window for the oven cavity below. It is precision cut by Whirlpool to fit seamlessly within the oven door frame assembly.

Causes of broken inner glass can include impact from heavy pots or pans dropped inside during loading/unloading. Thermal stresses from repeated heating cycles may develop fine hairline cracks as well.

Symptoms of a cracked inner glass involve:

• Visible lines or damaged areas that obstruct full viewing
• Potential safety hazards if glass fully separates from the doorframe
• Inability to efficiently view food inside without opening the door

Compatible with some KitchenAid and Jenn-Air built-in electric ranges too, replacing now prevents further door damage from glass shifting out of position over time.

This replacement oven insulation helps contain heat inside the oven cavity for more consistent cooking and protects surrounding panels from excessive heat. It restores the original thermal barrier when damaged or deteriorated. What it does:

• Replaces worn or torn oven cavity insulation that can allow heat to escape
• Helps maintain stable oven temperatures during baking and broiling
• Reduces heat transfer to exterior panels and nearby components
• Can address symptoms such as long preheat times, hot cabinet surfaces, or a noticeable draft of heat from the oven

• Disconnect power to the appliance and ensure the oven is completely cool before beginning.
• Wear gloves and eye protection; insulation fibers can irritate skin and lungs.
• Remove any retaining clips or fasteners and carefully position the new insulation without compressing it; reattach hardware as originally installed.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

Color: Black

Color: White.
