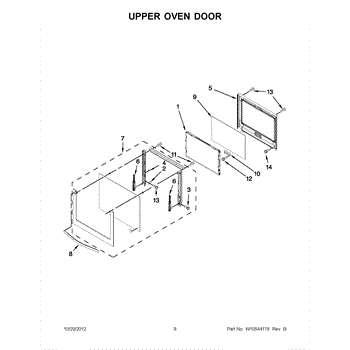

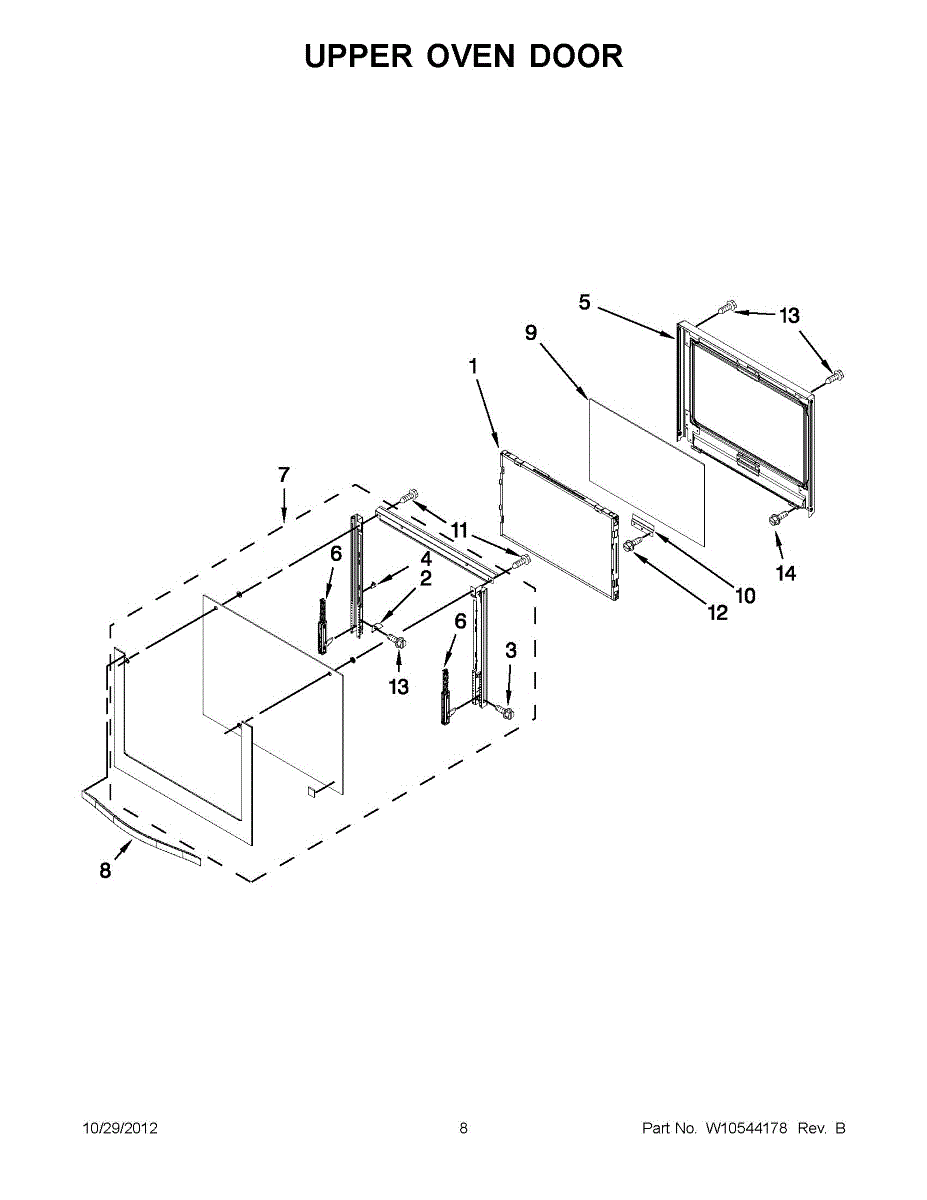

Parts for Whirlpool WOD51EC0AB01: 04 - Upper Oven Door Parts

Restore a clear, safe view into your oven with this door glass. It replaces a damaged or discolored window so you can monitor cooking and helps the door seal and look like new again.

• Forms the viewing window in the oven door
• Helps contain heat and support normal oven performance
• Restores clear visibility into the oven cavity
• Typical failure signs: cracked/shattered glass, loose or rattling window, severe staining or haze

• Disconnect power and allow the appliance to cool completely before starting
• Remove the door per your model's instructions and work on a padded, stable surface
• Handle glass with cut-resistant gloves; avoid flexing or striking edges
• Transfer and reuse original screws, brackets, and trim as required; tighten fasteners evenly without overtightening

This glass support bracket secures a stove/oven or appliance glass panel in place to prevent movement and ensure proper alignment. It replaces worn or broken brackets to help stabilize the glass and reduce noise or rattling. What it does:

• Holds a glass panel or trim securely to the appliance frame
• Restores proper glass alignment and prevents uneven gaps
• Stops rattling or vibration caused by a loose or broken bracket
• Helps maintain safe, stable placement of the glass during use

• One glass support bracket

• Disconnect power and let surfaces cool before beginning work
• Handle glass carefully; support the panel to avoid dropping or cracking
• Use correct fasteners and avoid over-tightening to prevent glass stress
• Replace the glass along with damaged hardware if the glass is cracked or chips are present.

This 10-32 x 3/8 machine screw secures appliance components. It keeps panels, brackets, and trim firmly attached so everything stays aligned and quiet during operation.

• Fastens metal parts using a 10-32 thread in pre-tapped holes or with a matching 10-32 nut
• Maintains proper alignment of panels, brackets, and trim to reduce vibration and rattling
• Replace if the original screw is missing, stripped, rusted, or damaged
• Using the correct hardware helps restore a secure, factory-tight fit

• Disconnect power; shut off gas supply if applicable. Allow the appliance to cool completely before servicing
• Note screw locations/lengths and replace like-for-like
• Start threads by hand to avoid cross-threading; snug with the appropriate driver—do not overtighten
• If the receiving threads are damaged, repair or replace the mating component before installing

This bumper rail cushions and supports the appliance door or drawer edge to reduce vibration, protect the finish, and help the door close smoothly. It replaces a worn or damaged rail that causes rubbing or noise. What it does:

• Provides a soft contact point to prevent metal-on-metal contact and chipping
• Reduces door rattling and vibration during operation
• Helps maintain proper door alignment for a consistent seal
• Common symptom: noisy, scraping, or misaligned door/drawer edge

• Follow for panel removal and reassembly
• Disconnect power (unplug or shut off breaker) before servicing
• Handle panels and trim carefully to avoid scratching; ensure bumper seats fully in its track
• If clips or adhesive are present on the old part, remove residue before installing the new rail

This Frame-Glass is the outer glass panel for the oven door, restoring a clean appearance and helping retain heat while keeping the oven cavity visible. It replaces damaged, cracked, or chipped outer door glass. What it does:

• Provides the outer glass surface of the oven door for safe viewing of food while cooking
• Helps maintain oven heat and improve energy containment when the door is intact
• Replaces cracked, chipped, or shattered outer door glass that can affect appearance and safety
• Restores a sealed, clean-facing surface for the door assembly

• Disconnect power to the appliance and allow the oven to fully cool before beginning
• Handle glass carefully; wear cut-resistant gloves and eye protection
• Installation typically requires removing the oven door and detaching trim/fasteners; keep track of screws and clips

This Door Hinge supports and pivots the appliance door for smooth operation and a square, reliable close. Replacing a worn hinge restores alignment so the door seals properly and opens and closes without binding or noise. What it does

• Supports door weight and provides the pivot point for opening and closing
• Maintains proper door alignment to help ensure an even gasket seal
• Restores smooth, consistent door movement
• Common symptoms: door droops or rubs, squeaks/grinds, or won't close flush

• Includes 1 door hinge

• Disconnect power before servicing
• Support the door and use a helper; remove contents as needed to reduce weight
• Mark hinge position and transfer any spacers/bushings in the same order
• Tighten mounting fasteners, then check alignment and gasket contact; adjust as needed

Color: Bisque

Color: Black

Color: White - This OEM part is a glass door assembly for ovens. The glass door assembly is the front oven door used to gain access to the interior of an oven. Over time, through extensive wear and tear, a door assembly can become damaged, making the door difficult to open or close. If the door assembly is not in great working condition, it might be a good time to replace it.To replace the door assembly, Open the oven door and remove the screws in the brackets that attach the hinges. Once removed, lift up to pull the door out of its hinges and set it to the side. Install the new door by placing it on its hinges and resecure the mounting screws that hold the door in its place. Once secure, open and close the new door assembly to see if it was installed correctly. This genuine replacement part is sold individually and is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears, and Kenmore brand ovens.

Color: Stainless

Color: White

Color: Black

The Glass Door is an OEM part for Whirlpool ovens. This component serves as the outer layer of the oven door, providing visibility into the oven while maintaining the internal temperature. It is made of heat-resistant glass, ensuring durability and safety during cooking and baking processes.

Over time, the glass door can become damaged due to accidental impacts, thermal stress, or general wear and tear. A damaged glass door can compromise the oven's ability to maintain temperature and pose a safety risk.

Symptoms of a bad glass door include:

• Cracks or shattering in the glass
• Heat escaping from the oven during use
• Difficulty seeing through the door due to damage or discoloration
• Loose or unstable door assembly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a genuine lock nut replacement. This is a general piece of hardware that is often used on several types of lawn and garden equipment, including in engines, housing, and other areas. The exact application of this part will vary based on the unit. The lock nut is used to create a more secure seal than a standard nut. When properly secured, the lock nut tightens to a bolt and uses an extra locking washer with teeth to ensure a snug fit.If lock washers do get damaged or lost, they need to be replaced immediately with a genuine OEM replacement. This model is compatible with all types of machines and units since it is a generic part. The washer is sold as an individual part and manufactured by Whirlpool. Lock nuts will need to be installed using a socket wrench or adjustable wrench. Pliers, a screwdriver, or another socket wrench will be needed to hold the bolt while the lock nut is being secured in place. Be sure to thread the lock nut carefully to ensure a strong seal and avoid stripping the bolt or the nut.

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
