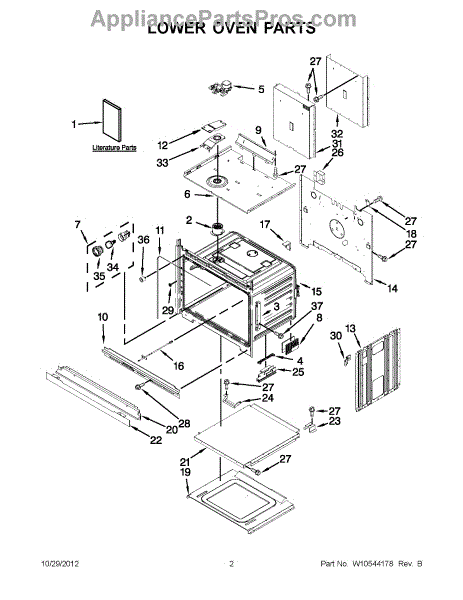

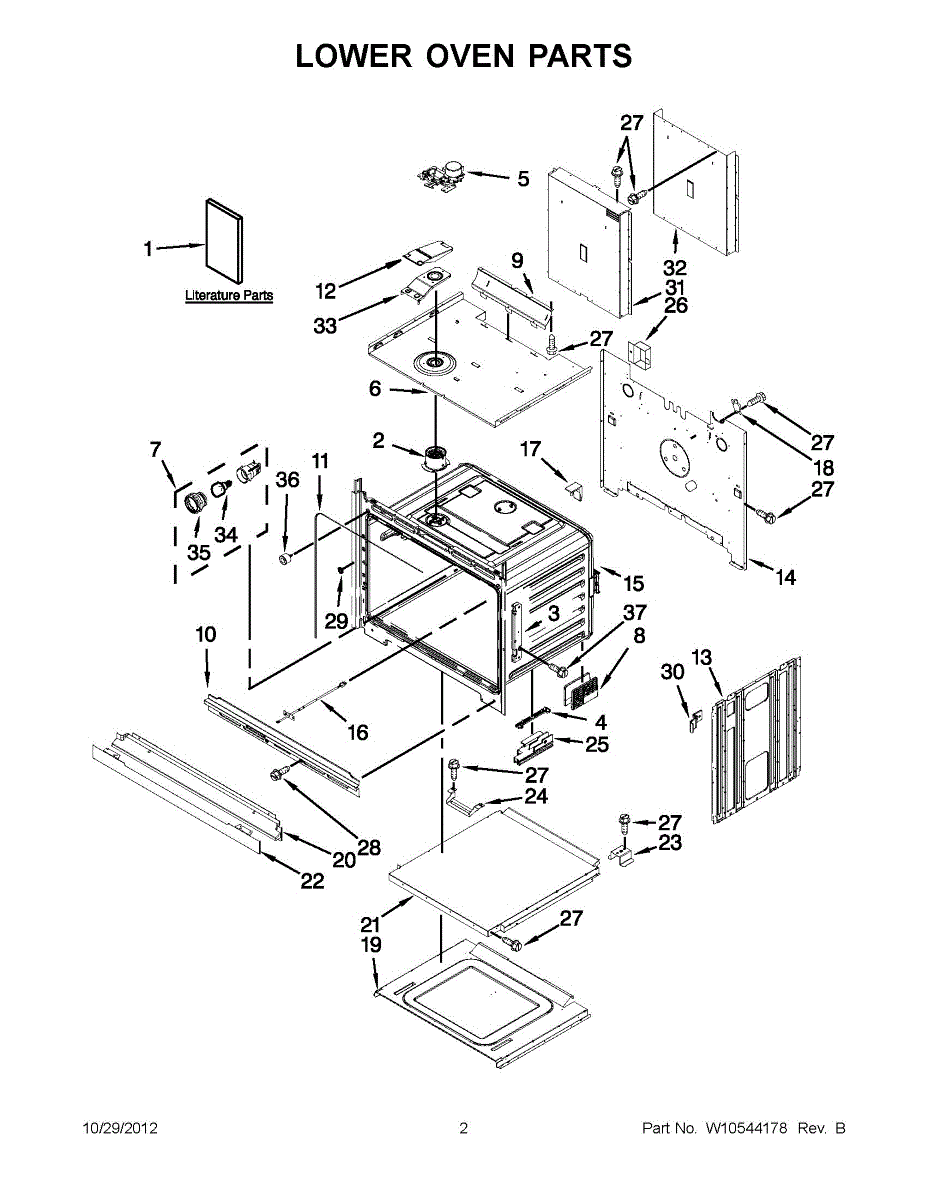

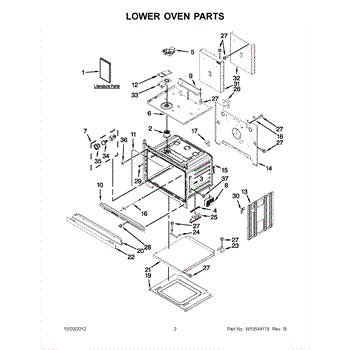

Parts for Whirlpool WOD51EC0AB01: 01 - Lower Oven Parts

Routes hot, moist air from your dryer drum to the external vent outlet. Replace if cracked, disconnected, or damaged to restore proper airflow.

Receiver bracket that mounts and holds oven door hinges in place. Replace if cracked, broken, or worn from repeated use causing door misalignment or instability.

Replacement spacer for ovens and microwaves. Maintains proper clearance and alignment between components. Order a new spacer if yours is missing or damaged.

Oven door won't close or displays F5/E1 error? This door latch assembly secures the door and engages the safety interlock for proper operation.

This indicator light is a small control-panel lamp that signals oven/cooktop status and helps you know when elements or functions are active. It restores visible status indication for better, safer operation. What it does:

• Illuminates the control panel to show when a function or heating element is on
• Commonly used as a power/status indicator on ranges and cooktops
• Fixes symptoms like a dark or non-responsive status light on the appliance
• Helps when controls or timed functions are active

• One indicator light

• Disconnect power to the appliance before beginning any work to avoid shock
• Handle the lamp carefully; avoid force — some panels or bezels must be removed first
• Replace with the exact OEM part number to ensure correct fit and function
• After installation, restore power and verify the light operates with appliance functions

Adjustable leveling foot that stabilizes and levels your appliance on uneven floors to stop rocking and improve overall stability. Simple replacement for a worn or damaged foot to restore a solid, level setup. What it does:

• Threads into the appliance base to support weight and set the appliance height
• Lets you level the appliance to stop rocking or tilting on uneven floors
• Helps reduce vibration and shifting during operation
• Common symptom fix: appliance wobbles, is unlevel, or rocks when pushed

• Disconnect power and pull appliance away from the wall before working underneath
• Support the appliance so it cannot tip; adjust the foot by turning until the unit is level
• Recheck level front-to-back and side-to-side; tighten any retaining hardware if present
• If rusted or stuck, use penetrating lubricant and proper tools; avoid forcing parts in a way that could damage the cabinet

Replace your wall oven door cavity gasket when heat escapes or condensation appears. Creates an airtight seal for optimal cooking temperatures. Confirm fit with your model number.

Cushions and supports your oven door edge to prevent metal contact and reduce noise. Replace if cracked, worn, or missing to restore smooth closing.

This is a fixed high-limit thermostat used in ranges and ovens to monitor internal temperature and cut power to the heating element if the oven exceeds a safe operating temperature. It acts as a safety device to prevent overheating and potential fire hazards. Replace this thermostat if your oven is not heating at all, shuts off prematurely, or if you have confirmed a lack of continuity through the component with a multimeter.

Fixes overheating or poor ventilation in wall ovens. This lower vent assembly channels hot air out safely, protecting internal components. Restores airflow.

Missing or damaged oven vent trim? This bottom vent assembly channels hot air out and restores a finished look. Easy DIY install in under 30 minutes.

This is a metal bottom panel that covers the lower section of the oven cavity. It serves as an access cover to protect internal components beneath the oven floor, such as the bake element or wiring. Replace this panel if it is warped, corroded, rusted through, or missing, which can lead to uneven heating or exposed components.

Front kick panel trim that covers and finishes the lower vent opening on wall ovens. Replace if cracked, broken, or missing for a clean appearance.

This bottom vent trim covers the lower front opening and directs airflow while giving the appliance a finished, clean look. It replaces a damaged or missing kickplate to restore proper ventilation and appearance.

• Shields the lower cabinet opening and helps guide airflow through the base
• Improves finished look by concealing internal components at the bottom front
• Common symptoms of failure include a loose, cracked, or missing trim and rattling at the base
• Can affect airflow if the trim is broken, warped, or not secured

• Unplug power and shut off utilities as applicable before servicing
• Remove existing fasteners, note their locations, and retain for reuse if still serviceable
• Align the trim with mounting points; secure with the correct hardware per your model
• Do not overtighten fasteners to avoid cracking the trim

The Foot Level is an OEM part for Whirlpool wall ovens. It sits at the base of the oven and incorporates adjustable feet, rollers, or glides. The foot level allows for precision leveling and balancing of the oven once installed.

Symptoms of a bad or damaged foot level include:

• The oven rocking or wobbling noticeably during use
• Excessive stress on the oven door or improper door alignment
• Screeching or scraping noises coming from the foot-level area
• Visible damage, bending, or instability of the feet, rollers, or glides
• Inability to properly level or balance the oven for optimal performance

This genuine replacement foot level from Whirlpool restores stability and efficiency. It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and select Kenmore wall ovens to ensure they sit firmly and operate smoothly.

Screw for control panel vent.

Restores a cushioned seal where hoses, tubes, or wires enter your oven. Prevents leaks and rattles while protecting against chafing. Confirm fit.

This spacer is a small mounting component that maintains proper clearance and alignment between oven panels or structural elements at the front of the unit. It helps ensure even gaps and secure positioning of surrounding parts. Replace this spacer if panels appear misaligned, loose, or if the original spacer is cracked or missing.

The Light Bulb is an OEM part for Whirlpool ovens. This bulb is illuminates the oven's interior, allowing you to monitor the cooking process without opening the door and losing heat.

Causes of a bad light bulb can include regular wear and tear, exposure to high temperatures, or electrical surges.

Symptoms of a bad light bulb include:

• The bulb not lighting up
• Flickering or dim light
• Intermittent lighting issues
• Visible signs of a burnt-out filament

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This light lens replaces a damaged or missing lamp cover in your appliance. It protects the bulb and diffuses light so the area is safely and evenly illuminated again.

• Covers and diffuses the appliance light for clearer, more even illumination
• Shields the bulb from contact, moisture, grease, and debris
• Helps restore proper brightness if the old lens is yellowed or cloudy
• Common signs of failure: cracked or missing lens, discoloration, loose/broken retaining tabs, dim or harsh lighting

• Disconnect power to the appliance before servicing and allow the area/bulb to cool
• Remove any screws or release retaining tabs; note the lens orientation for reinstallation
• Install the new lens carefully; do not overtighten fasteners to avoid cracking
• Reuse your existing bulb and mounting hardware

6-32 machine screw secures panels, brackets, and components in appliances. Replace worn, missing, or stripped screws to restore proper fit and assembly.

This factory fastener secures components inside your appliance, keeping panels, brackets, and assemblies properly attached. Replacing a worn, stripped, or missing screw restores a tight fit and helps prevent vibration, rattling, and misalignment.

• Fastens parts to frames, panels, or brackets as specified in your model's parts diagram
• Helps maintain alignment and reduce vibration/rattling during operation
• Replace when the original screw is missing, corroded, stripped, or no longer holds
• Direct OEM hardware for the designated locations on applicable models

• Disconnect power; shut off gas/water if applicable. Allow hot surfaces to cool.
• Use the correct driver size; start threads by hand to avoid cross-threading.
• Tighten until snug—do not overtighten, especially into plastic or thin sheet metal.
• If a mating clip, insert, or nut is damaged, replace that hardware per your model diagram.
