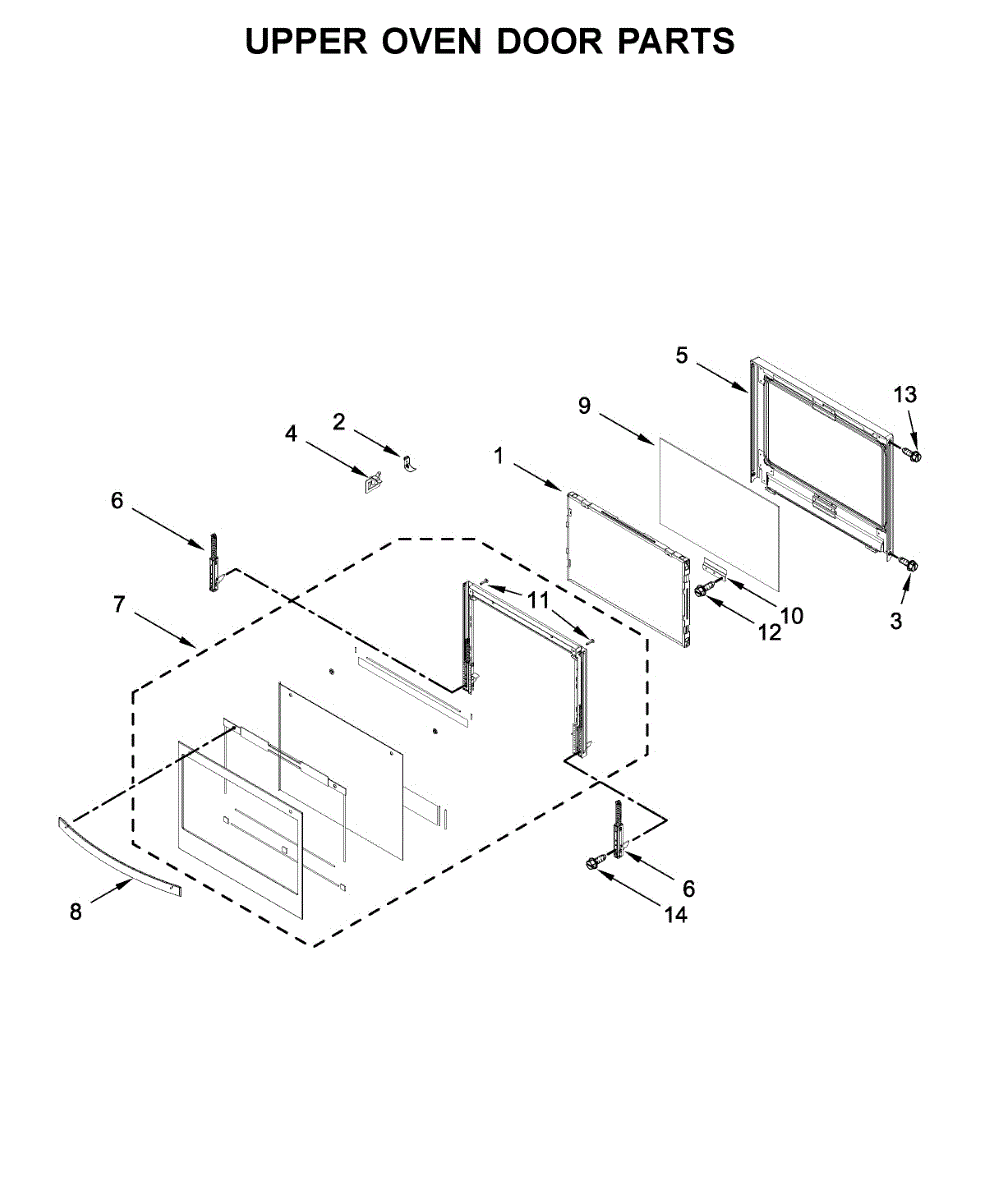

Parts for Whirlpool WOD77EC0HS01: Upper Oven Door Parts

Replaces cracked, shattered, or discolored oven door glass. Restores clear viewing window and proper door seal. Includes frame assembly for easy install.

Secures oven glass panel in place and prevents movement or rattling. Replace this bracket if cracked, broken, or missing to stabilize glass and restore fit.

Mounting screw secures panels, brackets, and components inside your oven. Replace missing, stripped, or damaged screws to restore proper fit.

Secures oven door glass to the door assembly, maintaining stability and proper seal. Replace if worn or broken to restore door alignment. Verify fit with your model.

Outer glass frame panel for wall oven doors. Replaces cracked, chipped, or broken door glass to restore appearance and visibility while maintaining heat.

Replacement door hinge for wall ovens. Secures oven door and supports weight during opening and closing. Order if hinge is cracked, broken, or worn.

Replacement door glass panel for wall ovens. Installs on the oven door exterior. Order when your glass is cracked, broken, or scratched beyond repair.

Outer glass panel for wall oven doors. Replaces cracked, chipped, or fractured glass. Restores clear viewing window and door appearance.

Replace your range's worn, cracked, or broken oven door handle. This black stainless steel handle attaches to the front of the door for opening and closing.

Replace your cracked, broken, or worn wall oven door handle. This handle installs on the front of the oven door for safe opening and closing.

Inner door glass panel for wall ovens and ranges. Replace if cracked, scratched, broken, or missing. Installs between outer door layers for visibility.

Mounting bracket that secures the glass panel in your wall oven door. Replace if the bracket is cracked, bent, or missing to properly hold the glass in place.

Fastens panels, brackets, trim, and hardware in your oven or range. Replace missing, stripped, or damaged screws to eliminate rattles and secure components.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Self-tapping screw used in range assembly. Features 8-18 thread size and 0.375 inch length. Also used in some washer models as cross-appliance hardware.

This 10-32 x 3/8 machine screw secures appliance components. It keeps panels, brackets, and trim firmly attached so everything stays aligned and quiet during operation.

• Fastens metal parts using a 10-32 thread in pre-tapped holes or with a matching 10-32 nut
• Maintains proper alignment of panels, brackets, and trim to reduce vibration and rattling
• Replace if the original screw is missing, stripped, rusted, or damaged
• Using the correct hardware helps restore a secure, factory-tight fit

• Disconnect power; shut off gas supply if applicable. Allow the appliance to cool completely before servicing
• Note screw locations/lengths and replace like-for-like
• Start threads by hand to avoid cross-threading; snug with the appropriate driver—do not overtighten
• If the receiving threads are damaged, repair or replace the mating component before installing
