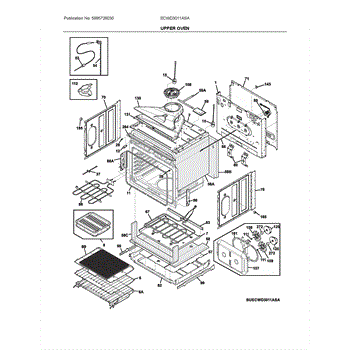

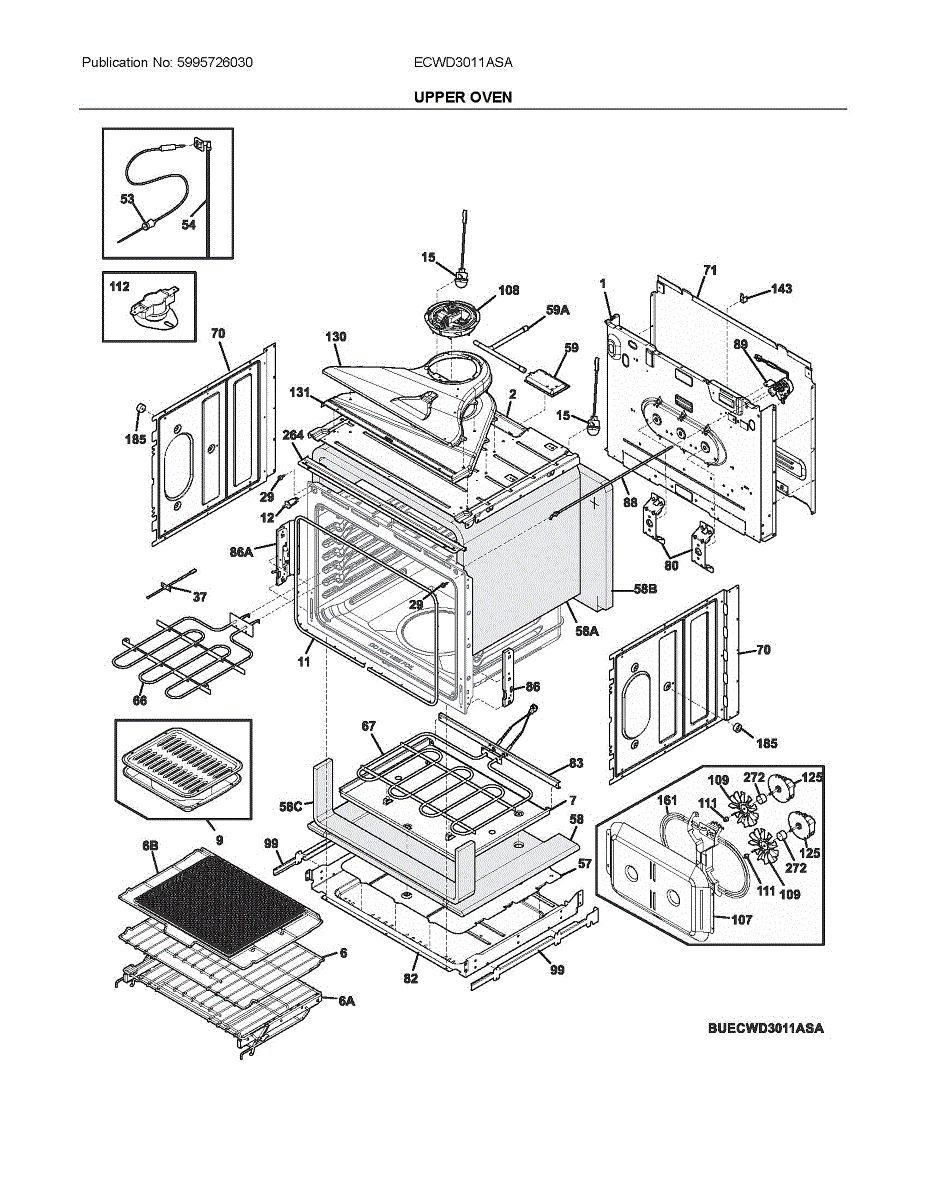

Parts for Electrolux ECWD3011ASA: Upper Oven Parts

This rack assembly is a direct-fit replacement oven rack that restores stable support for cookware and baking pans. It helps bring back smooth sliding and proper positioning for safe, even cooking. What it does

• Supports cookware and bakeware inside the oven so pans sit level and cook evenly
• Restores smooth slide-in/slide-out operation
• Replaces worn or warped racks that cause sagging, rubbing, or uneven cooking
• Helps prevent pans from tilting or shifting when placing or removing items

• Allow the appliance to cool and disconnect power before installing
• Remove oven racks and slides per the manufacturer's instructions to access the assembly
• Handle edges carefully; wear gloves to avoid cuts from sharp metal
• Test rack fit and movement before using the oven for cooking

The Rack is an OEM part for Frigidaire ranges. It provides a sturdy surface for placing cookware and baking sheets, allowing for even cooking and optimal heat circulation within the oven.

Causes of a bad rack can include prolonged exposure to high temperatures, heavy loads causing the rack to bend or warp, and normal wear and tear from frequent use.

Symptoms of a bad Rack include:

• Warping or bending of the rack, making it difficult to place items levelly
• Rust or corrosion, which can affect the cleanliness and safety of the cooking surface
• The rack not fitting properly within the oven, leading to instability or difficulty in sliding the rack in and out

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This door gasket seals the refrigerator/freezer compartment to keep cold air in and reduce energy loss. It restores a tight door closure so the appliance maintains consistent cooling and runs efficiently. What it does:

• Forms an airtight seal around the refrigerator or freezer door edge to prevent warm air infiltration
• Helps maintain proper internal temperature and reduce frost buildup in the freezer
• Can stop excess running or cycling caused by a leaking door seal
• Fits in the door channel and compresses when the door closes for a secure seal

• One door gasket as shown

• Check the gasket channel and mounting surface for debris or damage before installing
• Warm the gasket to ease installation and ensure proper seating in the channel
• Use common hand tools; heavy force or sharp tools can damage the seal—replace if torn or excessively worn

This replacement switch restores reliable control of a selected function by opening or closing an electrical circuit inside your appliance. When the original switch wears out, buttons may stop responding or features may not activate consistently.

• Opens/closes an electrical circuit when the button/actuator is engaged
• Routes power or sends a signal to the control or component
• Common symptoms: no response when pressed, intermittent operation, or function won't start
• May show signs of heat damage, loose terminals, or inconsistent "click" feel

• Disconnect power at the breaker before servicing
• Photograph or label wire positions to ensure correct transfer to the new switch
• Move wires one at a time; fully seat connectors on the correct terminals
• Reassemble, restore power, and test the function activated by the switch

The Range Lamp Assembly is an OEM part for Frigidaire stoves and ranges. It consists of the halogen light bulb, lens cover, and wiring harness necessary to illuminate the oven cavity. This lamp assembly provides light to the cooking and baking space, making it easier to view food and monitor cooking progress.

Symptoms of a bad range lamp assembly include:

• The oven light not turning on at all
• Dim, flickering, or intermittent light
• Burned out or blown light bulb
• Cracks or damage to the lens cover

Causes of failure can be a burned out light bulb, broken wiring, or damage from impact or heat over time.

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This small replacement spacer positions and secures appliance components to maintain correct alignment and fit. Installing the spacer restores proper panel spacing and reduces vibration where a worn or missing spacer causes looseness or rubbing. What it does:

• Maintains the correct gap between panels, trim, or assemblies to ensure parts fit flush
• Keeps components aligned to prevent rubbing, binding, or uneven wear
• Helps reduce vibration and rattling caused by a missing or damaged spacer
• Preserves original part spacing for reliable operation of the surrounding components

• Disconnect power to the appliance before any service to avoid shock or injury
• Remove any trim or fasteners that block access; keep track of screws and small parts
• Match the new spacer's orientation to the original; do not force parts into place

The Temperature Sensor is an OEM part for Frigidaire ovens. It monitors and helps regulate the oven's internal temperature, ensuring consistent cooking results by accurately detecting temperature changes. This sensor is crucial for the oven's control system to maintain the desired cooking temperature.

Symptoms of a bad Temperature Sensor include:

• Inaccurate oven temperature readings,
• Oven not heating to the set temperature,
• Oven overheating,
• Frequent temperature fluctuations during use.

Causes of a sensor failure can include prolonged exposure to high temperatures, electrical surges, or a breakdown of the sensor's components due to normal wear and tear.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Oven Meat Probe is an OEM replacement part for Frigidaire ovens and ranges. It is used to accurately monitor the internal temperature of meat and other food items as they cook inside the oven.

Causes of a bad oven meat probe include damage to the temperature sensor or wiring over time from repeated high heat exposure during cooking. The wiring can fatigue and become brittle or the connector can corrode from steam and debris inside the hot oven area.

Symptoms of a bad oven meat probe include:

• Temperature readings that do not correspond to the food's actual doneness
• Inaccurate or inconsistent readings on the controller display
• The controller does not recognize that the probe is connected
• Physically damaged probe components like a cracked sensor tip

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore ranges.

This cabinet insulation panel helps reduce heat transfer into the refrigerator cavity to improve cooling efficiency and reduce frost buildup. It fits behind the liner to help maintain consistent internal temperature. What it does

• Replaces worn or missing cabinet insulation that can allow warm air into the appliance
• Helps reduce frost buildup and overworking of the compressor when functioning properly
• Improves cooling efficiency and helps stabilize interior temperature
• Works as part of the refrigerator's thermal barrier around the compartment

• One cabinet insulation panel

• Disconnect power to the appliance before starting any repair
• Remove interior panels/preservations as needed to access the insulation per OEM instructions
• Handle the panel carefully to avoid tearing or compressing the insulation; re-seat evenly for best fit
• If adhesive or fasteners are used, replace with OEM-approved materials and follow manufacturer guidance

A direct-replacement bake element that restores oven heat for baking and roasting. Replaces a worn or broken oven heating element to help return consistent baking temperatures and even cooking performance. What it does:

• Heats the oven cavity for baking and roasting.
• Commonly replaced when the oven won't reach temperature or baking is uneven.
• Works with electric ranges and wall ovens that use a separate bake element.
• Does not control temperature—works with the oven's thermostat and controls.

• One bake (oven) heating element.

• Disconnect power at the breaker before starting any repair.
• Typically mounts with two screws and connects to two terminal wires; verify terminals match before installing.
• Handle carefully to avoid bending or damaging the element; test after installation to confirm proper operation.

The Fan Motor Assembly is an OEM part for Frigidaire wall ovens. This part powers the fan responsible for circulating air within the oven, ensuring even heat distribution for consistent cooking and baking results.

Causes of a bad fan motor assembly can include wear and tear over time, electrical issues such as short circuits or power surges, and physical damage from debris or impacts.

Symptoms of a bad Fan Motor Assembly include:

• The oven not heating evenly or taking longer to reach the desired temperature
• Unusual noises coming from the oven during operation
• The fan not running or running intermittently
• Error codes related to the fan or airflow

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement fan blade mounts to the appliance's fan motor to move air as designed. Installing a new blade restores proper airflow and helps reduce vibration or noise caused by bent, cracked, or worn fins. What it does

• Attaches to the fan motor shaft to move air through the cavity or across internal components
• Supports even air circulation or cooling performance, depending on model
• Helps resolve issues such as loud scraping/whirring, vibration/wobble, weak airflow, or visible blade damage

• One fan blade

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Access the fan assembly from the rear panel or inside the oven behind the fan cover (varies by model); wear gloves—edges can be sharp
• Note blade orientation/rotation and securely reinstall using the original fastener(s)
• Hand-spin the blade to ensure clearance and free movement before reassembly and testing

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

A replacement evaporator fan motor that circulates cold air across the evaporator and through the fresh food and freezer compartments to help maintain even temperatures and consistent cooling performance. What it does:

• Powers the evaporator fan to move cold air through the refrigerator and freezer.
• Restores airflow when a failed fan motor causes uneven cooling or warm spots.
• Stops continuous frost build-up on the evaporator caused by poor or no airflow.
• Eliminates loud grinding, buzzing, or rattling noises coming from the freezer area.

• Disconnect power to the appliance before attempting any repair to avoid electrical shock.
• Access typically requires removing interior panels or the evaporator cover; keep track of screws and clips.
• Handle the fan blade carefully and test operation after restoring power.

This spacer positions and supports components to maintain proper alignment and clearance in the appliance. It prevents rubbing and ensures panels or parts sit correctly for reliable operation. What it does:

• Keeps panels, brackets or assemblies spaced correctly to prevent contact and wear
• Restores proper alignment to reduce vibration, noise or rubbing symptoms
• Maintains clearance for airflow or moving parts where specified
• Provides a stable mounting point for adjacent components

• One spacer

• Install in the location shown in the service diagram and secure with the original fasteners
• Disconnect power to the appliance before beginning service to avoid shock or injury
• If the original spacer shows damage or distortion, replace it to restore correct fit

Replacement water-line tube that routes water inside the refrigerator to the ice maker or dispenser, helping restore proper water flow and reduce leaks. Designed to match factory routing so the line fits and seals correctly at the connections. What it does:

• Carries water from the cabinet valve to the ice maker or dispenser.
• Restores normal dispenser flow and ice production when the tube is cracked, pinched, or clogged.
• Helps stop visible leaks or pooling caused by damaged or misrouted tubing.
• Matches factory bends for correct routing and clearance behind panels.

• Disconnect power and shut off the water supply before starting any work.
• Remove shelves or panels as needed for access; watch for sharp edges.
• Check and replace any worn clamps or fittings; tighten connections and test for leaks with water on before reassembling.

This is a replacement mounting screw used to secure the appliance power/control board, restoring a solid electrical board connection and preventing vibration or loose contacts. Ideal for repairs where the original screw is missing or damaged. What it does:

• Fastens the power/control board to the appliance chassis to keep connections stable
• Helps prevent board movement that can cause intermittent electrical issues or noise
• Restores proper mounting after service or component replacement

• Turn off and unplug the appliance before starting any repair
• Use appropriate screwdriver and avoid over-tightening to prevent board or thread damage
• Wear eye protection and keep small parts away from children and pets

This appliance screw fastens panels, brackets, and other components inside the unit. Replace a missing, rusty, or stripped fastener to restore a secure fit and help prevent rattles, misalignment, or premature wear.

• Secures appliance components such as panels, brackets, and covers
• Restores proper fit when an original screw is missing or stripped
• Helps reduce vibration and noise from loose parts
• Common signs: loose or misaligned parts, rattling, or a missing screw

• Disconnect power before servicing
• Match the new screw to the original for size and thread before installing
• Hand-start threads to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if they were used with the old screw

Replacement screw that secures panels, trim and internal components in compatible appliances. Restores proper fit and helps reduce rattling or loose parts when the original fastener is missing, worn, or damaged. What it does:

• Fastens panels, brackets, trim pieces and small component assemblies to the appliance frame
• Helps eliminate noise and vibration caused by loose or missing fasteners
• Replaces stripped, corroded or missing screws to restore secure mounting
• Matches OEM fit when the identical screw is required for proper alignment

• Disconnect power to the appliance before starting any repair
• Use the correct driver size to avoid cam-out or damage to the screw head
• Do not overtighten; overtightening can strip threads or crack plastic parts

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
