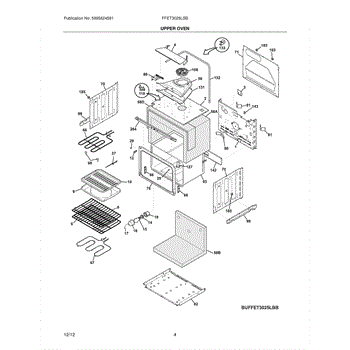

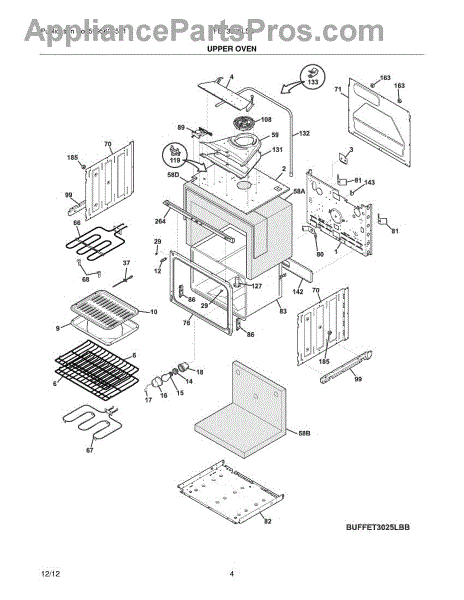

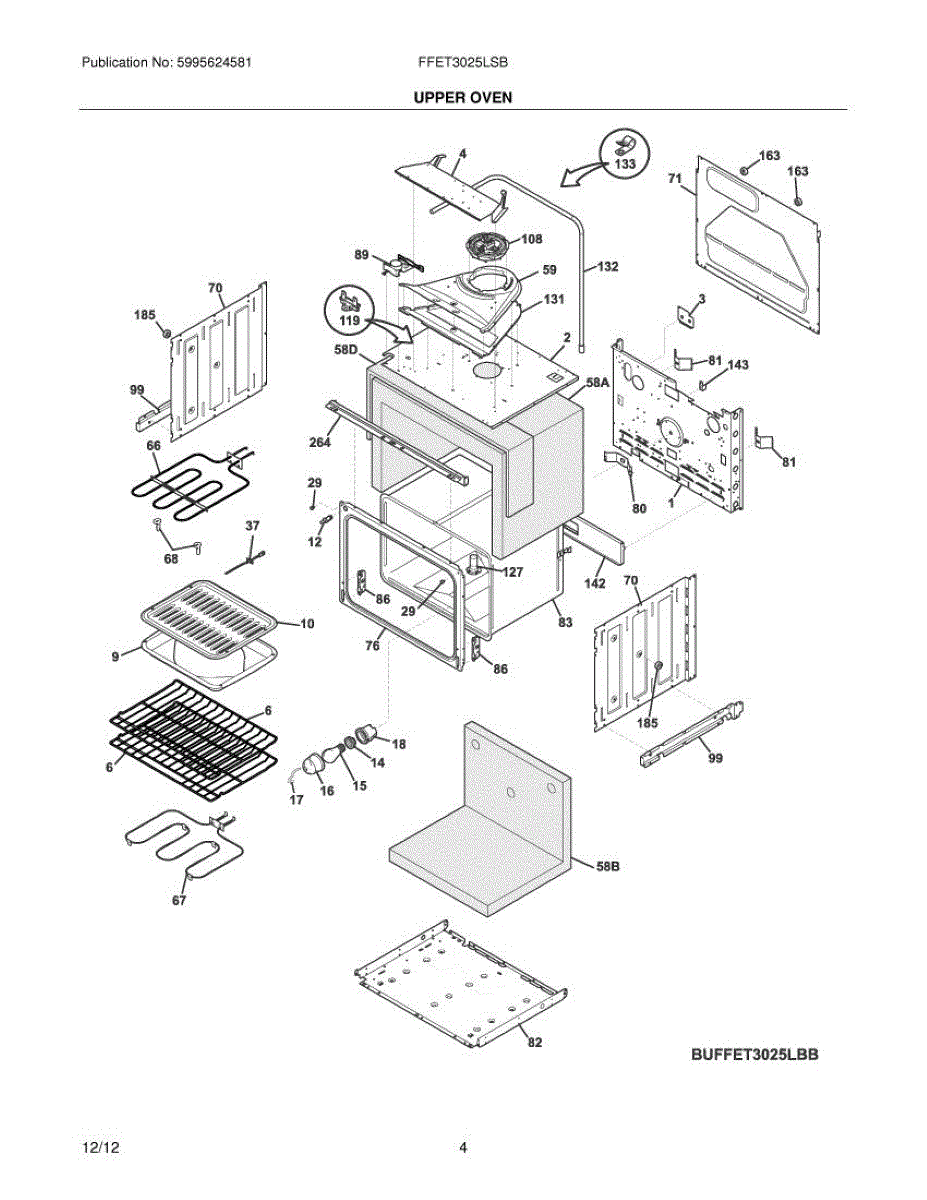

Parts for Frigidaire FFET3025LSB: 05 - Upper Oven Parts

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement switch restores reliable control of a selected function by opening or closing an electrical circuit inside your appliance. When the original switch wears out, buttons may stop responding or features may not activate consistently.

• Opens/closes an electrical circuit when the button/actuator is engaged
• Routes power or sends a signal to the control or component
• Common symptoms: no response when pressed, intermittent operation, or function won't start
• May show signs of heat damage, loose terminals, or inconsistent "click" feel

• Disconnect power at the breaker before servicing
• Photograph or label wire positions to ensure correct transfer to the new switch
• Move wires one at a time; fully seat connectors on the correct terminals
• Reassemble, restore power, and test the function activated by the switch

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This small replacement spacer positions and secures appliance components to maintain correct alignment and fit. Installing the spacer restores proper panel spacing and reduces vibration where a worn or missing spacer causes looseness or rubbing. What it does:

• Maintains the correct gap between panels, trim, or assemblies to ensure parts fit flush
• Keeps components aligned to prevent rubbing, binding, or uneven wear
• Helps reduce vibration and rattling caused by a missing or damaged spacer
• Preserves original part spacing for reliable operation of the surrounding components

• Disconnect power to the appliance before any service to avoid shock or injury
• Remove any trim or fasteners that block access; keep track of screws and small parts
• Match the new spacer's orientation to the original; do not force parts into place

The Temperature Sensor is an OEM part for Frigidaire ovens. It monitors and helps regulate the oven's internal temperature, ensuring consistent cooking results by accurately detecting temperature changes. This sensor is crucial for the oven's control system to maintain the desired cooking temperature.

Symptoms of a bad Temperature Sensor include:

• Inaccurate oven temperature readings,
• Oven not heating to the set temperature,
• Oven overheating,
• Frequent temperature fluctuations during use.

Causes of a sensor failure can include prolonged exposure to high temperatures, electrical surges, or a breakdown of the sensor's components due to normal wear and tear.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This lower bake element provides radiant heat from the bottom of the oven during Bake cycles. Replace a failed coil to restore proper preheating and even, consistent baking performance.

• Supplies bottom heat for Bake modes and maintains set temperature
• Replaces a burned-out or shorted lower element to restore oven operation
• Common symptoms: no heat in Bake, very slow preheat, uneven or undercooked results, visible blisters/cracks on the coil, or tripped breaker

• Disconnect power at the breaker before servicing; heating elements are high voltage.
• Remove oven racks; take out the element's mounting screws inside the cavity and gently pull the element forward to access wires.
• Move one wire at a time to the new element; ensure terminals are fully seated and not touching metal.
• Reinstall the element and racks, restore power, and test Bake.

This element hanger support secures a cooktop surface heating element to the range and keeps the element aligned for reliable contact and stable cooking. Replaces a worn or bent bracket to restore proper element positioning. What it does:

• Holds the surface heating element in the correct position under the cooktop
• Stabilizes the element to maintain solid electrical contact and even heating
• Helps prevent element wobble, arcing, or intermittent power to the burner
• Fits where the element connects to the terminal/anchor point on the cooktop

• 1 element hanger support bracket

• Disconnect power to the appliance before attempting any service
• Remove the cooktop or element as required to access the hanger; follow OEM disassembly steps
• Inspect element terminals and surrounding parts for damage while replacing the bracket

This inner cabinet liner restores the refrigerator/freezer interior to a smooth, cleanable surface and helps protect internal components and insulation from moisture and damage. It's a direct-fit replacement designed to match the original cabinet shape. What it does:

• Replaces a cracked, warped, or stained interior liner to restore a finished, sanitary surface
• Helps contain spills and makes routine cleaning easier
• Protects insulation, evaporator area, and internal wiring from moisture and damage
• Provides the finished mounting surface for shelves, bins, and interior components

• One inner cabinet liner as shown

• Disconnect power and empty the compartment before beginning; follow OEM service instructions
• Removal/installation may require removing shelves, trim, and possibly doors; keep fasteners and clips organized
• Use manufacturer-specified fasteners and sealants where required; avoid modifying the liner
• If clips or mounting hardware are damaged, replace them to ensure a secure fit.

Replacement thermal cutoff (TCO) switch that protects wall ovens from overheating by interrupting power when temperatures exceed safe limits. Restores the oven's over-temperature safety cutoff so cooking stops when an unsafe heat condition occurs. What it does:

• Acts as a temperature safety cutoff that opens to stop power flow when the oven overheats.
• Helps prevent continued heating when a primary thermostat or control fails.
• Commonly replaced when the oven shuts off mid-cycle, won't maintain temperature, or stops heating unexpectedly.
• Used when there are unusual odors or signs of overheating around the control area.

• Disconnect power at the breaker before beginning any service.
• Access may require removing the oven from its cabinet or removing the control panel—follow the oven's service instructions.
• Replace one-for-one, matching the terminal wiring and mounting; avoid bending or stressing the new part.

NOTE: The factory has removed the catalyst (honeycomb) from this tube adapter. The catalyst is no longer available.

This water fill tube delivers water to the ice maker so it can fill and form ice properly. Replaces a damaged or clogged tube to restore proper water delivery and reduce leaks. What it does:

• Directs the water supply to the ice maker fill cup for reliable filling.
• Helps prevent drips and leaks caused by cracked, split, or deformed tubing.
• Restores normal ice production when a damaged fill tube is the cause of underfilling.
• Reduces the chance of water pooling or freezer floor ice buildup near the ice maker.

• One water fill tube specified by part number.

• Turn off power and shut off the water supply before attempting service.
• Inspect hose connections and any clamps; replace clamps if corroded or worn.
• Handle gently to avoid kinking; route the tube as the original to prevent interference with moving parts.

This spacer positions and supports components to maintain proper alignment and clearance in the appliance. It prevents rubbing and ensures panels or parts sit correctly for reliable operation. What it does:

• Keeps panels, brackets or assemblies spaced correctly to prevent contact and wear
• Restores proper alignment to reduce vibration, noise or rubbing symptoms
• Maintains clearance for airflow or moving parts where specified
• Provides a stable mounting point for adjacent components

• One spacer

• Install in the location shown in the service diagram and secure with the original fasteners
• Disconnect power to the appliance before beginning service to avoid shock or injury
• If the original spacer shows damage or distortion, replace it to restore correct fit

Specs: 8 x 0.750

This mounting bracket secures internal panels or components to the appliance frame, restoring stable support and alignment for proper operation. Use when a bracket is bent, broken or missing to reduce rattling and keep parts positioned correctly. What it does:

• Anchors panels or components to the cabinet/frame to prevent movement and vibration
• Restores proper alignment of doors, panels or internal assemblies
• Stops rattling or buzzing caused by loose or damaged support hardware
• Helps maintain safe clearance between parts and wiring or moving components

• Disconnect power to the appliance before starting any repair
• Basic hand tools typically required; follow OEM instructions for correct fastener locations
• Inspect adjacent fasteners and mounting surfaces; replace any damaged screws or clips
• If bracket is corroded or severely deformed, replace rather than re-bend to ensure proper fit

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This spacer sets the correct gap between mating parts in your appliance's assembly, preventing rubbing and misalignment. Replace a missing or worn spacer to restore a solid fit, reduce noise, and protect surrounding components.

• Maintains proper spacing between components for correct alignment and operation
• Reduces metal-to-metal contact, squeaks, and premature wear
• Helps fasteners and panels seat securely
• Typical symptoms when failed: loose or rattling parts, uneven gaps, or visible wear marks

• Disconnect power; for gas models, shut off the gas. Allow the appliance to cool completely.
• Access the assembly per your model's diagram; note the original orientation/stack-up before removal.
• Reuse original fasteners if serviceable; hand-start threads and tighten snugly to avoid damaging the spacer.
• Verify alignment and clearances before fully reassembling. Quantity and location vary by model.

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment
