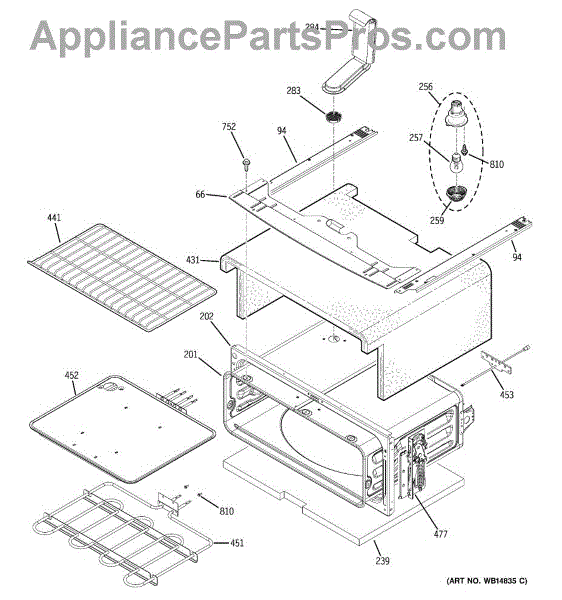

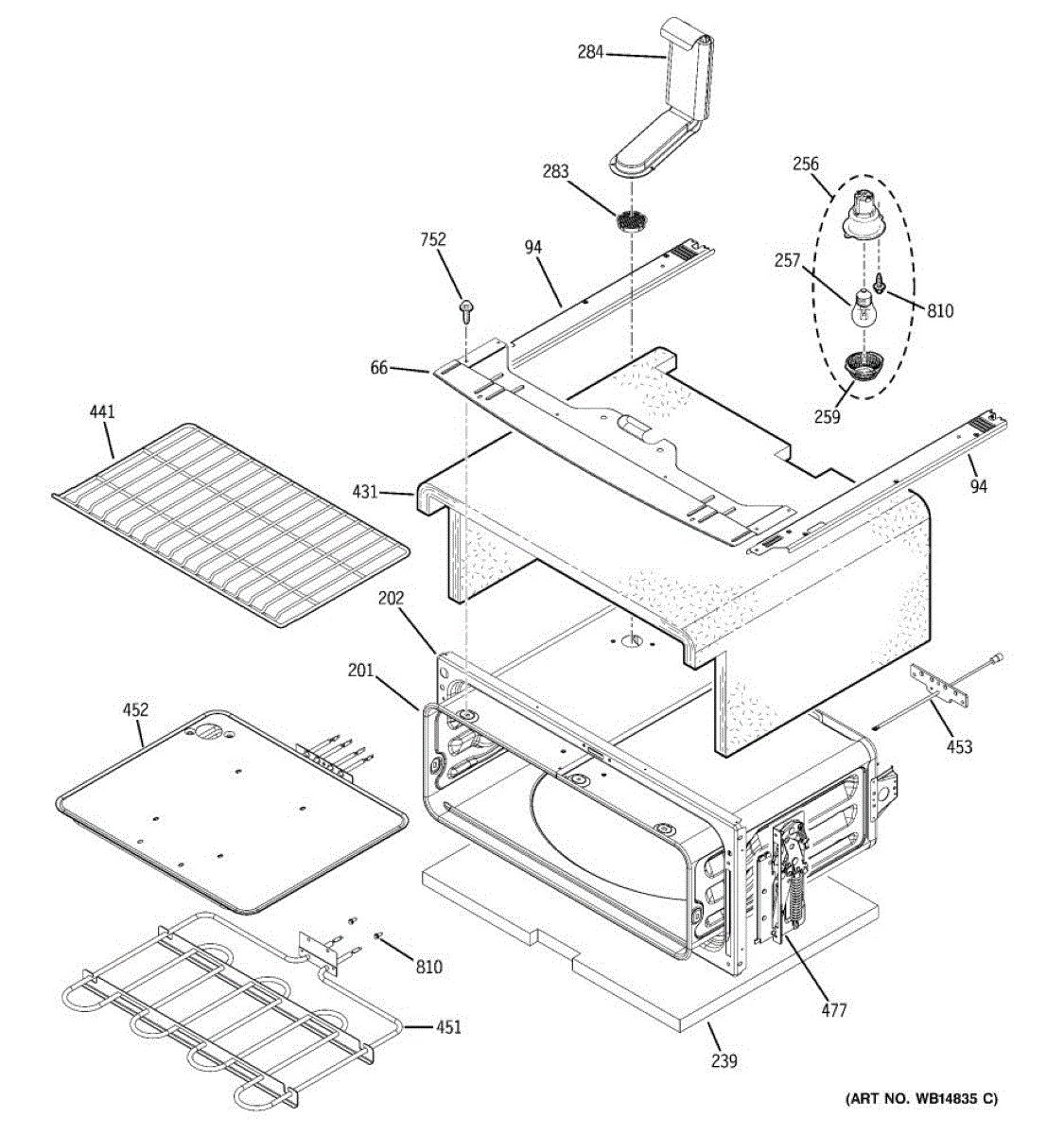

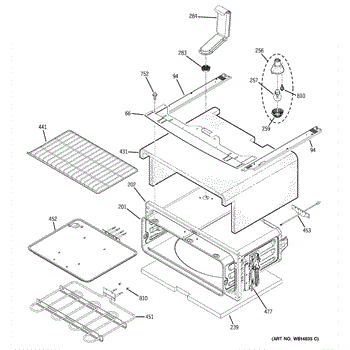

Parts for Ge JCB850SR2SS: 03 - Upper Oven Parts

The Oven Lamp Holder is an OEM part for GE ovens. This component securely holds the oven light bulb in place, ensuring proper illumination inside the oven cavity for better visibility during cooking and baking.

Causes of a bad lamp holder can include repeated exposure to high temperatures, physical damage, or electrical issues. A malfunctioning lamp holder can lead to the oven light not functioning correctly or at all.

Symptoms of a bad oven lamp holder include:

• The oven light not turning on
• Flickering or intermittent operation of the light
• Visible damage or corrosion to the lamp holder
• The light bulb not staying securely in place

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This oven bulb lens covers and protects the interior light bulb while letting you clearly see food as it cooks. Replace a cracked or missing lens to restore safe, even illumination inside the oven cavity.

• Covers the oven light bulb and diffuses light for better visibility
• Shields the bulb from grease, splatter, and moisture
• Helps keep the bulb securely enclosed
• Common signs it's needed: lens is cracked, missing, discolored, or won't stay in place

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely
• Wear gloves to protect hands from sharp edges and hot surfaces
• Remove the existing lens by releasing the retainer or turning it, per your model's design; retain any clip or gasket for reuse
• Seat the new lens fully and restore power to test the light

The Oven Rack is an OEM replacement part for GE ranges. It provides an elevated surface for baking, roasting or broiling food inside the oven cavity.

Causes of a bad rack can include warping or discoloration from exposure to high heat over time. Cracks or breakage may also occur due to mishandling or loading the rack with excess weight.

Symptoms of a bad oven rack include:

• Food not baking or cooking evenly while on the rack
• Difficulty sliding the rack in and out of the oven
• Cracks, bends or broken welds in the rack frame

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bake element is the lower oven heating element that produces the heat needed for bake cycles, restoring oven temperature and consistent cooking performance when the original element is damaged or not heating. What it does:

• Heats the oven cavity during bake cycles to maintain set temperatures for baking and roasting.
• Restores heating when a burned, broken or visibly damaged element causes little or no heat.
• Helps correct uneven cooking or longer-than-normal preheat times when caused by a faulty element.
• Direct-fit replacement designed to mount in the oven's lower cavity and connect to existing wiring.

• Disconnect power to the appliance at the circuit breaker before starting any work.
• Allow the oven to cool completely and remove oven racks before accessing the element.
• Replace the element mounting screws and wire terminals exactly as removed; ensure tight, secure connections.

This broil shield is the oven's rear cavity panel that protects the oven back and nearby components from direct broiler heat. It helps channel heat for safer broiling and prevents heat damage to internal parts. What it does:

• Deflects direct broiler heat away from the oven back wall and components
• Helps maintain proper broiling performance by directing heat toward food
• Reduces risk of heat-related damage, discoloration, or premature wear on internal oven parts
• Limits grease and debris contact with sensitive rear components

• Disconnect power (and gas supply on gas ovens) before servicing the oven
• Remove oven racks and, if required, the broil element to access the shield
• Handle edges carefully—metal parts can be sharp
• Keep hardware removed during disassembly; screw locations for reassembly

The Temperature Sensor is an OEM part for GE ovens. It plays a role in monitoring and regulating the oven's internal temperature, ensuring accurate heating and cooking performance. This sensor works by detecting the temperature inside the oven cavity and communicating with the main control board to maintain the set temperature throughout the cooking process.

Causes of a bad Temperature Sensor can include exposure to extreme temperatures leading to sensor failure, wear and tear over time, or damage from oven cleaning agents or spills that may affect its functionality.

Symptoms of a bad Temperature Sensor include:

• Oven not reaching the set temperature.
• Overheating or underheating, leading to unevenly cooked food.
• Frequent error messages from the oven's electronic control.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity
