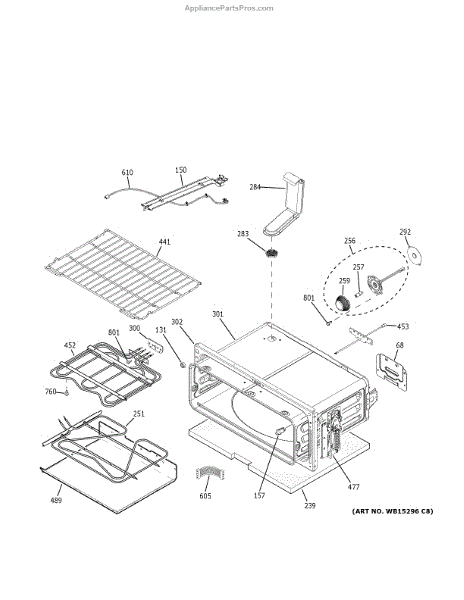

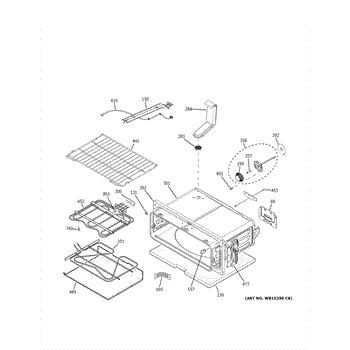

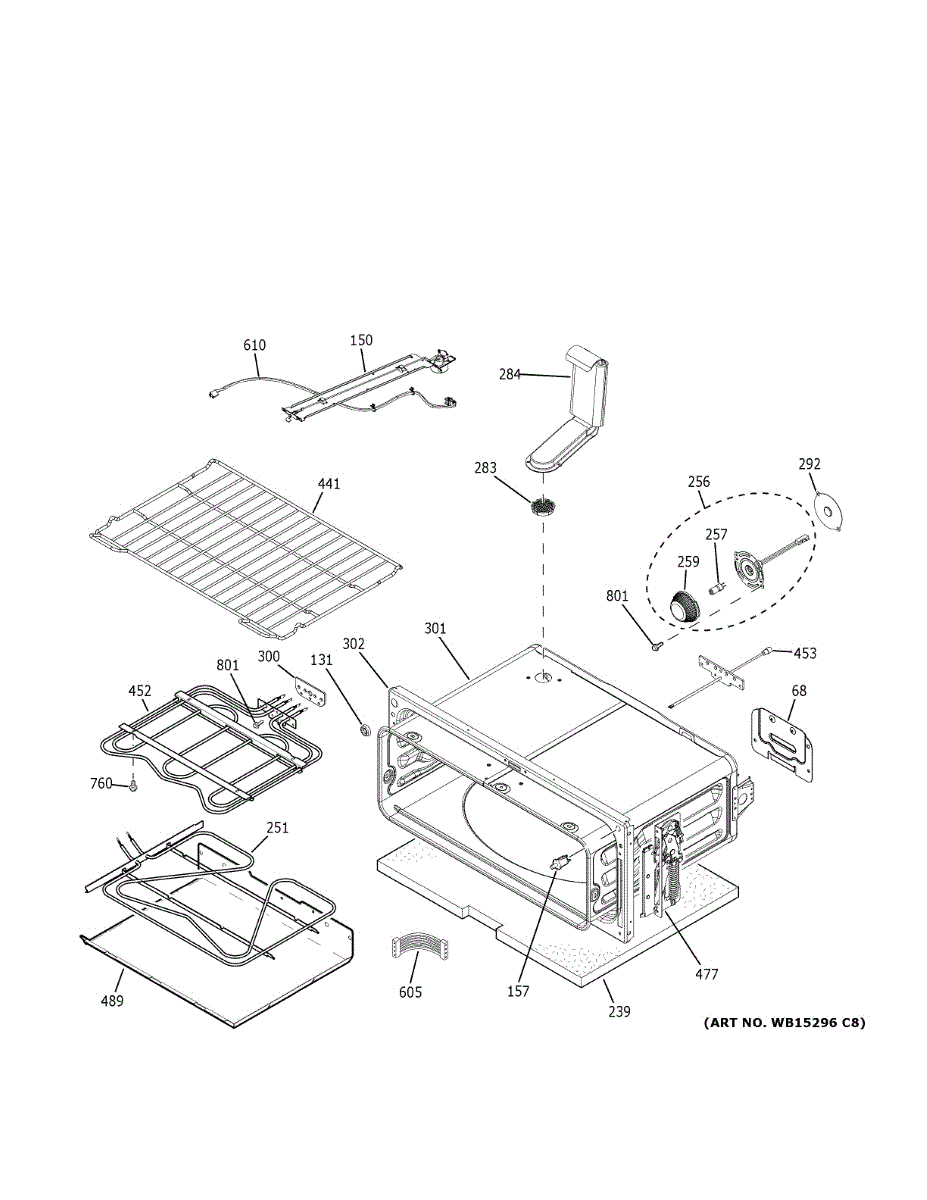

Parts for Ge CES750M2N1S5: Upper Oven Parts

A replacement latch assembly that secures and releases the oven door for normal cooking and self-clean cycles. Restores proper door engagement to help the oven maintain temperature and complete locking cycles safely. What it does:

• Secures the oven door closed so the appliance can heat and maintain temperature.
• Engages/disengages during self-clean or lock cycles to prevent accidental opening.
• Stops common symptoms like a door that won't stay closed or won't latch properly.
• Works as the mechanical interface between the door and the range/oven frame.

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Access usually requires removing the oven door or front access panel; follow the oven's service instructions.
• Handle springs and small fasteners carefully; keep track of any clips or screws removed.

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

This halogen lamp with a G9 base restores bright, dependable interior lighting in your appliance. Replace a burned-out or damaged bulb so you can clearly see food and monitor cooking progress without opening the door. What it does:

• Provides bright illumination inside the appliance cavity when the light is switched on or the door is opened
• Restores visibility after the original bulb fails
• Common symptoms: no light, dim or flickering light, intermittent operation, or a visibly damaged capsule
• Direct-fit G9 bi-pin base installs into the existing socket

• 1 halogen lamp (G9 base)

• Disconnect power and allow the appliance to cool completely before service
• Remove the lens/cover as directed in your model's manual
• Handle the new halogen bulb with clean gloves or a tissue—oils on skin can shorten bulb life
• Align the G9 pins and press straight into the socket; replace the cover and restore power

This smoke eliminator is a charcoal-based filter designed for recirculating range and microwave venting. It helps reduce cooking odors and airborne grease particles when the appliance is used in non-vented (recirculating) mode. What it does:

• Adsorbs and reduces cooking odors and smoke in recirculating vent systems
• Helps capture particles that pass through the venting fan to keep kitchen air fresher
• Commonly replaced when strong cooking smells persist or airflow seems less effective
• Fits into the appliance's recirculating filter slot to restore odor control

• One (1) smoke eliminator charcoal filter

• Turn power to the appliance off before accessing the vent/filter area
• Remove the vent or grille per your appliance manual, replace the old filter with the new one, and reassemble
• No special tools usually required; refer to your model's instructions for exact access steps
• Replace periodically or when odor reduction becomes noticeably worse

This oven rack is a replacement chrome wire shelf that supports cookware and bakeware inside the oven, restoring proper airflow and cooking position. It slides into the oven's rack rails and provides a stable surface for pans and trays. What it does

• Replaces a missing, bent, or damaged oven rack so cookware sits level during baking and roasting
• Restores proper rack spacing and airflow for even cooking
• Allows trays and pans to slide in and out smoothly when rack rails are intact
• Helps prevent cookware from tipping or sliding during use

• One chrome oven rack

• No tools typically required; slide rack into the oven's existing rack guides until it seats securely
• Inspect rack rails for damage or buildup and clean before installing to ensure smooth operation
• Use oven mitts or heat-resistant gloves when removing or installing racks in a hot oven
• Do not modify the rack; replace if bent or warped

A replacement broil shield that protects the oven cavity and surrounding components from direct broil heat. Restores proper heat deflection for safer, more consistent broiling and helps prevent heat damage to insulation and wiring. What it does:

• Shields the oven back and upper cavity from direct broil flame and radiant heat
• Helps maintain even broiling by directing heat away from sensitive components
• Reduces risk of heat damage to insulation, wiring, and control compartments
• Minimizes food drips and splatter reaching internal oven parts during broiling

• Disconnect power (and gas if applicable) before beginning any repair
• Remove oven racks and broil element access panels as needed to reach the shield
• Handle part carefully; edges may be sharp—wear gloves and eye protection
• Follow OEM instructions and torque guidelines when reinstalling panels and fasteners
