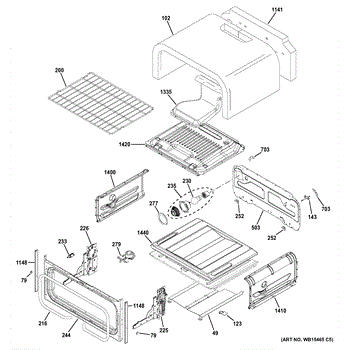

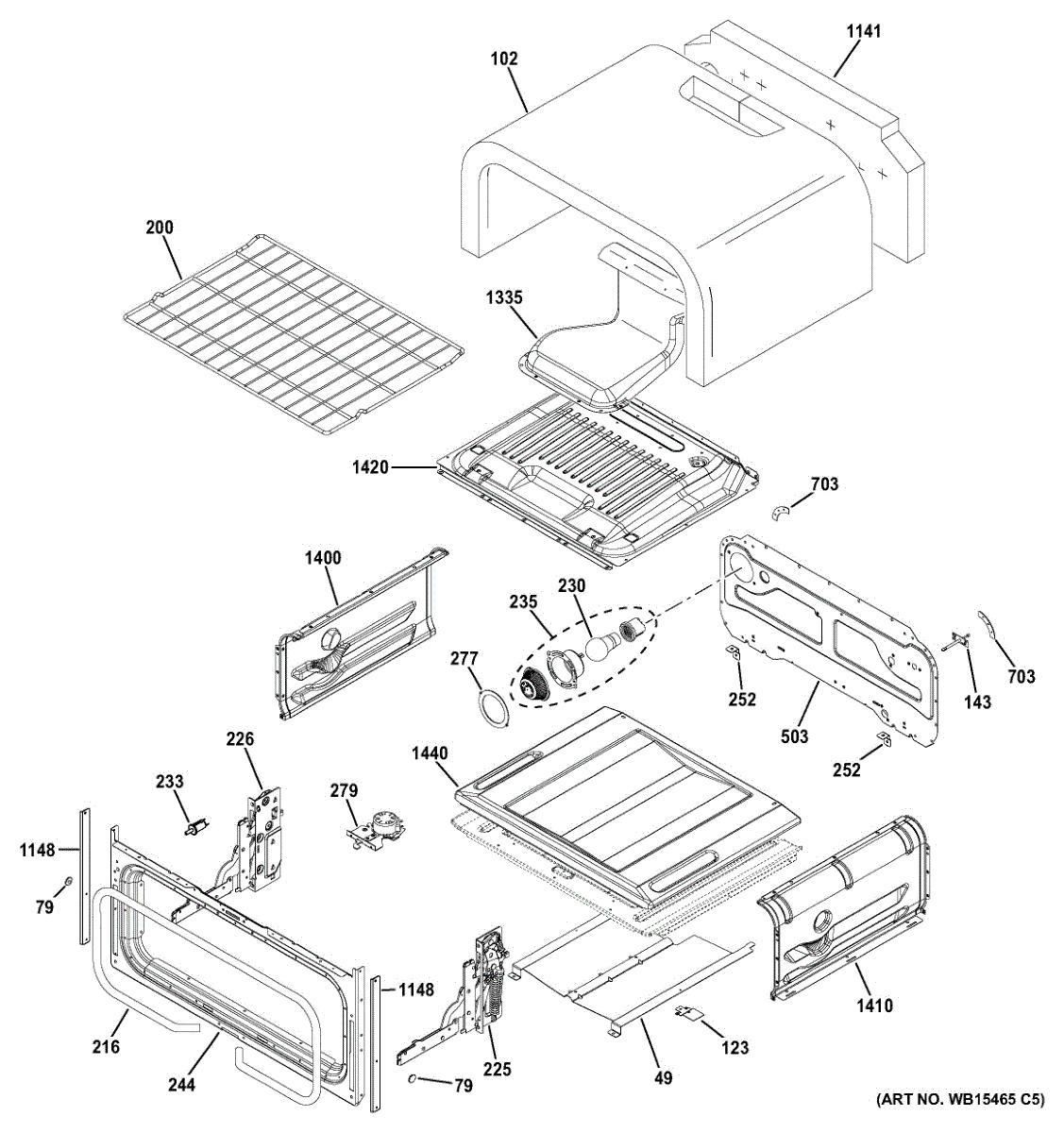

Parts for Ge JGB860DEJ4WW: Upper Oven Parts

The Sensor Assembly is an OEM component specially designed for GE slide-in electric ranges. It contains both the internal temperature sensor, as well as the electronic board that powers the oven convection fan and thermostat functions.

Causes of a bad sensor assembly can include faulty solder connections, damaged wiring from overheating, or component failure from years of use.

Symptoms of a bad sensor assembly include:

• Inability to achieve or regulate proper oven cooking temperatures
• Convection fan failing to operate as programmed
• Unexplained error codes shown on display
• Oven failing to start baking or convection cooking cycles

As a critical safety and performance mechanism, sensor stability ensures accurate temperature monitoring cycle after cycle. This genuine GE replacement sensor assembly facilitates ideal temperature control and airflow – upholding the quality of cooking your appliance was engineered for. Compatible ranges also include select KitchenAid and Monogram wall oven models.


The Oven Rack is an OEM part for GE ovens. It provides a stable and reliable surface for placing baking sheets, pans, and dishes inside the oven for cooking or baking.

Causes of a faulty oven rack can include wear and tear over time, bending or warping due to heavy items or improper handling, or damage from cleaning or harsh chemicals. A damaged or malfunctioning oven rack can lead to uneven cooking, unstable support for cookware, or difficulty in removing or inserting the rack into the oven.

Symptoms of a bad oven rack may include:

• Uneven cooking or baking results
• Difficulty sliding the rack in or out of the oven
• Bent or warped rack structure
• Instability when placing cookware on the rack

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Plunger Switch is an OEM part for GE gas ranges. It is an electro-mechanical component that activates the burners and bake/broil modes when the oven door is securely closed.

Causes of failure include worn contact points, damaged wiring, or defective internal components.

Symptoms of a bad plunger switch include:

• Inability to select oven cooking functions when door is closed
• Error messages related to unsafe door conditions
• Random activation of burners with door open
• Failure of door interlock safety feature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

The Oven Lamp Holder is an OEM part for GE ovens. This component securely holds the oven light bulb in place, ensuring proper illumination inside the oven cavity for better visibility during cooking and baking.

Causes of a bad lamp holder can include repeated exposure to high temperatures, physical damage, or electrical issues. A malfunctioning lamp holder can lead to the oven light not functioning correctly or at all.

Symptoms of a bad oven lamp holder include:

• The oven light not turning on
• Flickering or intermittent operation of the light
• Visible damage or corrosion to the lamp holder
• The light bulb not staying securely in place

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This angle support is a small metal mounting bracket that stabilizes and secures components inside the appliance, helping keep shelves, panels, or assemblies aligned for reliable operation and safe use. What it does:

• Provides structural support for interior panels, shelves, or trim to prevent sagging or misalignment
• Holds assemblies in the correct position to reduce rattling and vibration during use
• Restores proper fit and clearance when a bent or broken bracket causes shifting
• Works with fasteners to anchor components where a right-angle connection is needed

• Inspect surrounding parts and fasteners; replace any damaged screws or clips as needed
• Use the correct size fastener and torque to avoid stripping or cracking adjacent parts
• Disconnect power and follow manufacturer safety guidelines before working near electrical components

This oven light gasket fits between the glass lens and the oven liner. It restores a proper seal around the light opening to help keep grease and moisture out of the light cavity and hold the lens securely in place. What it does:

• Seals the joint between the oven light lens and the cavity wall
• Helps prevent grease and moisture from entering the light assembly
• Keeps the lens snug to reduce looseness or rattling
• Replace if the gasket is cracked, flattened, brittle, missing, or if moisture/grease is visible around the lens

• One oven light lens gasket

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the light lens/retainer as your model requires (unscrew lens or release clips)
• Note gasket orientation and clean the mating surfaces
• Seat the new gasket evenly and reinstall the lens; do not overtighten the glass

The Latch Automatic is an OEM part for GE gas ranges. It is responsible for securely latching the oven door shut during baking and broiling cycles.

Causes of a bad latch include normal wear and tear, abuse like slamming the door, or failure of electronic sensors meant to monitor latch position.

Symptoms of a bad automatic latch include:

• The door popping or bouncing open during use
• Difficulty latching the door fully in the closed position
• Loose movement, wobbling, or shaking of the door when latched

This OEM GE replacement part is also compatible with Hotpoint, RCA, and select Kenmore models.

This oven bottom is the replacement inner floor panel that covers the oven cavity to protect components and simplify cleanup. It restores a smooth, durable surface for normal baking and broiling. What it does:

• Replaces a warped, rusted, cracked or damaged oven floor panel that can trap food and spills
• Protects the lower cavity and heating elements from drips and debris
• Helps maintain proper airflow and a consistent cooking surface inside the oven
• Makes cleaning easier by providing a single, removable panel

• Disconnect power (or gas) to the appliance before beginning service
• Remove oven racks and any access panels needed to access the old oven bottom
• Use proper tools and follow OEM instructions; the heating element or broiler assembly may need temporary removal on some models
